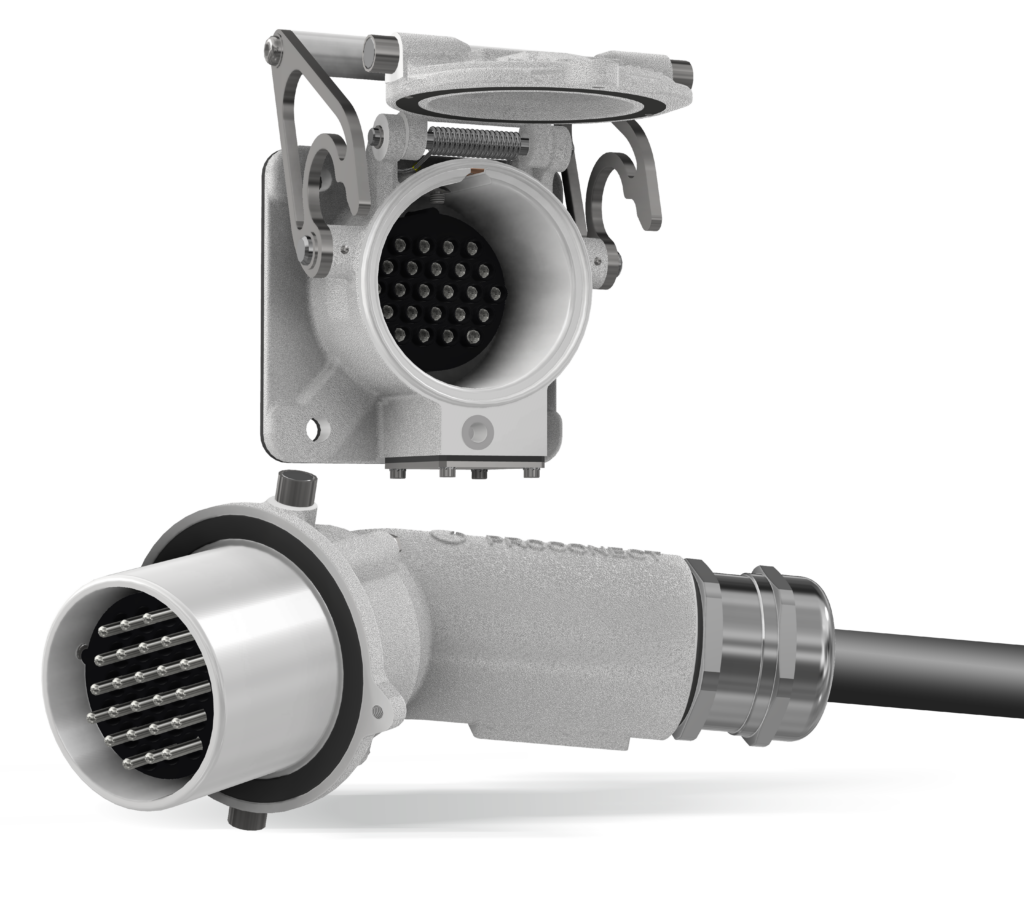

3PX3 – 24 poles
30A
500V
IEC 80005-1 Annex C
Onshore power supply connector for control circuit
24 poles connector used for shore power supply of cruise vessels 24V & 110V control circuits following IEC 80005-1 Annex C.
- Contacts max. : 23P+E
- Cable section : 1,5 mm² (AWG 16) / 2,5 mm² (AWG 14) / 6 mm² (AWG 10)
- Cable diameter : max. 42 mm
- Termination : to crimp or solder
- Dielectric withstand : 2,5 kV AC 1 min.
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : PBT (complying EN 45545-2)
- Fastenings : Stainless steel
- Temperature : -40° +120° C
- Salt spray : 96H
- Ind. protection : IP66 - IK10
Connectors

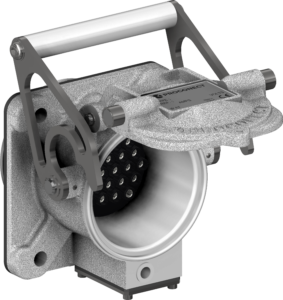

Socket

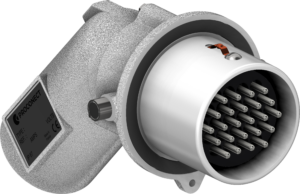

30° angled plug
Plug with conduit adaptor
Plug with cable gland
3PX3 - 24 poles variation
You can find other variations of 3PX3 - 24 poles, suiting various applications and with some structural or standard-fitting modifications.
Options
Pre-wired connectors
Connectors can be supplied pre-wired depending on cable availability or whether the cable is supplied in advance.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
Connection boxes
Our design office can conduct a comprehensive feasability study for your request, ensuring compliance with electrical standards and seamless integration into your structure. With full customization capabilities, our cabinets or wall-mounted boxes adapt to any of your specifications and your environmental constraints.
Every project undergoes rigorous validation before production, guaranteeing performance, durability and aherence to standards.
Every project undergoes rigorous validation before production, guaranteeing performance, durability and aherence to standards.

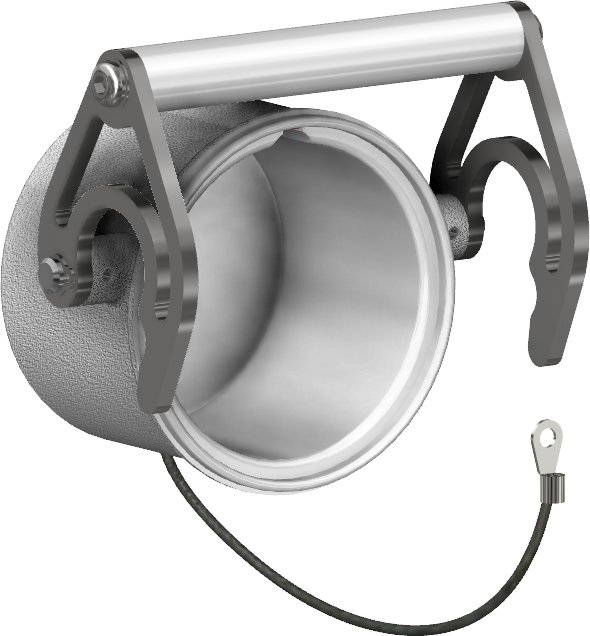

Plug cap
AS7G aluminium plug cap to ensure IP66 of a disconnected connector.

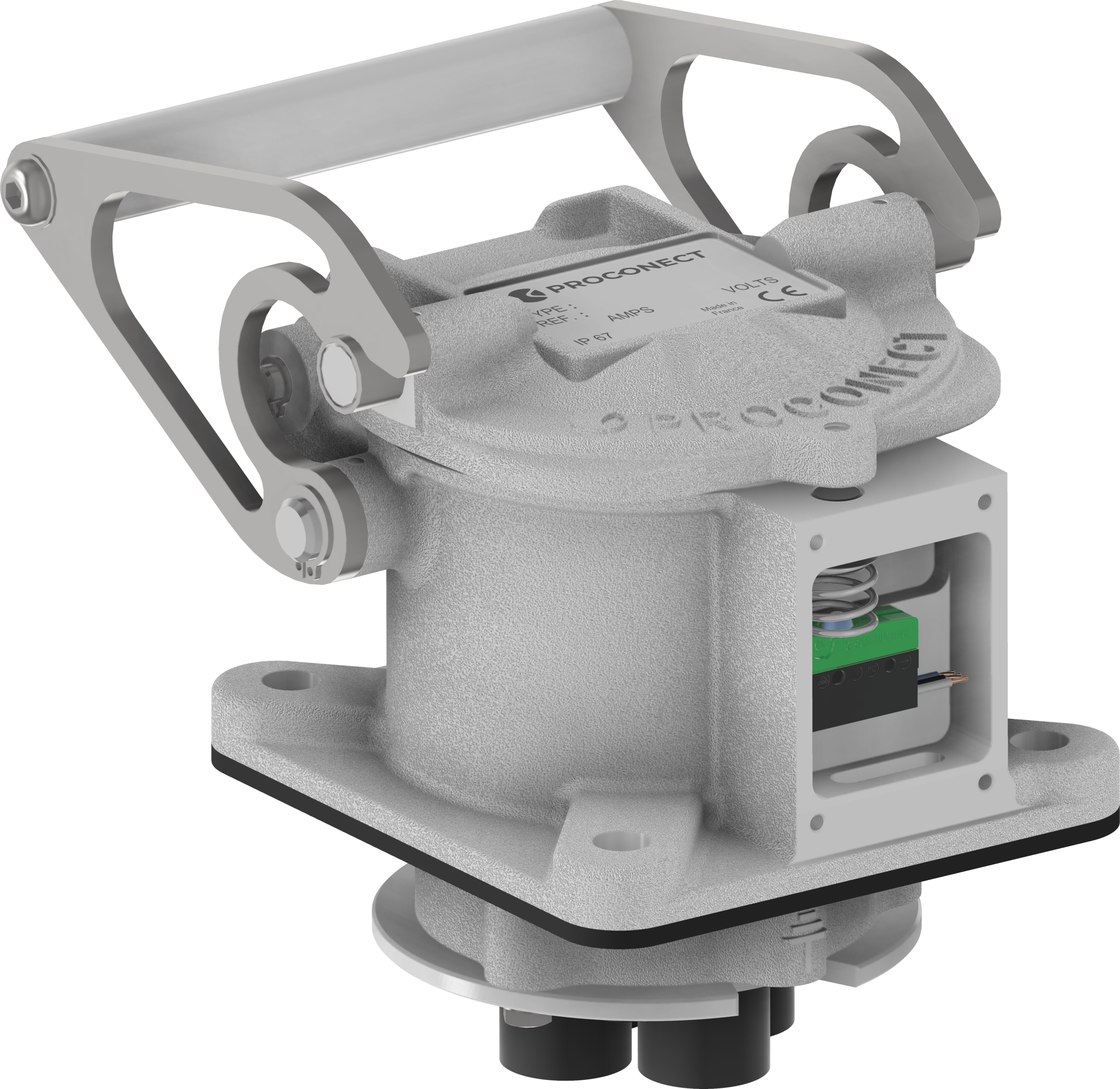

Microswitch
Sockets can be provided with a microswitch, activated by the socket lid or by the insertion of the plug.

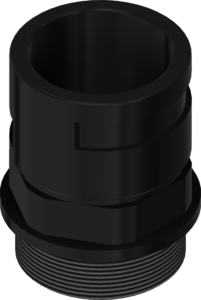

Conduit adaptor
Conduit adaptor added to the plug or available individually.

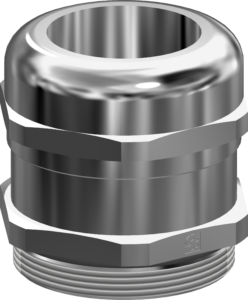

Cable gland
Cable gland added to the plug or available individually.

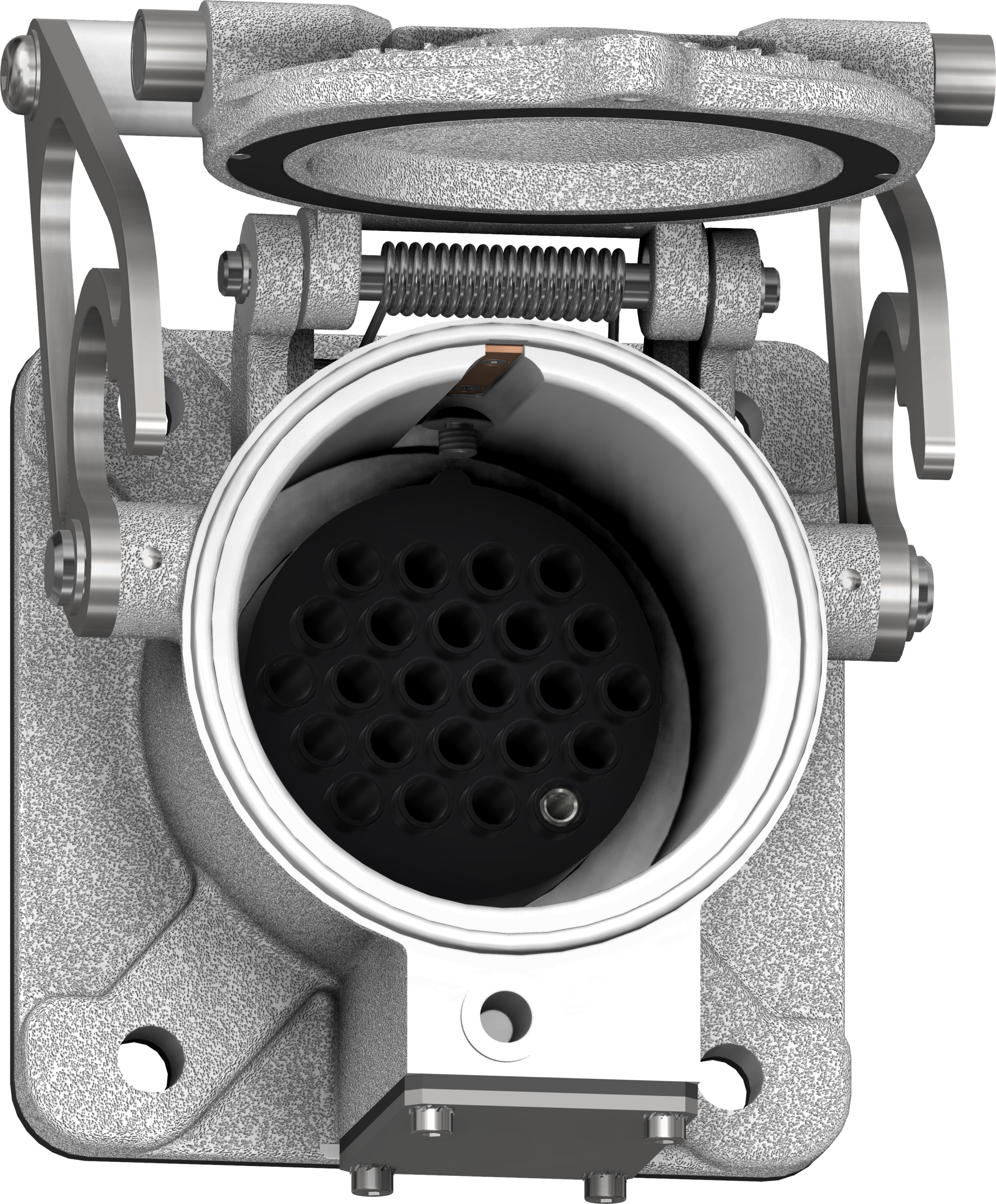

Dummy socket
Socket with empty insulator fitted only with earth for storing the plug away from the connections.
