3PS16
IEC 60309-1IEC 60947-3 IEC 60529 IEC 50102NF C 15-100 (7-709 Marinas)
Integrated AC23 switching capacity connector
They offer an alternative that is more compact, easier to install and use, and also safer compared to integrated connector solutions on switch boxes.
- Amp. max. : 30A
- Voltage max. : 1kV
- Amp. pilots : 30 A
- Contacts max. : 3P+N+E+2p
- Cable section max. : 6 mm² (AWG 10) (flexible)
- Cable diameter : min. 9 mm / max. 25 mm
- Pilot section : 6 mm² (AWG 10)
- Termination : Cable clamp screw
- Casing : Polyamid
- Contacts : Brazed silver alloy and AgNi tip
- Insert : Polyamid V0
- Fastenings : Stainless steel
- Breaking capacity : AC23
- Temperature : -30° +60° C
- Ind. protection : IP66 - IK8
- User protection : IP4X
Connectors

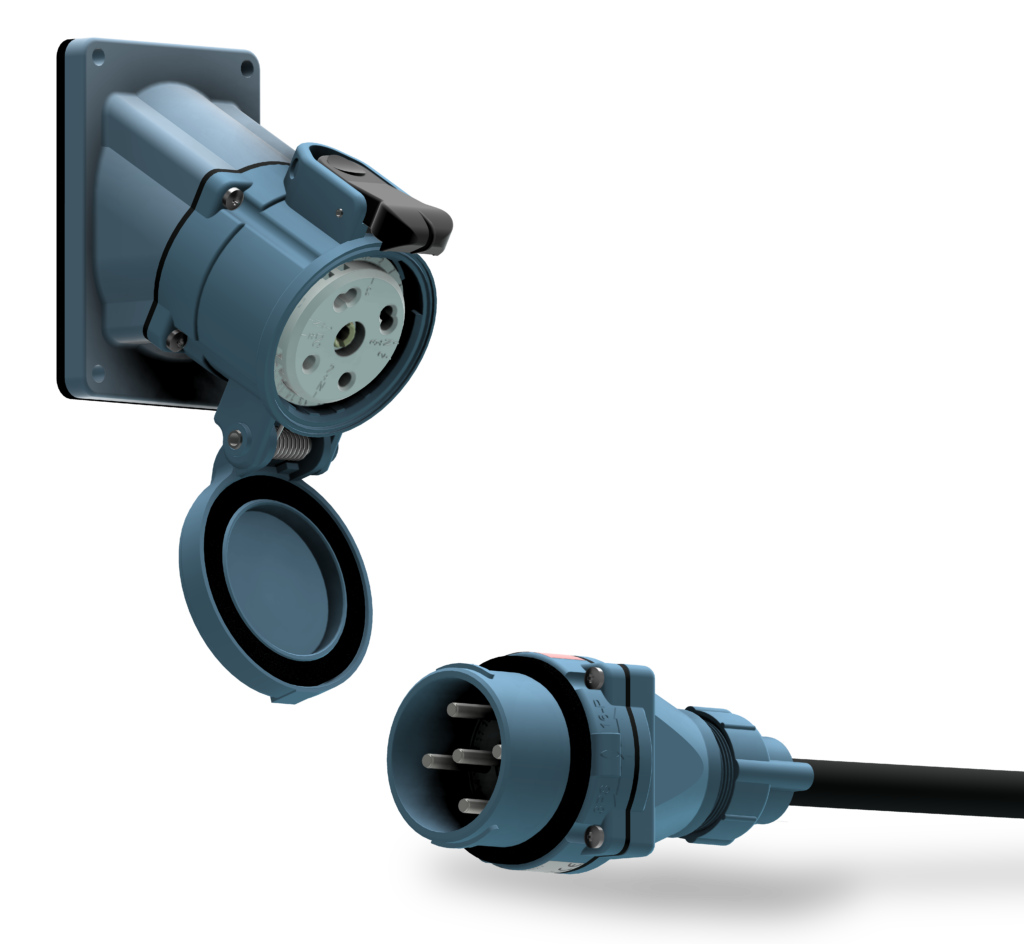

SOCKET

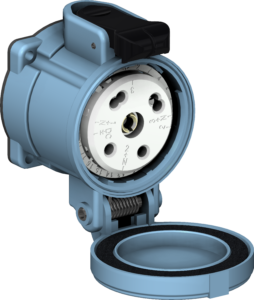

Female supplying part to be placed wall-mounted or on an electrical cabinet. No access to under voltage parts with its safety shutter.
-
Red version

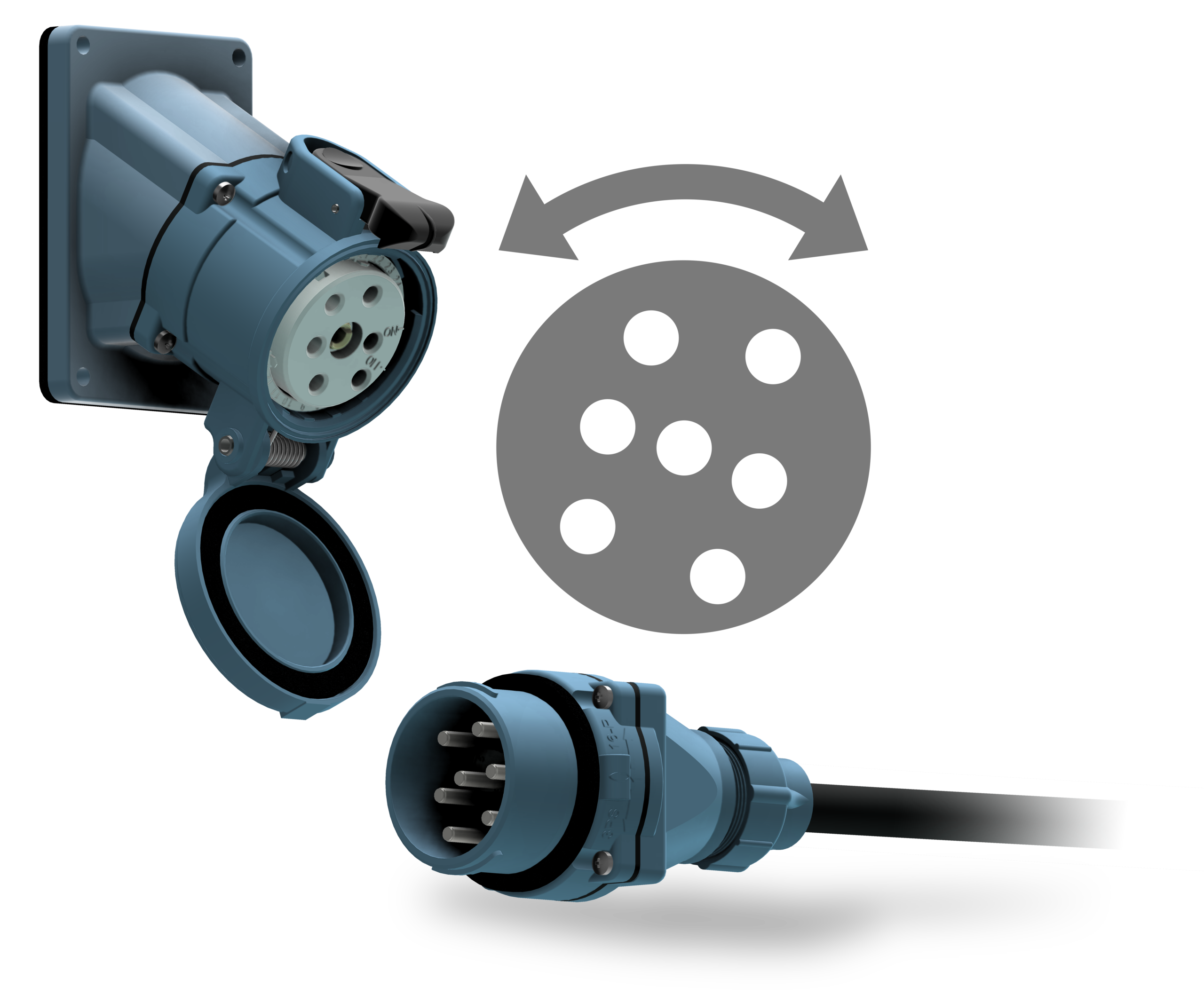

(6H mechanical coding) -
Blue version
(12H mechanical coding)

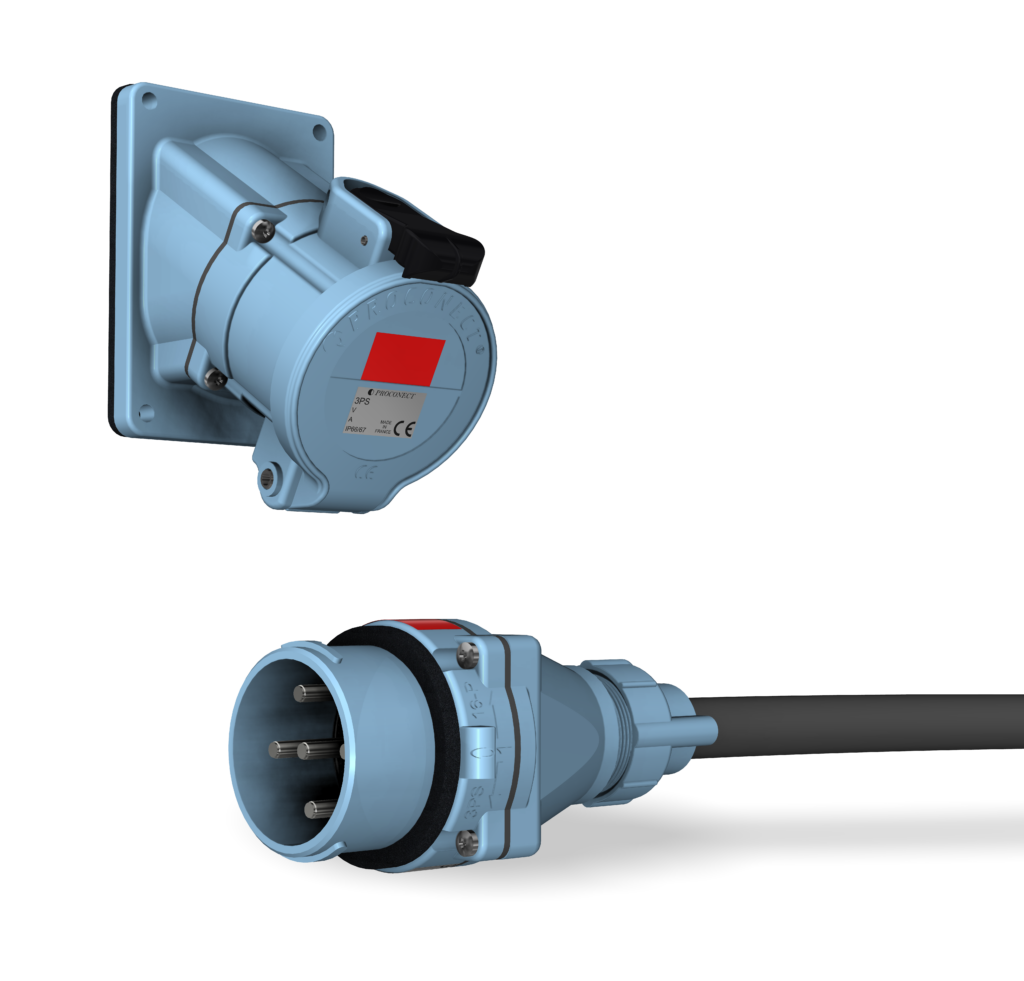

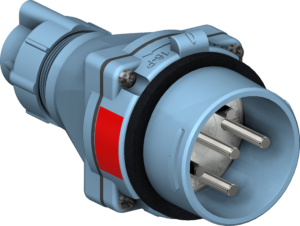

PLUG
Mobile male receiving part to be cabled and connected in a socket or a cable coupler. The plug cap option is needed to ensure IP66 once disconnected.
-
Red version
(6H mechanical coding) -
Blue version
(12H mechanical coding)

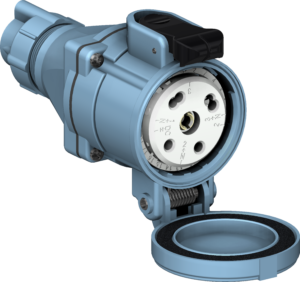

CABLE COUPLER
Mobile female part to be cabled and connected in appliance inlets or plugs connectors. No access to under voltage parts with its safety shutter.
APPLIANCE INLET
Male receiving part to be placed wall-mounted or on an electrical cabinet. The plug cap option is needed to ensure IP66 when not connected.
-
Red version
(6H mechanical coding) -
Blue version
(12H mechanical coding)
SELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION

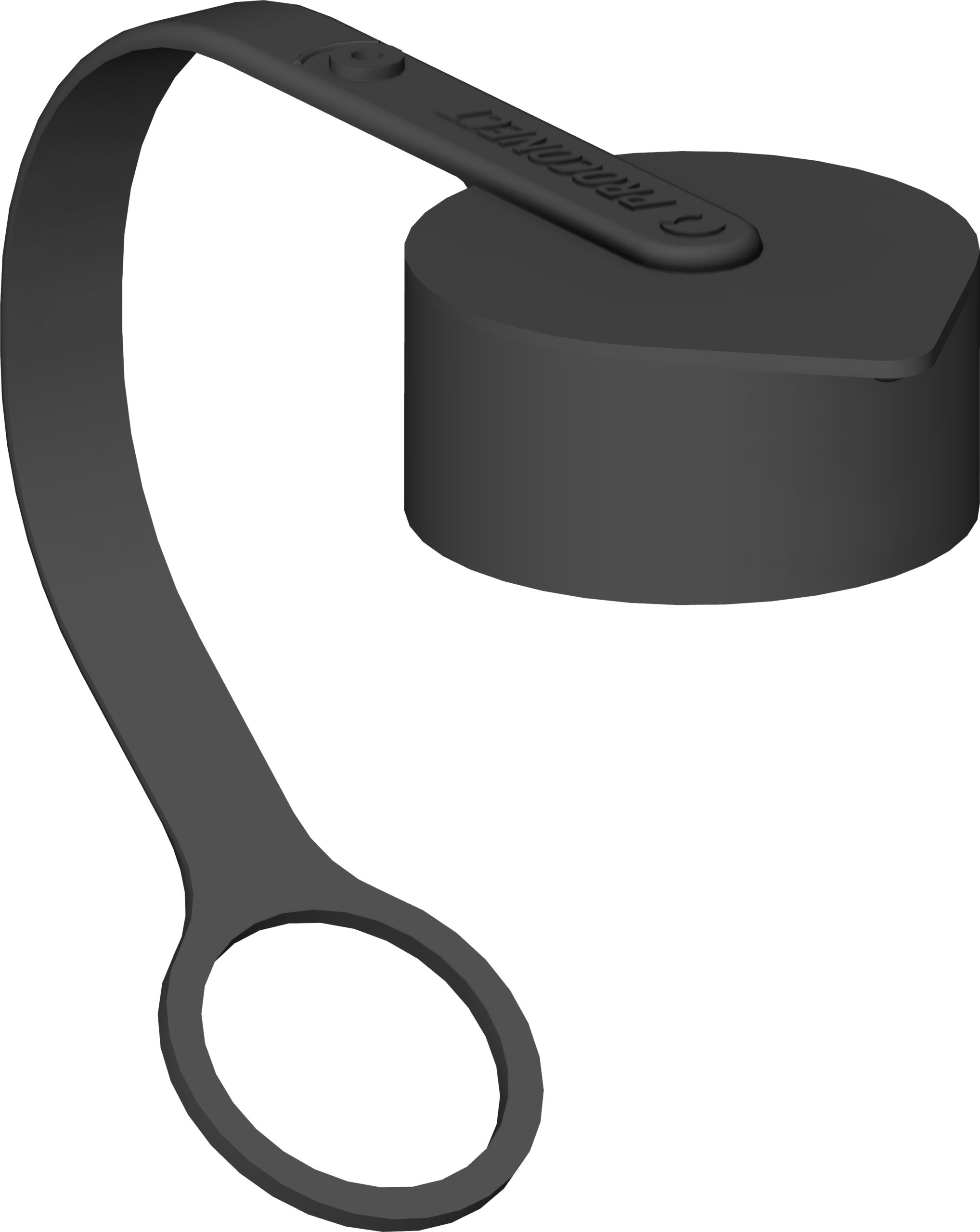

PLUG CAP Available on Plug Appliance inlet
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.

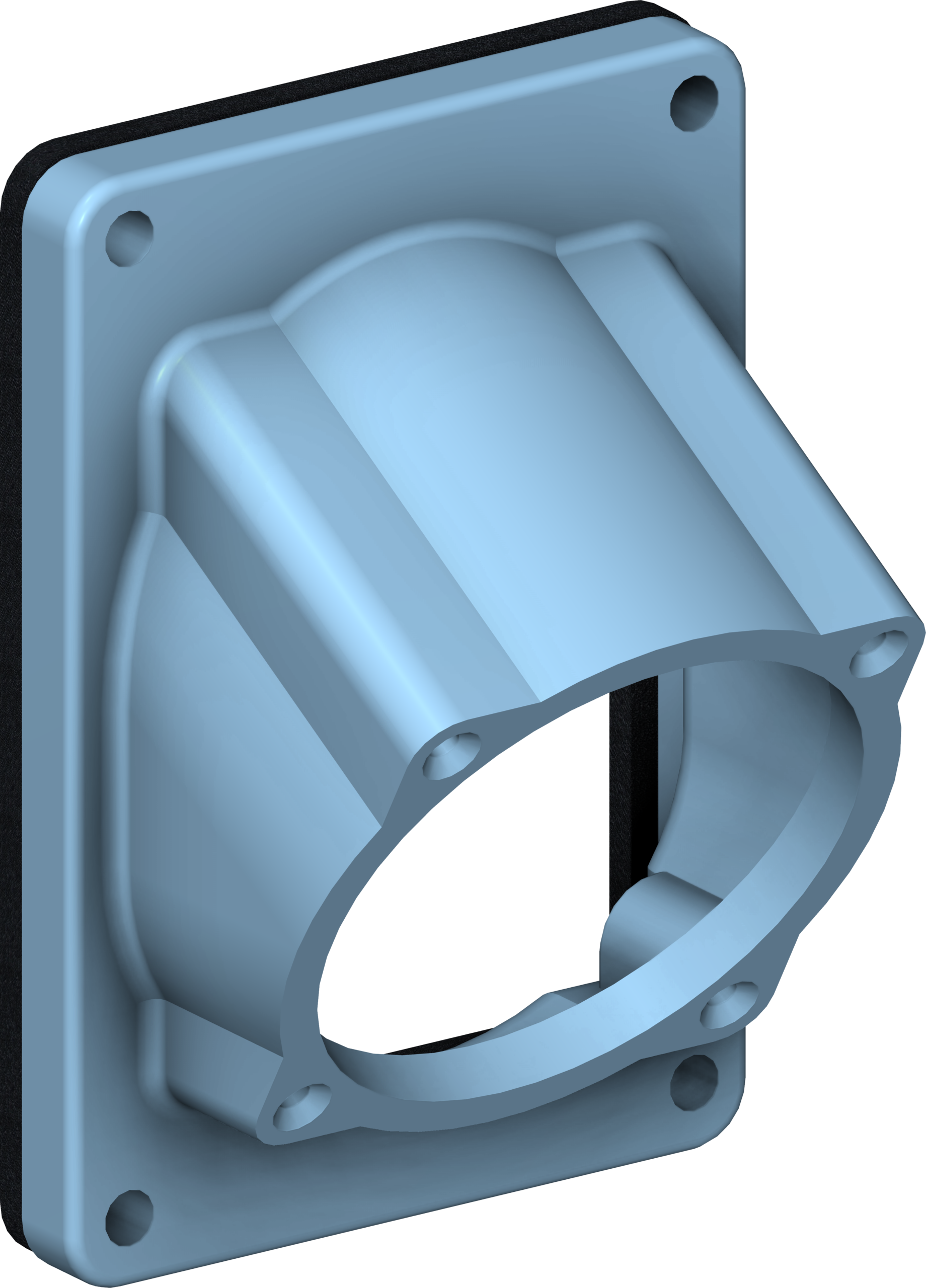

INCLINED BOX 30° Available on Socket Appliance inlet
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.

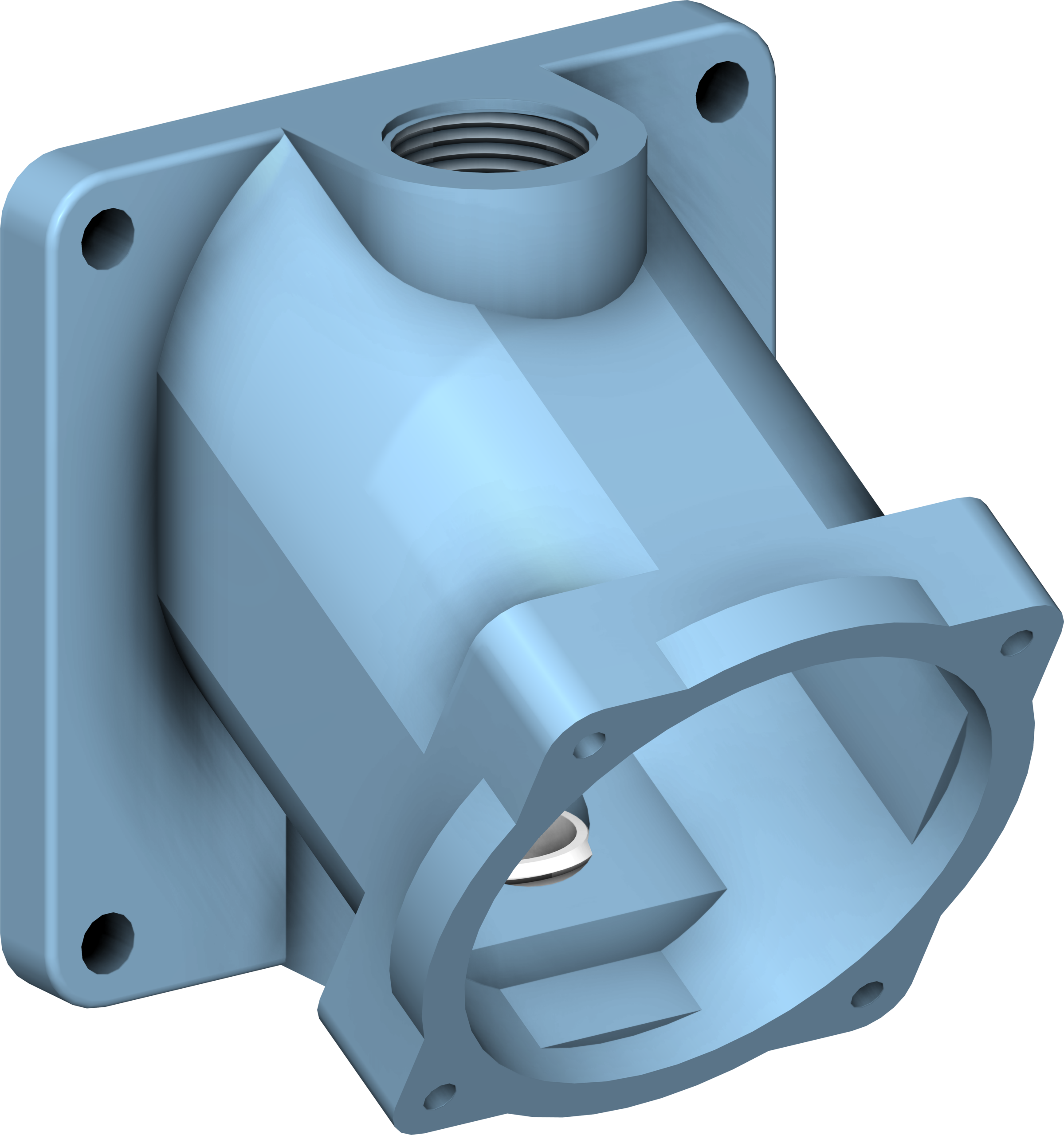

WALL BOX 30° Available on Socket Appliance inlet
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.

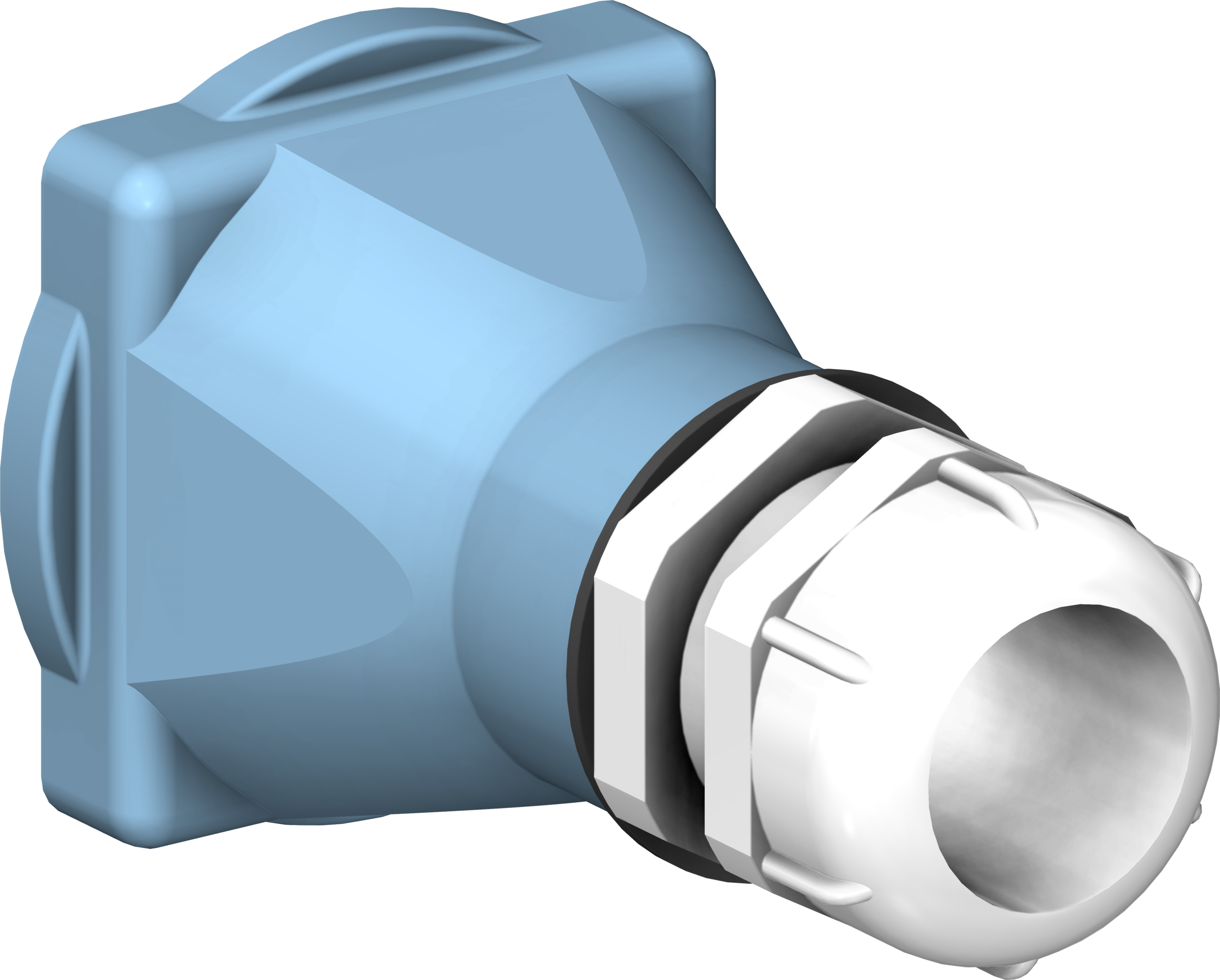

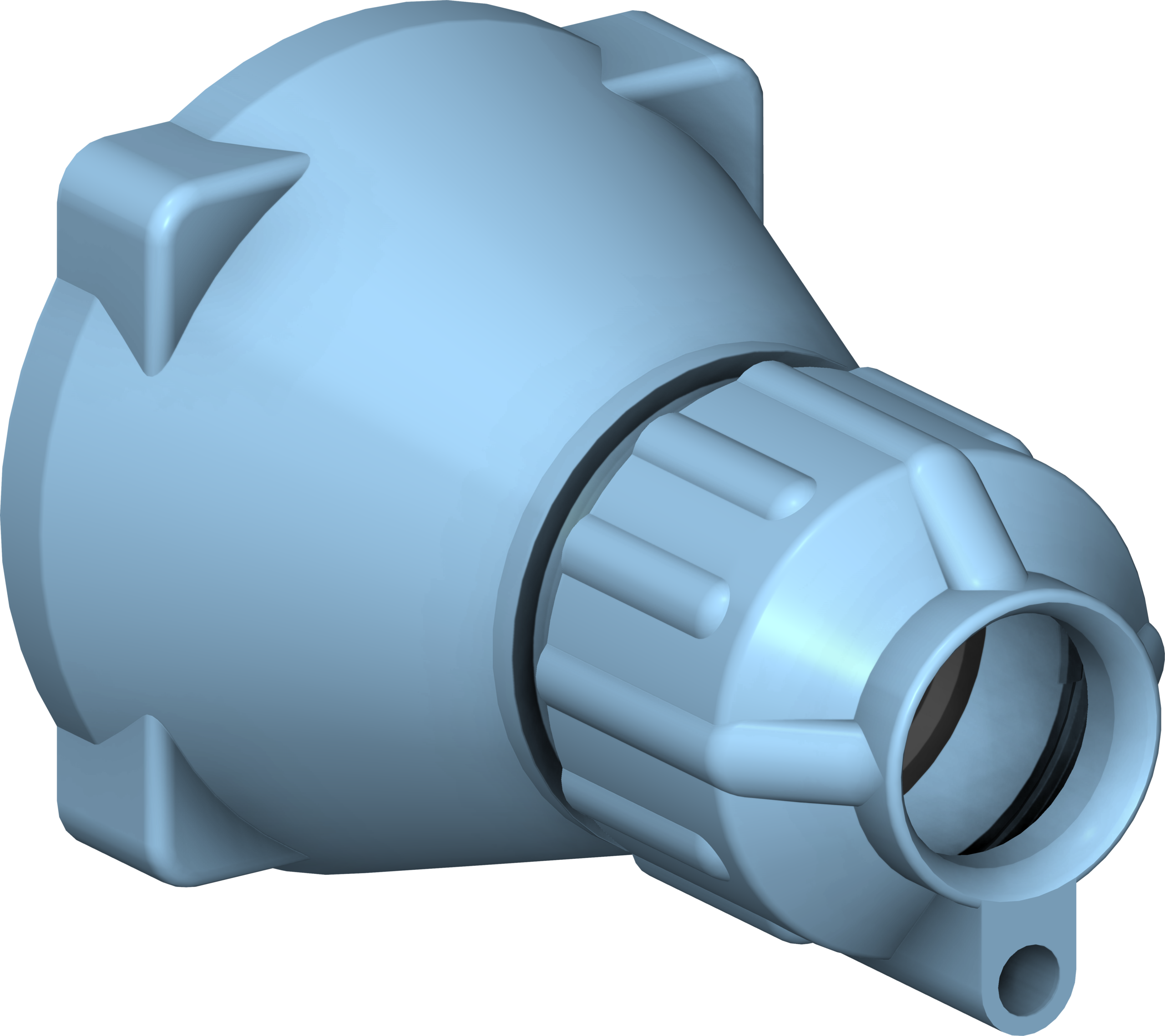

HANDLE WITH CABLE GLAND Available on Plug Cable coupler
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.

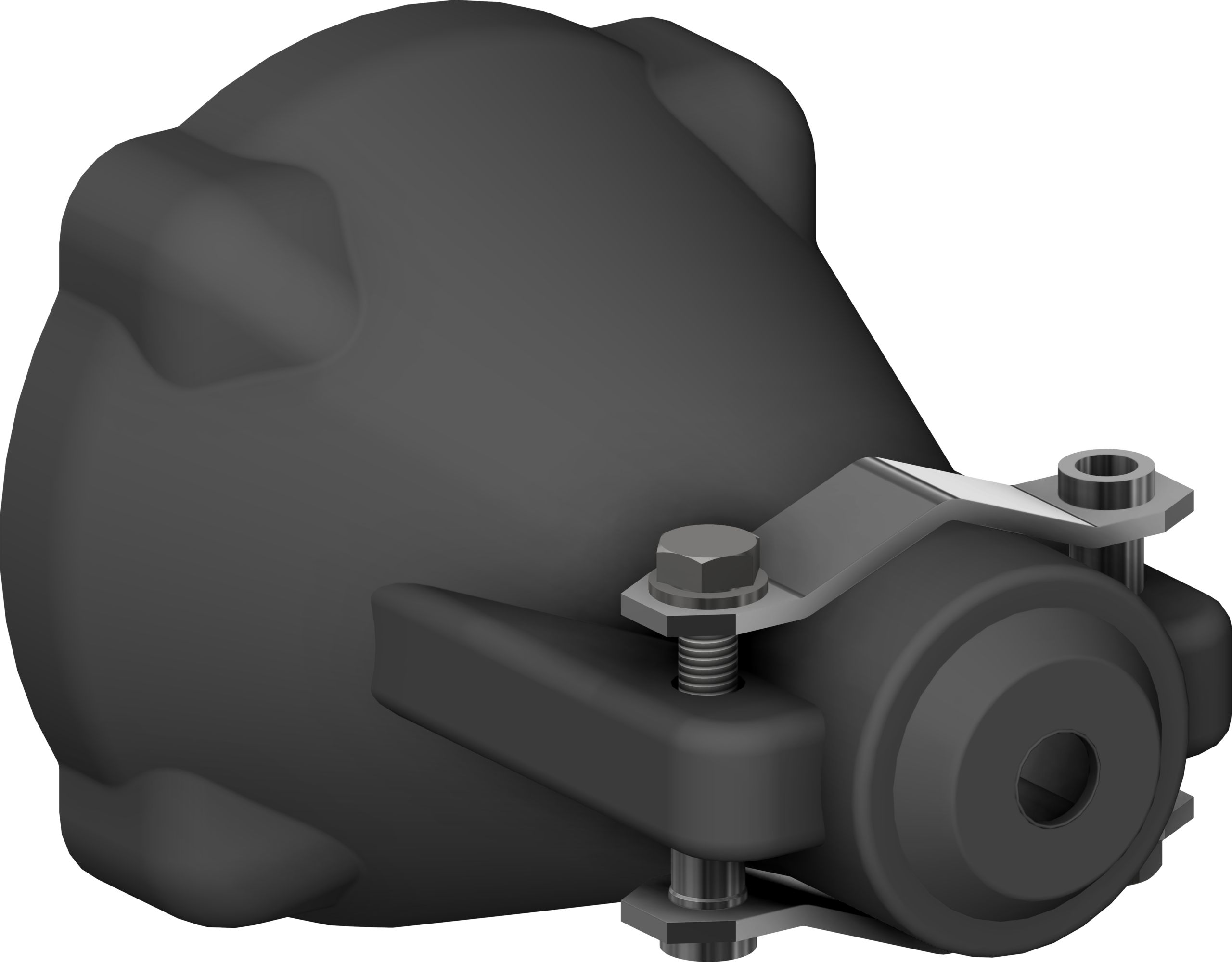

NEOPRENE HANDLE Available on Plug Cable coupler
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.

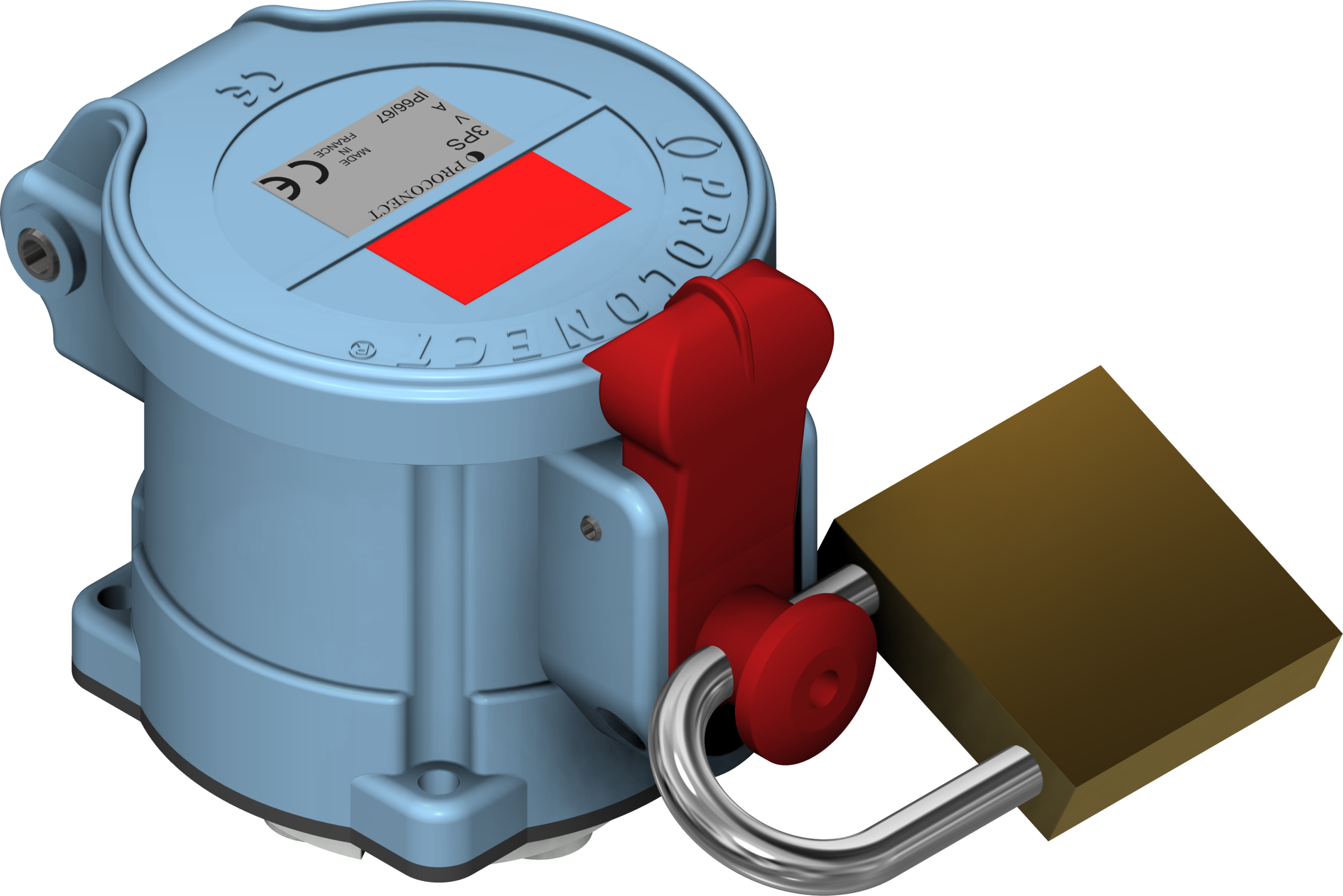

PADLOCKING LATCH Available on Socket Cable coupler
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.
2 PILOTS OPTION Available on Socket Plug Cable coupler Appliance inlet
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.

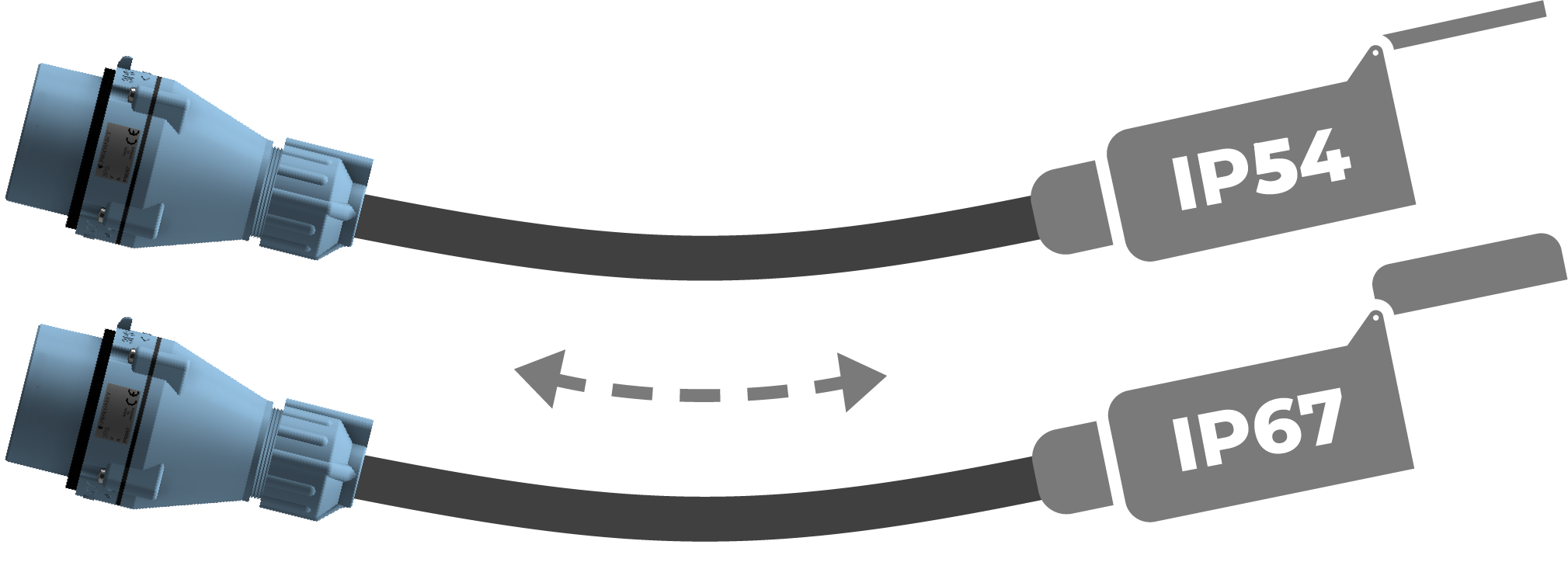

Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.

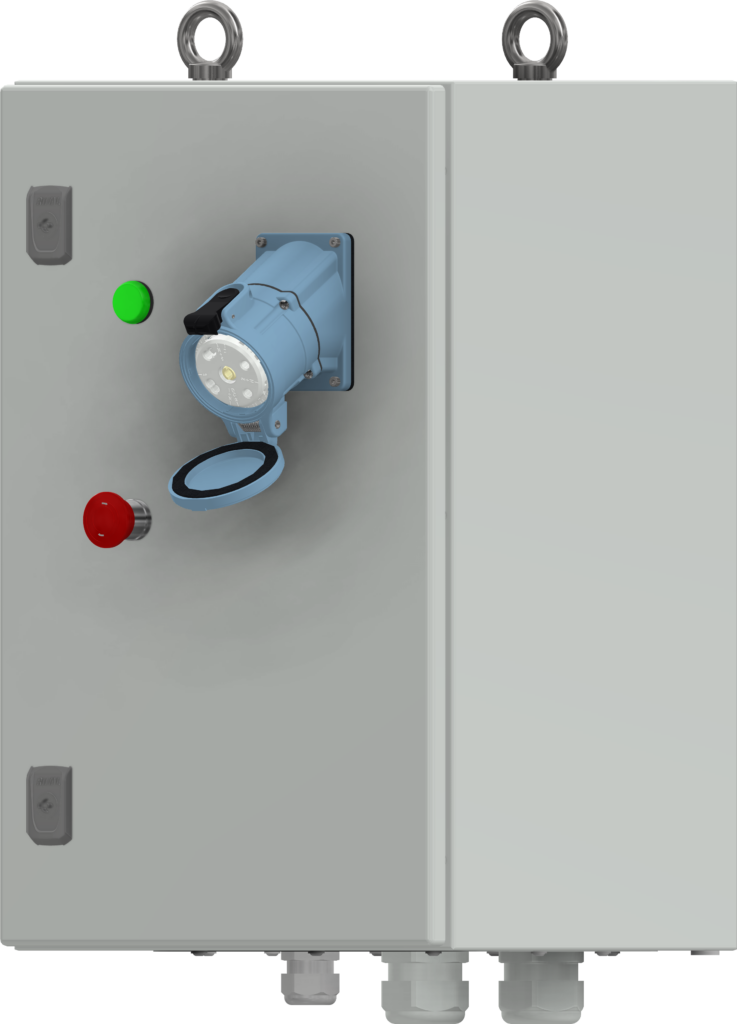

Connection boxes
Technical datas
3PS16 Datasheet
More technical informations about the 3PS16 solutions.
