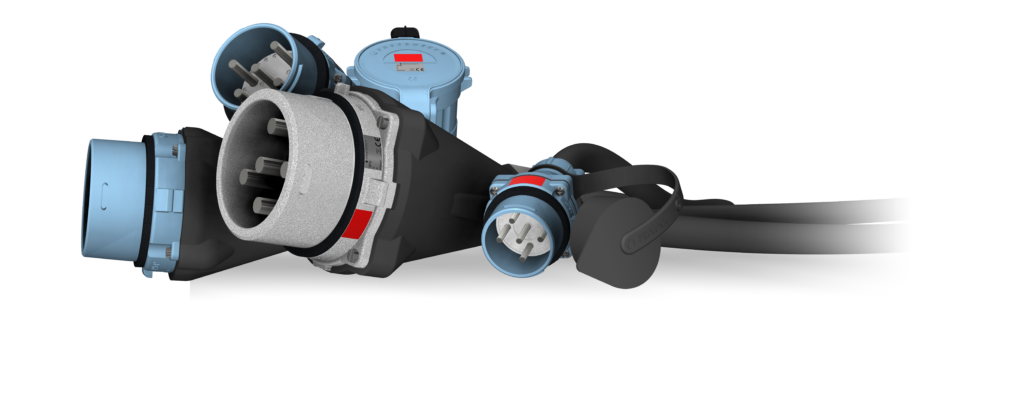

3PS
connectors
250A max.
1kV
Integrated AC23 switching capacity connectors
The 3PS range is a set of industrial connectors that allow safe disconnection under power thanks to a power break technology that complies with standards 60309-1 and 60947-3.
They offer an alternative that is more compact, easier to install and use, and also safer compared to integrated connector solutions on switch boxes.
They offer an alternative that is more compact, easier to install and use, and also safer compared to integrated connector solutions on switch boxes.
Solutions
3PS16
2-4 phased
16/30A max.
1kV max.
- Section max. : 6 mm² (AWG 10)
3PS32
2-4 phased
32/50A max.
1kV max.
- Section max. : 10 mm² (AWG 8)
3PS63
2-4 phased
63/90A max.
1kV max.
- Section max. : 35 mm² (AWG 2)
3PS125
2-4 phased
125/150A max.
1kV max.
- Section max. : 50 mm² (AWG 1/0)
3PS200
2-4 phased
200/250A max.
1kV max.
- Section max. : 95 mm² (AWG 3/0)
