NF 320
NF EN 1175-1
DIN VDE 0623-589
DIN VDE 0623-589

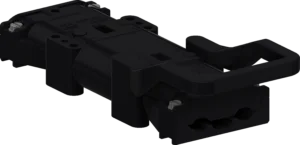

Battery charging connector
- Amp. pilots : 32 A
- Contacts max. : 2P (+/-) (+2 pilots option)
- Cable section : 50 mm² (AWG 1/0) - 95 mm² (AWG 3/0)
- Cable diameter max. : 20 mm
- Pilot : 4 mm² (AWG 12)
- Termination : to crimp, to solder
- Polarity control : coding pin
- Casing : Thermoplastic
- Contacts : Copper alloy
- Fastenings : Stainless steel
- Temperature : -20° +90°C
- Ind. protection : IP23
Connectors

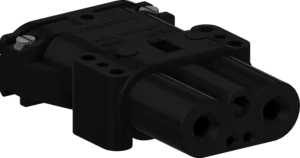

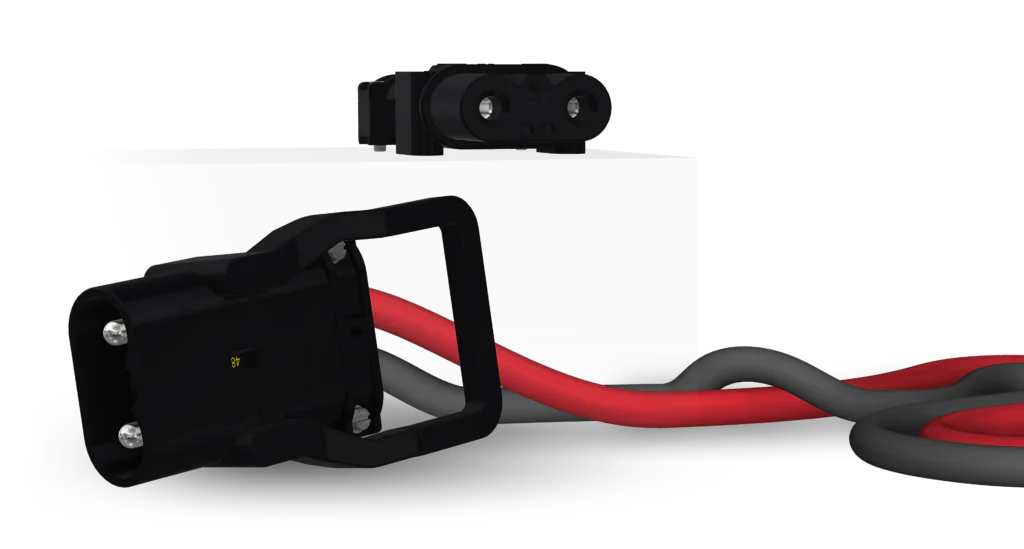

FEMALE CONNECTOR
Fixed connector to be installed on a structure (wall-mounted, electrical cabinet, vehicle, etc).
Available with 50, 70 and 95 mm² contacts (AWG 1/0 - AWG 2/0 - AWG 3/0) or with reduced options for 90/70 mm² (AWG 2/0) to crimp or to solder.
Can be equipped with a handle.

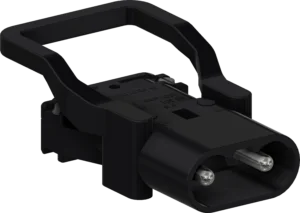

MALE CONNECTOR
Mobile connector to be cabled.
Available with 50, 70 and 95 mm² contacts (AWG 1/0 - AWG 2/0 - AWG 3/0) or with reduced options for 90/70 mm² (AWG 2/0) to crimp or to solder.
This connector can be equipped with a handle to help the connection.
SELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION
DUST CAP

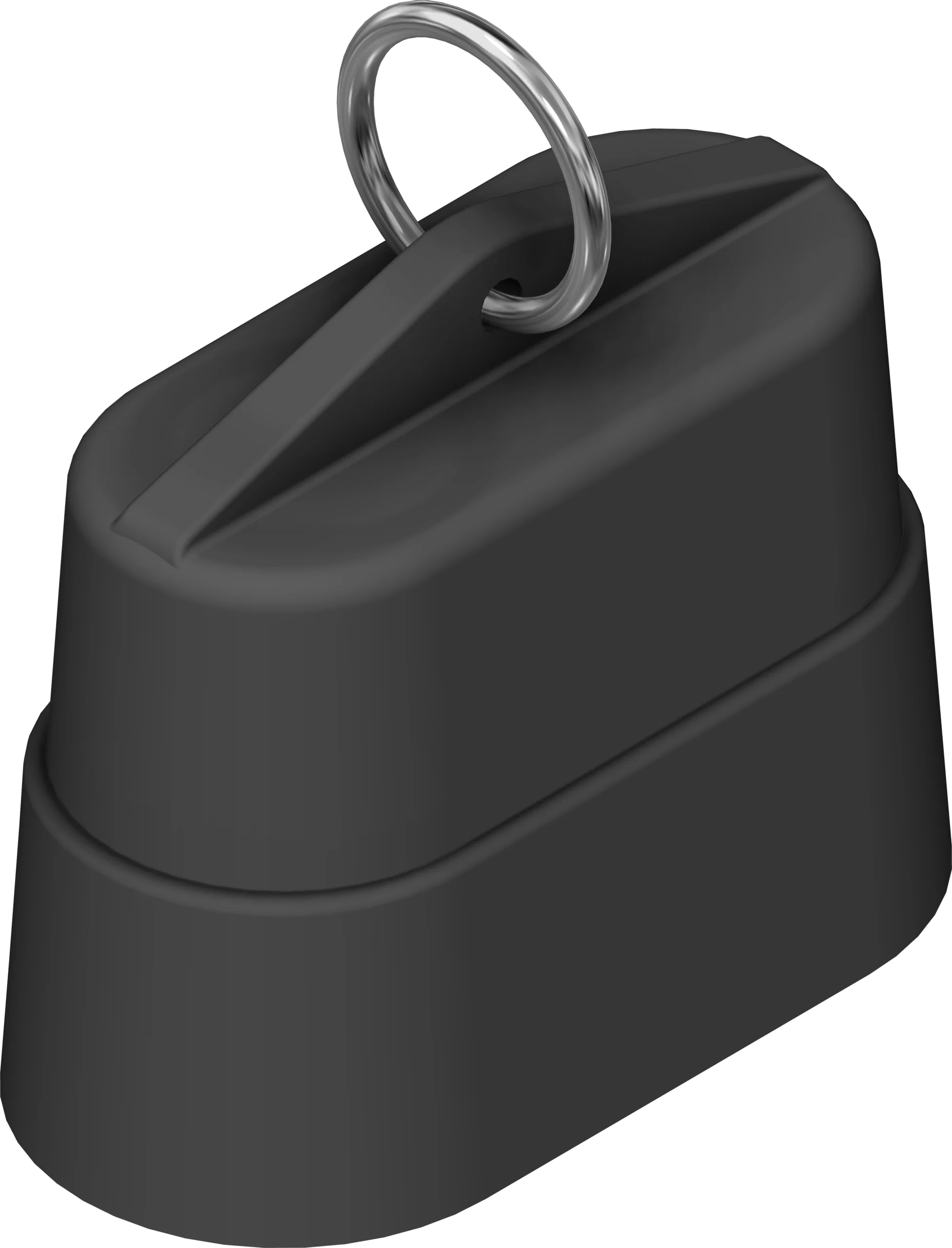

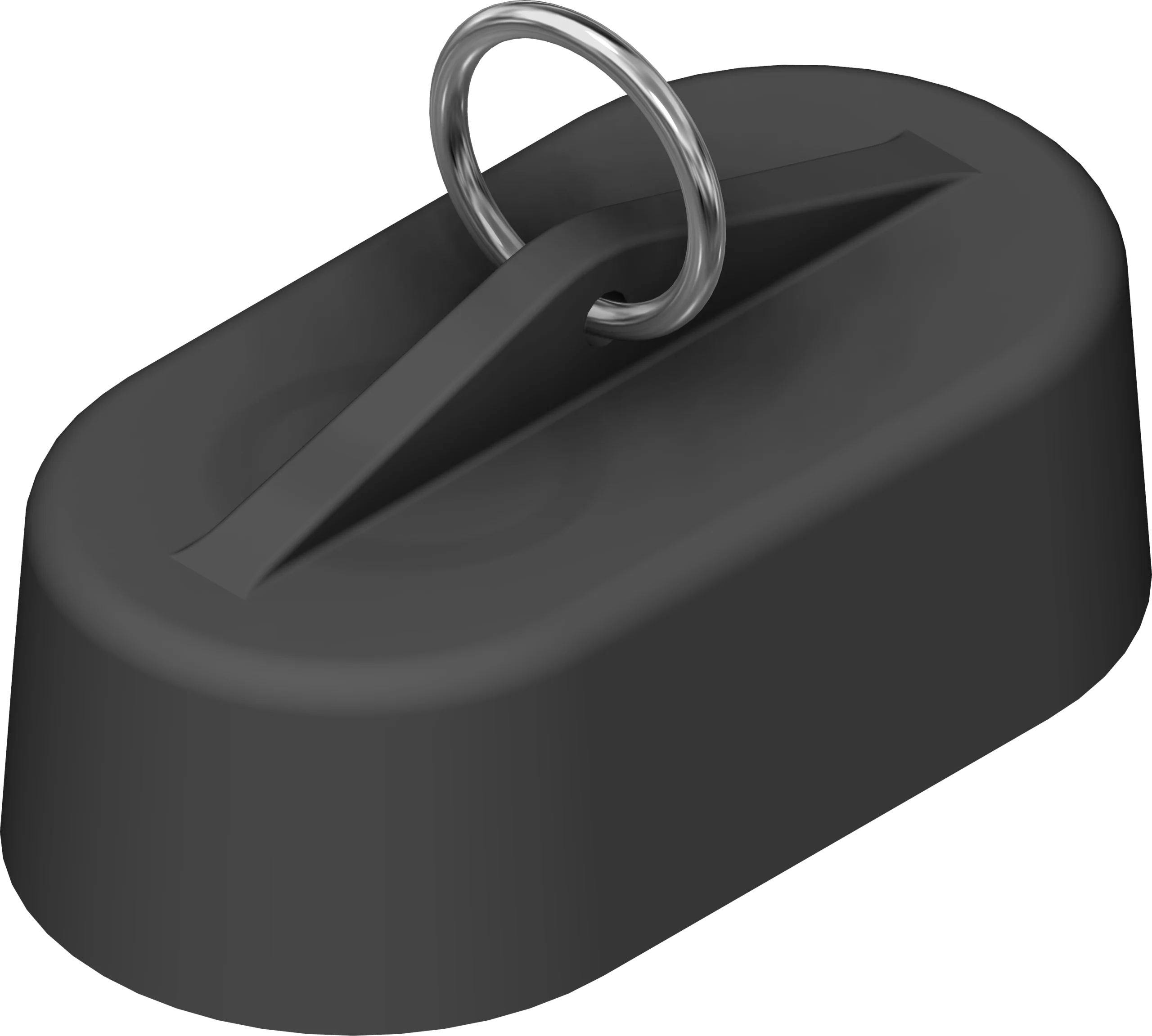

EPDM cap for male connectors.
DUST CAP
EPDM cap for female connectors.
AUXILIARY PILOT

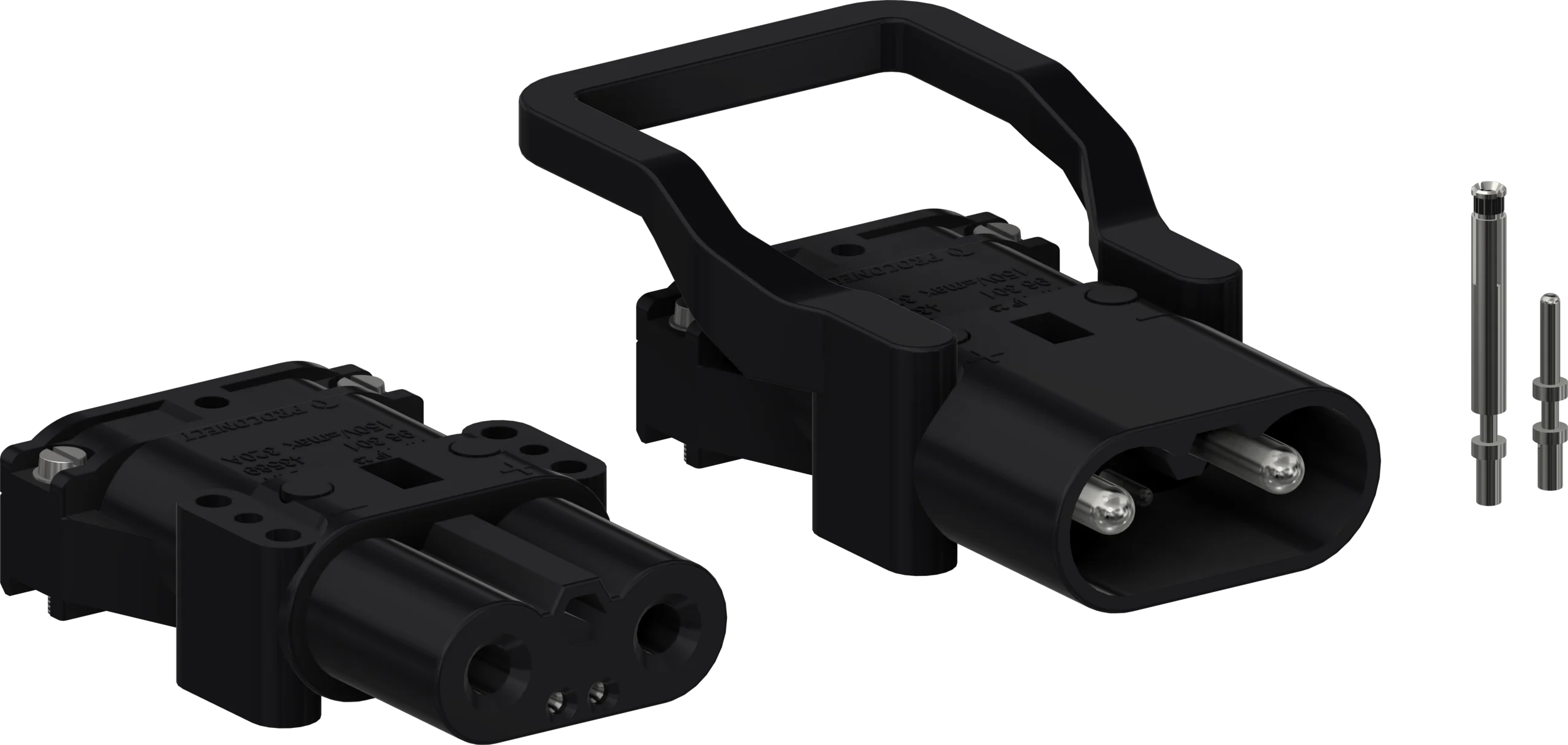

Male and female connectors can be fitted with 2 auxiliary 4 mm² (AWG 12) contact.
HANDLE

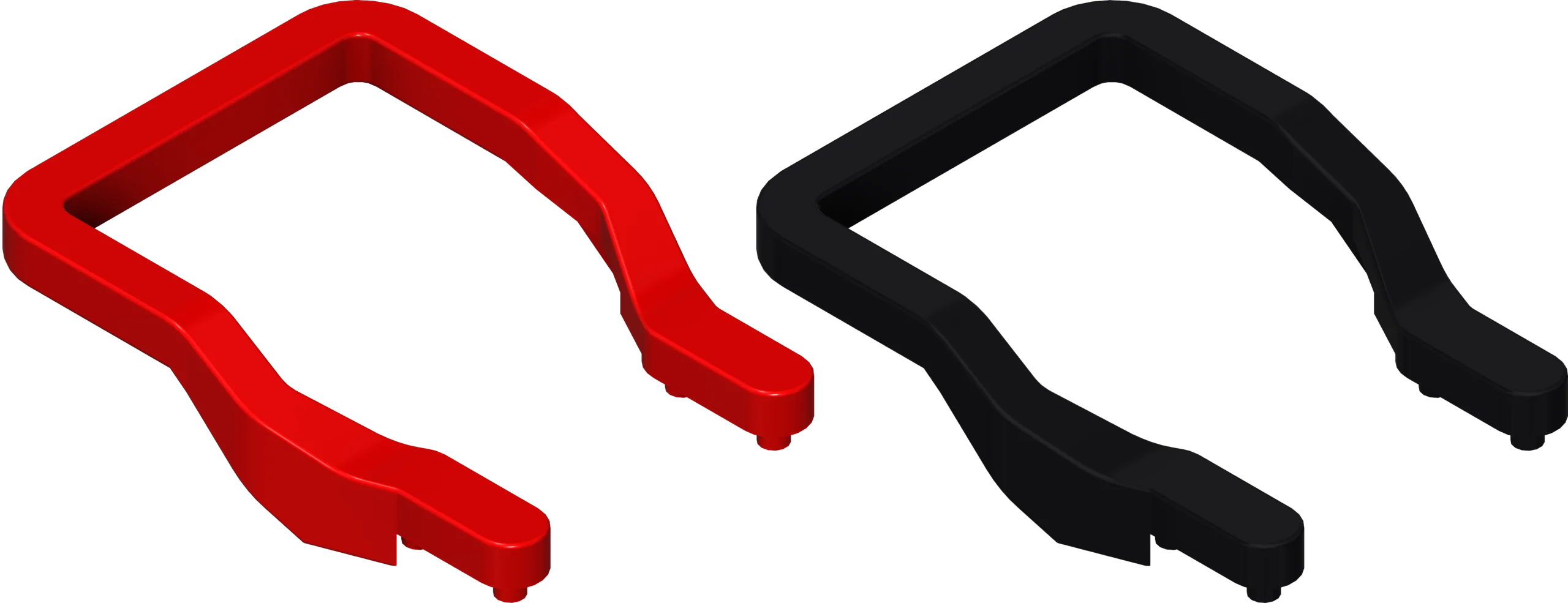

Handles for male or female connectors to help the connection. Available in black or red.
PNEUMATIC CONTACTS

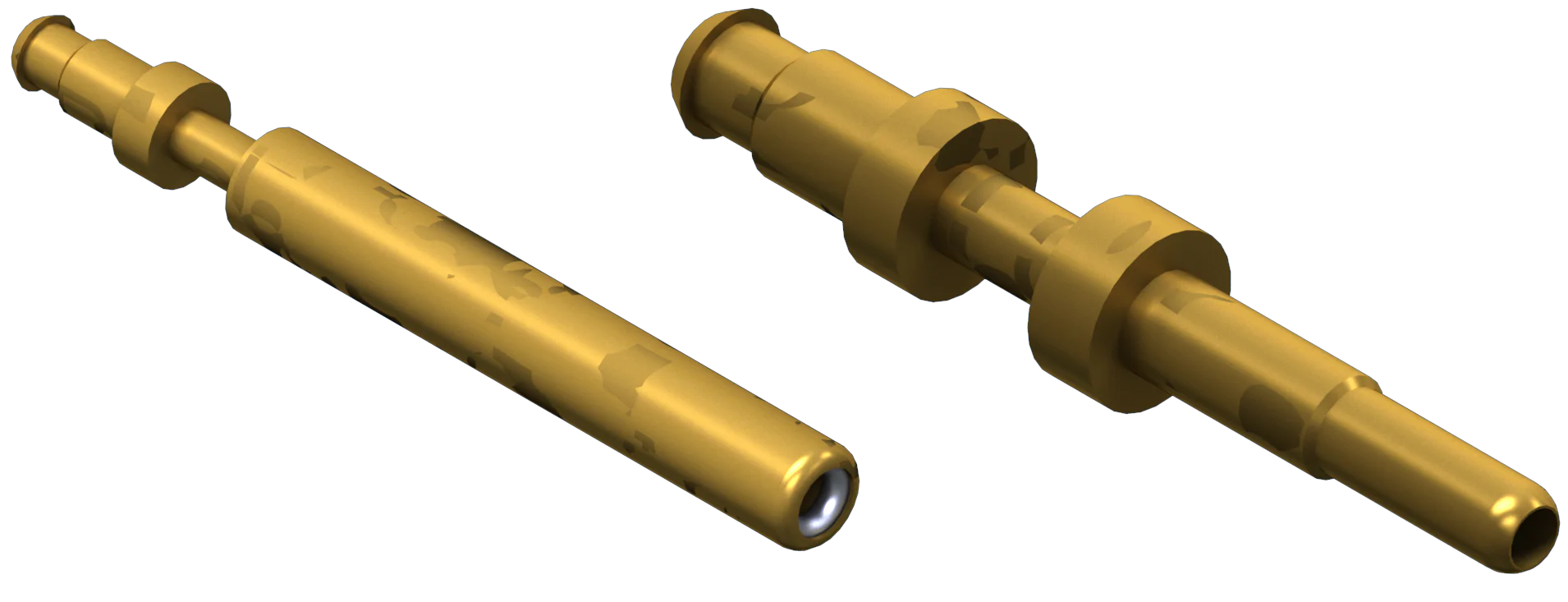

Pneumatic contacts used instead of pilot pins.
REINFORCED HANDLE

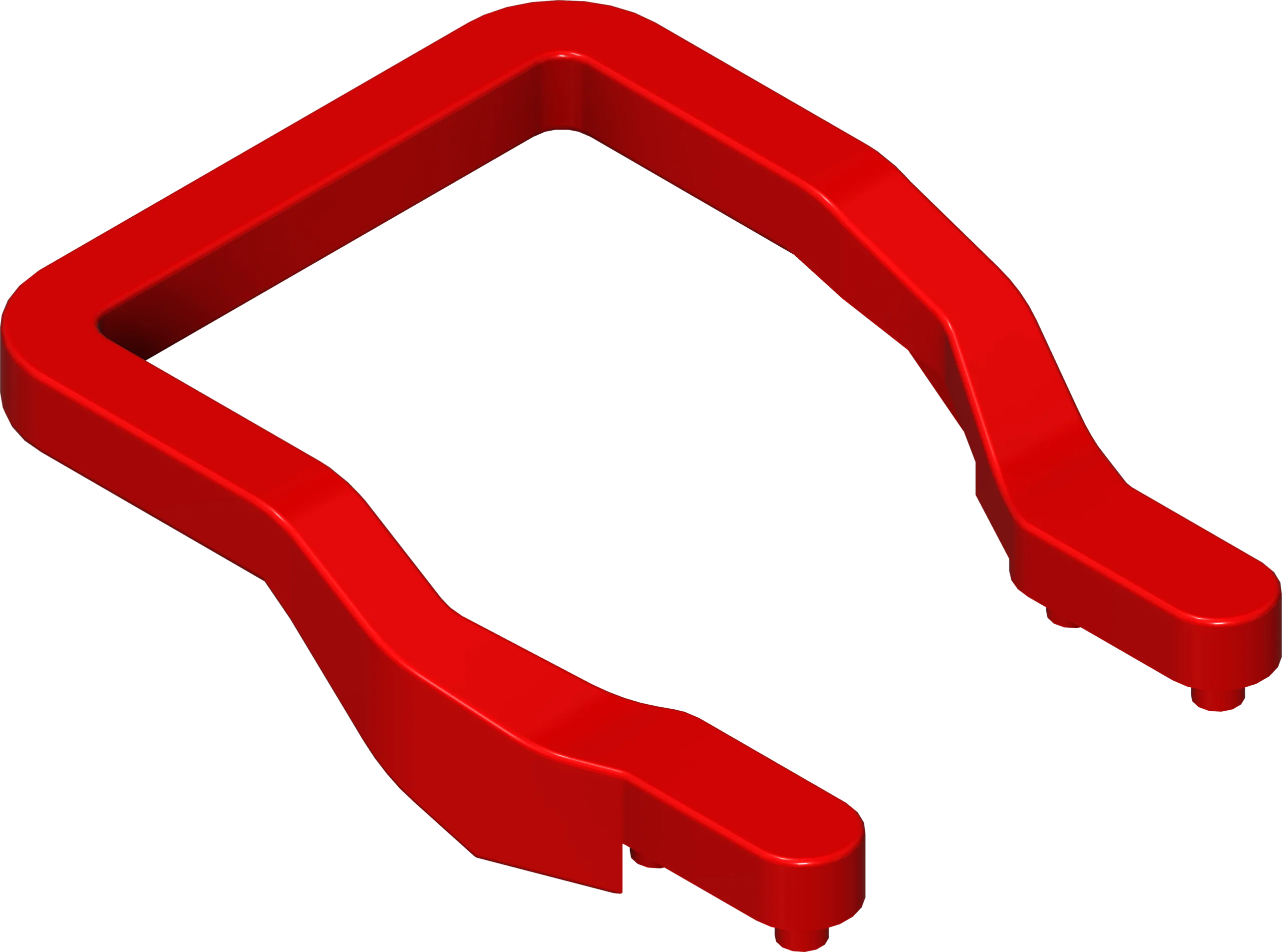

Reinforced handle for female or male connectors.
CABLED CONNECTORS OR JUMPERS

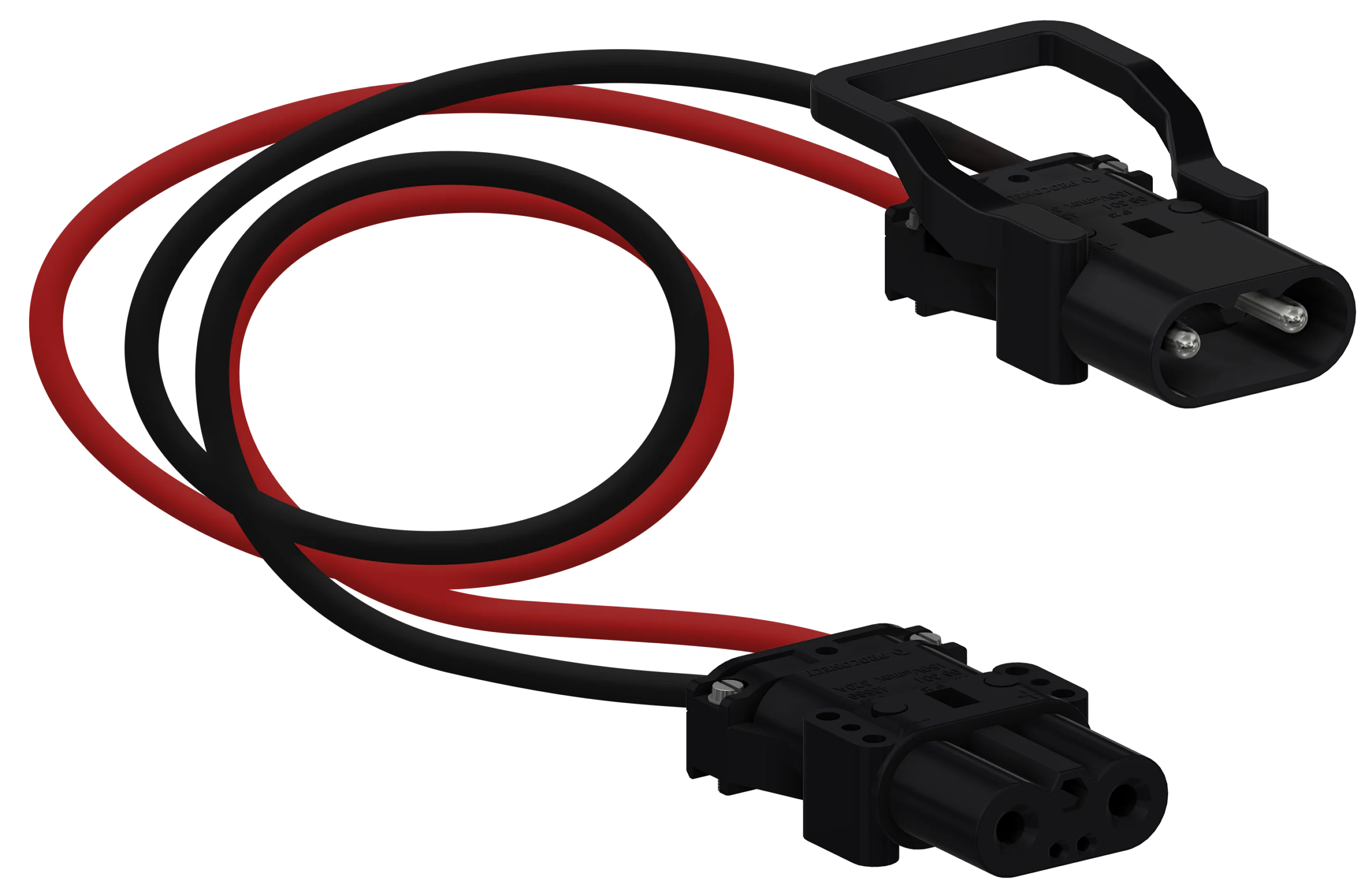

Connectors can be ordered pre-cabled or as jumpers.
Technical datas
NF 320 Connectors Datasheet
More technical informations about the NF 320 solutions.
