3PV4
IEC 60309-1
(when applicable)
Screw-ring metallic connector for Industry
- Short circuit : 10 kA r.m.s/1s
- Amp. pilots : 25 A
- Contacts standard : 3P+N+2p / 3P+N+E+2p
- Contacts max. : 3P+N+E+9p
- Cable section max. : (3P+N+E) 70 mm² (AWG 2/0) / (3P+E) 95 mm² (AWG 3/0)
- Cable diameter : min. 26 mm / max. 60 mm
- Pilot section : 2,5 mm² (AWG 14)
- Termination : to crimp, to solder or screw
- Dielectric withstand : 3 kV AC 1 min.
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : PPO
- Fastenings : Stainless steel
- Temperature : -30° +60° C
- Ind. protection : IP67 - IK10
3PV5
- Poles : 3P+E+2p / 3P+E+N+2p
- Poles : 10 pilots option
- Section max. : 240 mm²
- Ind. protection : IP67 - IK10
3PV6
- Poles : 3P+E+2p / 3P+E+N+2p
- Poles : 6 pilots option
- Section max. : 300 mm²
- Ind. protection : IP67 - IK10
Connectors

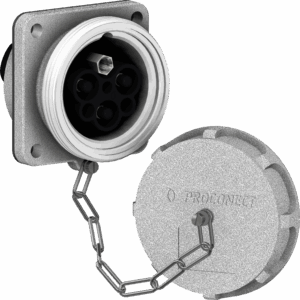

SOCKET
Active part to be placed wall-mounted or on an electrical cabinet. Screw ring system to maintain IP67 when connected. Socket screwing cap to maintain IP67 rating when not connected.
Go to options

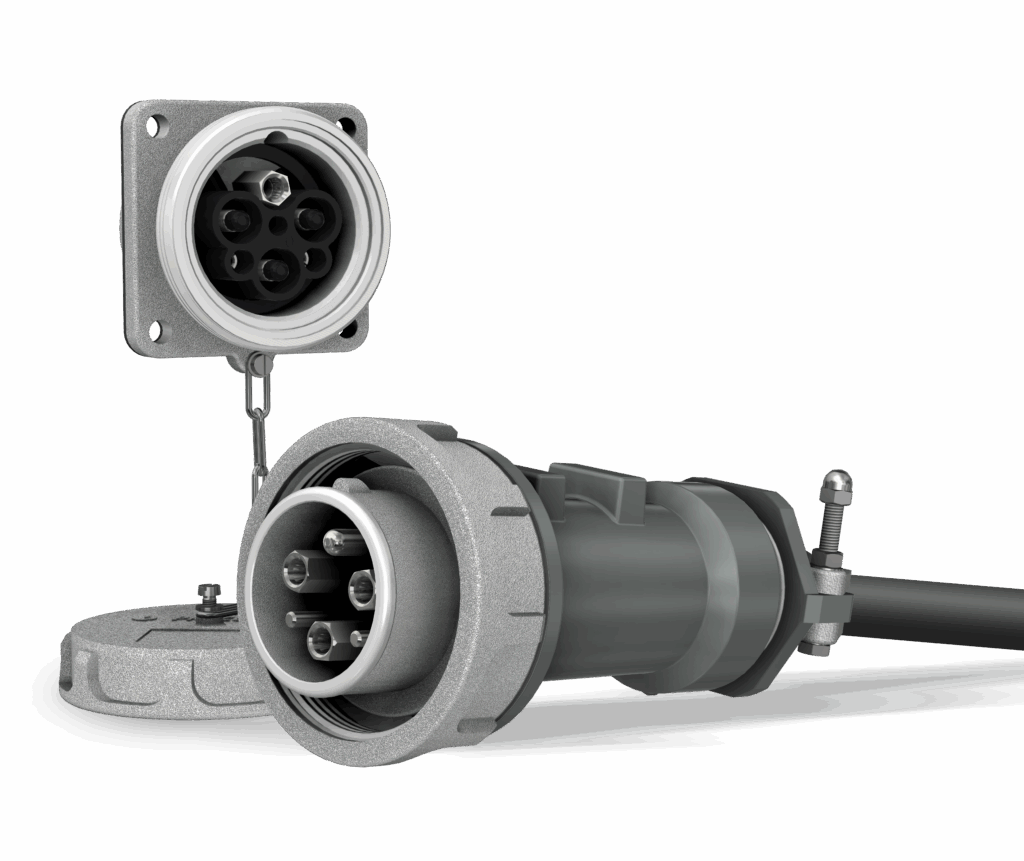

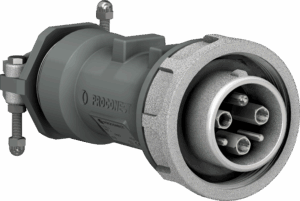

PLUG
Mobile connector to be cabled with screwing barrel for its connection in the socket.
This connector needs the plug cap option to maintain IP67 rating when not connected.

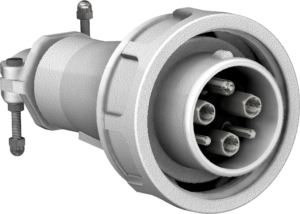

REDUCED PLUG
Mobile connector to be cabled with screwing barrel for its connection in the socket.
This connector needs the plug cap option to maintain IP67 rating when not connected.

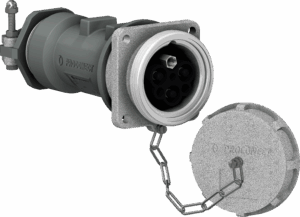

CABLE COUPLER
Mobile socket to be cabled and connected in a plug or an appliance inlet commonly used to make an extension line.
Go to options

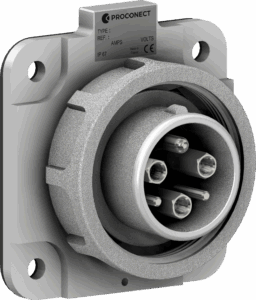

APPLIANCE INLET
Receptive part to be placed wall-mounted or on an electrical cabinet to connect a cable coupler.
This connector needs the plug cap option to maintain IP67 rating when not connected.
SELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION

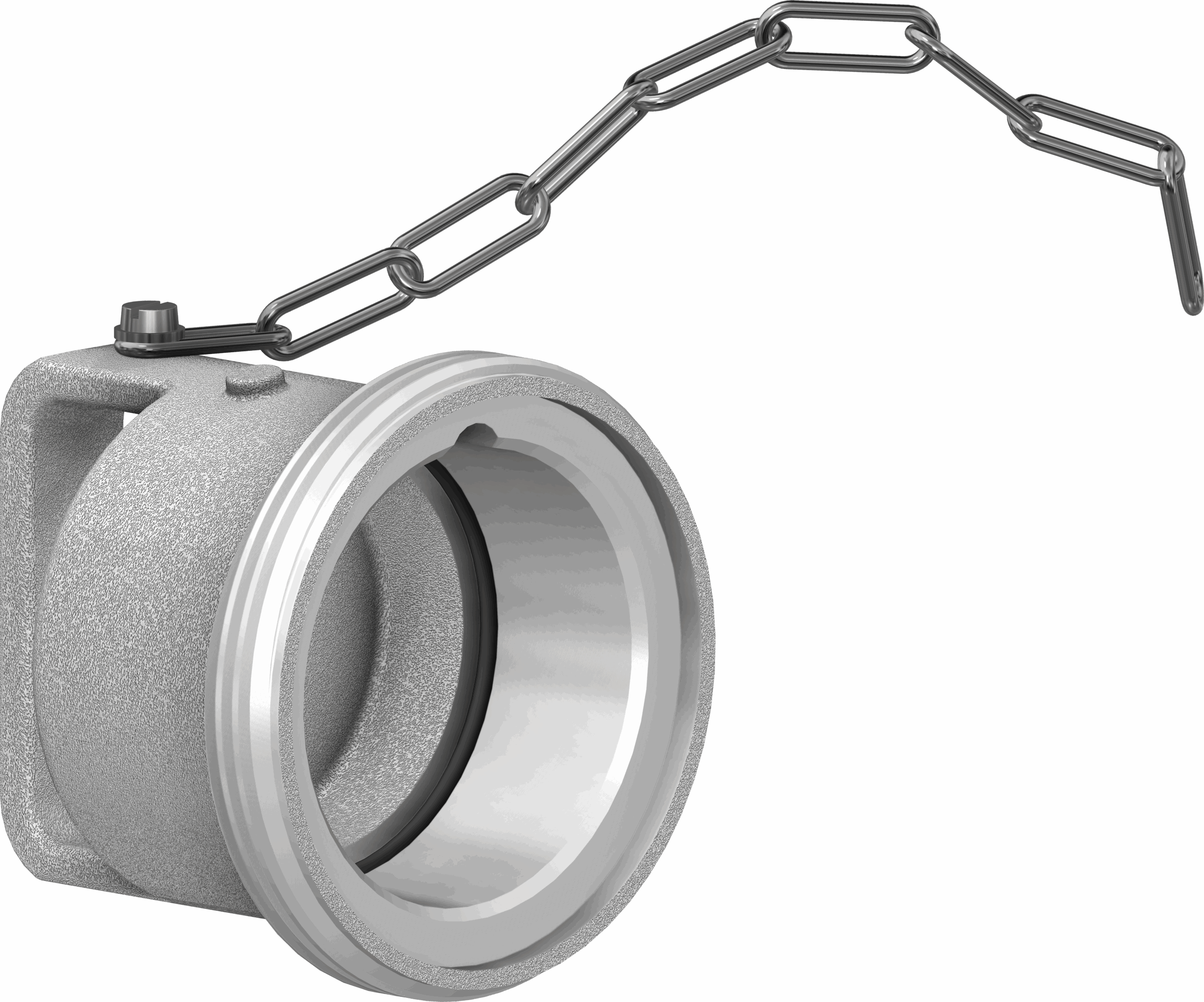

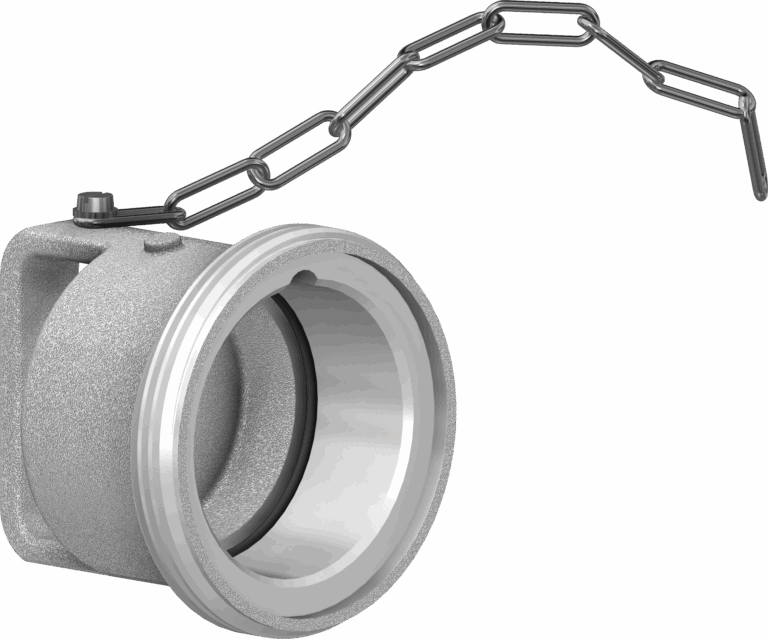

PLUG CAP
AS7G aluminium Plug or Appliance inlet cap to ensure IP67 of a disconnected connector.
HINGED HOOK
Wrench facilitating screwing when connecting the plug to the socket.

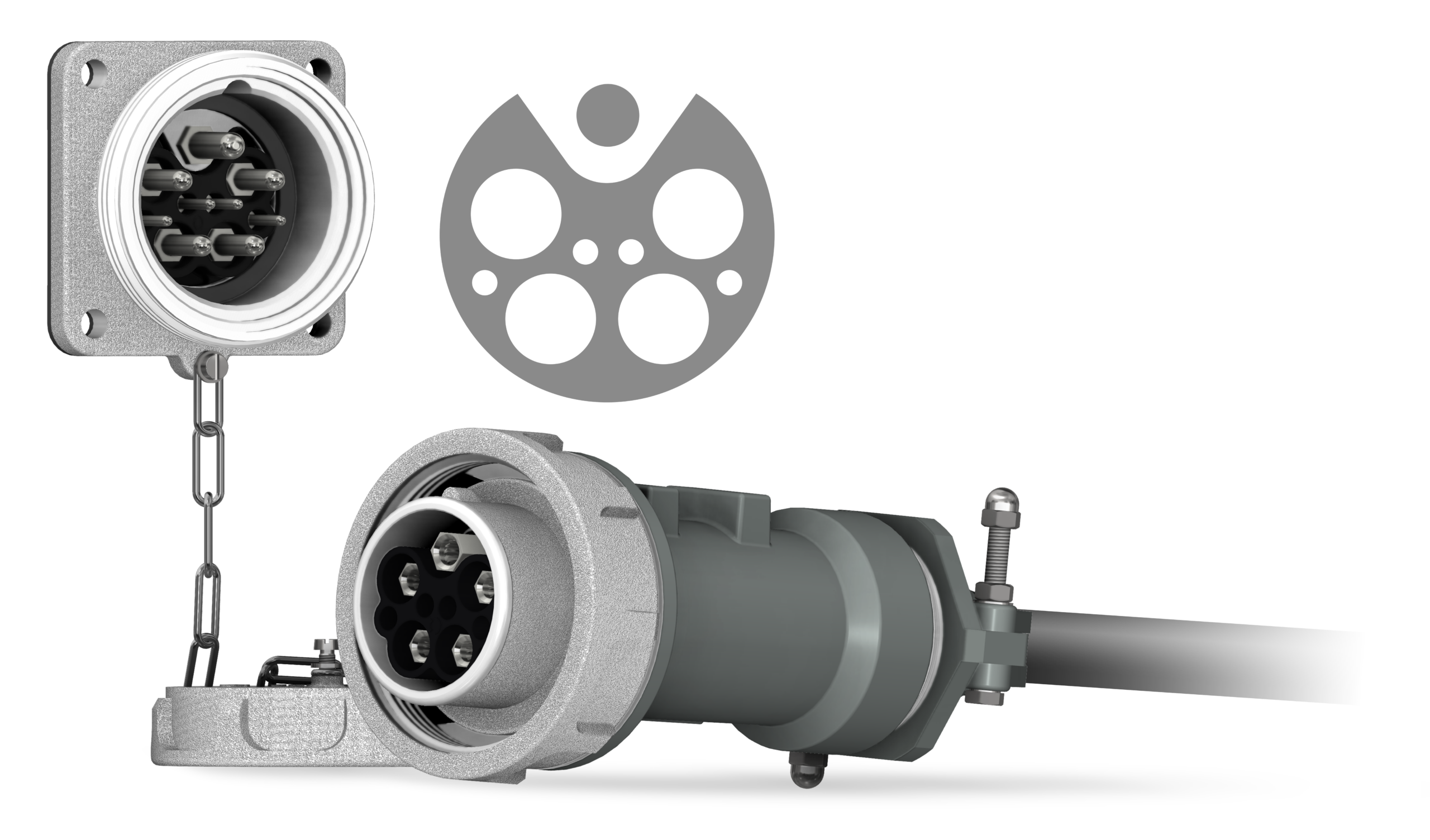

4 PILOTS OPTION
4-phased contact arrangement fitted with
4 x 2,5 mm² pilots.
max. 125A - max. 1kV

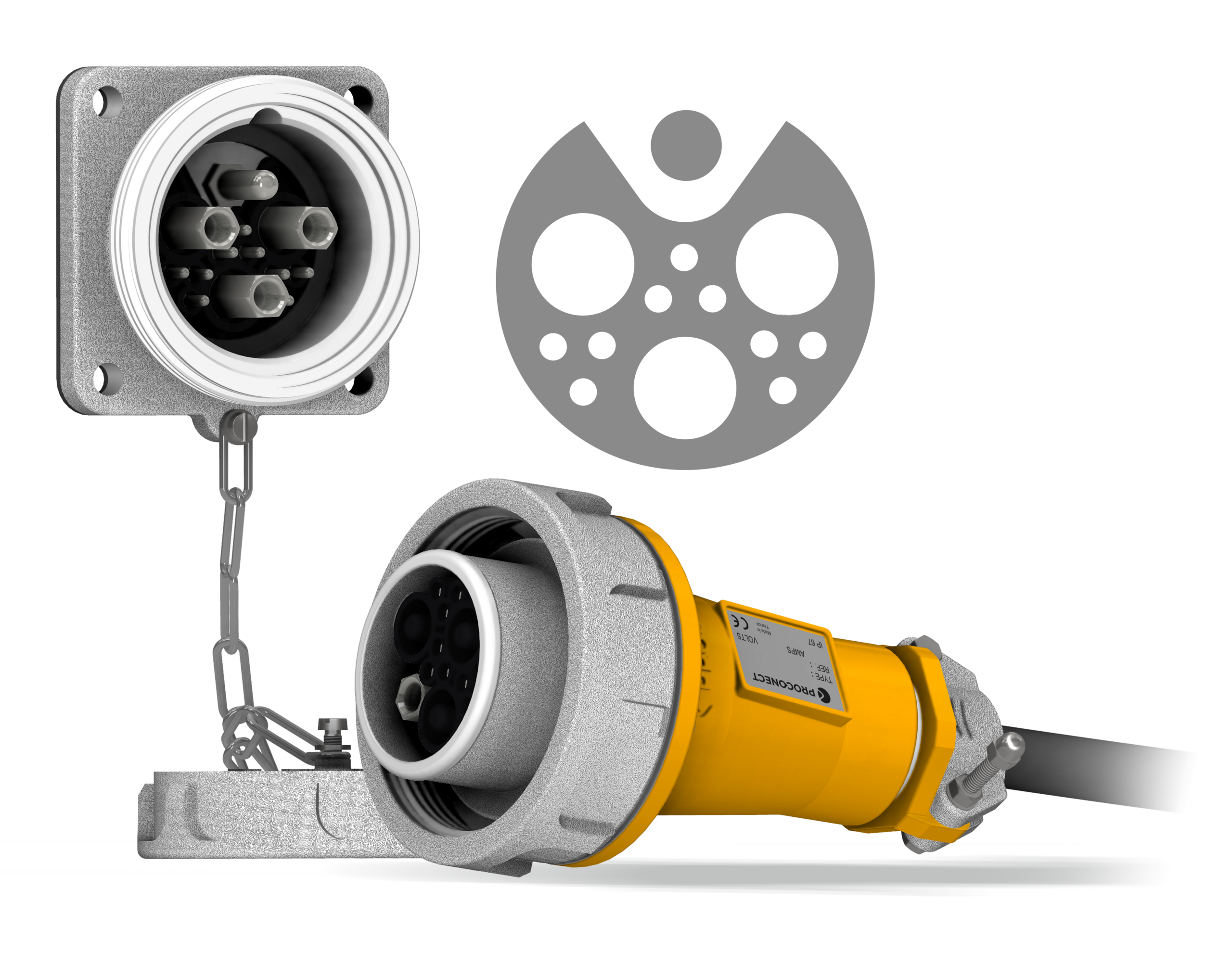

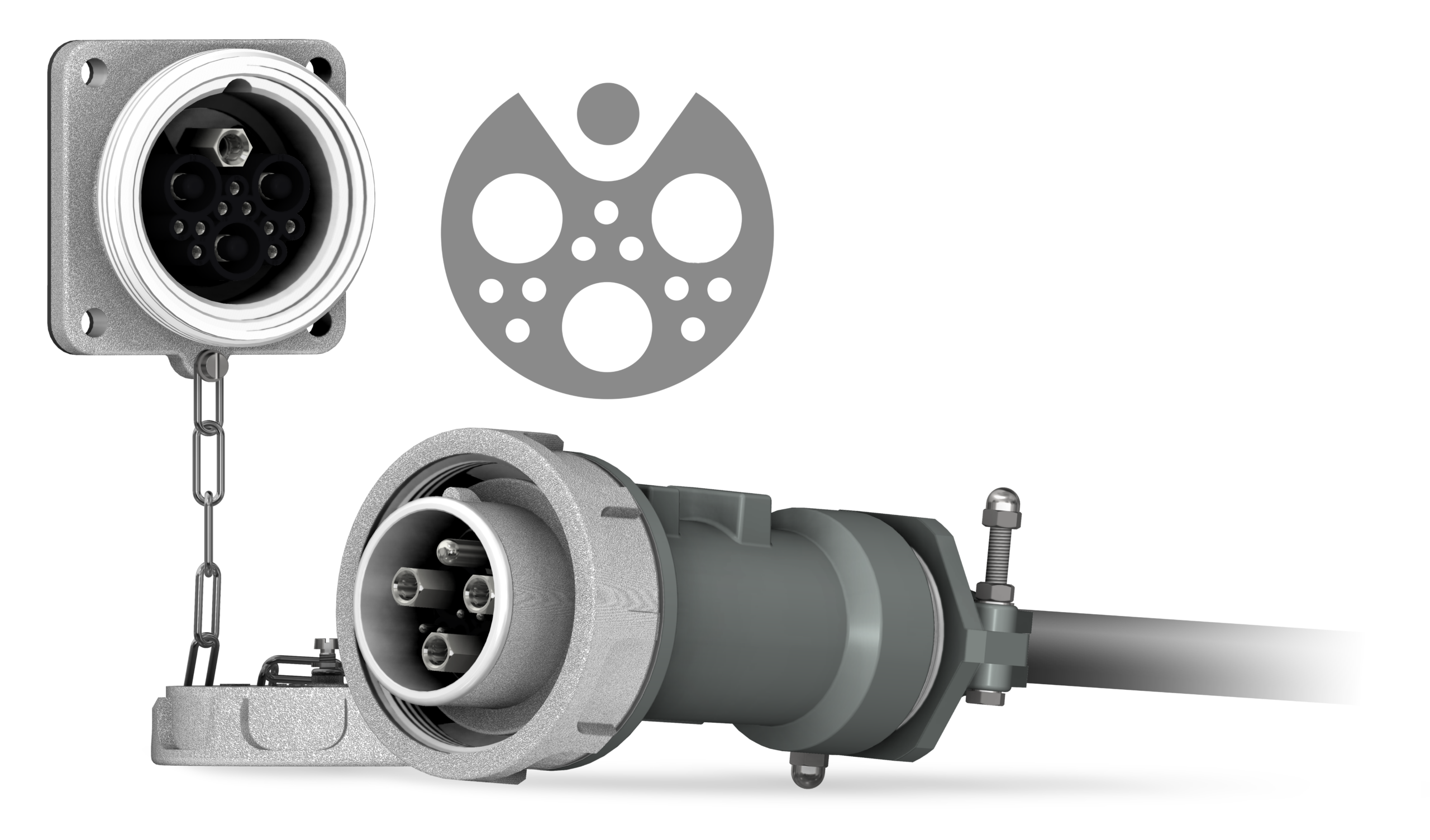

9 PILOTS OPTION
Tri-phased contact arrangement fitted with 9 x 2,5 mm² pilots. Can be used for electro hydraulic grabs integrated pumps power supply.
max. 200A - max. 1kV

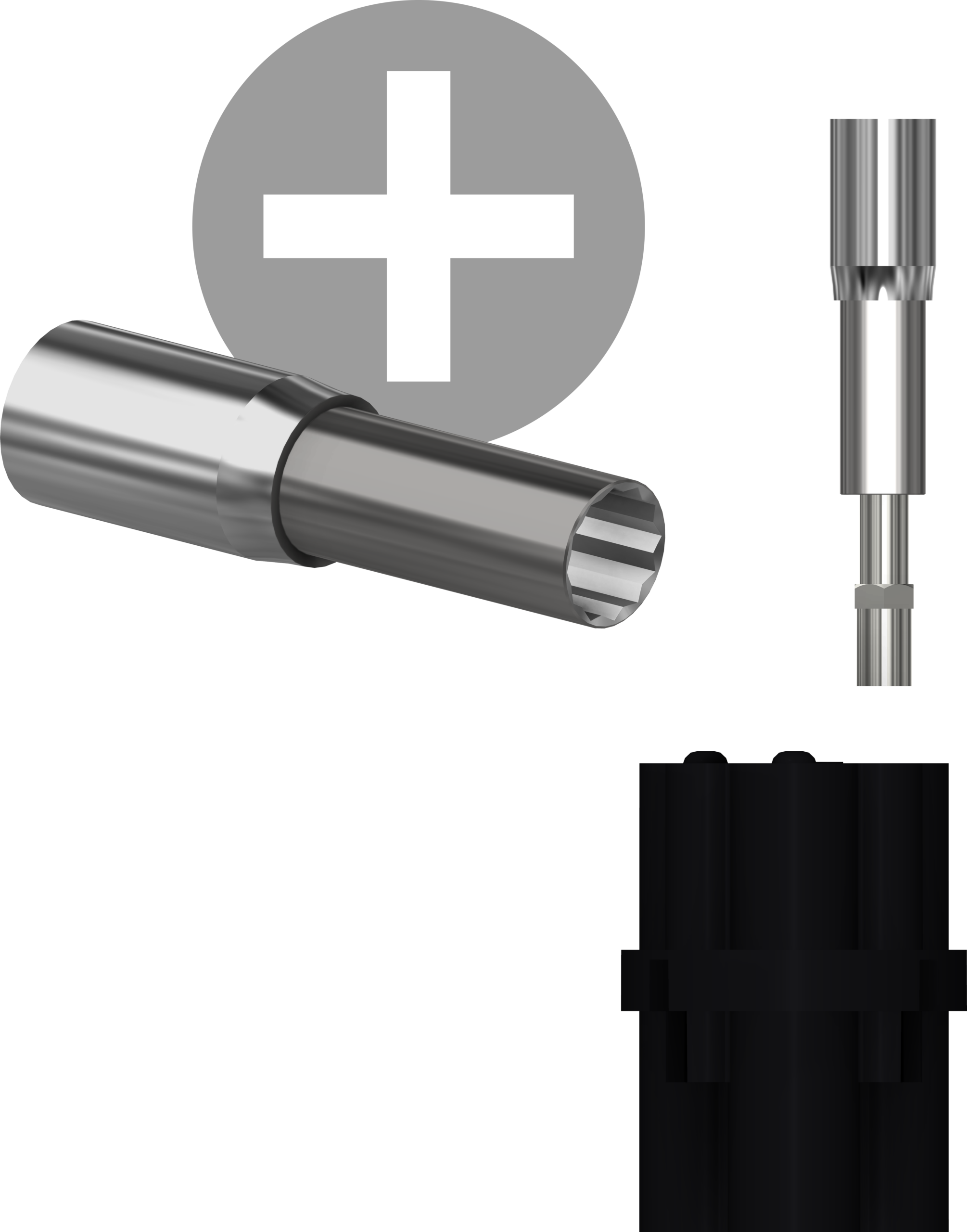

MOUNTING TOOL
Custom assembly and disassembly tool needed for phases and earth contacts.

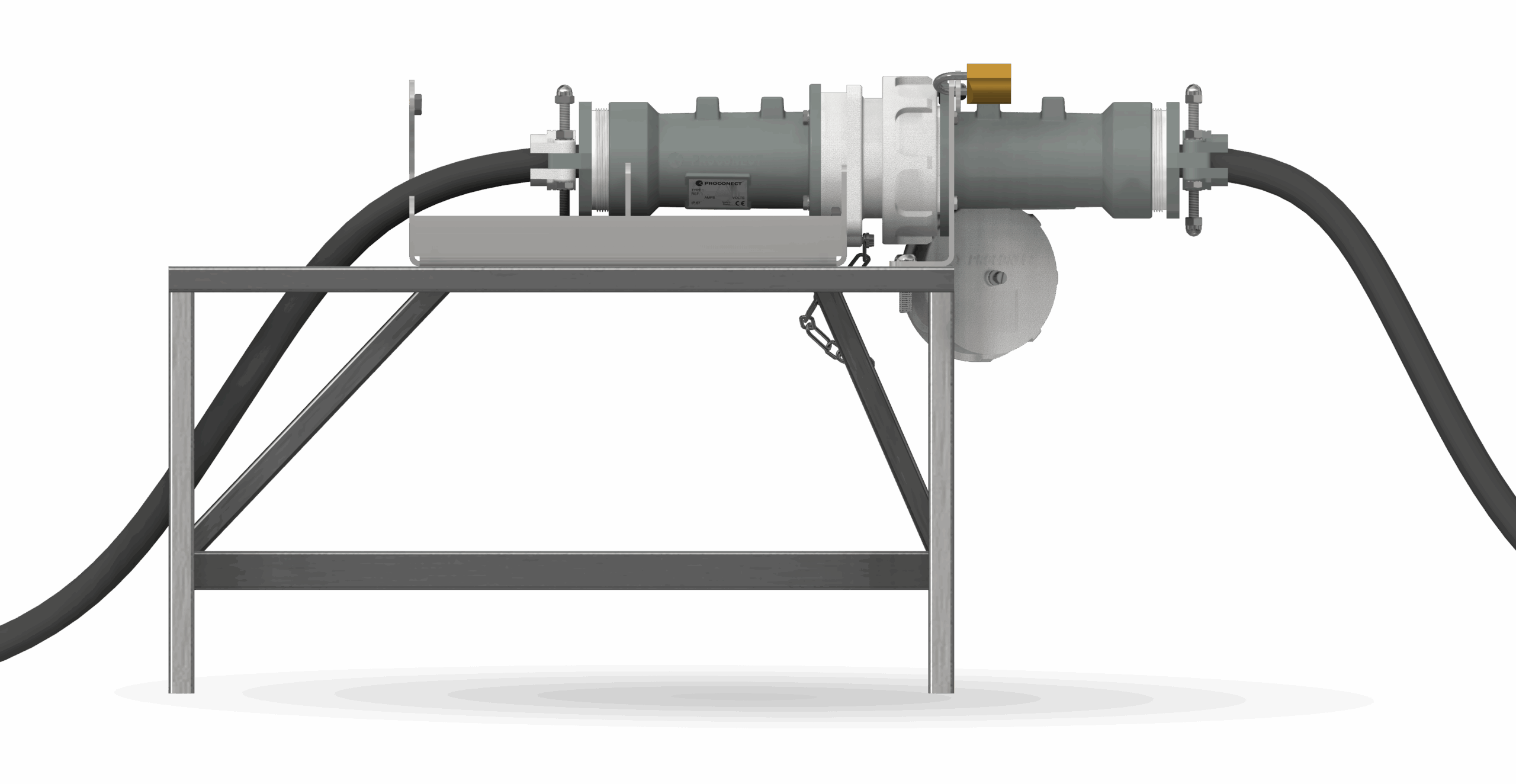

CABLE COUPLER CRADLE
Stainless steel cradle optimizing the use and lifetime of 3PV or 3PX connectors and cables.
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.
Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
