RAILWAYS
shore power supply and rolling stock connectors
PROCONECT offers a comprehensive range of industrial connectors specifically engineered for shore power supply and rolling stock applications. From locomotives to passenger cars, our robust solutions ensure safe and reliable connections at the dock or during technical center maintenance, featuring IP66-67 watertightness and IK10 impact resistance to perform in extreme conditions.
Our shore power solutions provide essential energy for auxiliary systems like HVAC and lighting, while enabling pre-conditioning to ensure passenger comfort before service. For on-board distribution, our Head-End Power (HEP) coach-to-coach connections serve as a critical electrical backbone, designed to resist extreme vibrations. We also provide auxiliary connectors for station platforms and workshops. Beyond standard products, our expert design office offers full retro-engineering and custom development for cabinets and specialized components to meet your exact technical requirements.

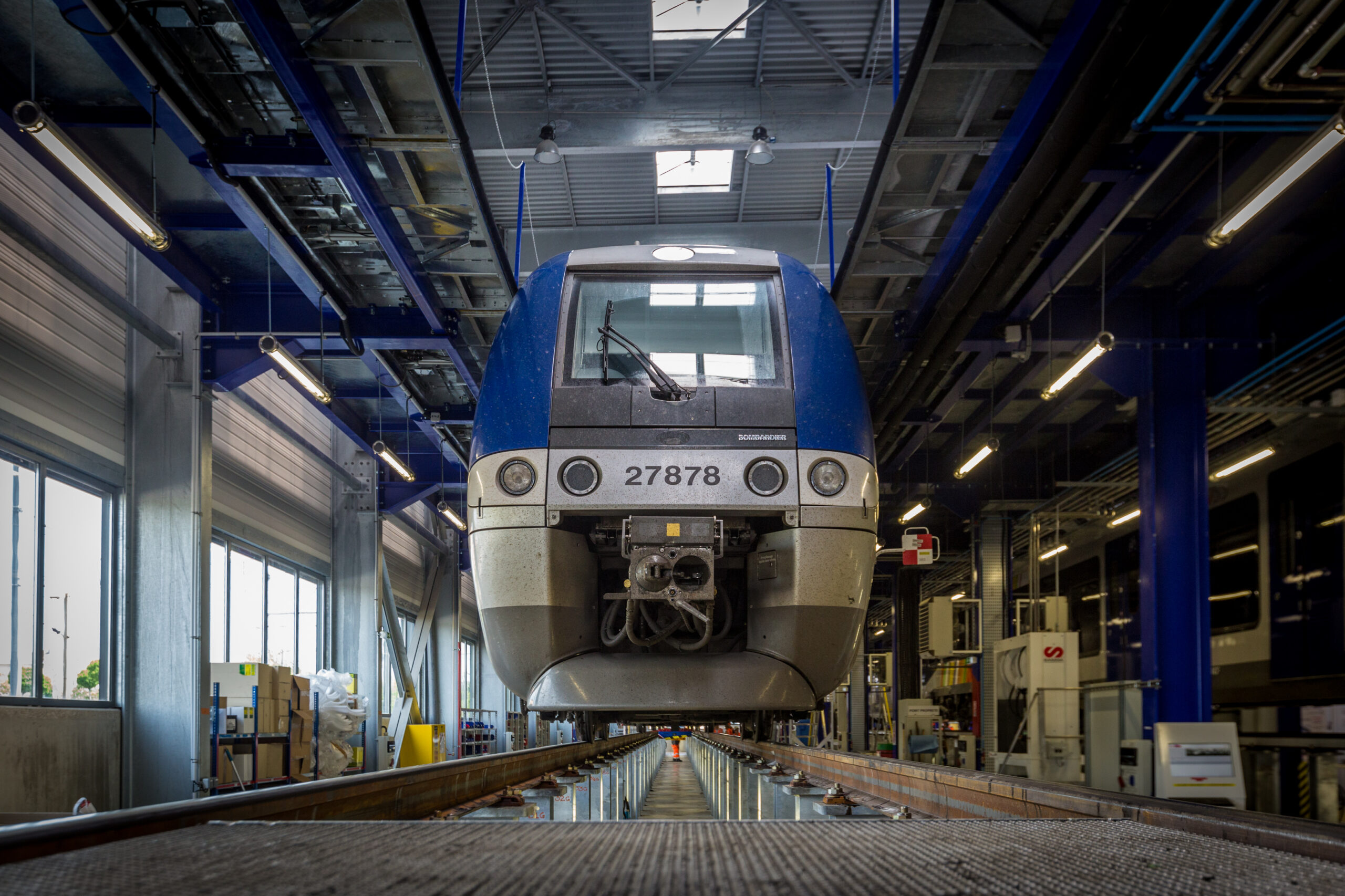

Shore supply – Stinger
Auxiliary systems
Pre-conditioning
Our shore power solutions efficiently power non-propulsion equipment (HVAC, lighting, doors) directly from the grid.
This enables essential thermal pre-conditioning, heating or cooling trains before commercial service to guarantee immediate passenger comfort while reducing peak energy demand at departure.
EN 50546 connector
PROCONECT, a CENELEC WG-19 board member, designed the 3PX3, the EN 50546 normative connector (63A/125A) for seamless shore power and train pre-conditioning.
It supports both fixed and free cable connections, and are available pre-wired for quick on-site integration.
HEP – Head-End Power

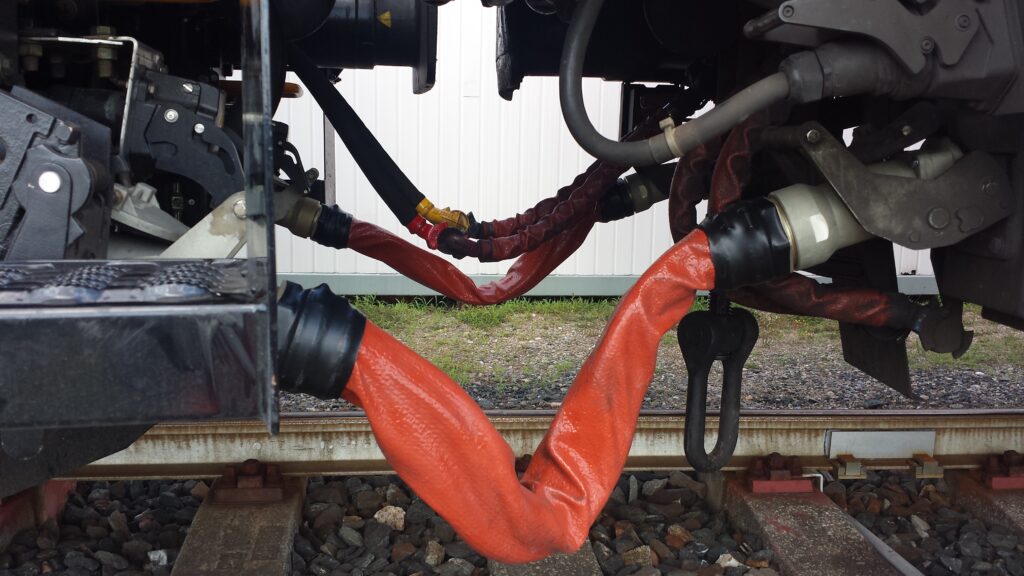

HEP connection
Head-End Power (HEP) or Coach-to-coach connection is the rails system’s electrical backbone. The locomotive generates and distributes high-voltage power through a continuous line to all cars. It feeds « hotel loads » like HVAC and lighting. These critical connections must resist extreme vibrations and ensure crew safety.
Hover over the schema to find connection points, then click to reveal details.

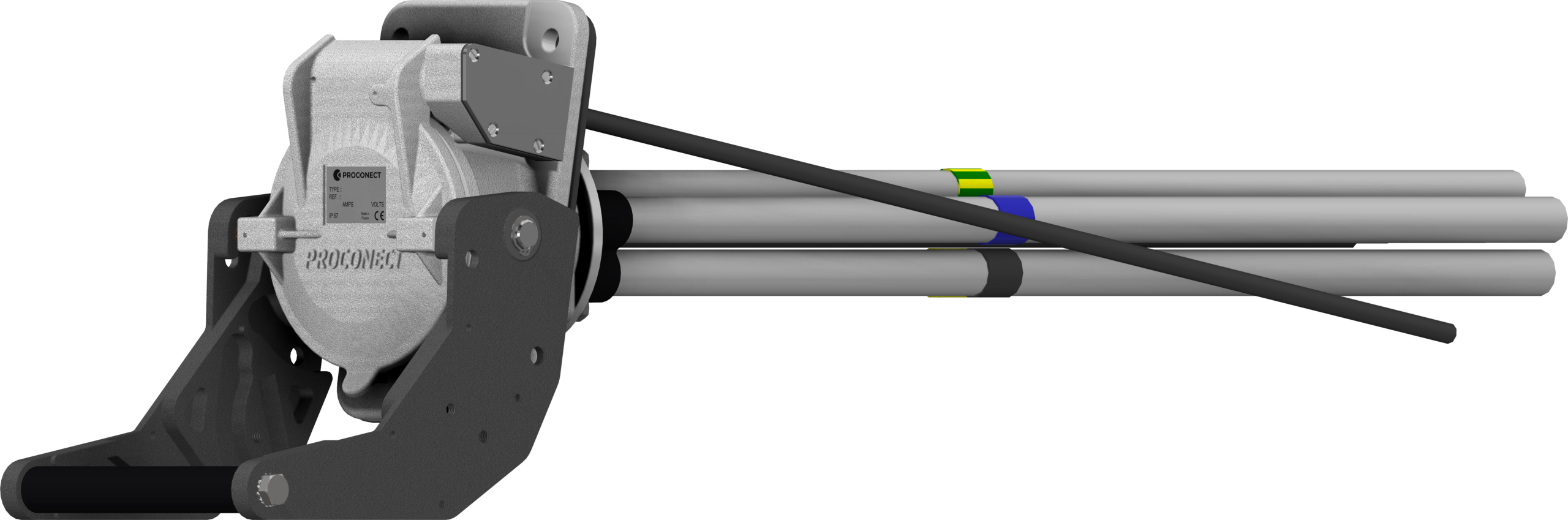

Fixed receptacle mounted directly on the rolling stock to safely transfer and distribute continuous power.

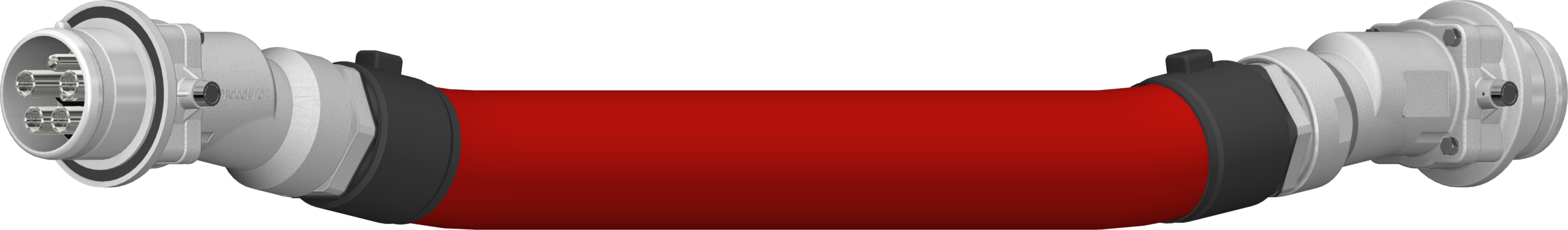

Mobile interconnection cable securely linking two coaches to distribute continuous power.

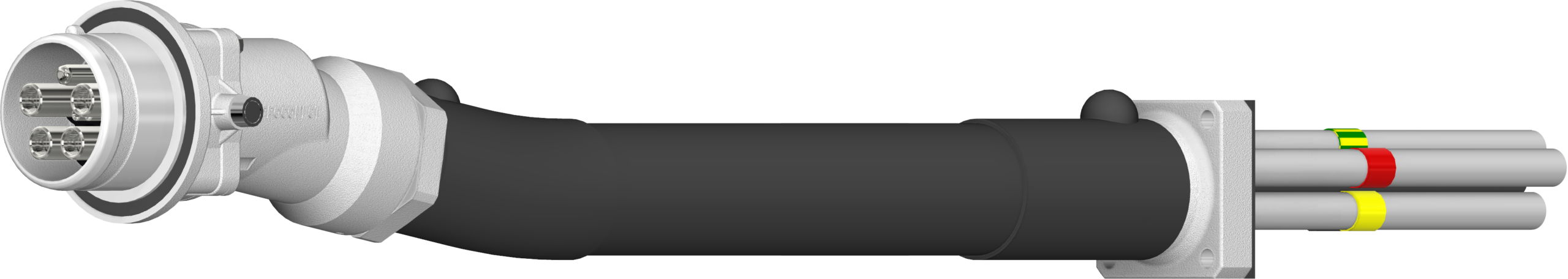

Mobile plug featuring a specific connection permanently anchored to the rolling vehicle.
Auxiliary connections
