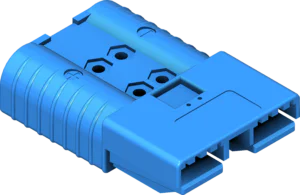

CBX 350
350A
600V max.
Battery charging connector
PROCONECT offers hermaphroditic IP2X power connectors for simplified and secure connections. The CBX 350 connector, rated at 350A, is suitable for demanding environments thanks to its resistance to acids, bases, hydrocarbons, and extreme temperatures.
- Amp. pilots : 20A
- Contacts max. : 2P (+/-) + 2p
- Cable section : 70 mm² (AWG 2/0)
- Pilot section : 2,5 mm² (AWG 14) to crimp
- Termination : to crimp, to solder
- Casing : Polycarbonate
- Contacts : Silver plated copper
- Fastenings : Stainless steel
- Temperature : -40° +125°C
- User protection : IP2X
CB 50
CB 175
CB 350
CBX 175
CBX 175
175A
600V max.
- Poles : 2P (+/-)
- 2 pilots option
- Section max. : 50 mm²
- User protection : IP2X
- 7-color coding
Connectors
SINGLE CONNECTOR
Bipolar +/-
Hermaphroditic IP2X connector to be mounted or mobile. Available with 70 mm² contacts (AWG 2/0) to crimp or to solder.
Different casing color and material available.
SELECT YOUR CONNECTOR
CONFIGURATOR
(select all options)
VOLTAGE GRAPHICAL CHARTER
12V
YELLOW
18V
ORANGE
24V
RED
36V
GREY
48V
BLUE
72V
GREEN
80V
BLACK
Options
SELECT YOUR OPTION

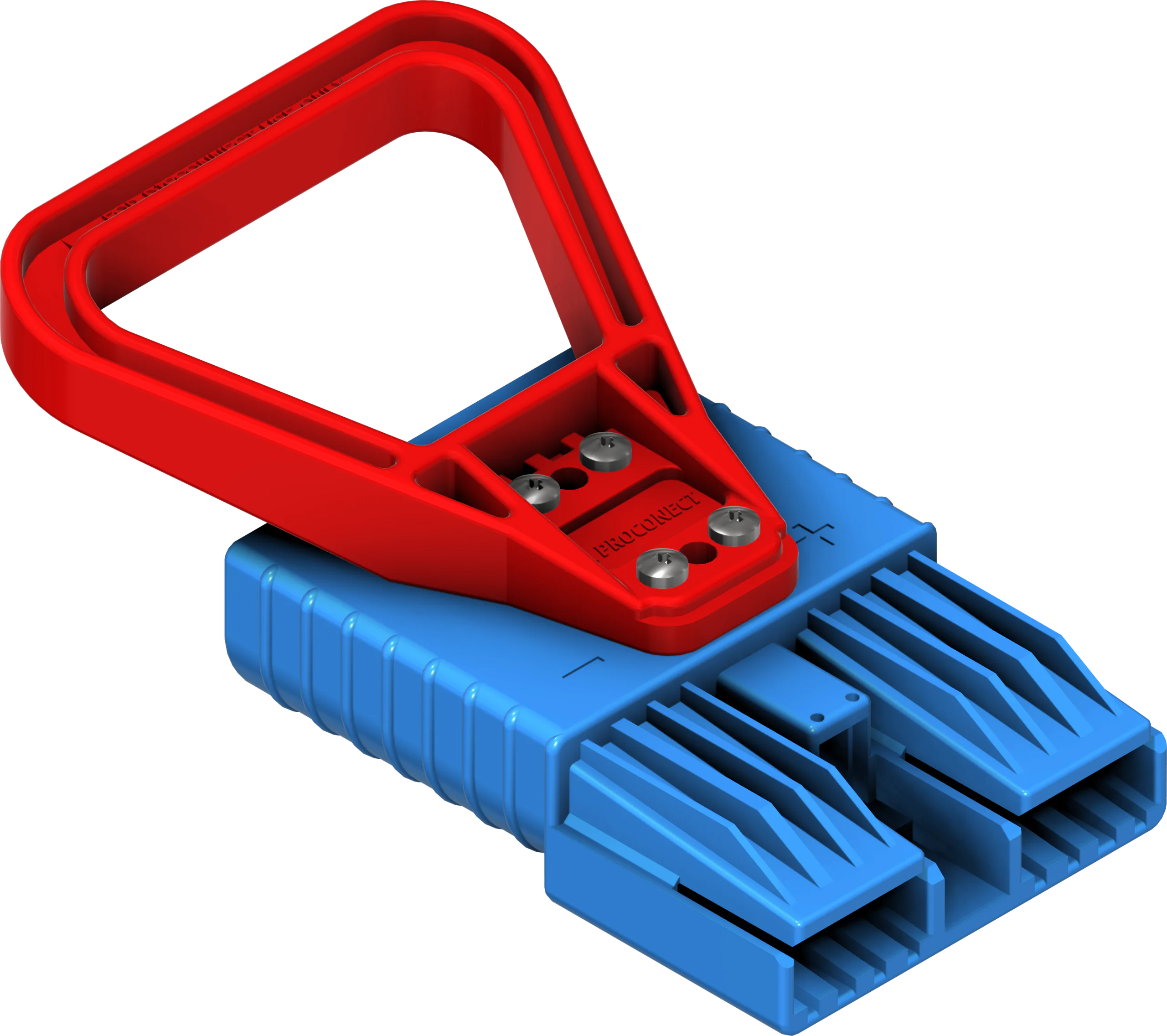

RED HANDLE
CB connectors can be equipped with a red handle to help the connection.
GREY HANDLE
CB connectors can be equipped with a grey handle to help the connection.

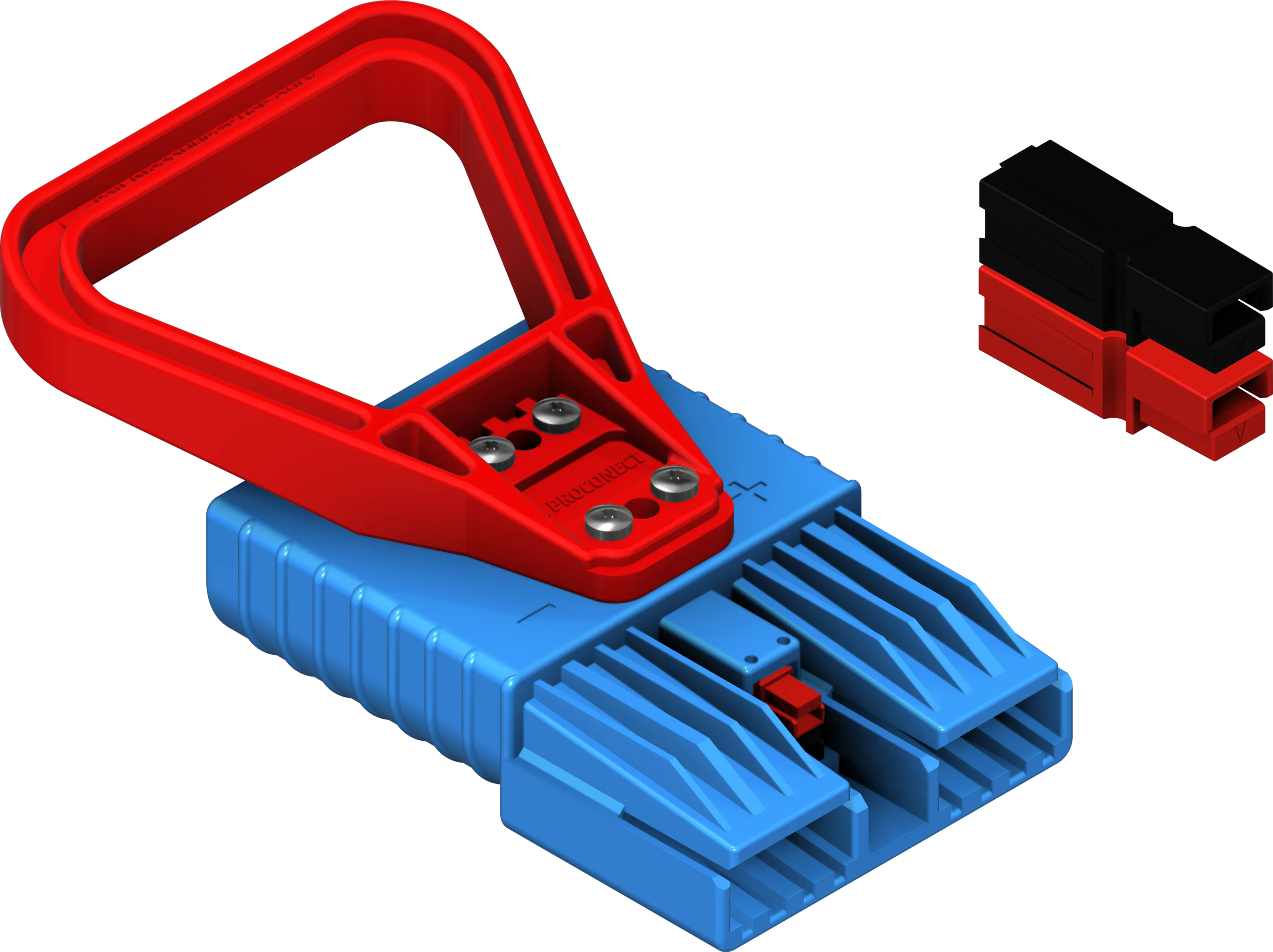

AUXILIARY CONTACTS
2 x 2,5 mm² (AWG 14) auxiliary contacts to be fitted inside the connector.
Can be retrofited into connectors without this option.
PNEUMATIC CONTACT
Pneumatic contact taking place into the 2 x auxiliary contacts slot.
Can be retrofited into connectors without this option.
SPARE PARTS
Casing and contacts are available for long-lasting connector.

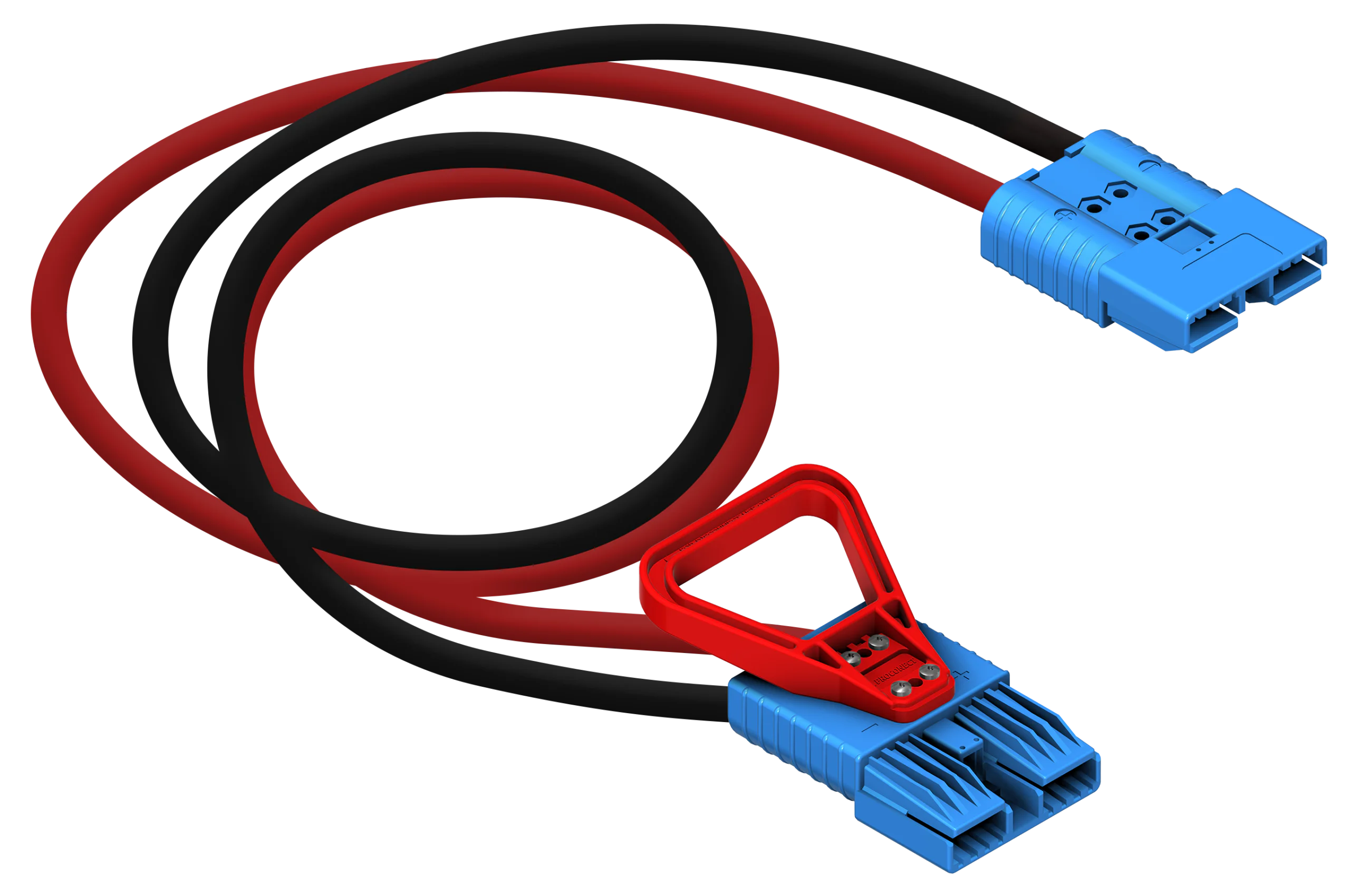

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
Technical data
CBX 350 Connectors Datasheet
More technical informations about the CBX 350 solutions.
