NF 100
100A
150V max.
NF EN 1175-1
DIN VDE 0623-589
DIN VDE 0623-589

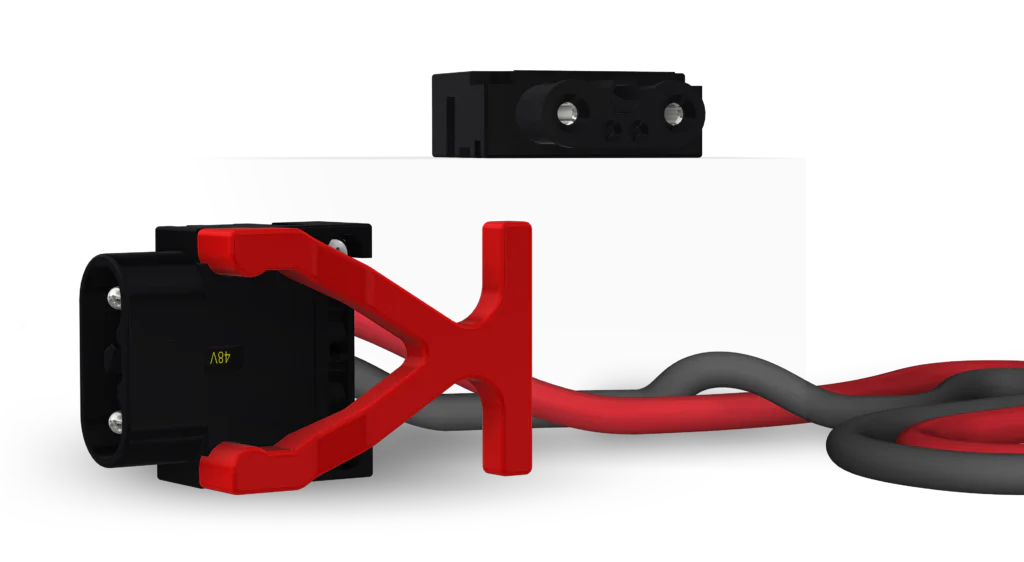

Battery charging connector
PROCONECT offers charging connectors for traction batteries, lead-acid batteries, and lithium-ion batteries. The NF 100 connector, rated at 100A, is suitable for industrial and agricultural environments thanks to its resistance to acids, bases, hydrocarbons, and extreme temperatures.
- Amp. pilots : 20 A
- Contacts max. : 2P (+/-) (+2 pilots option)
- Cable section : 16 mm² (AWG 6) / 25 mm² (AWG 4) / 35 mm² (AWG 2)
- Cable diameter max. : 14 mm
- Pilot : 2,5 mm² (AWG 14)
- Termination : to crimp, to solder
- Polarity control : coding pin
- Casing : Thermoplastic
- Contacts : Copper alloy
- Fastenings : Stainless steel
- Temperature : -20° +90°C
- Ind. protection : IP23

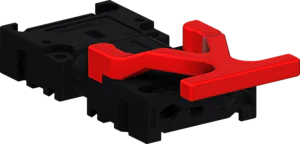

Connectors

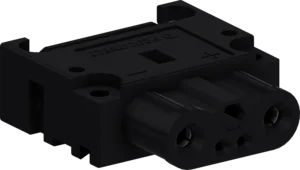

FEMALE CONNECTOR
Bipolar +/-
Fixed connector to be installed on a structure (wall-mounted, electrical cabinet, vehicle, etc).
Available with 16, 25 and 35 mm²
(AWG 6 - AWG 4 - AWG 2) contacts to crimp or to solder.

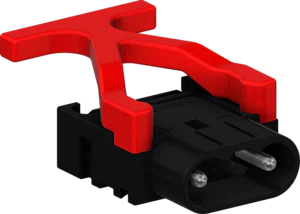

MALE CONNECTOR
Bipolar +/-
Mobile connector to be cabled.
Available with 16, 25 and 35 mm²
(AWG 6 - AWG 4 - AWG 2) contacts to crimp or to solder.
This connector can be equipped with a handle to help the connection.
SELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION

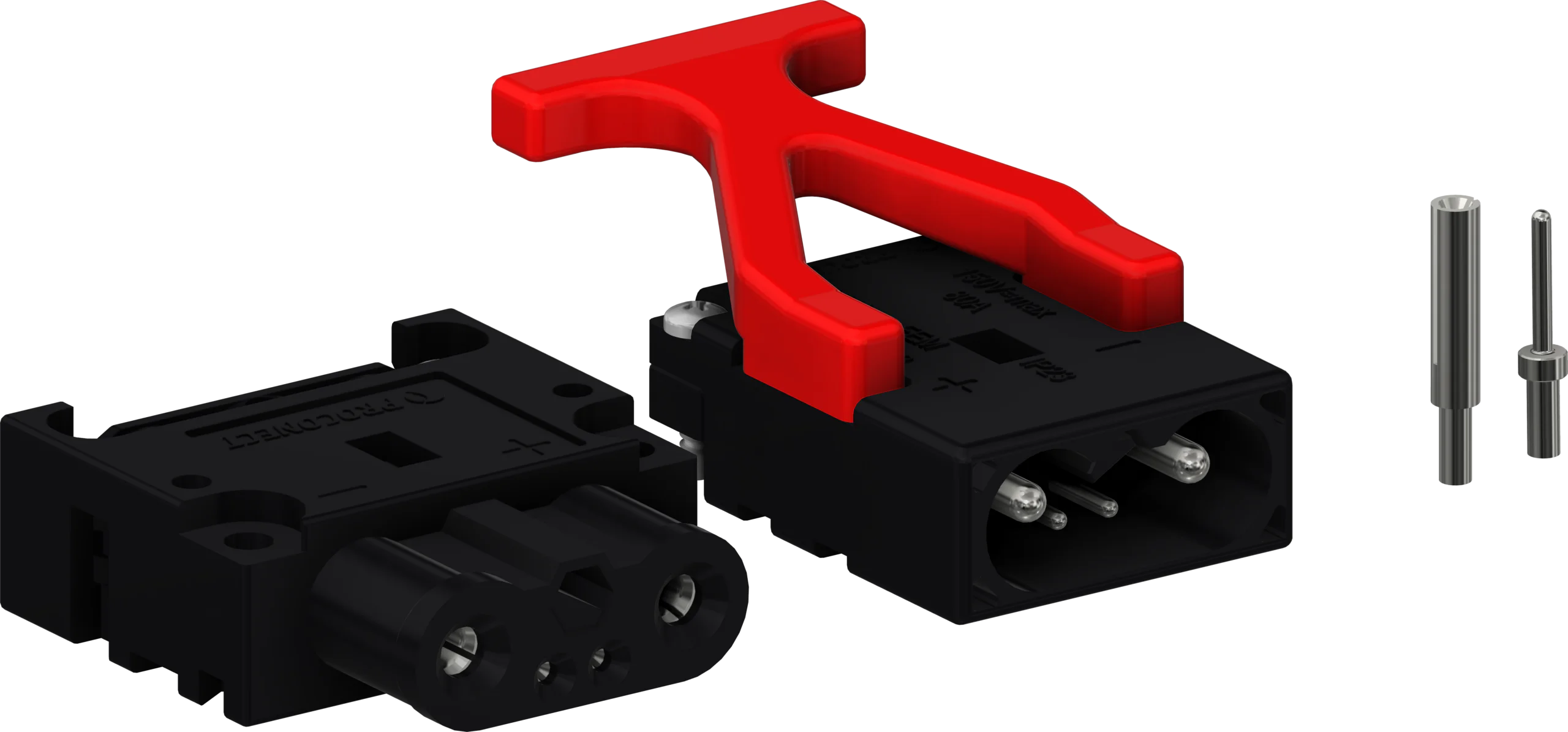

AUXILIARY PILOT
Male and female connectors can be fitted with 2 auxiliary 2,5 mm² (AWG 14) contact.

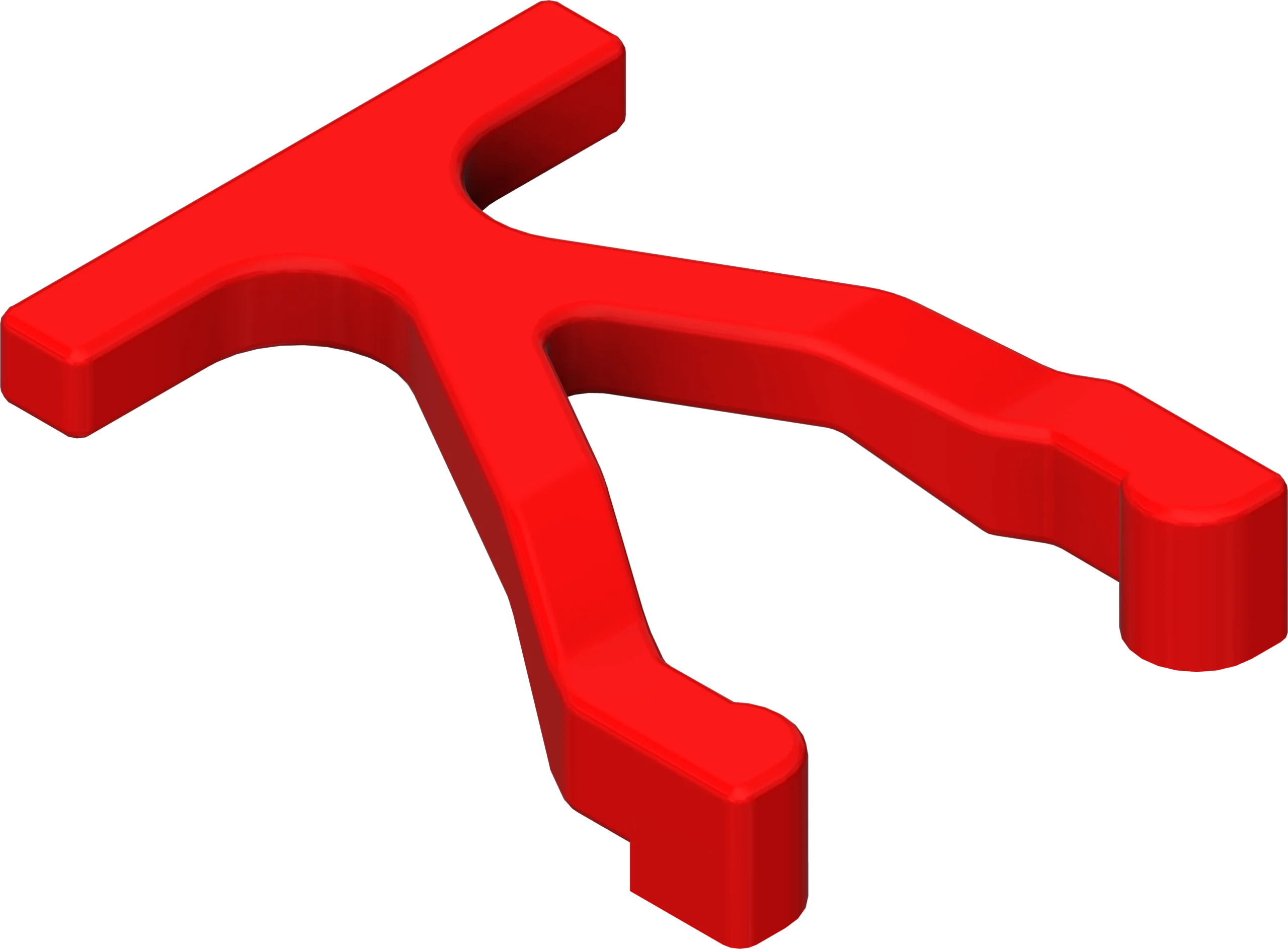

HANDLE
Male connectors can be equipped with an handle to help the connection.

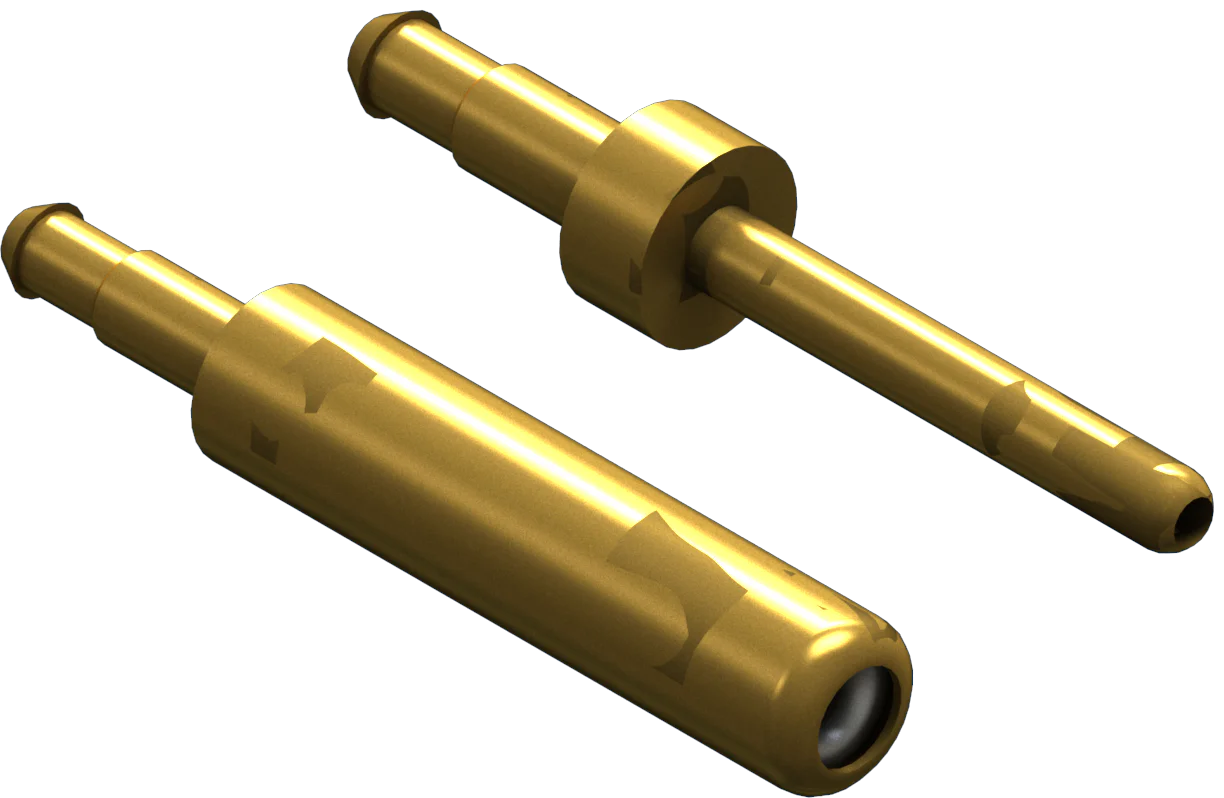

PNEUMATIC CONTACTS
Pneumatic contacts used instead of pilot pins.

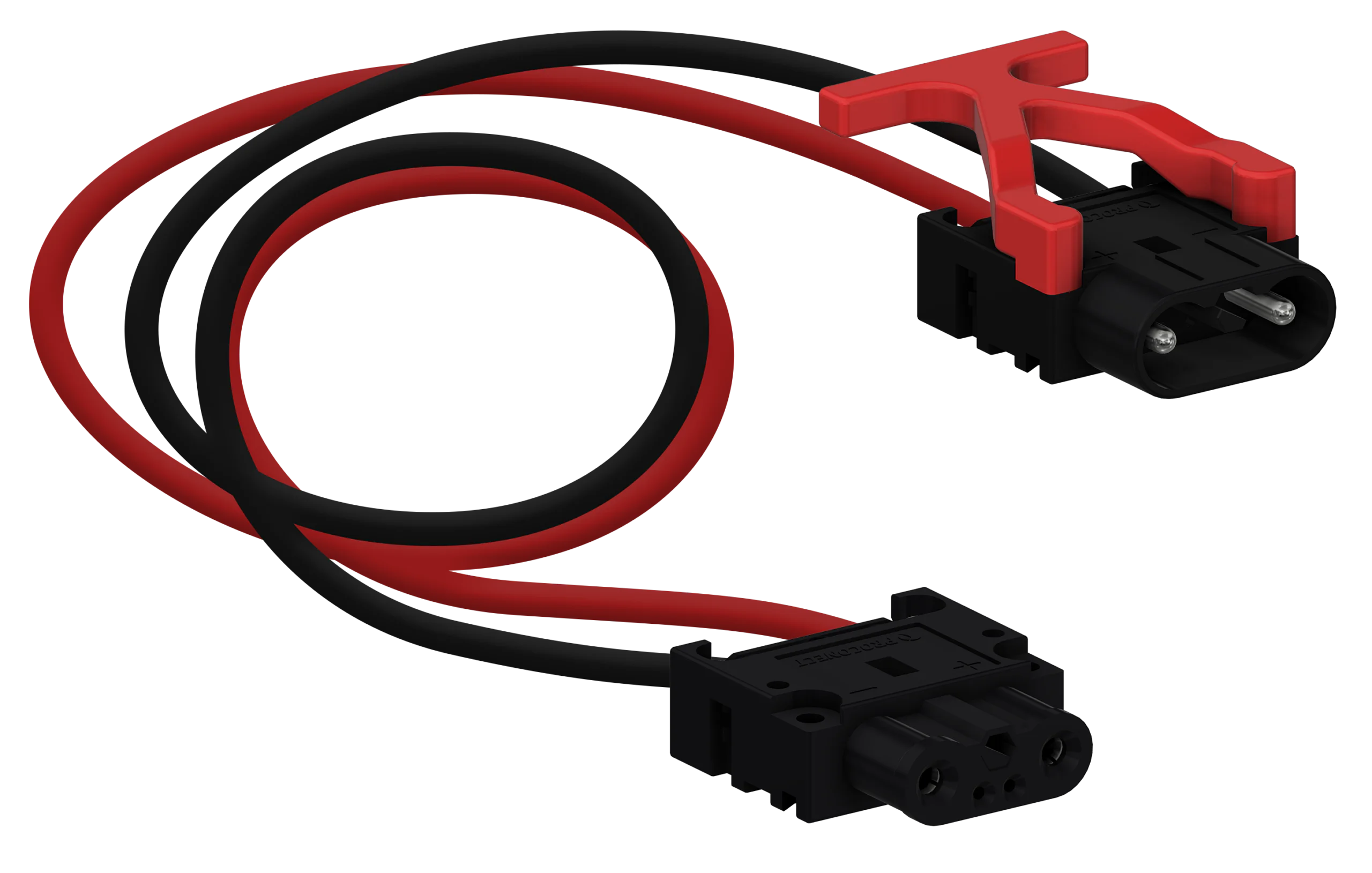

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
Technical datas
NF 100 Connectors Datasheet
More technical informations about the NF 100 solutions.
