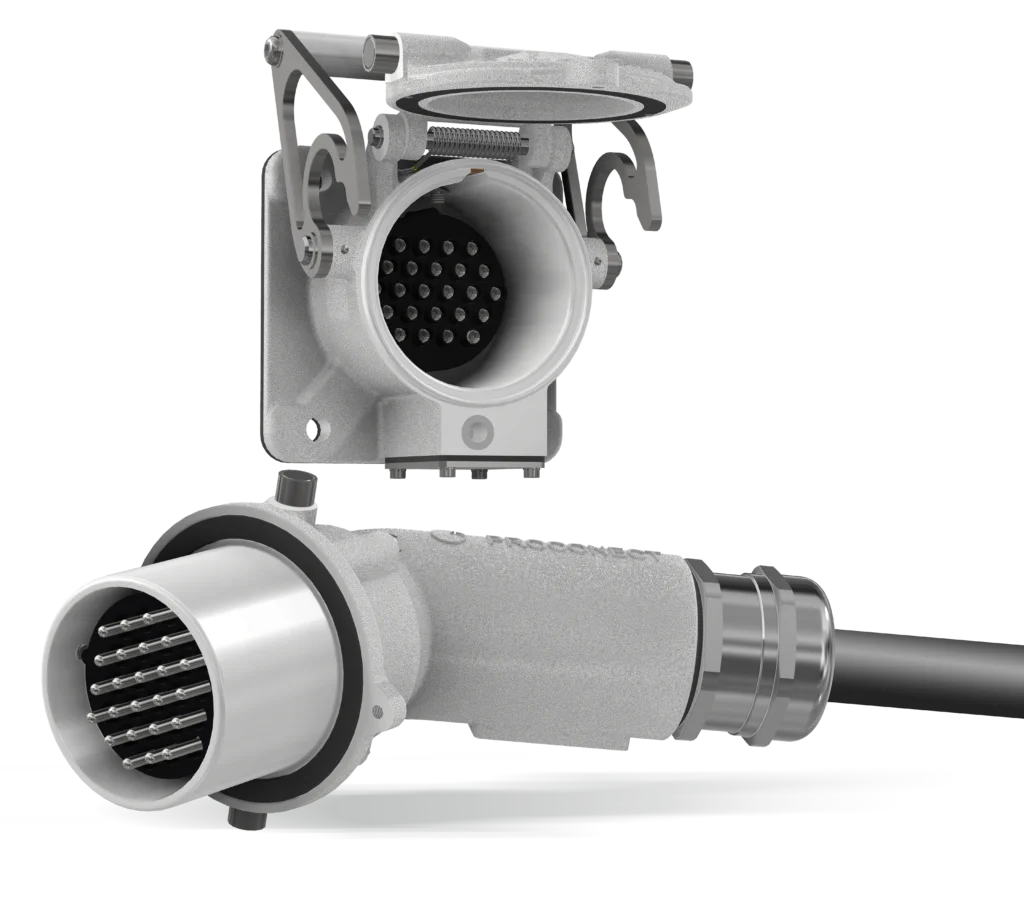

3PX3 - 24 poles

30A

500V

Onshore power supply connector for control circuit

24 poles connector used for shore power supply of cruise vessels 24V & 110V control circuits following IEC 80005-1 Annex C.

OPS CONNECTORS ➜

Contacts max. : 23P+E
Cable section : 1,5 mm² (AWG 16) / 2,5 mm² (AWG 14) / 6 mm² (AWG 10)
Cable diameter : max. 42 mm
Termination : to crimp or solder
Dielectric withstand : 2,5 kV AC 1 min.

Casing : AS7G (Corrosion resistant aluminium alloy)
Contacts : Silver plated copper
Insert : PBT (complying EN 45545-2)‎
Fastenings : Stainless steel
Temperature : -40° +120° C
Salt spray : 96H
Ind. protection : IP66 - IK10

3PX3

63A/125A

400V AC

Poles : 3P+N+4p
Section max. : 35 mm²
Ind. protection : IP66 - IK10

Connectors

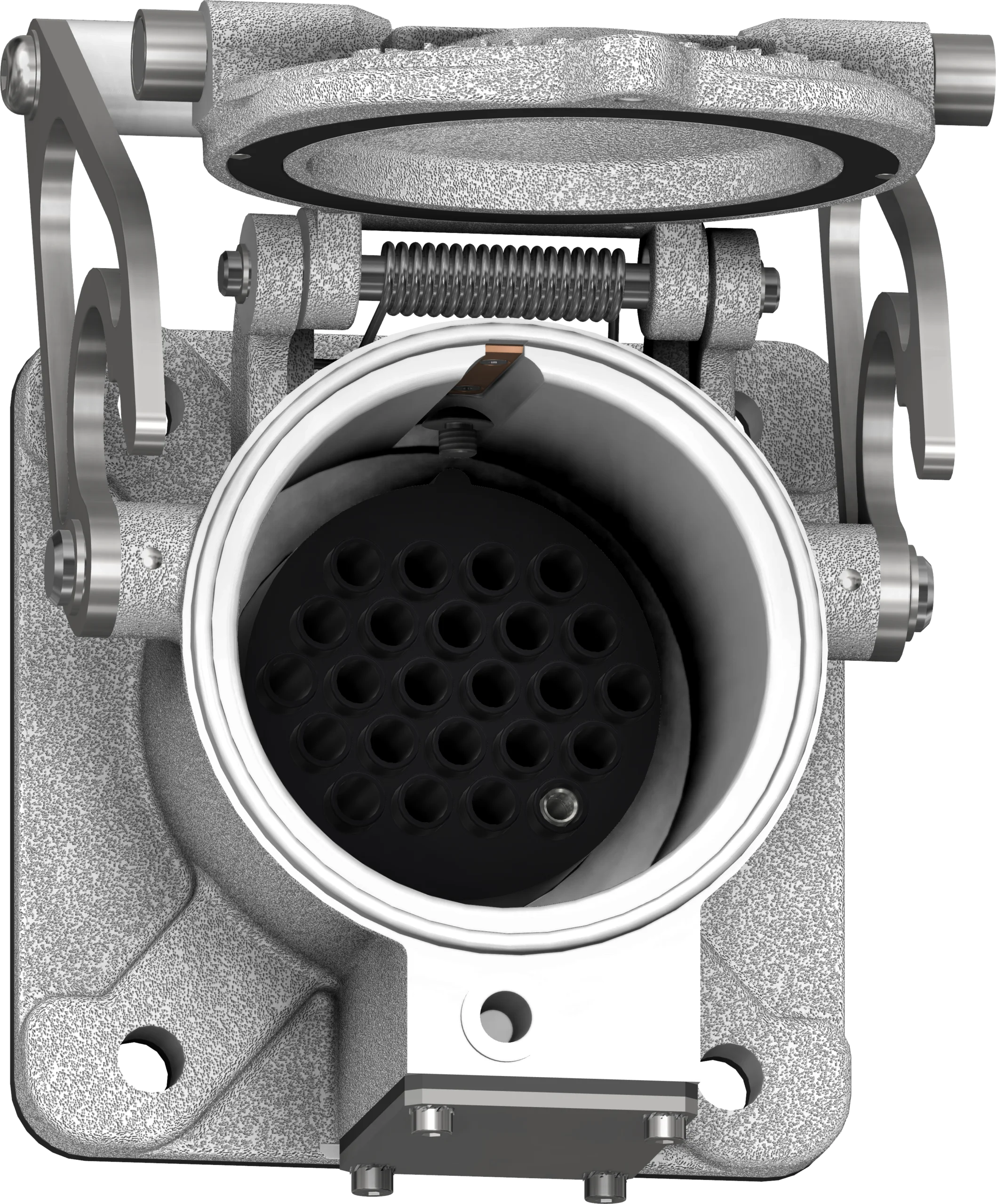

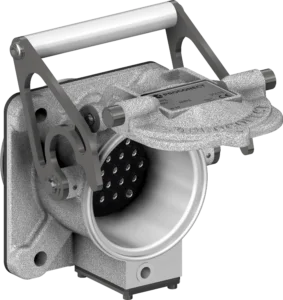

SOCKET

3-phased

Active part to be placed wall-mounted, on an electrical cabinet or on the rolling stock. Cam push/pull system to maintain IP66 when closed or help and lock the connection of a plug.

Go to options

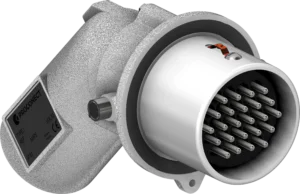

PLUG

3-phased

Mobile connector to be cabled and connected in a socket. The plug cap options are needed to ensure IP66 once disconnected.
This connector needs to be fitted with a M50 cable sealing device in order to maintain IP66.

Go to options

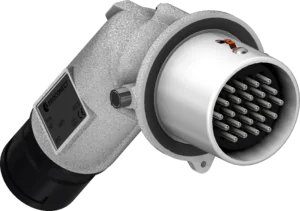

PLUG WITH CONDUIT ADAPTOR

3-phased

Mobile connector to be cabled and connected in a socket. The plug cap options are needed to ensure IP66 once disconnected.
This connector is pre-equipped with a M50 conduit adaptor.

Go to options

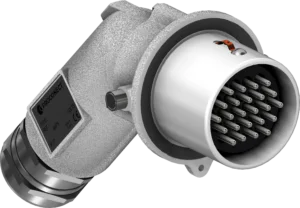

PLUG WITH CABLE GLAND

3-phased

Mobile connector to be cabled and connected in a socket. The plug cap options are needed to ensure IP66 once disconnected.
This connector is pre-equipped with a M50 cable gland.

Go to options

SELECT YOUR CONNECTOR

Options

Pre-wired connectors

Connectors can be supplied pre-wired depending on cable availability or whether the cable is supplied in advance.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
