3PX5-LV
IEC 80005-3
Cam push/pull metallic connector for Industry
- Amp. max. : 350A
- Voltage max. : 690V
- Short circuit : 16 kA r.m.s/1s (40 kA peak)
- Amp. pilots : 20A
- Contacts standard : 3P+E+4p
- Cable section max. : 185 mm² (300 MCM)
- Cable diameter : min. 25 mm / max. 80 mm
- Pilot section : 2,5 mm² (AWG 14)
- Dielectric withstand : 3 kV AC 1 min.
- Termination : to crimp, to solder or screw (screw terminals 16-35mm² or 50-70mm²)
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : PPO
- Fastenings : Stainless steel
- Temperature : -30° +60° C
- Ind. protection : IP67 - IK10
Connectors
SELECT YOUR CONNECTOR

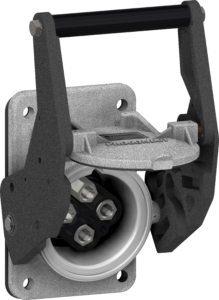

SOCKET
Active part to be placed wall-mounted or on an electrical cabinet. Cam push/pull system to maintain IP67 when closed or help and lock the connection of a plug.
Go to options

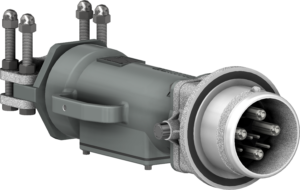

PLUG
Mobile connector to be cabled and connected in a socket or a cable coupler. The plug cap options are needed to ensure IP67 once disconnected.
Go to options

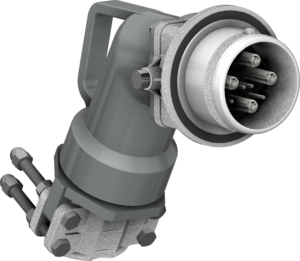

ANGLED PLUG 60°
Mobile connector to be cabled and connected in a socket or a cable coupler. The plug cap options are needed to ensure IP67 once disconnected.
Go to options

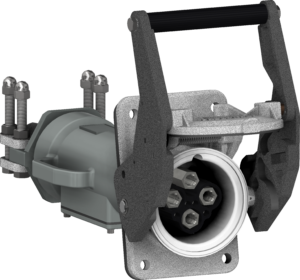

CABLE COUPLER
Mobile socket to be cabled and connected in a plug used to make an extension line.
Go to options

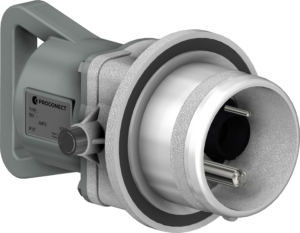

LIVE END CAP
Small plug without phases to secure a socket under voltage without a plug connected in.
Go to options3PX5-LV variations
Options
SELECT YOUR OPTION
PLUG CAP
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.
TOGGLE LATCH
PLUG CAP
Toggle latches added on the cap to facilitate handling and ensure IP67 rating.
OPTICAL FIBER DERIVATION BOX (LOW)
The optical fiber derivation box is an optional casing added to the plug to derivate the optical fiber of the cable into a F.O. socket placed onto it.
OPTICAL FIBER DERIVATION BOX (HIGH)
The optical fiber derivation box is an optional casing added to the plug to derivate the optical fiber of the cable into a F.O. socket placed onto it.
MICROSWITCH
Sockets can be provided with a Microswitch, activated by opening or closing the socket lid.
CABLE GLAND OR CONDUIT ADAPTOR
M63 adaptor for connecting a standard cable gland or a conduit adaptor (other sizes on request).
CAPTIVE KEY LOCKING
Captive key system both on the plug and the socket to authorize electrification of the system once connected and the key engaged.
BOLT LOCKING
Bolt locking system only on the socket to authorize electrification of the system once the plug connected and the key engaged.
RAIN HAT + PROTECTION SLEEVE
Sleeve and cable adaptive (Ø25-80mm) rain hat to give a better protection to disconnected plugs
from the harshest environments.
CABLE COUPLER CRADLE
Craddle support allowing the connector to be raised from the floor and avoid damage on the cables and the connector.
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.
Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.

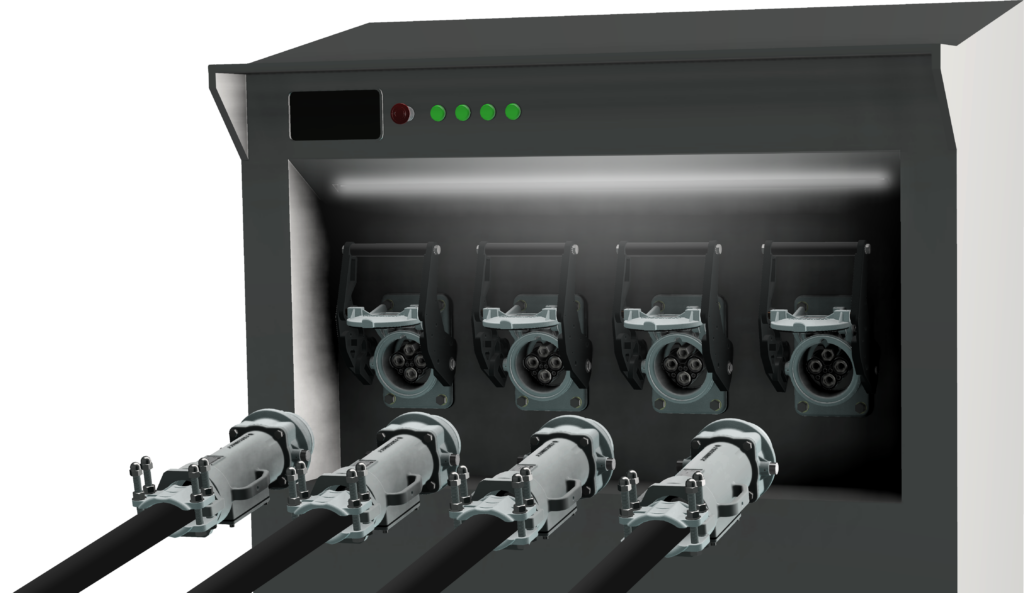

Connection boxes
Technical datas
3PX5-LV Datasheet
More technical informations about the 3PX5-LV solutions.
