DC
connectors
Rugged DC power connectors for industrial batteries and motors, built to resist harsh environments while ensuring safe, reliable high-current transmission through advanced voltage keying and touch-safe designs.
NF Connectors
Engineered for reliable battery-to-motor or charger connections, the NF range features an unbreakable, acid-resistant thermoplastic housing and silver-plated copper contacts. Designed with foolproof voltage coding pins to prevent mismatches, it supports a maximum voltage of 150 Volts and complies with major industry standards including DIN 43589, FEM 4007, and NFH 96 301.

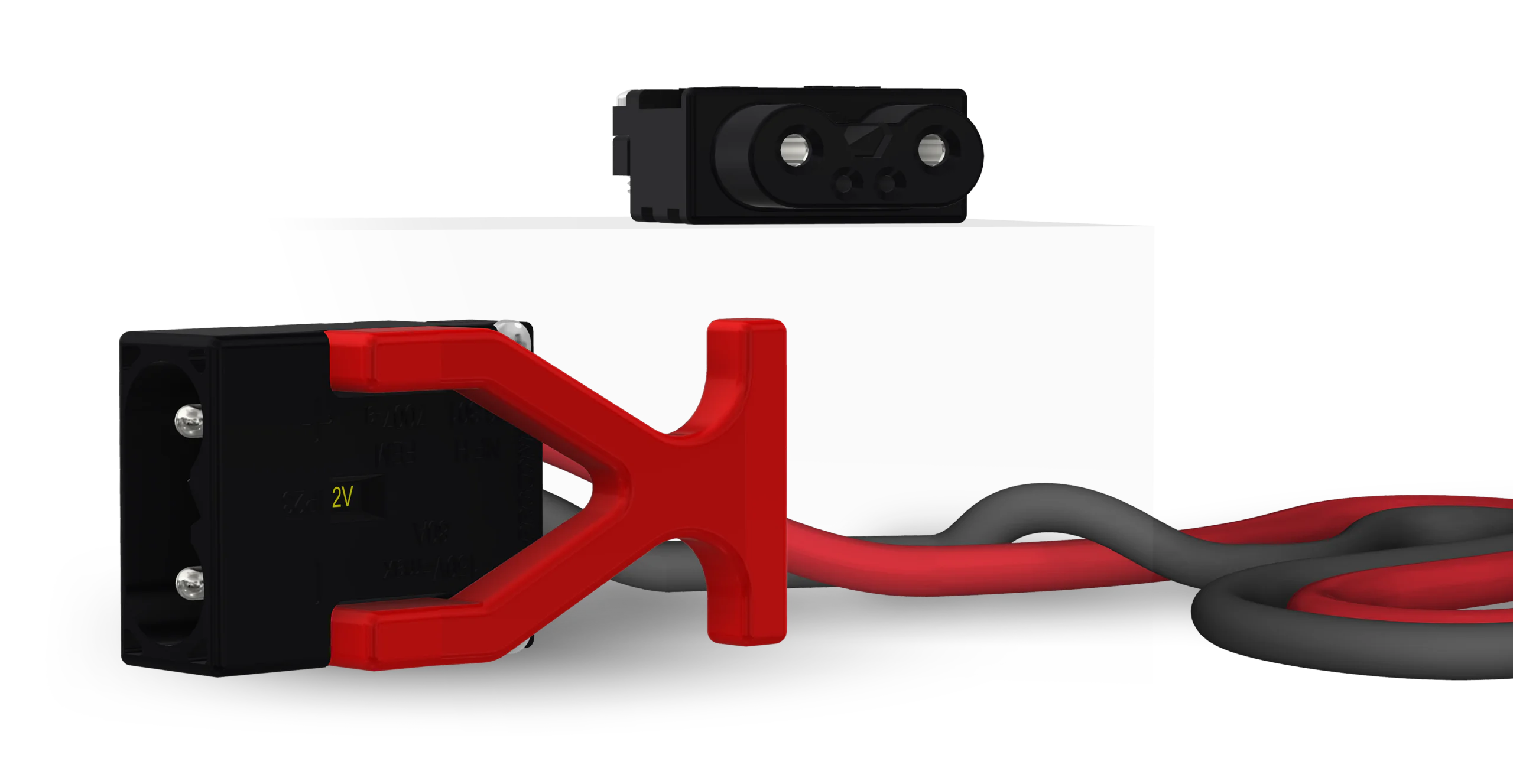

NF80
- 2 pilots option
- Section max.: 25 mm²
- Protection: IP23
- Voltage coding

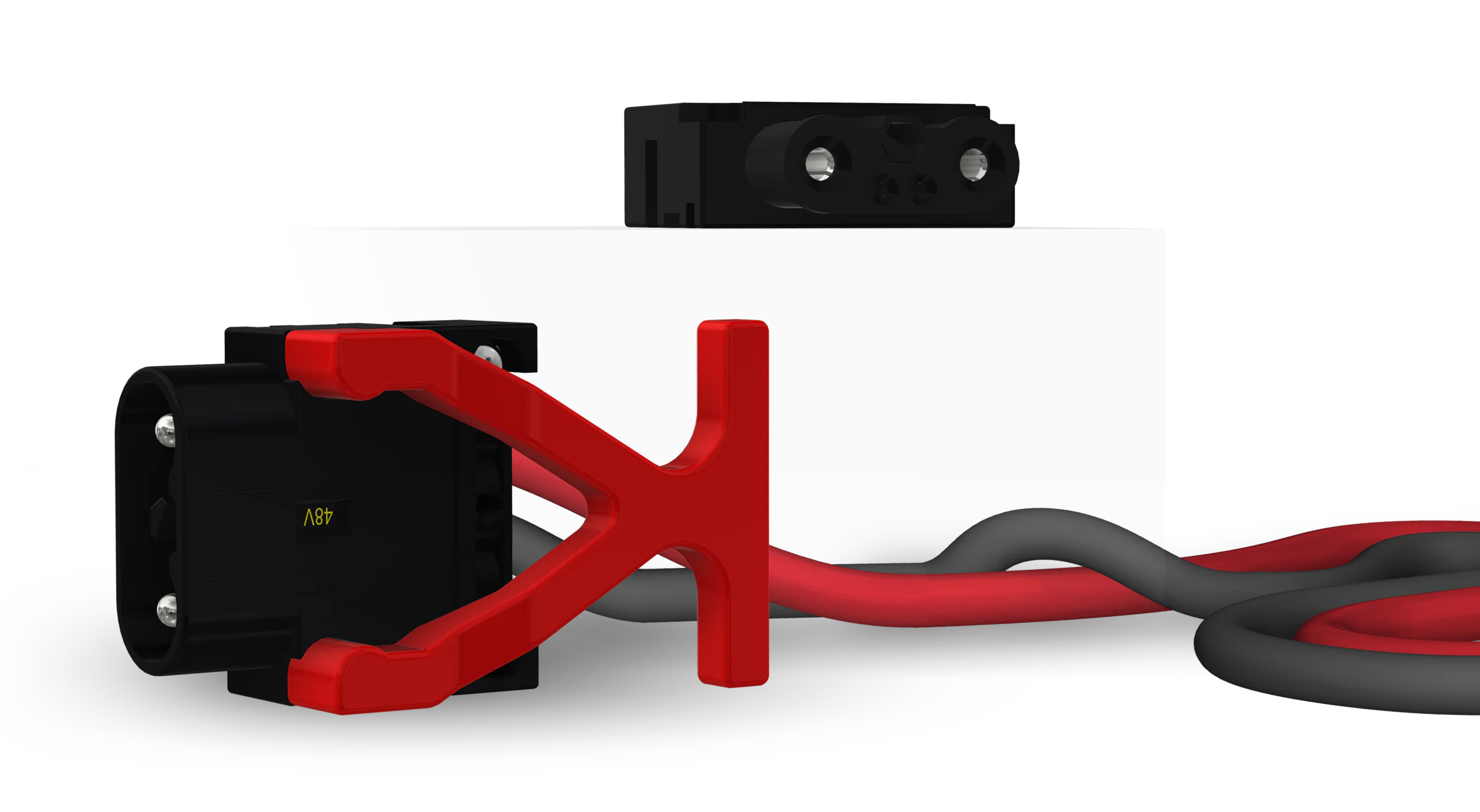

NF100
- 2 pilots option
- Section max.: 35 mm²
- Protection: IP23
- Voltage coding

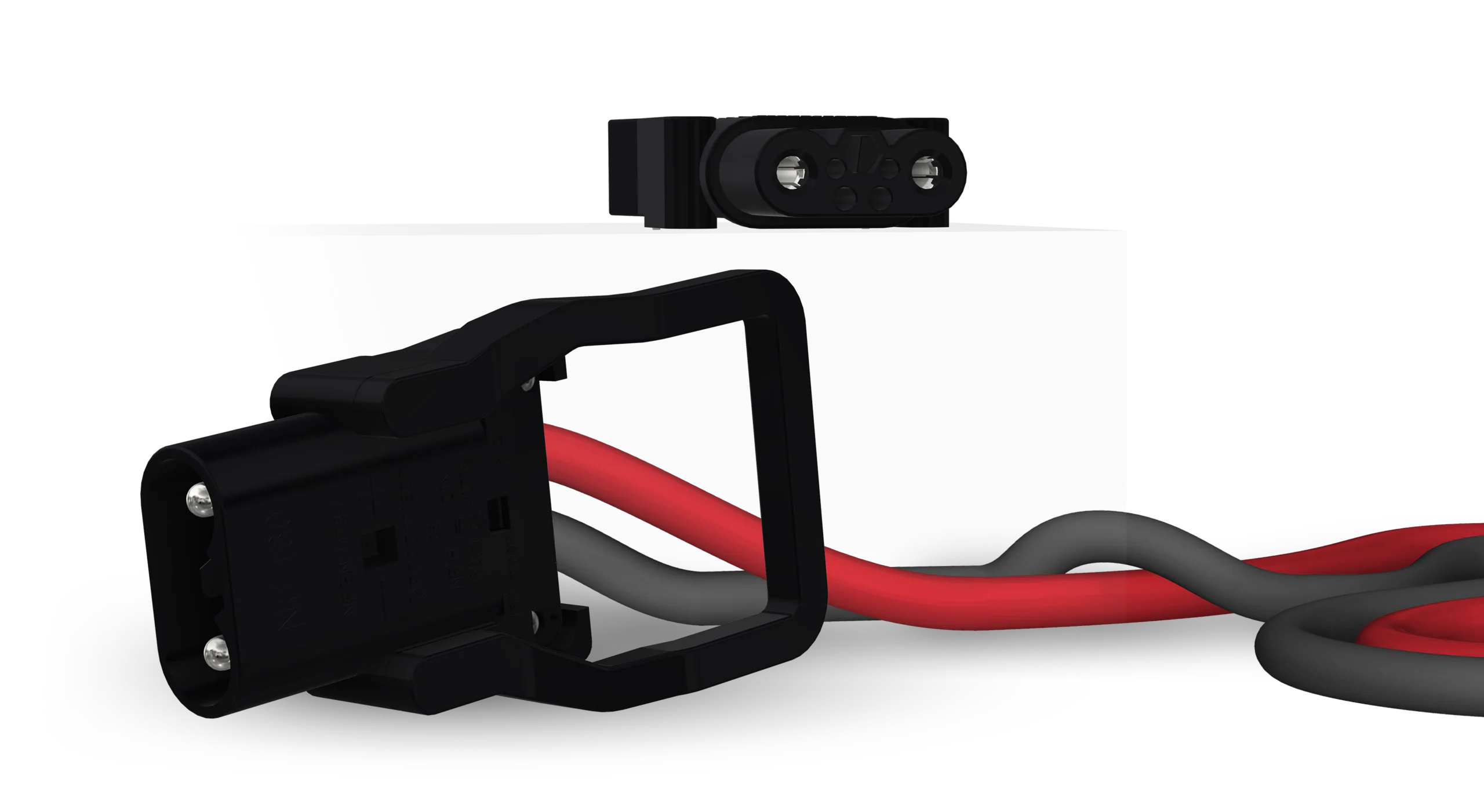

NF160
- 2 pilots option
- Section max.: 50 mm²
- Protection: IP23
- Voltage coding

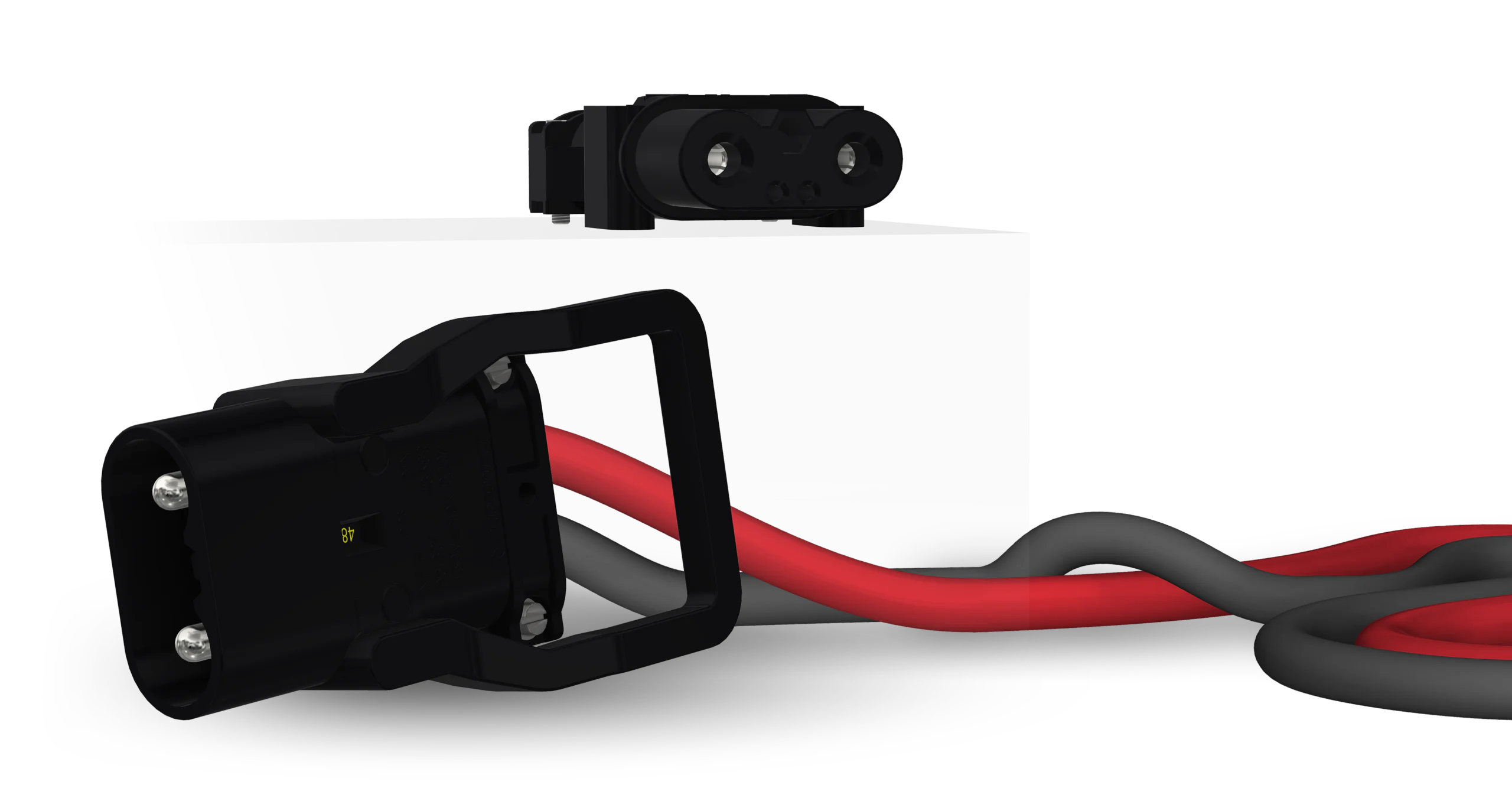

NF320
- 2 pilots option
- Section max.: 95 mm²
- Protection: IP23
- Voltage coding

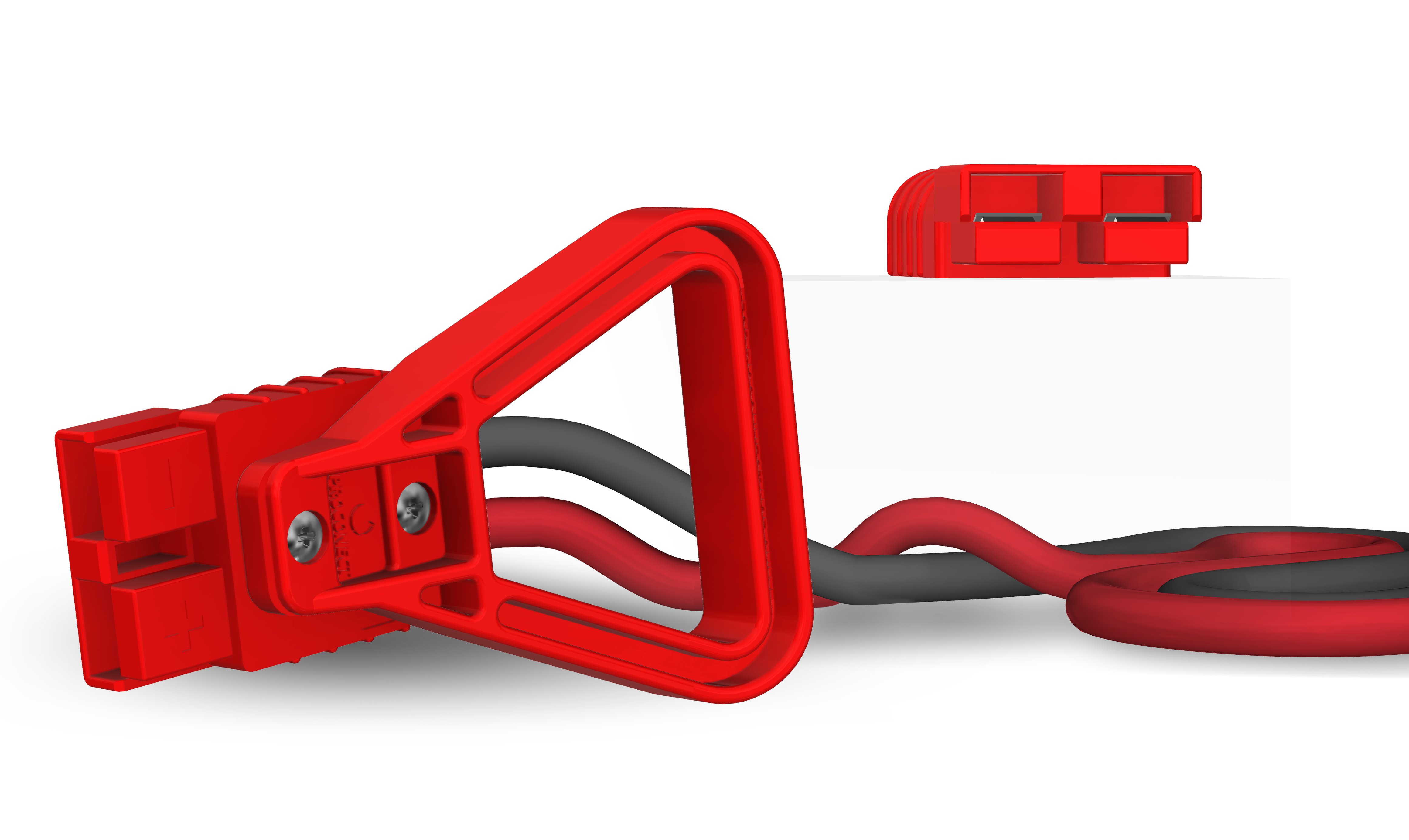

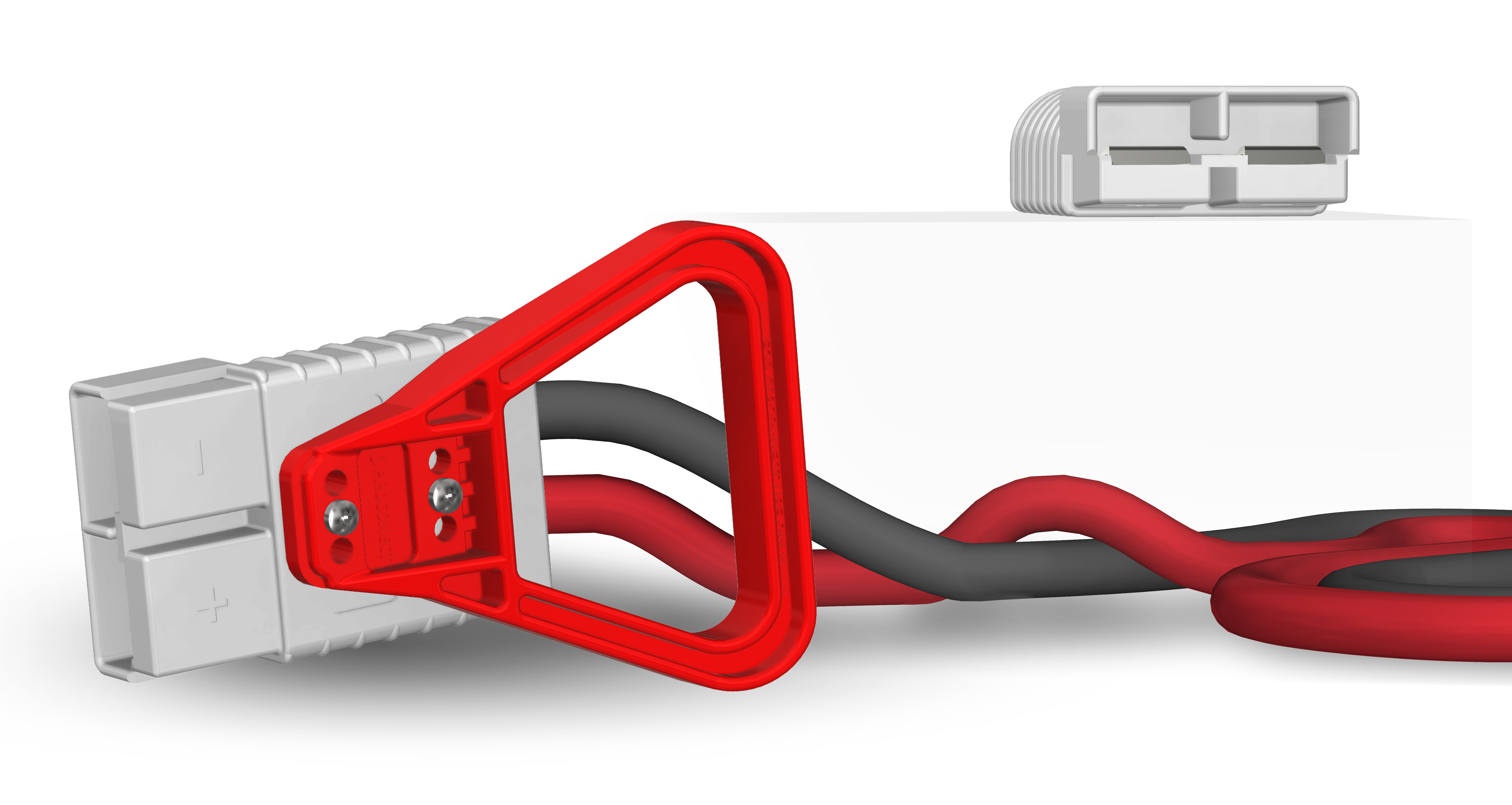

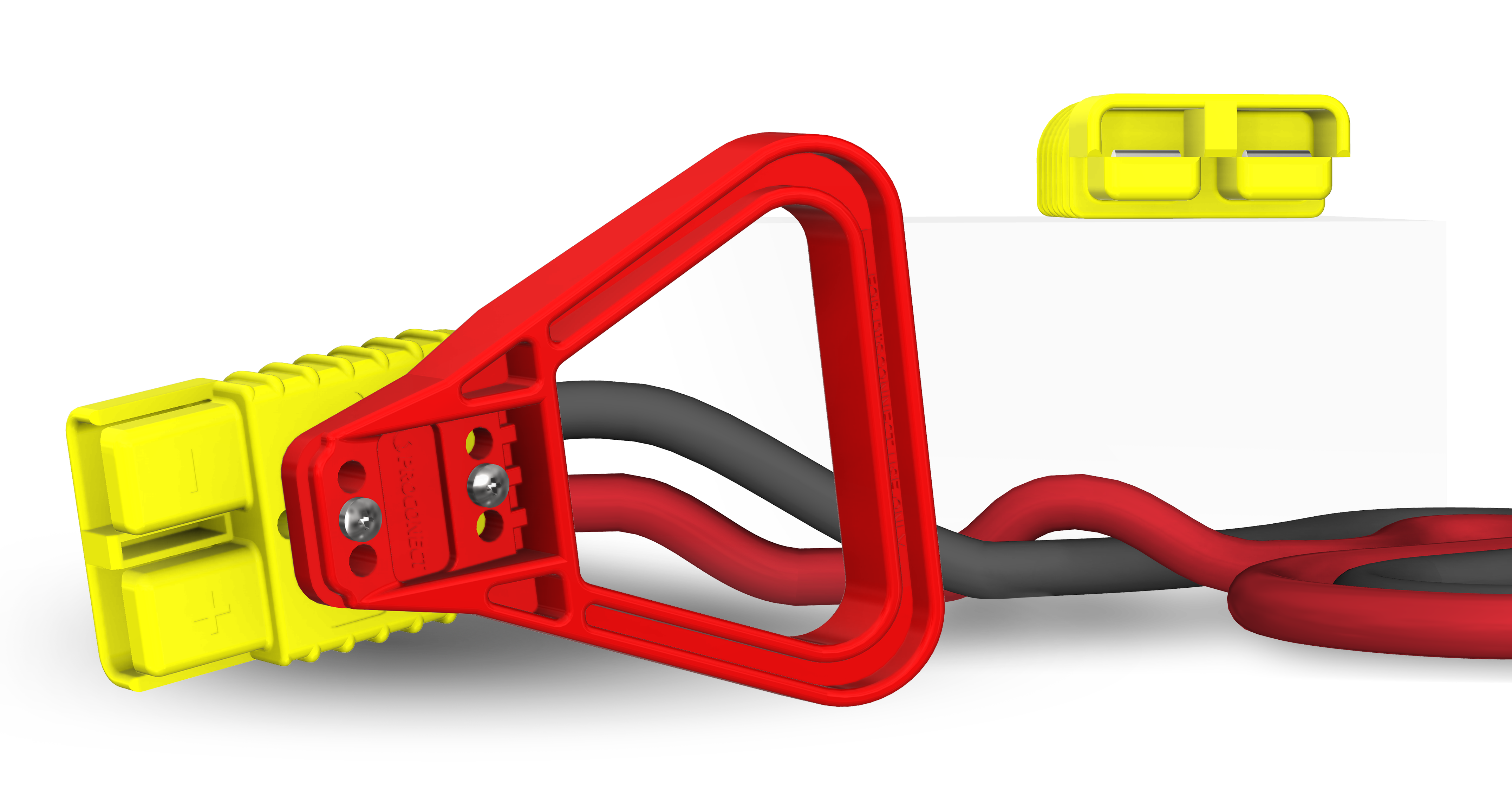

CB Connectors
Featuring an hermaphroditic design where identical connectors plug into each other, this range eliminates traditional male and female parts to simplify spare parts storage. Built with acid- and hydrocarbon-resistant polycarbonate monobloc housings with color-coded keys, they operate up to 600 Volts across a -40°C to +125°C temperature range. They utilize stainless steel springs and self-cleaning, anti-corrosion silver-plated contacts designed for easy crimping or soldering.

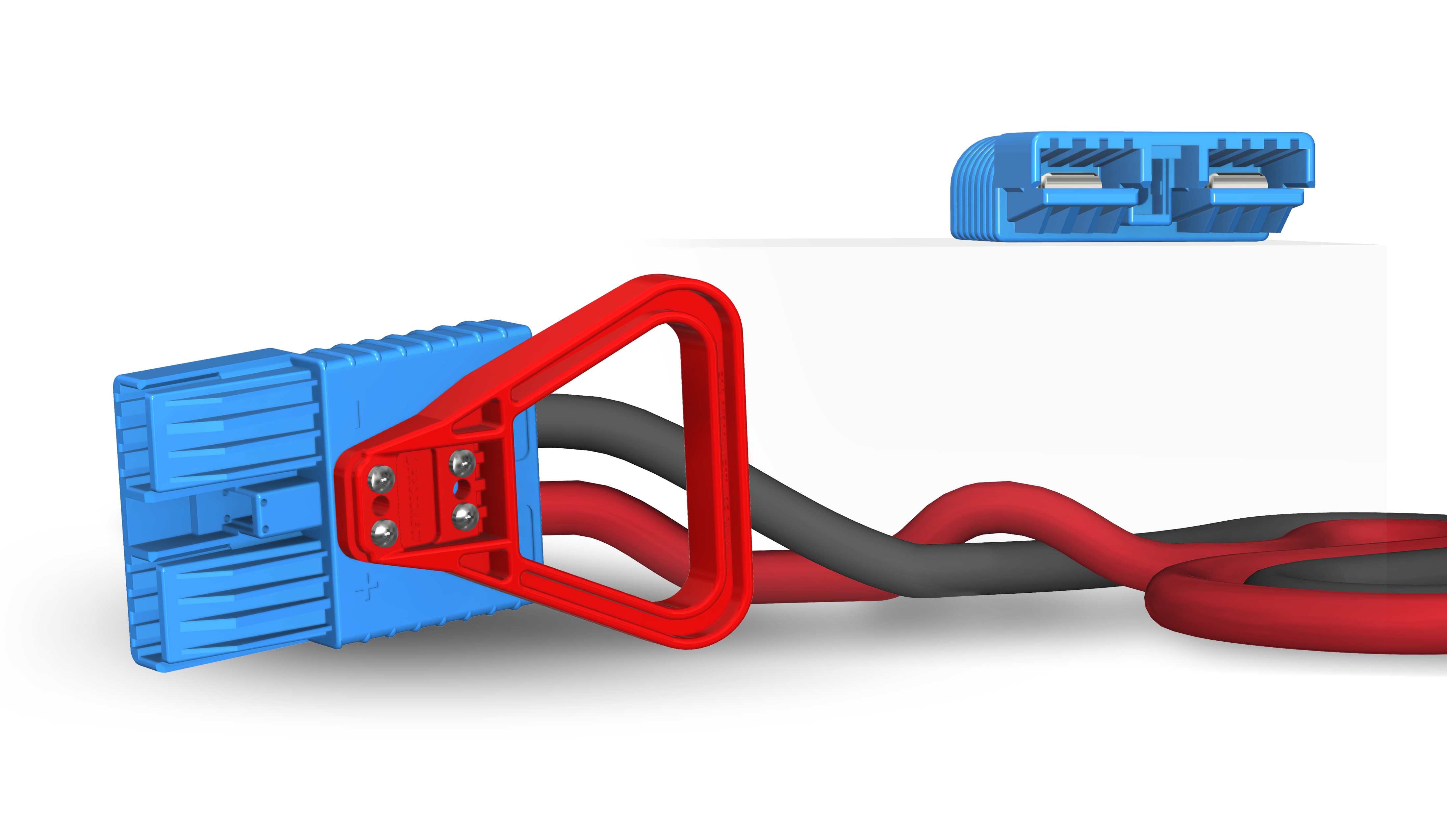

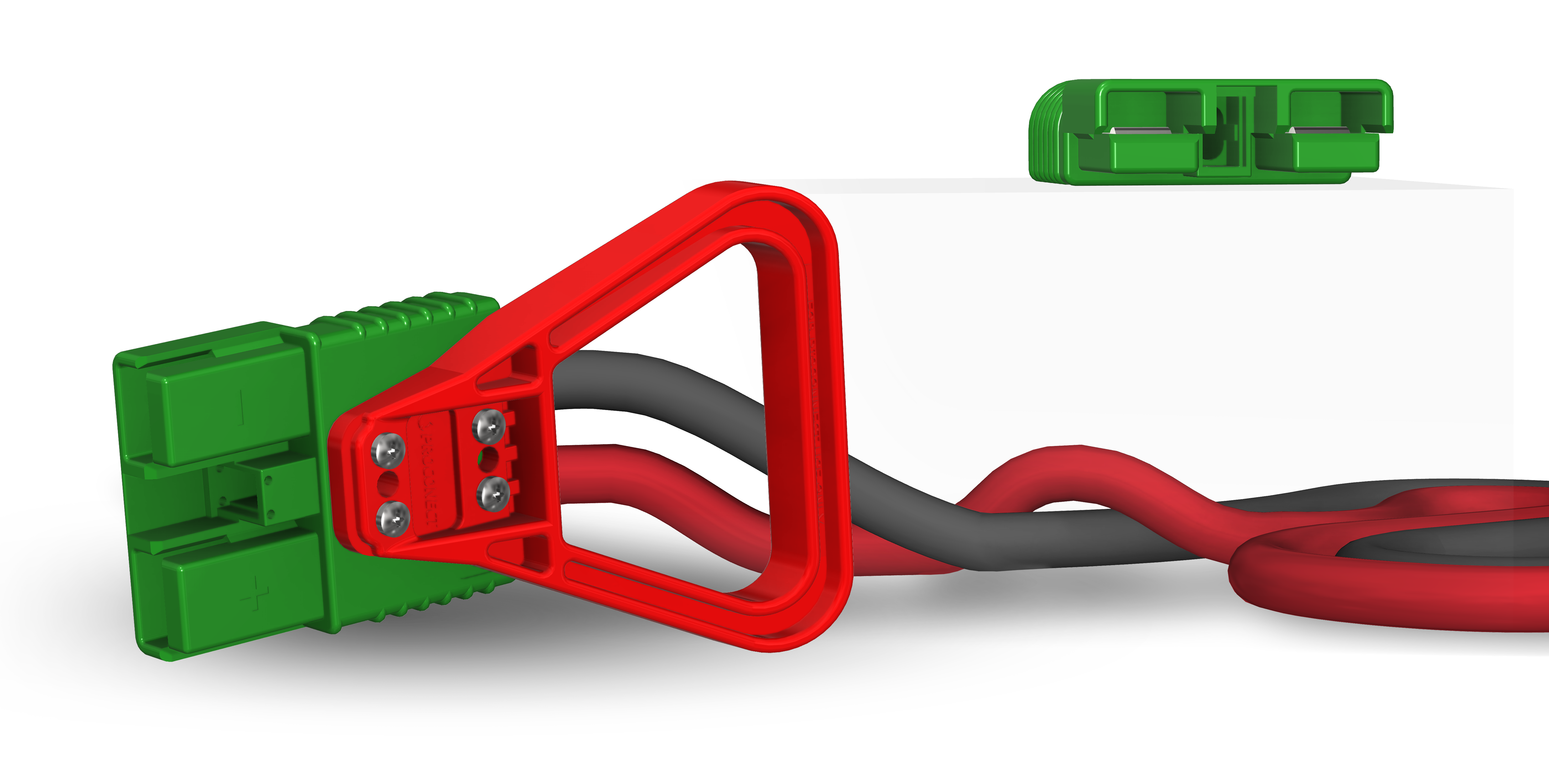

CBX Connectors
Featuring advanced IP2X touch-safe protection, the CBX range (175A/350A, 600V) utilizes an hermaphroditic design where identical connectors plug into each other, eliminating traditional male and female parts to streamline spare parts storage. Built with rugged, acid-resistant polycarbonate housings, color-coded mechanical keys, and self-cleaning silver-plated contacts, it also supports optional auxiliary contacts.

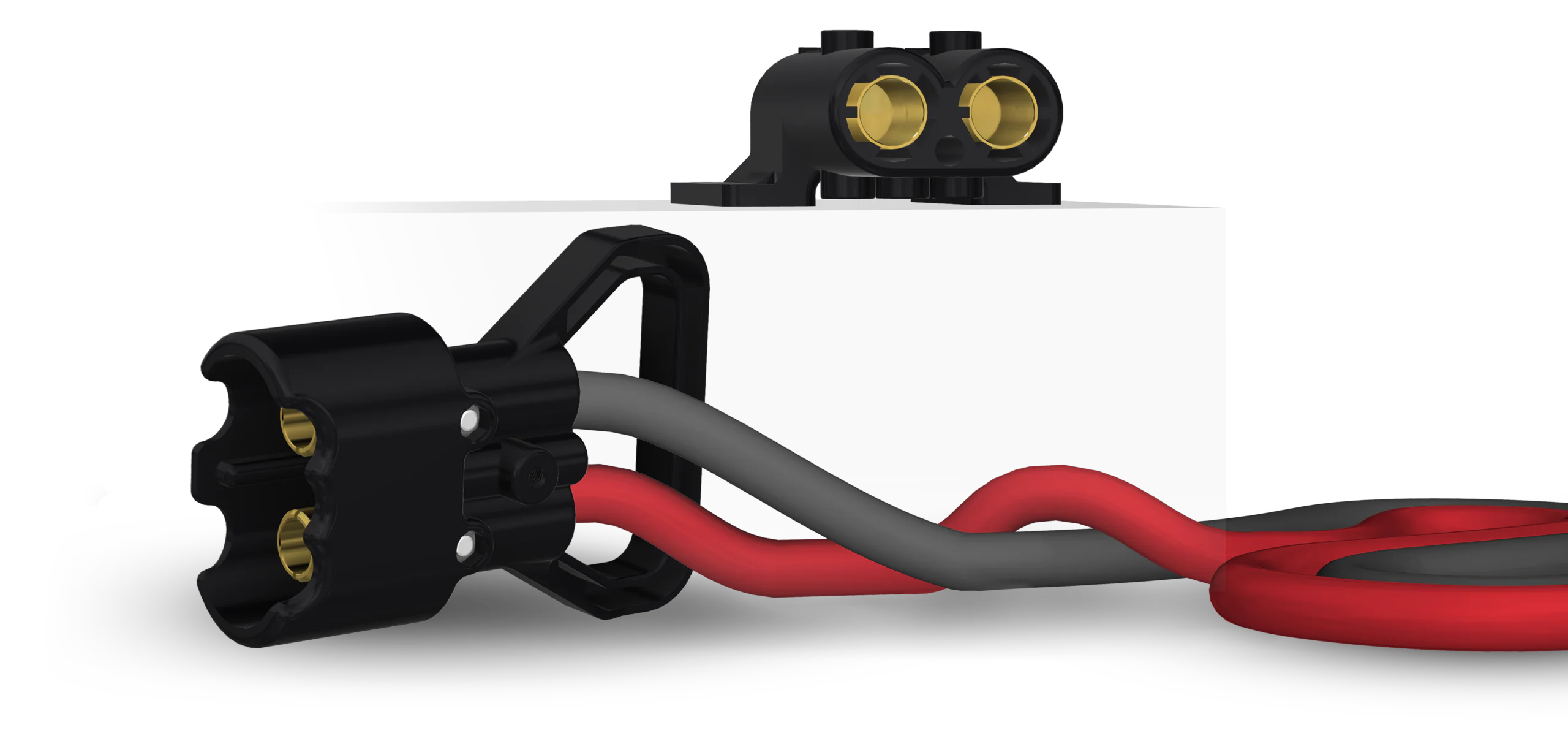

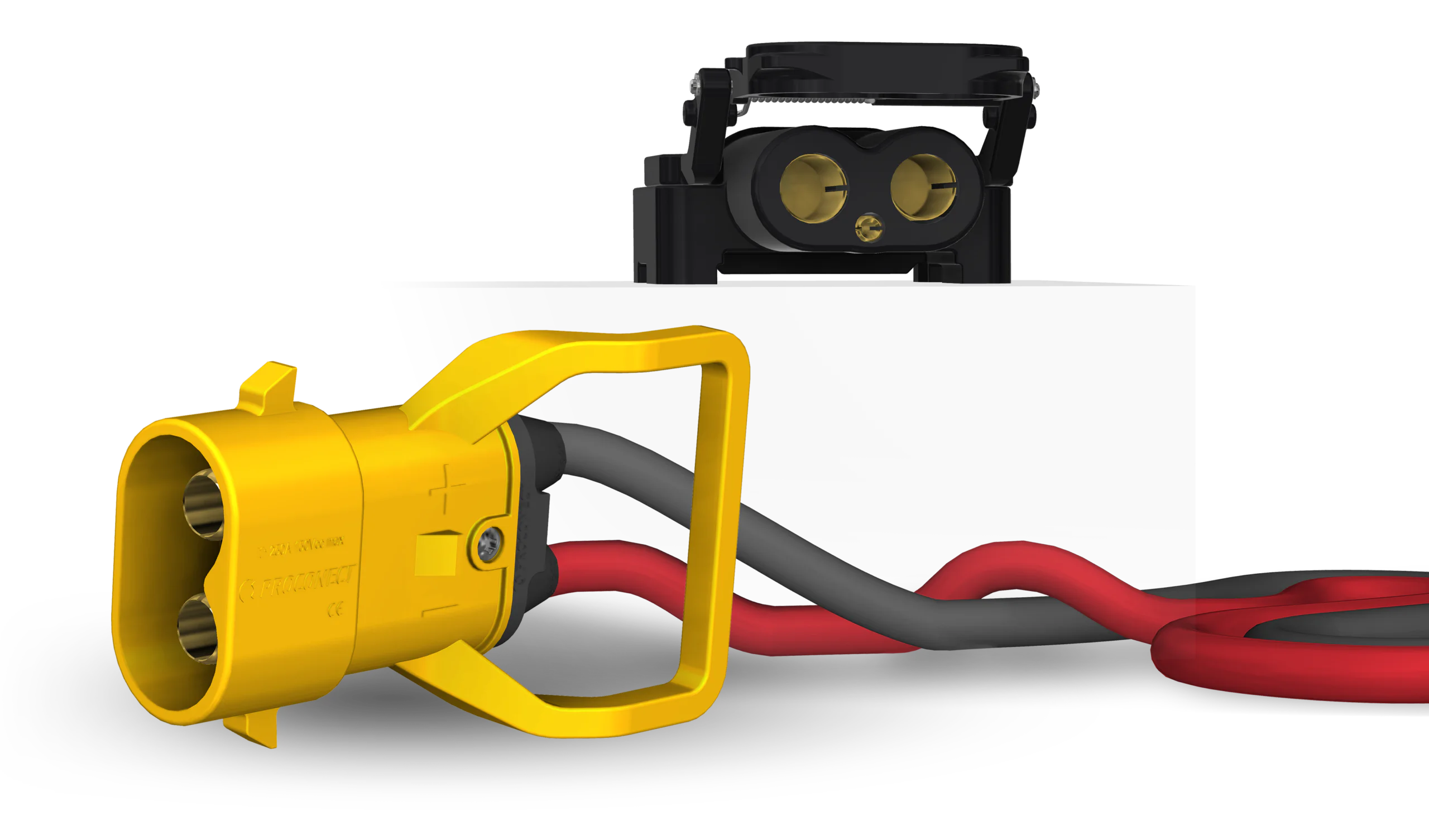

P & Y Connectors
The P and Y connector ranges bear a strong structural resemblance, sharing similar copper alloy contacts and conductor compatibility. However, they differ significantly in their construction and features: while the P connector uses a standard thermoplastic housing equipped with a solderable auxiliary contact in a non-interchangeable design, the Y connector is built with a rugged, UV-resistant yellow polyamide housing, features built-in pole-inversion protection, offers full interchangeability within its range, and provides an IP54 sealing capability available with options.
