3PX
connectors
500A max.
24kV max.

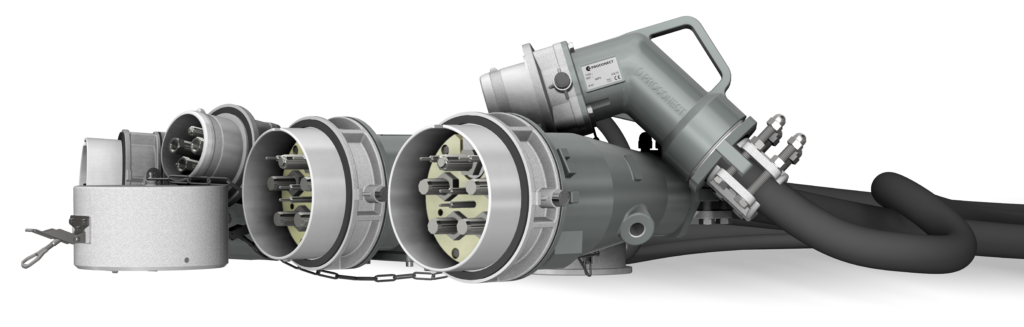

Cam push/pull metallic connector for Industry
Cam push and pull metallic connectors, ideal for applications requiring a lot of connections and disconnections. This range of connectors can be integrated in various environment requiring low or medium voltage.
Solutions
Low voltage
3PX3
?A max.
?kV max.
- Poles : 3P+E+4p
- Section max. : 35 mm²
- Ind. protection : IP67 - IK10

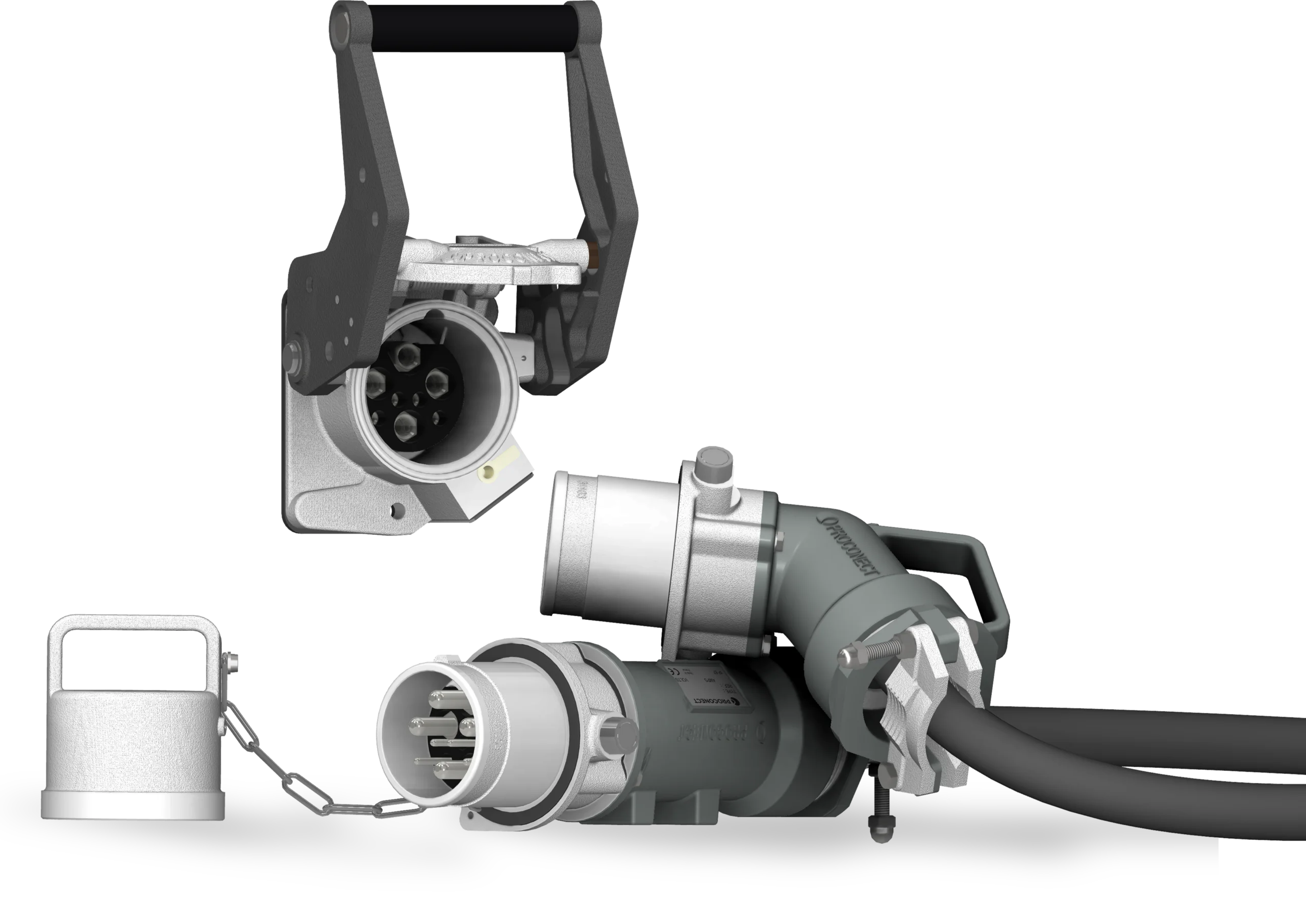

3PX4
250A max.
1,1kV max.
- Poles : 3P+E+2p - 3P+N+E+2p
- Section max. : 95 mm²
- 3/4/9 pilots option
- Ind. protection : IP67 - IK10

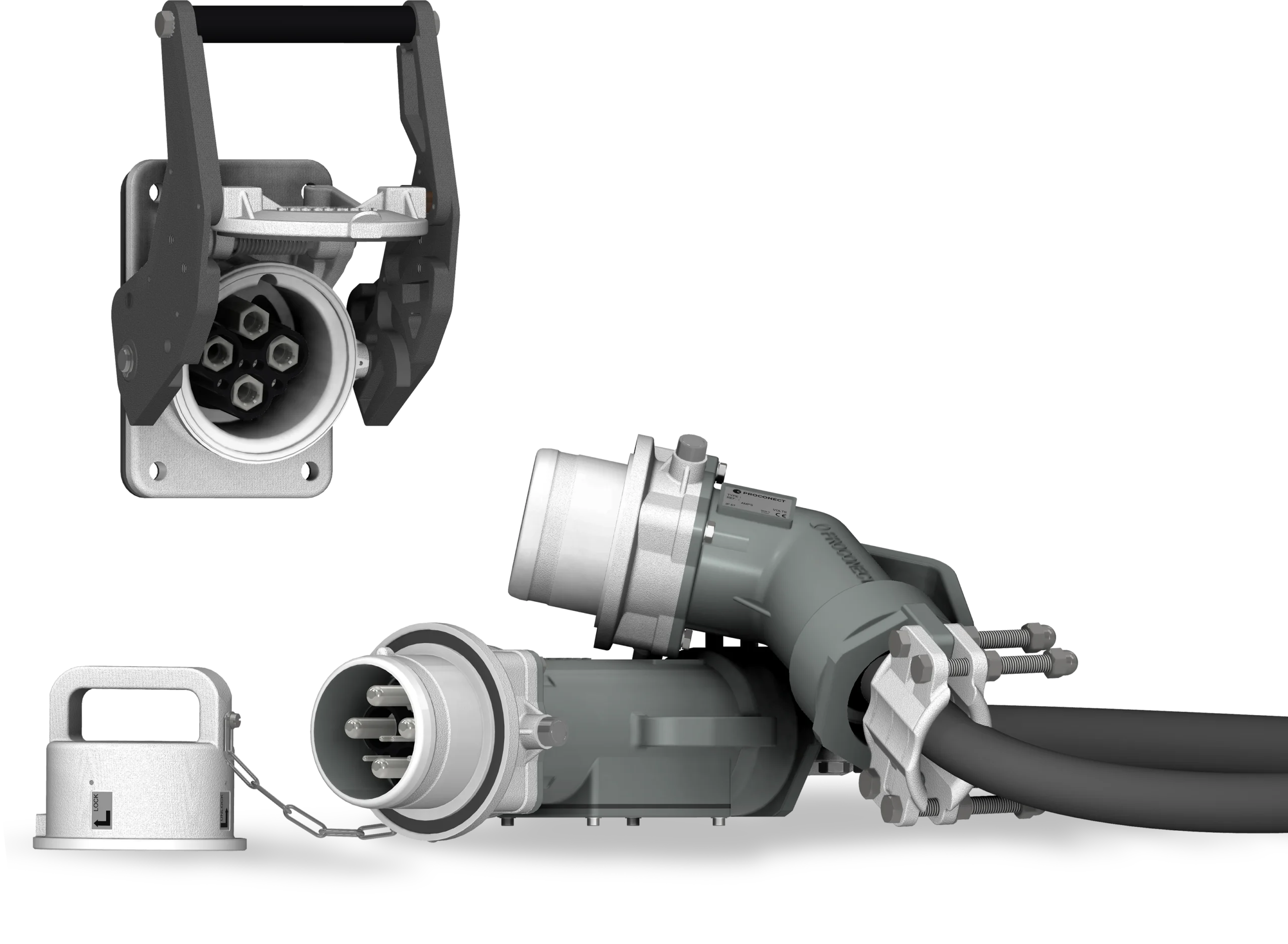

3PX5
500A max.
1,1kV max.
- Poles : 3P+E+2p - 3P+N+E+2p
- Section max. : 240 mm²
- 10 pilots option
- Ind. protection : IP67 - IK10

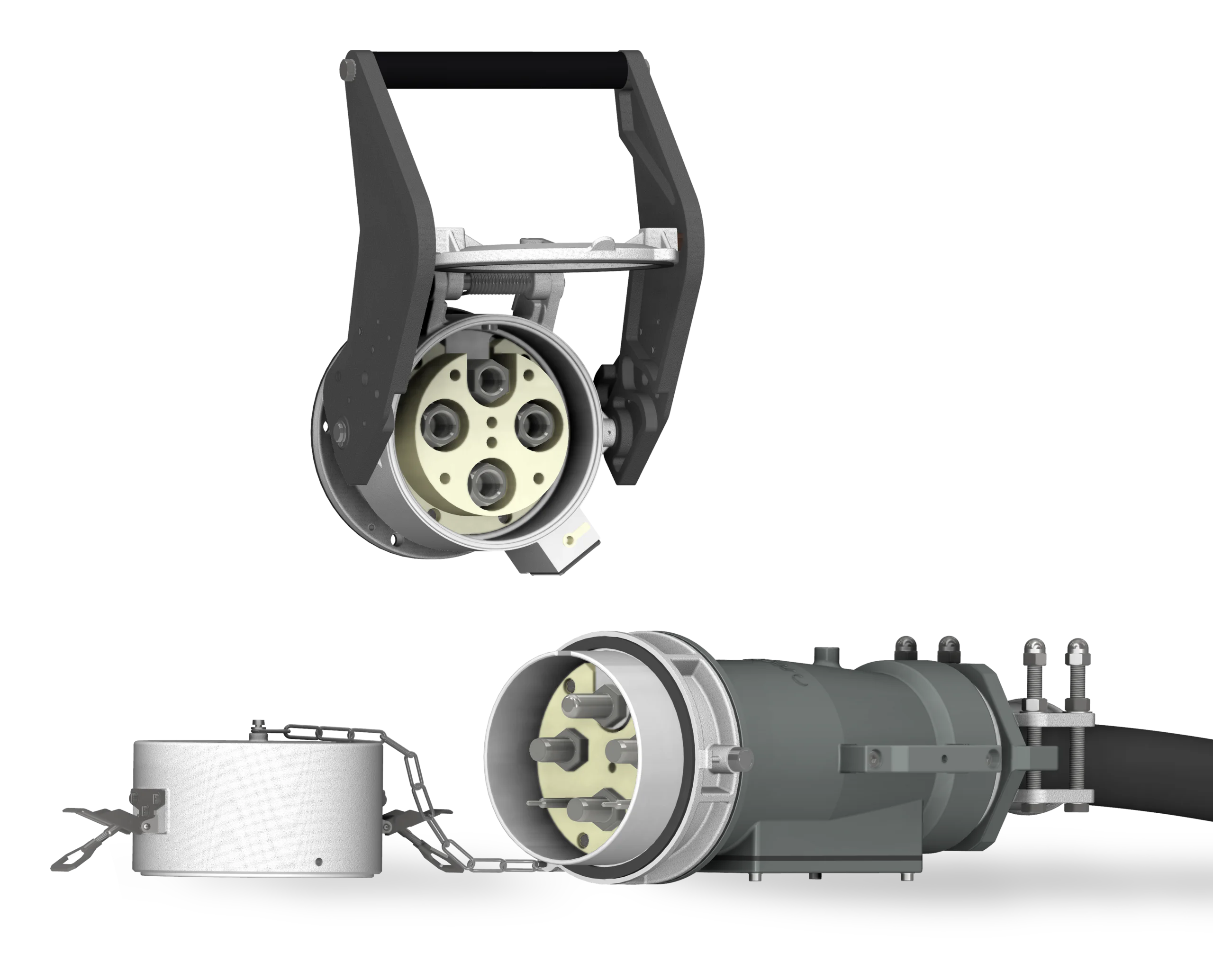

3PX6
250A max.
1,1kV max.
- Poles : 3P+E+2p - 3P+N+E+2p
- Section max. : 300 mm²
- 6 pilots option
- Ind. protection : IP67 - IK10
Medium voltage
Multipole

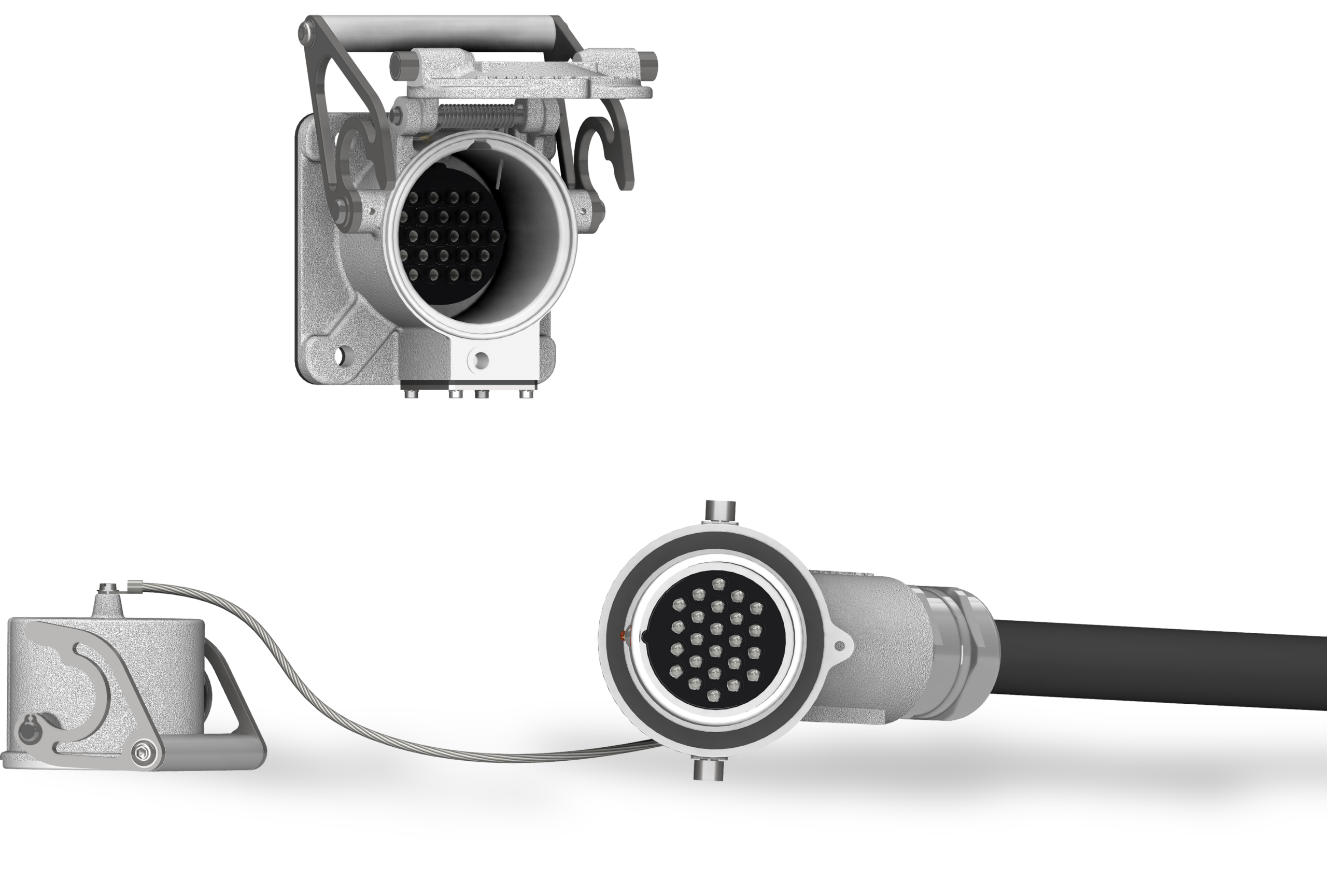

3PX3 24p
30A max.
500V max.
- Poles : 23P+E
- Section max. : 6 mm²
- Ind. protection : IP66 - IK10

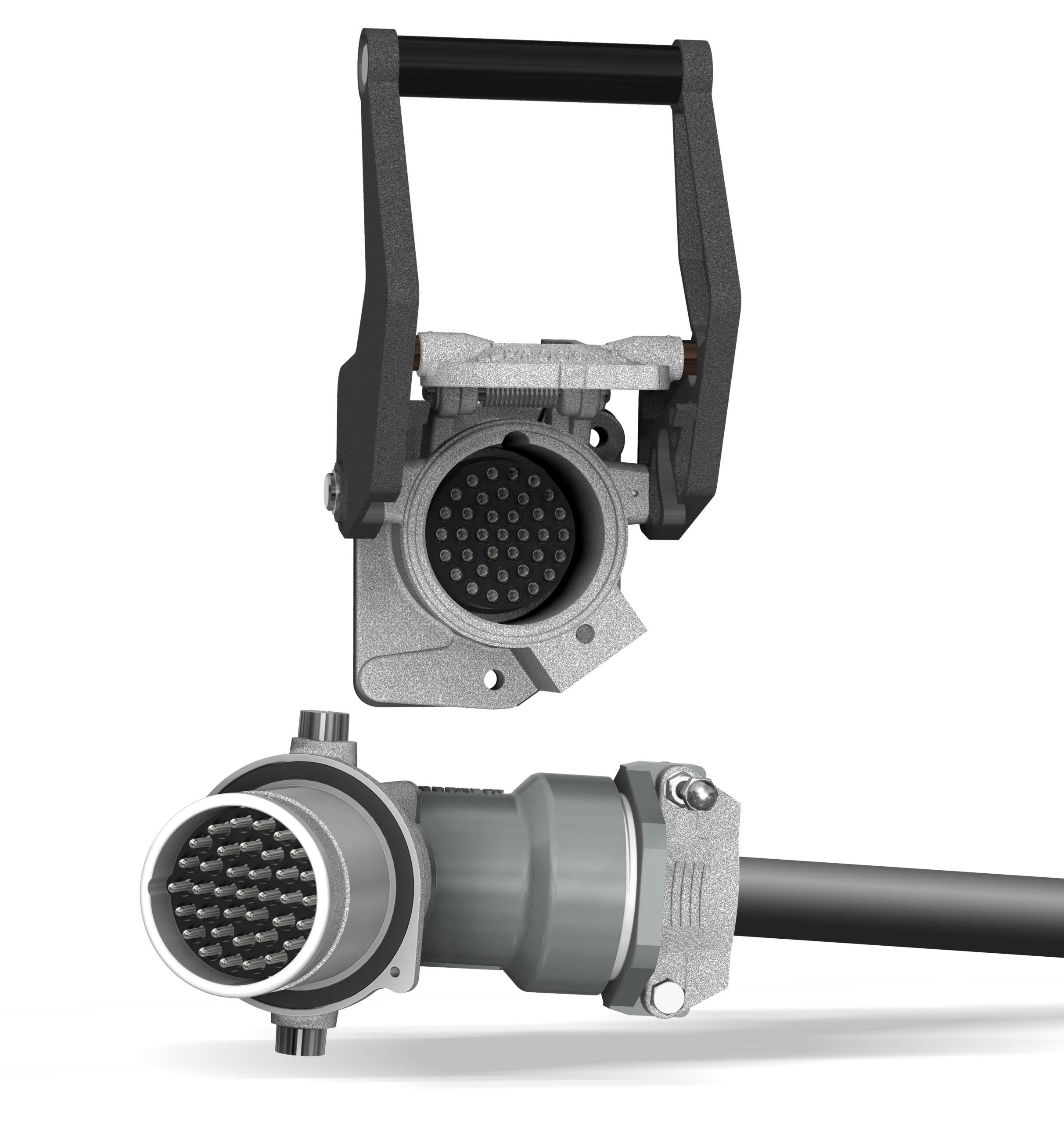

3PX4 37p
30A max.
500V max.
- Poles : 34P+E+2p
- Section max. : 6 mm²
- Ind. protection : IP67 - IK10

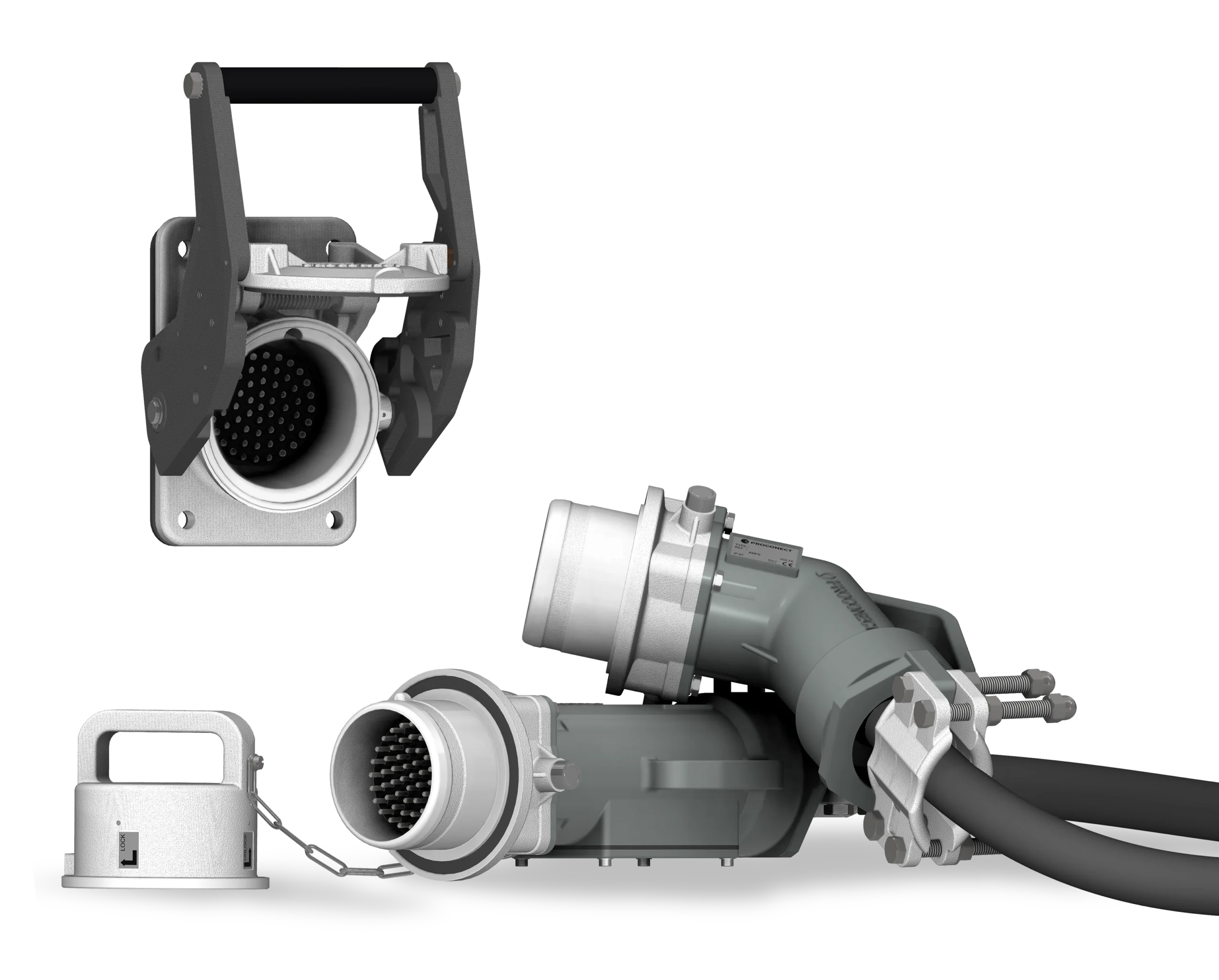

3PX5 61p
30A max.
500V max.
- Poles : 58P+E+2p
- Section max. : 6 mm²
- Ind. protection : IP67 - IK10
Others

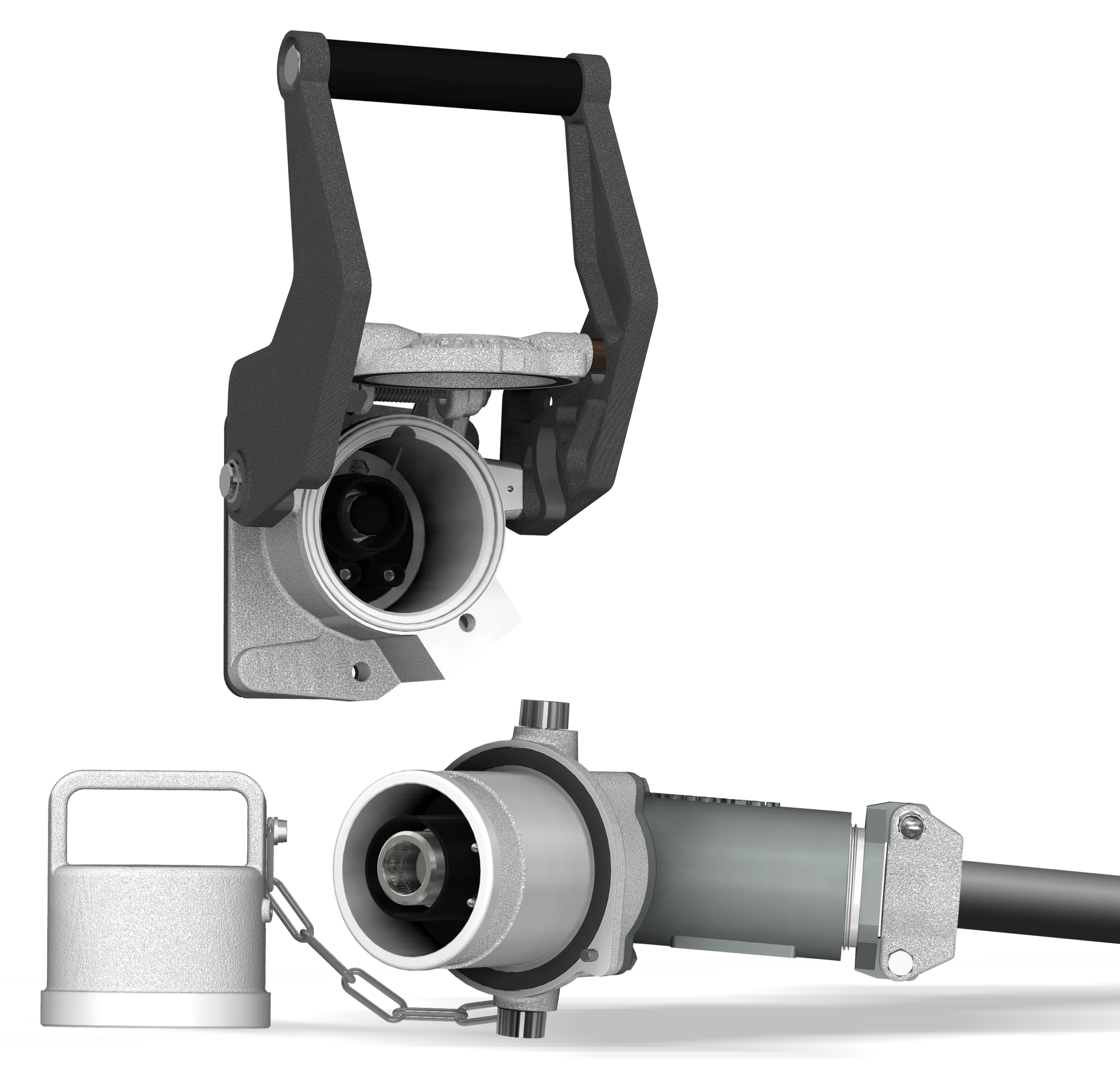

3PXU
800A max.
1,5kV max.
- Poles : 1P+2p
- Section max. : 300 mm²
- Ind. protection : IP67 - IK10
