3PV5

500A
1,1kV
IEC 60309-1
Screw-ring metallic connector for Industry
Screw ring metallic connectors, ideal for applications requiring the use of extension cables. With a current rating of 500A, the 3PV5 is suitable for mines, ports, factories, etc.
- Short circuit : 10 kA r.m.s/1s
- Amp. pilots : 30 A (6 mm²)
- Contacts max. : 3P+N+E+10p
- Cable section max. : (3P+N+E) 185 mm² (300 MCM) / (3P+E) 240 mm² (500 MCM)
- Cable diameter : min. 25 mm / max. 80 mm
- Pilot section : 2,5 mm² (2p) (AWG 14) / 1,5-2,5-6 mm² (10p) (AWG 16/14/10)
- Termination : to crimp, to solder or screw
- Dielectric withstand : 3 kV AC 1 min.
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : PPO
- Fastenings : Stainless steel
- Temperature : -30° +60° C
- Ind. protection : IP67 - IK10
Connectors

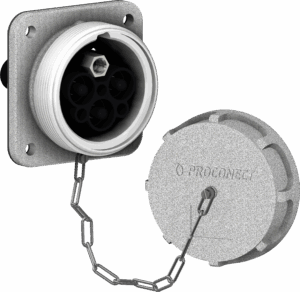

Socket

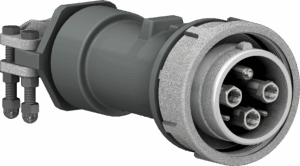

Plug

Cable coupler

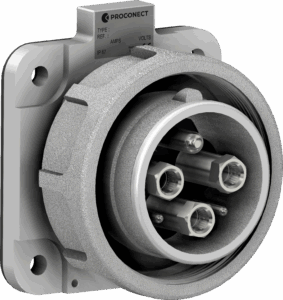

Appliance inlet

3PV5 variations
You can find other variations of 3PV5, suiting various applications and with some structural or standard-fitting modifications.
Options

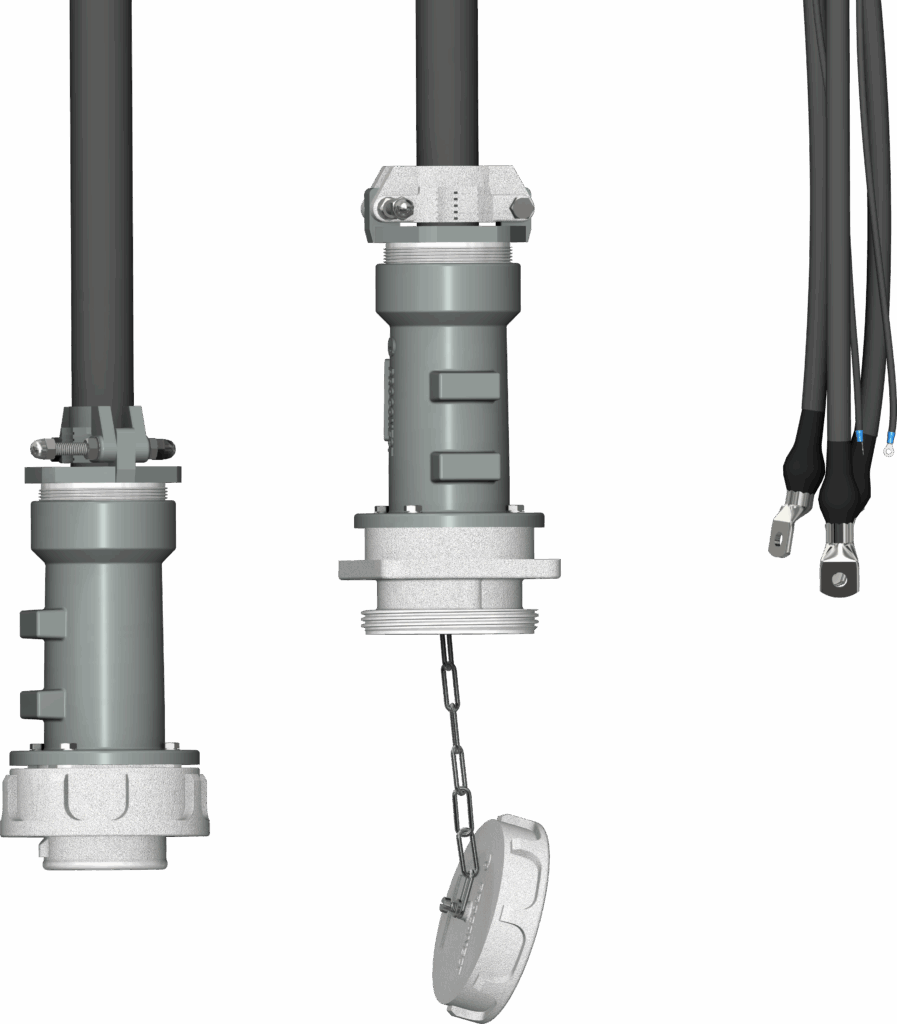

Pre-wired connectors
Connectors can be supplied pre-wired depending on cable availability or whether the cable is supplied in advance.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.

Connection boxes
Our design office can conduct a comprehensive feasability study for your request, ensuring compliance with electrical standards and seamless integration into your structure. With full customization capabilities, our cabinets or wall-mounted boxes adapt to any of your specifications and your environmental constraints.
Every project undergoes rigorous validation before production, guaranteeing performance, durability and aherence to standards.
Every project undergoes rigorous validation before production, guaranteeing performance, durability and aherence to standards.


Plug cap

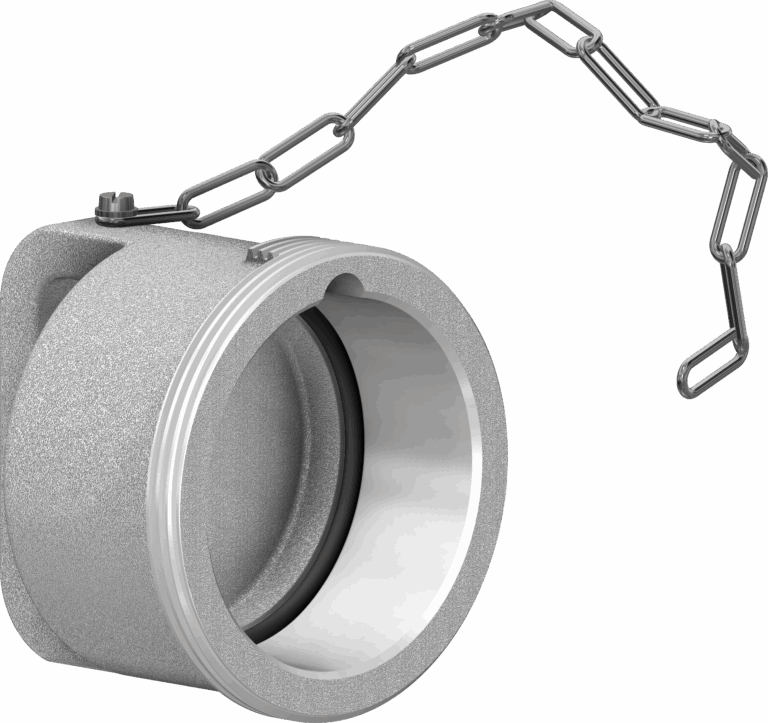

AS7G aluminium Plug or Appliance inlet cap to ensure IP67 of a disconnected connector.

M63 adaptor

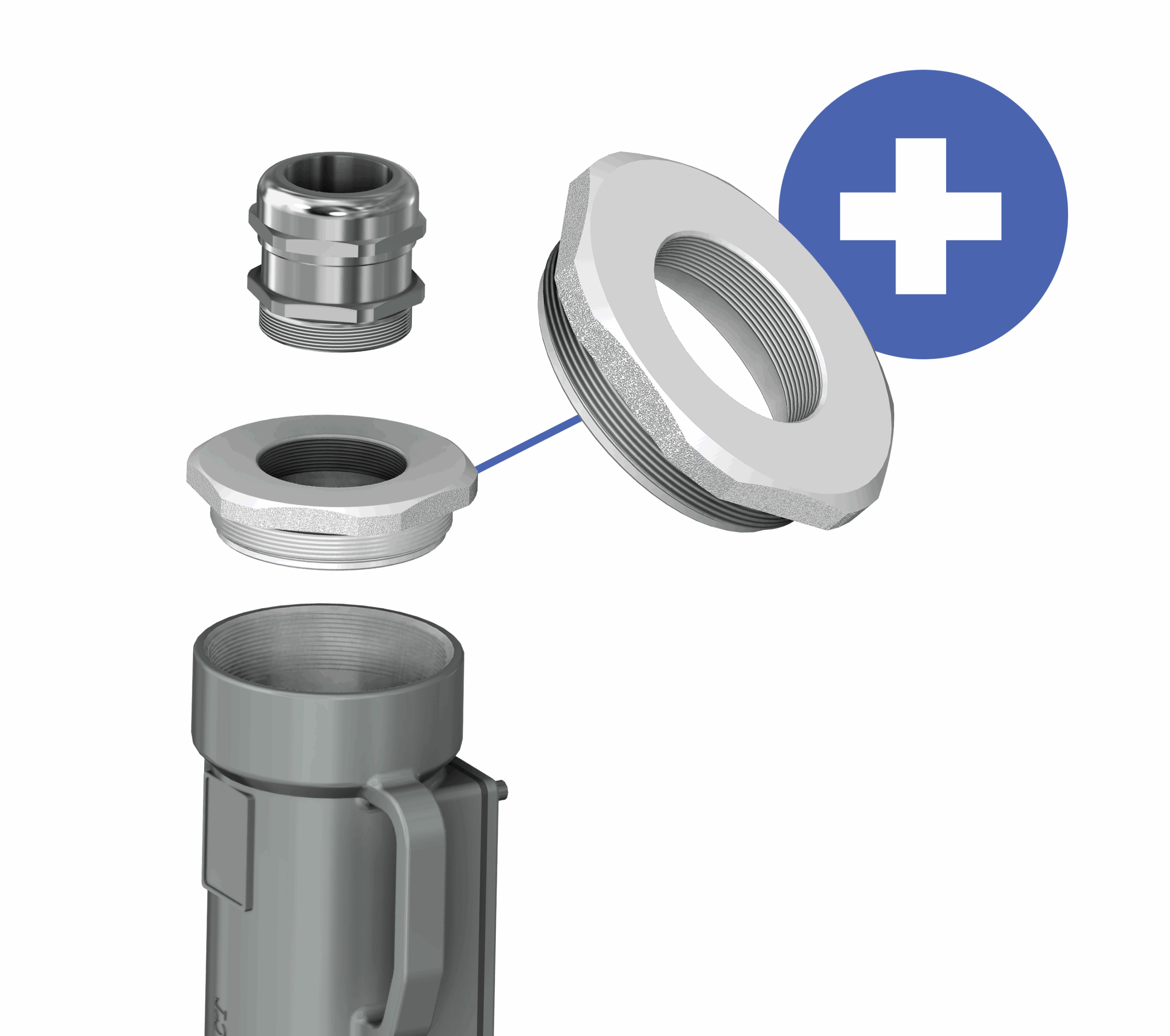

M63 adaptor to screw a cable gland or conduit adaptor.

Hinged hook

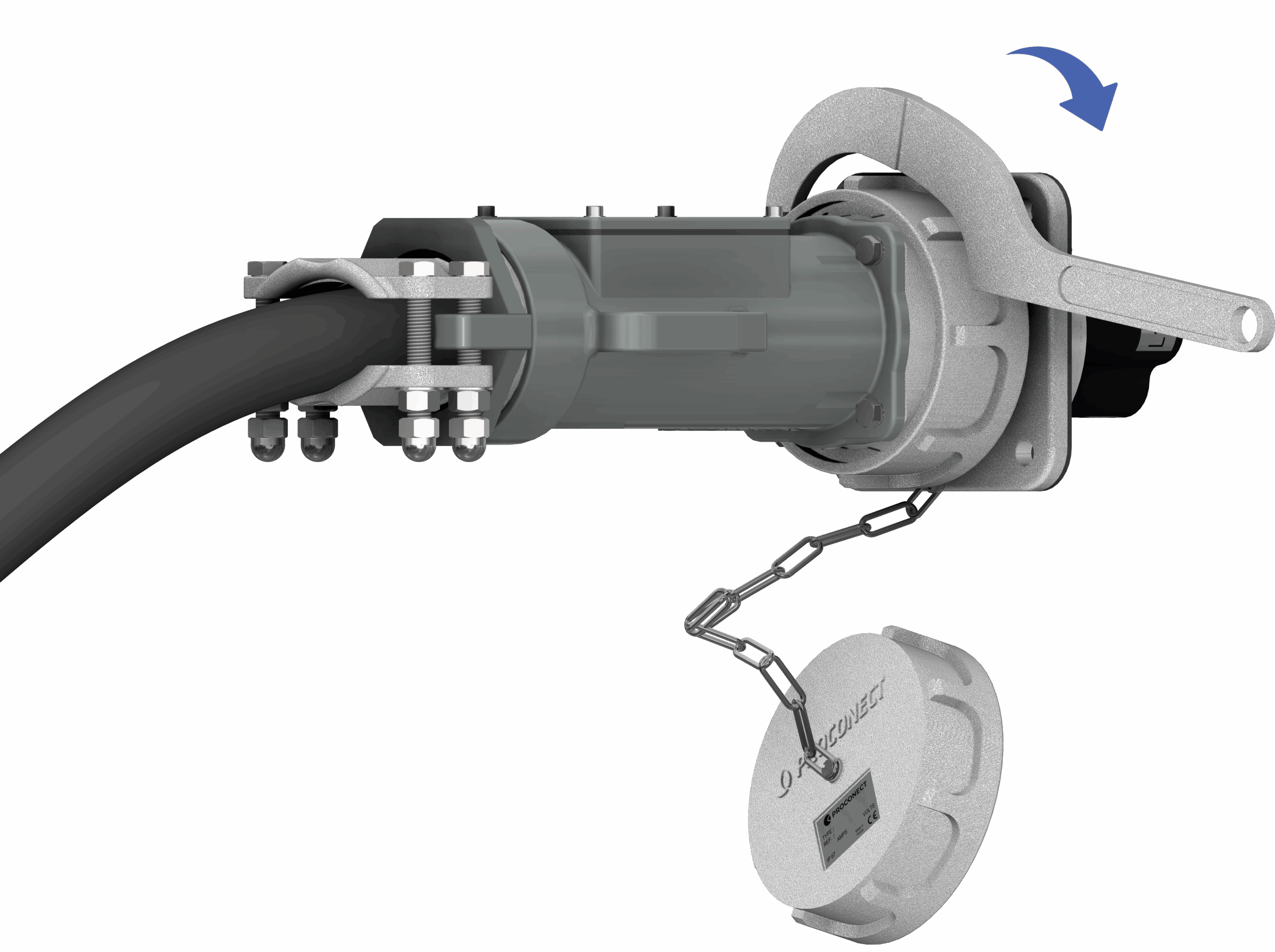

Wrench facilitating screwing when connecting the plug to the socket.
Optical fiber derivation box
Plugs or Cable couplers can be fitted with a large case to derivate a fiber optic connector (2 different sizes).
Technical datas

3PV5 Datasheet
More technical informations about the 3PV5 solutions.

3PV5 User manual
More informations about utilisation, maintenance & security.
