3PX7
IEC 80005-1
Ann. B-E-F-G-H-I IEC 62613
Ann. J
Ann. B-E-F-G-H-I
Ann. J
Cam push/pull metallic connector for Industry
- Amp. max. : 500A
- Voltage max. : 12kV
- Short circuit : 25 kA r.m.s/1s (63 kA peak)
- Amp. pilots : 25A
- Contacts max. : 3P+E+7p
- Cable section max. : 240 mm² (500 MCM)
- Cable diam. : min. 25 mm / max. 100 mm
- Pilot section : 2,5 mm² (AWG 14)
- Dielectric withstand : 32 kV AC 1 min.
- Lightning impulse : 75 kV
- Termination : to crimp, to solder
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : POM
- Fastenings : Stainless steel
- Temperature : -30° +60° C
- Ind. protection : IP67 - IK10
Connectors

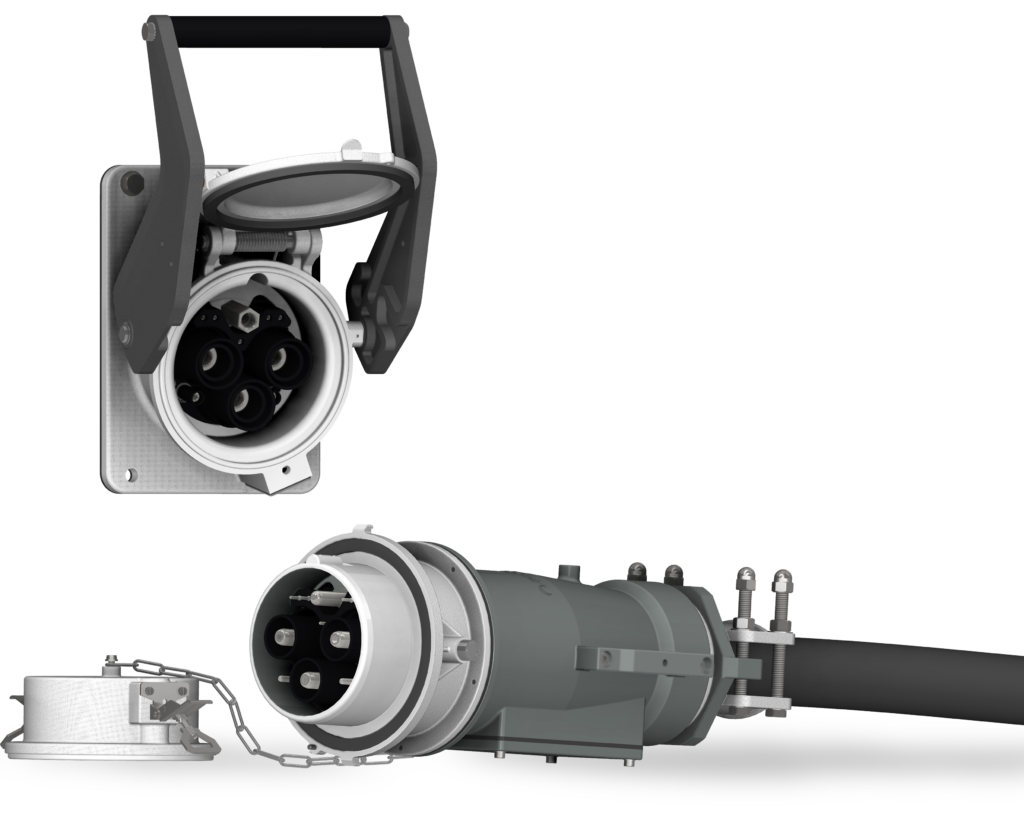

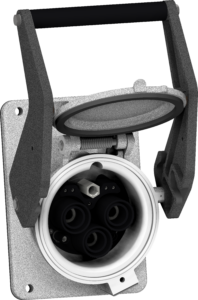

SOCKET
Active part to be placed wall-mounted or on an electrical cabinet. Cam push/pull system to maintain IP67 when closed or help and lock the connection of a plug.
Go to options

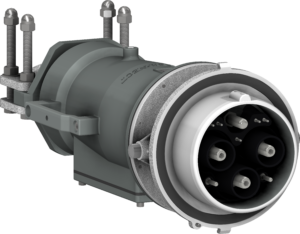

PLUG
Mobile connector to be cabled and connected in a socket or a cable coupler. The plug cap options are needed to ensure IP67 once disconnected.

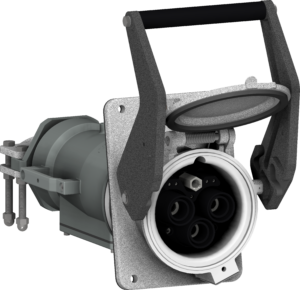

CABLE COUPLER
Mobile socket to be cabled and connected in a plug used to make an extension line.

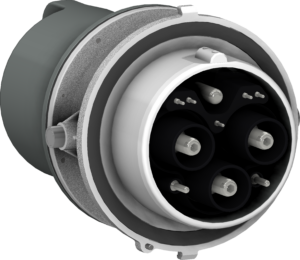

LIVE END CAP
Small plug without phases to secure a socket under voltage without a plug connected in.
Go to options

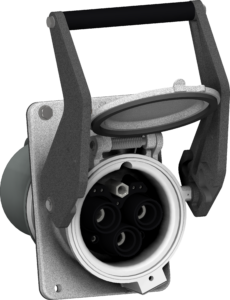

SOCKET LIVE END CAP
Connector without phases to secure a plug under voltage when not connected to a socket.
Go to optionsSELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION

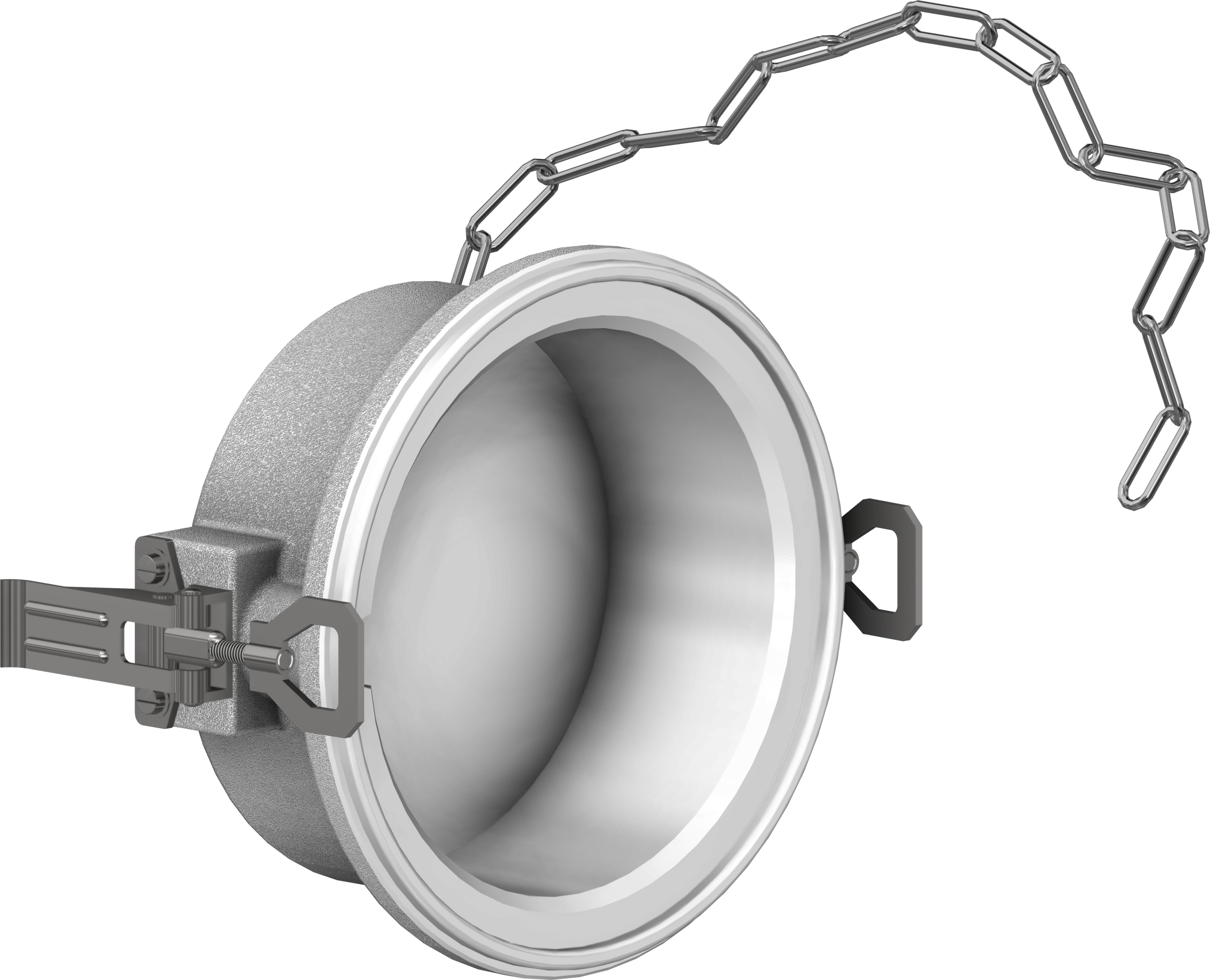

PLUG CAP
AS7G aluminium Plug cap to ensure IP67 of a disconnected connector.

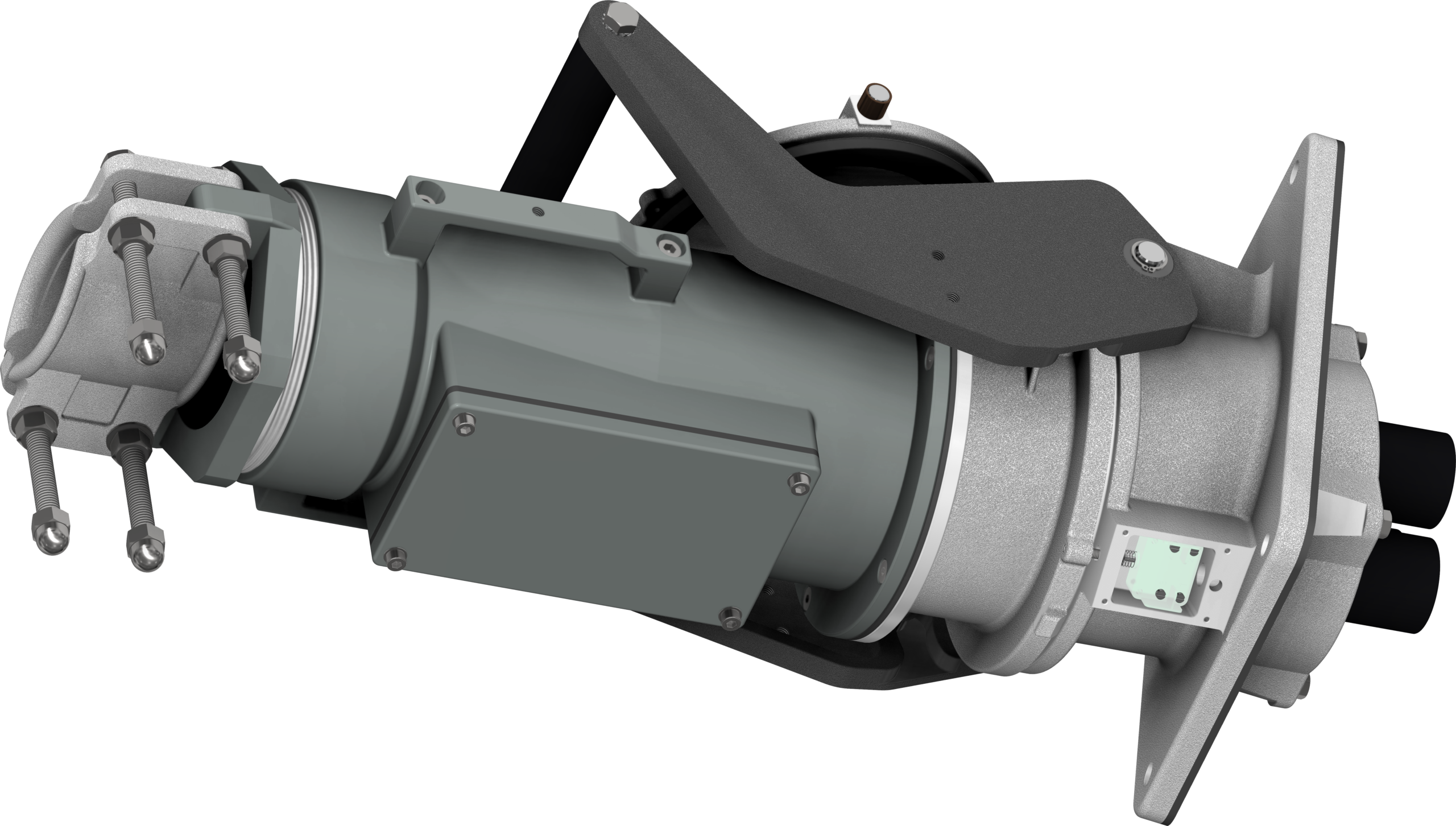

MICROSWITCH
Sockets can be provided with a Microswitch, activated by opening or closing the socket lid or via the insertion of the plug.

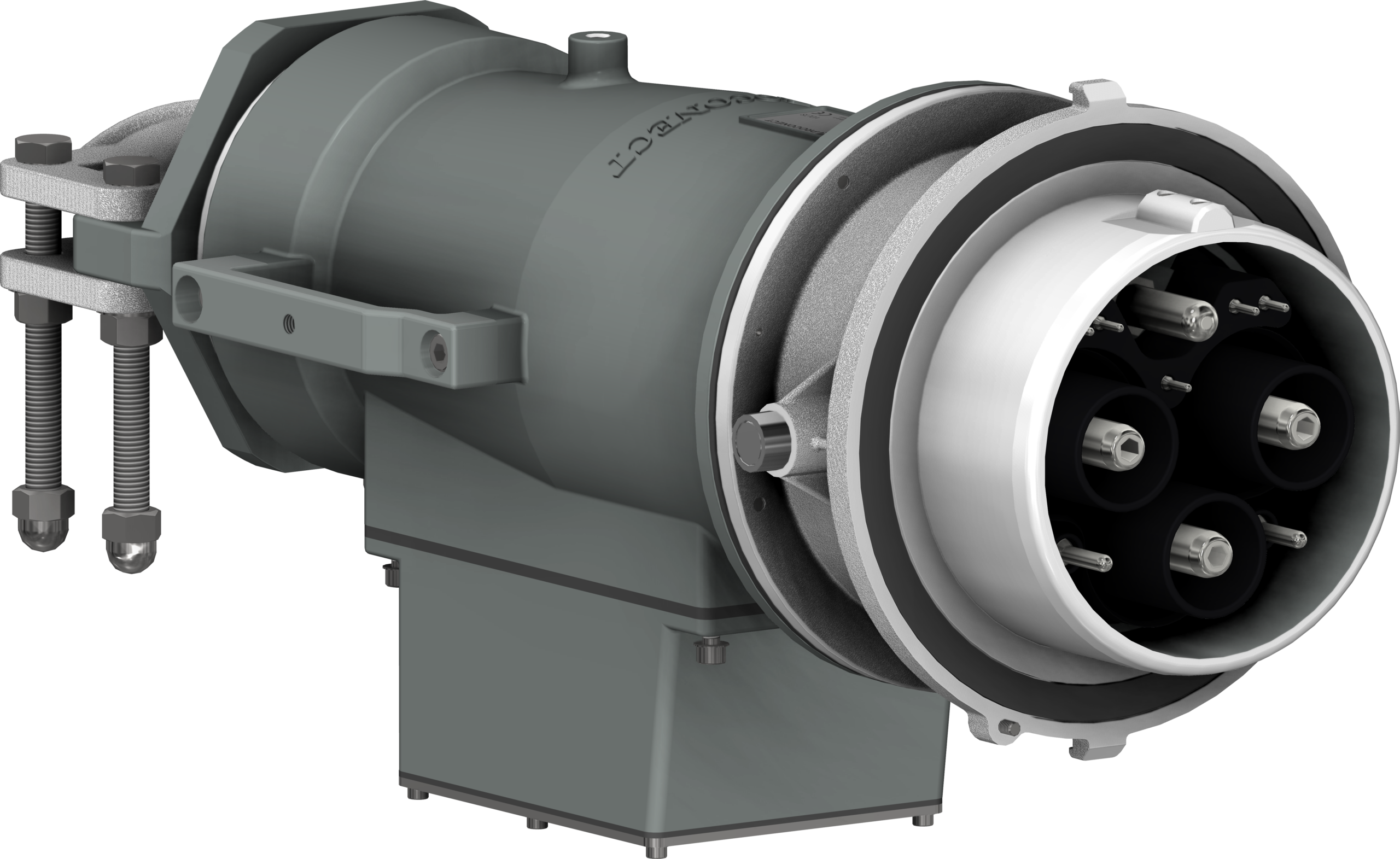

OPTICAL FIBER
DERIVATION BOX
The optical fiber derivation box is an optional casing added to the plug to derivate the optical fiber of the cable into a F.O. socket placed onto it.
CAPTIVE KEY LOCKING
Captive key system both on the plug and the socket to authorize electrification of the system once connected and the key engaged.
BOLT LOCKING
Bolt locking system only on the socket to authorize electrification of the system once the plug connected and the key engaged.
CABLE GLAND OR CONDUIT ADAPTOR
M63 adaptor for connecting a standard cable gland or a conduit adaptor (other sizes on request).
To be installed on reduced version only.

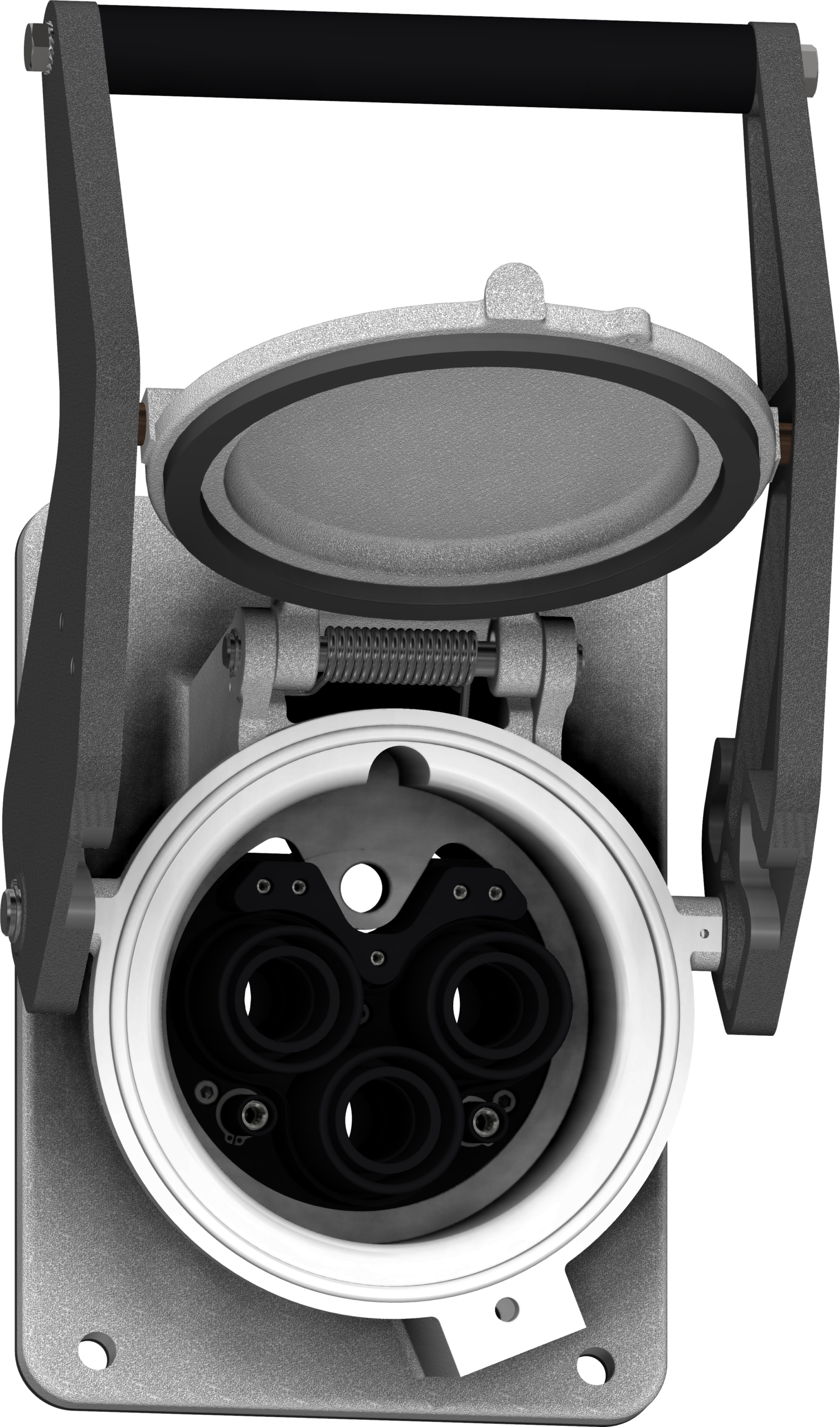

DUMMY SOCKET
Socket with empty insert fitted only with pilots pin for storing the plug when not in use.
MEDIUM VOLTAGE KIT
Kit for wiring medium-voltage cables, mandatory for 3PX7 connectors.

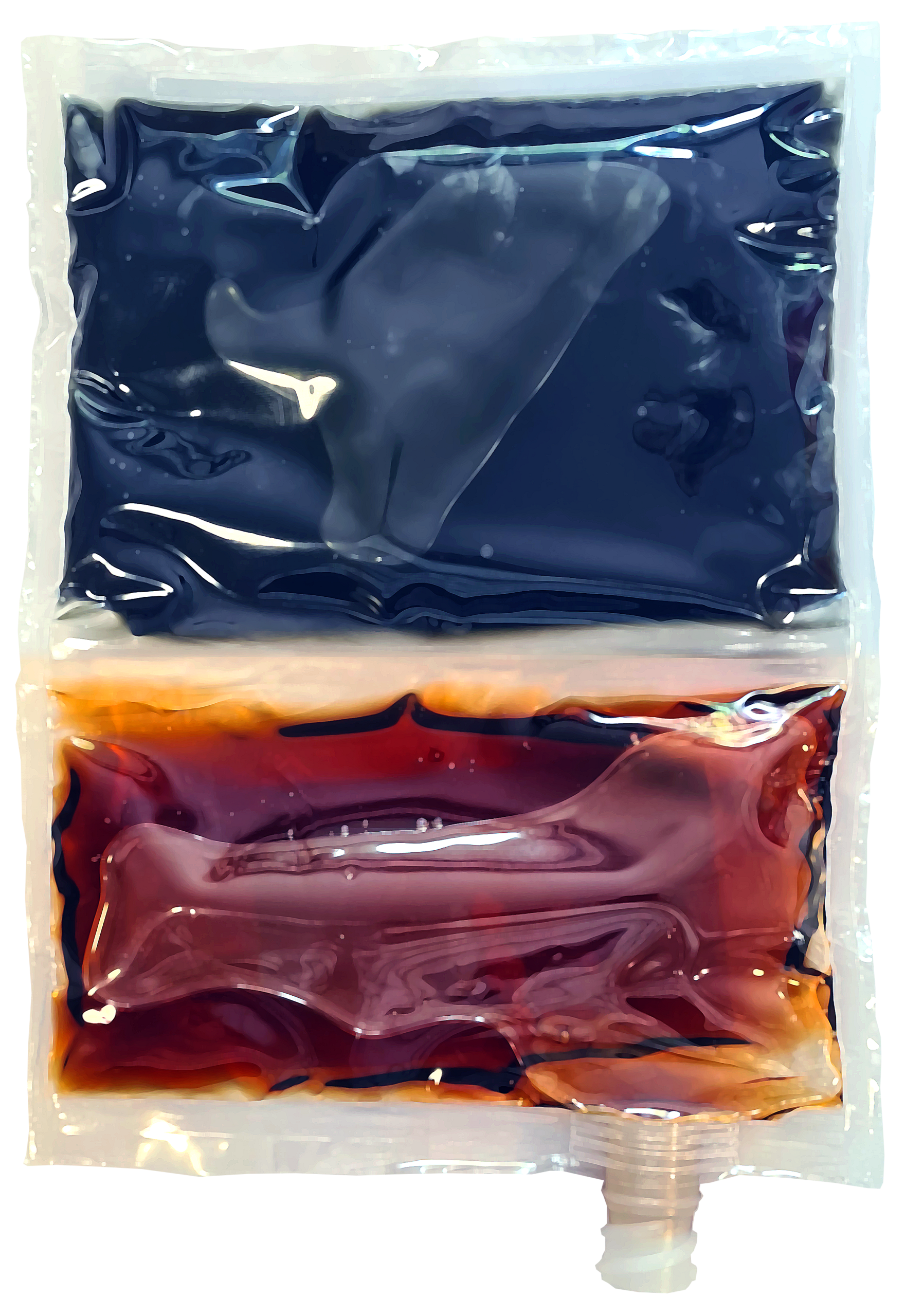

RESIN
Resin required to maintain plug voltage.

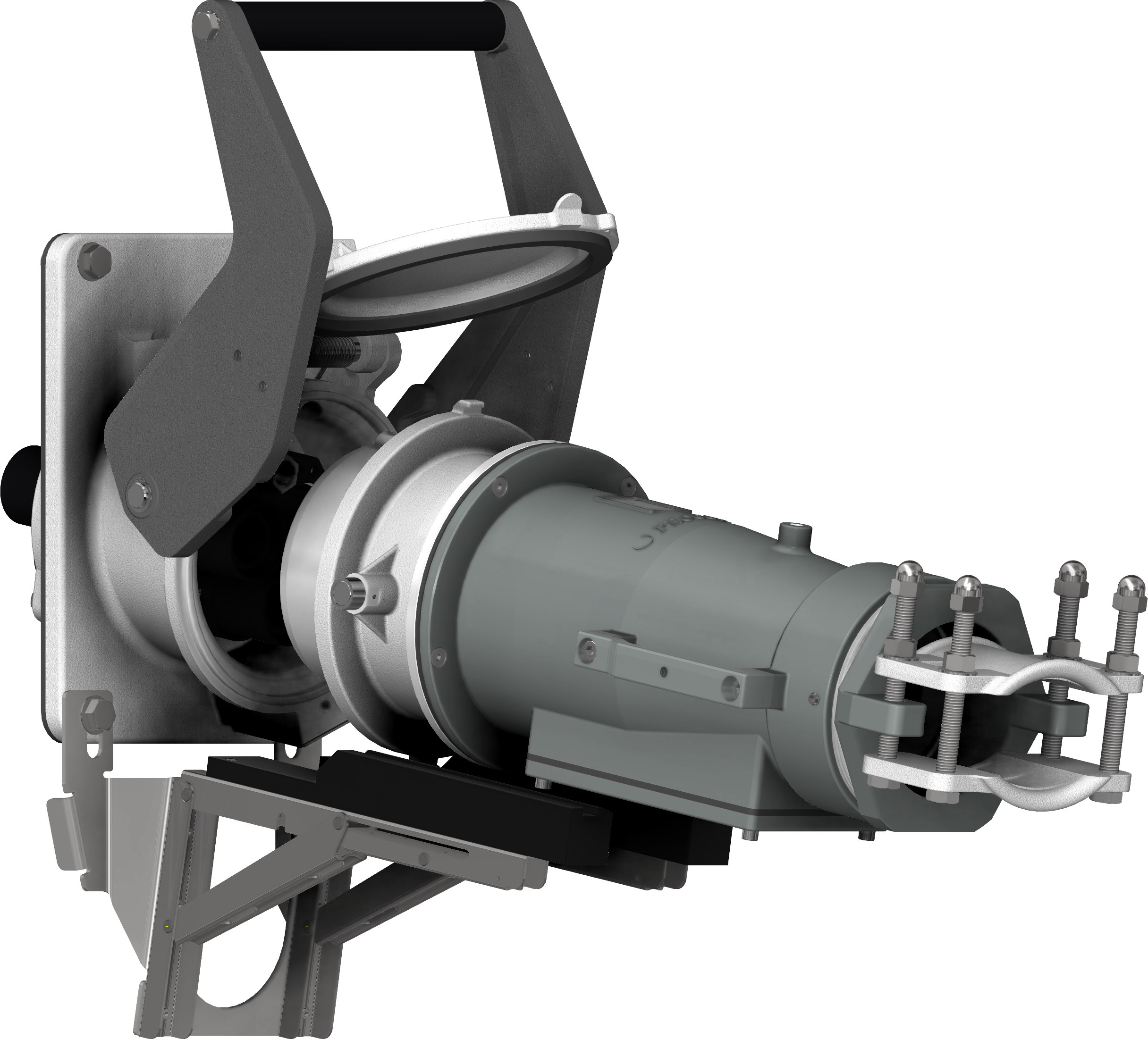

GUIDING RAIL
Folding guiding rail for an easier plug connection.

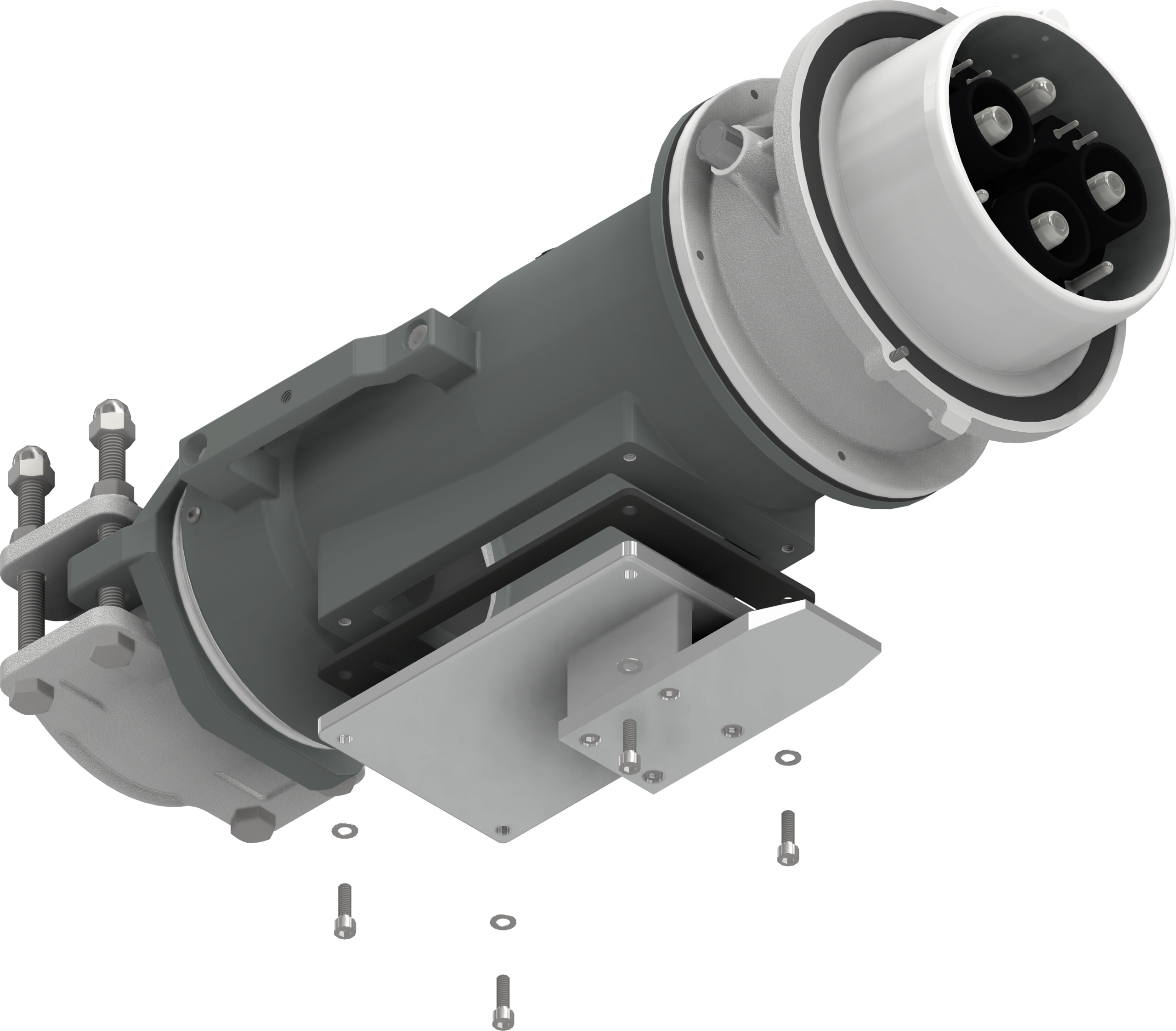

SLIDER FOR GUIDING RAIL
Slider mounted on plug allowing connector's compatibility with the 3PX7 Guiding rail.
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.
Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.

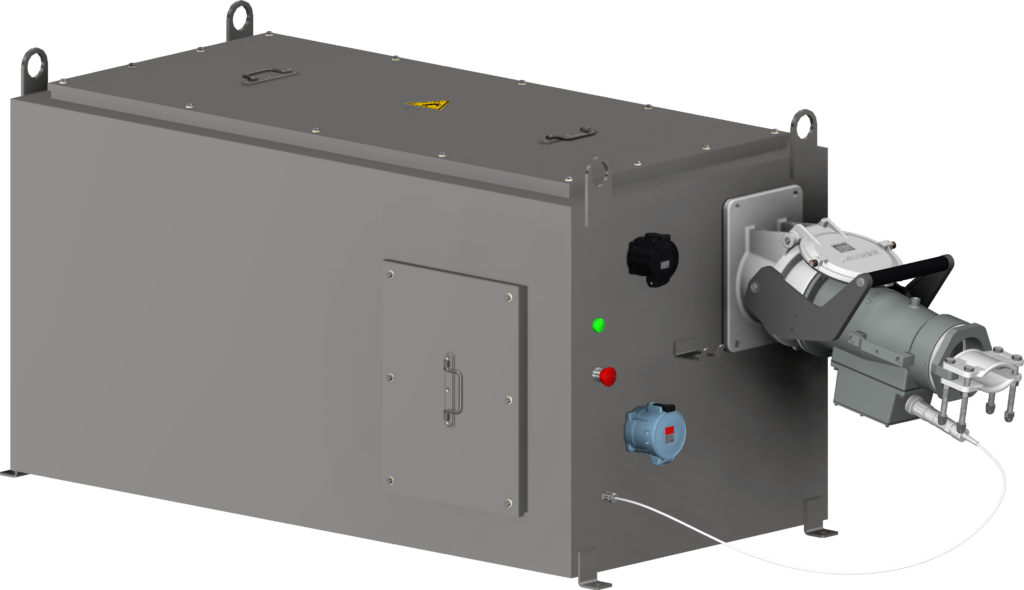

Connection boxes
Technical datas
3PX7 Datasheet
More technical informations about the 3PX7 solutions.
