3PS63
IEC 60309-1IEC 60947-3 IEC 60529 IEC 50102NF C 15-100 (7-709 Marinas)
Integrated AC23 switching capacity connector
They offer an alternative that is more compact, easier to install and use, and also safer compared to integrated connector solutions on switch boxes.
- Amp. max. : 90A
- Voltage max. : 1kV
- Amp. pilots : 30 A
- Contacts max. : 3P+N+E+2p
- Cable section max. : 35 mm² (AWG 2) (flexible)
- Cable diameter : min. 9 mm / max. 38 mm
- Pilot section : 6 mm² (AWG 10)
- Termination : Cable clamp screw
- Casing : Polyamid
- Contacts : Brazed silver alloy and AgNi tip
- Insert : Polyamid V0
- Fastenings : Stainless steel
- Breaking capacity : AC23
- Temperature : -30° +60° C
- Ind. protection : IP66 - IK8
- User protection : IP4X

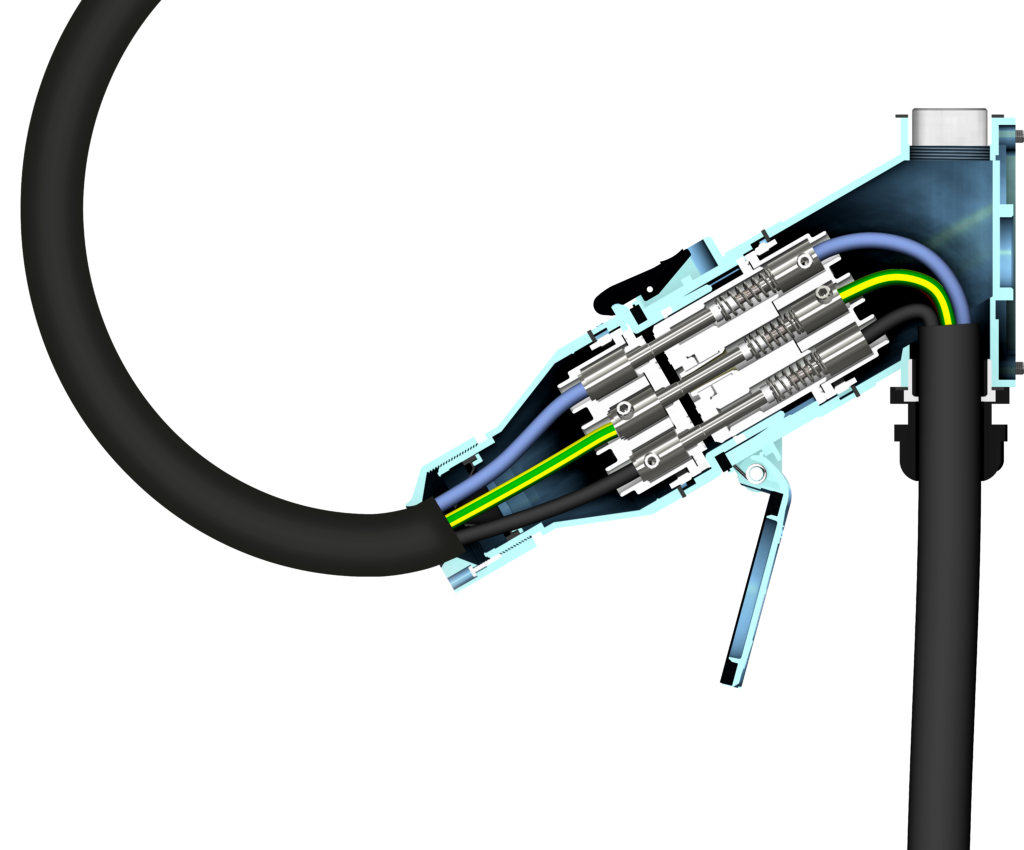

Connectors

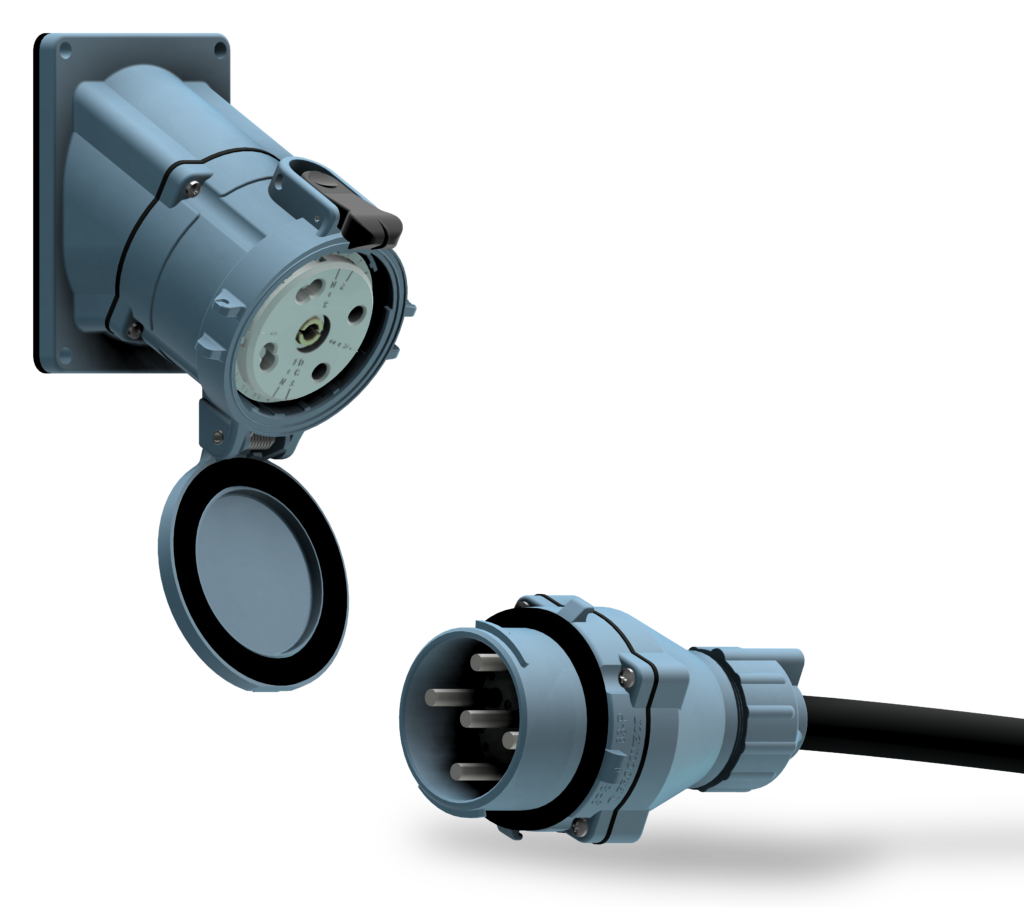

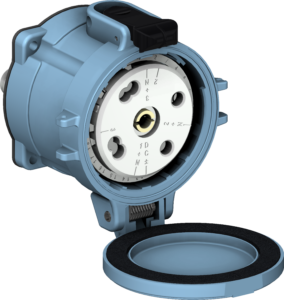

SOCKET
Female supplying part to be placed wall-mounted or on an electrical cabinet. No access to under voltage parts with its safety shutter.
Go to options

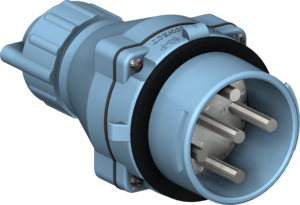

PLUG
Mobile male receiving part to be cabled and connected in a socket or a cable coupler. The plug cap option is needed to ensure IP66 once disconnected.
Go to options

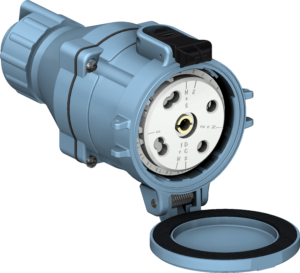

CABLE COUPLER
Mobile female part to be cabled and connected in appliance inlets or plugs connectors. No access to under voltage parts with its safety shutter.
Go to options

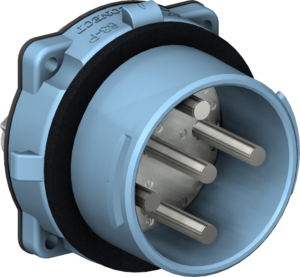

APPLIANCE INLET
Male receiving part to be placed wall-mounted or on an electrical cabinet. The plug cap option is needed to ensure IP66 when not connected.
Go to optionsSELECT YOUR CONNECTOR

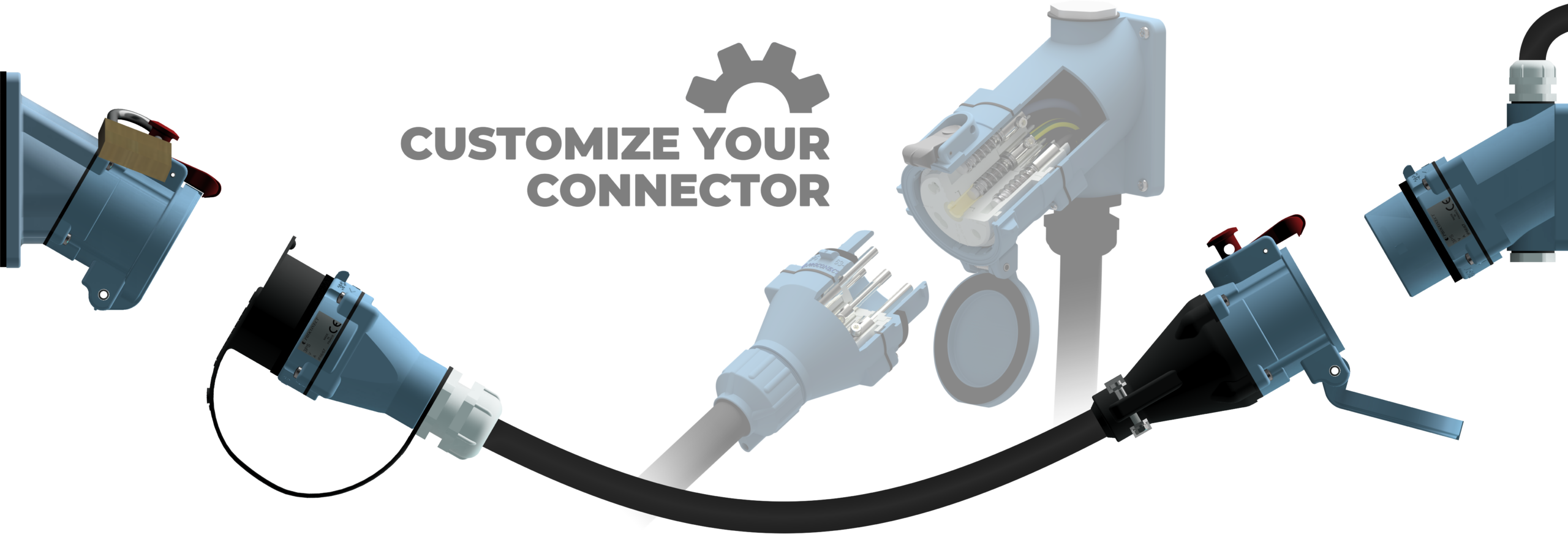

Options
PLUG CAP Available on Plug Appliance inlet

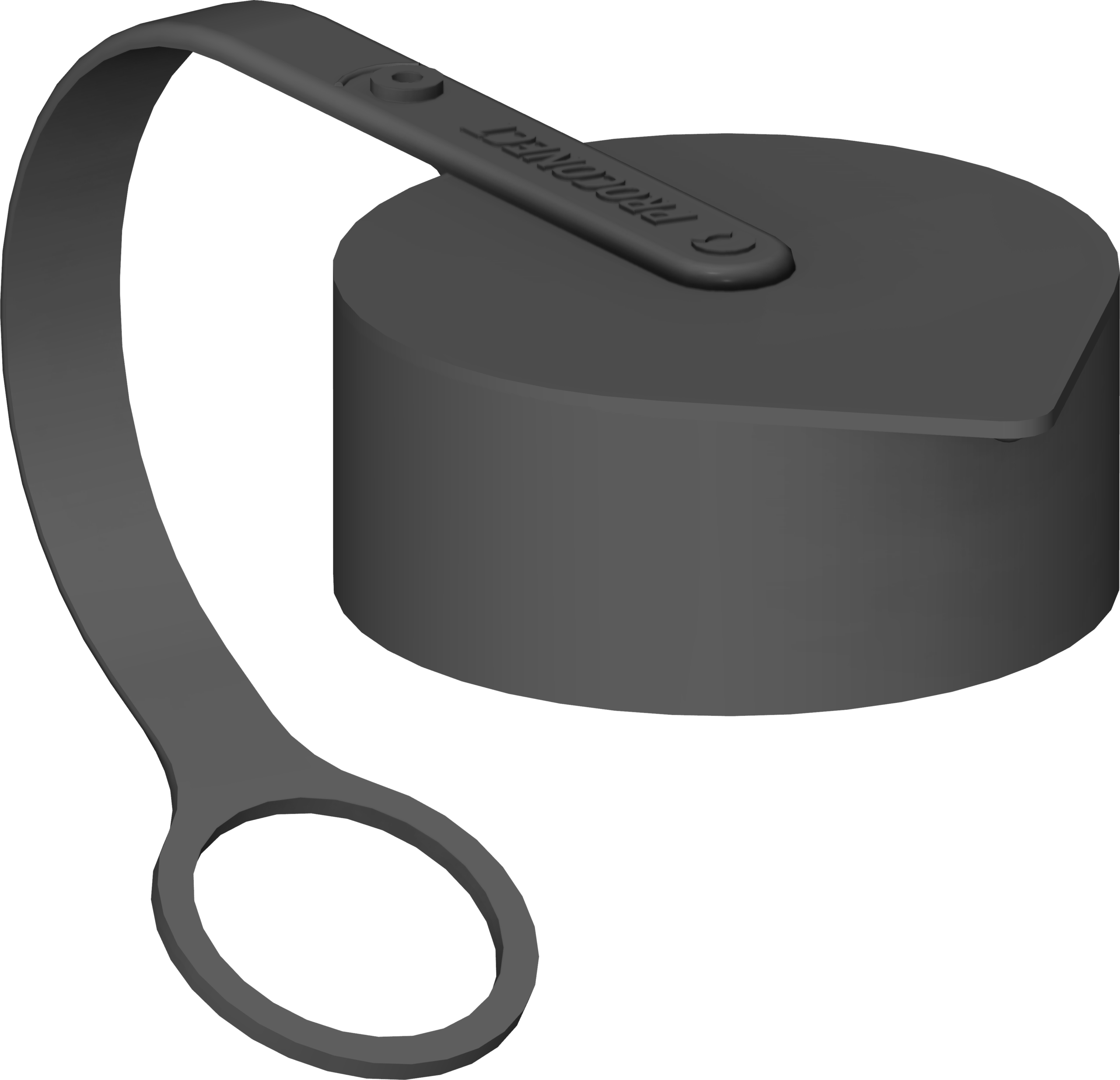

EPDM cap to ensure IP66 rating of the plug once disconnected.

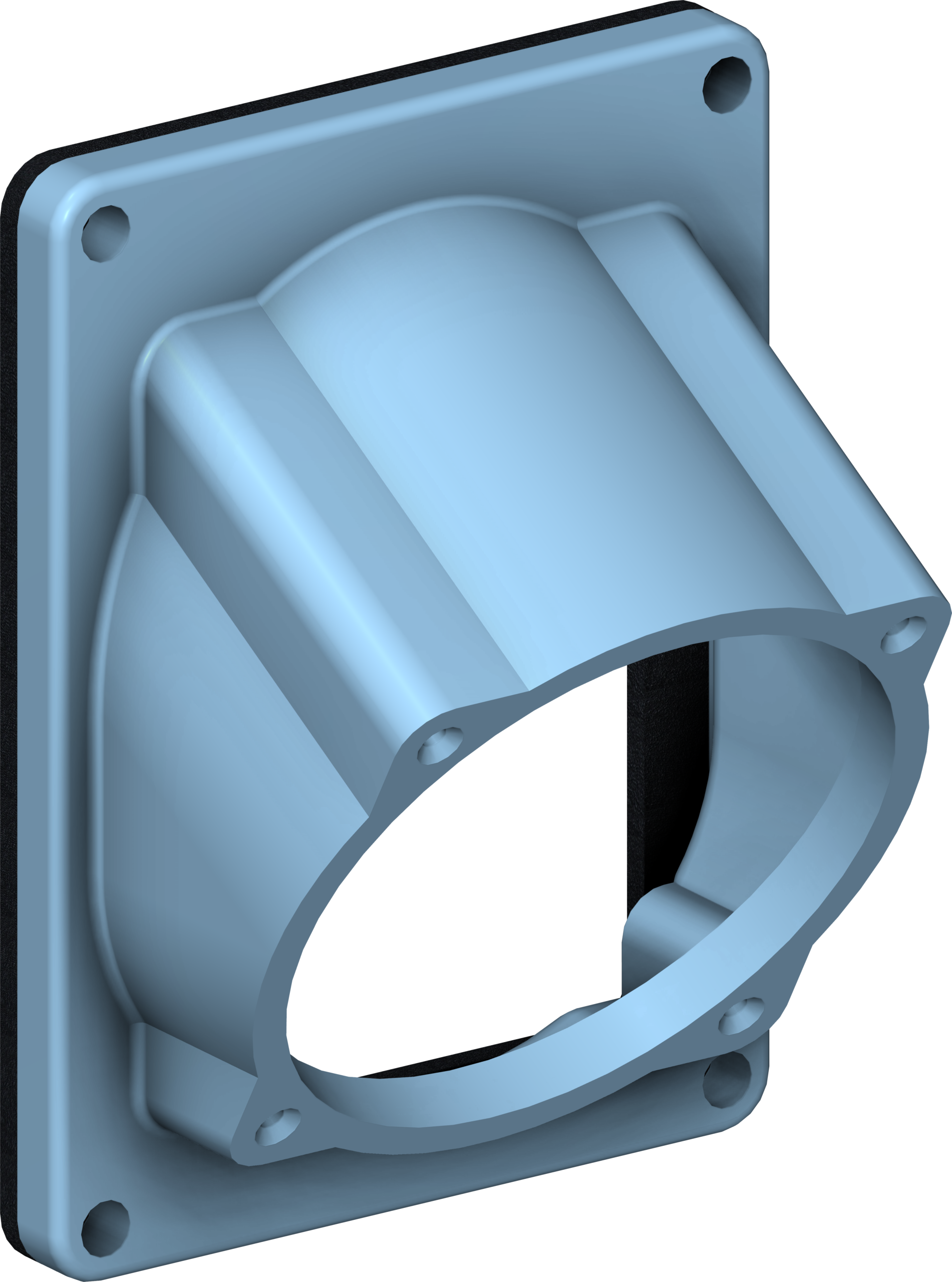

INCLINED BOX 30° Available on Socket Appliance inlet

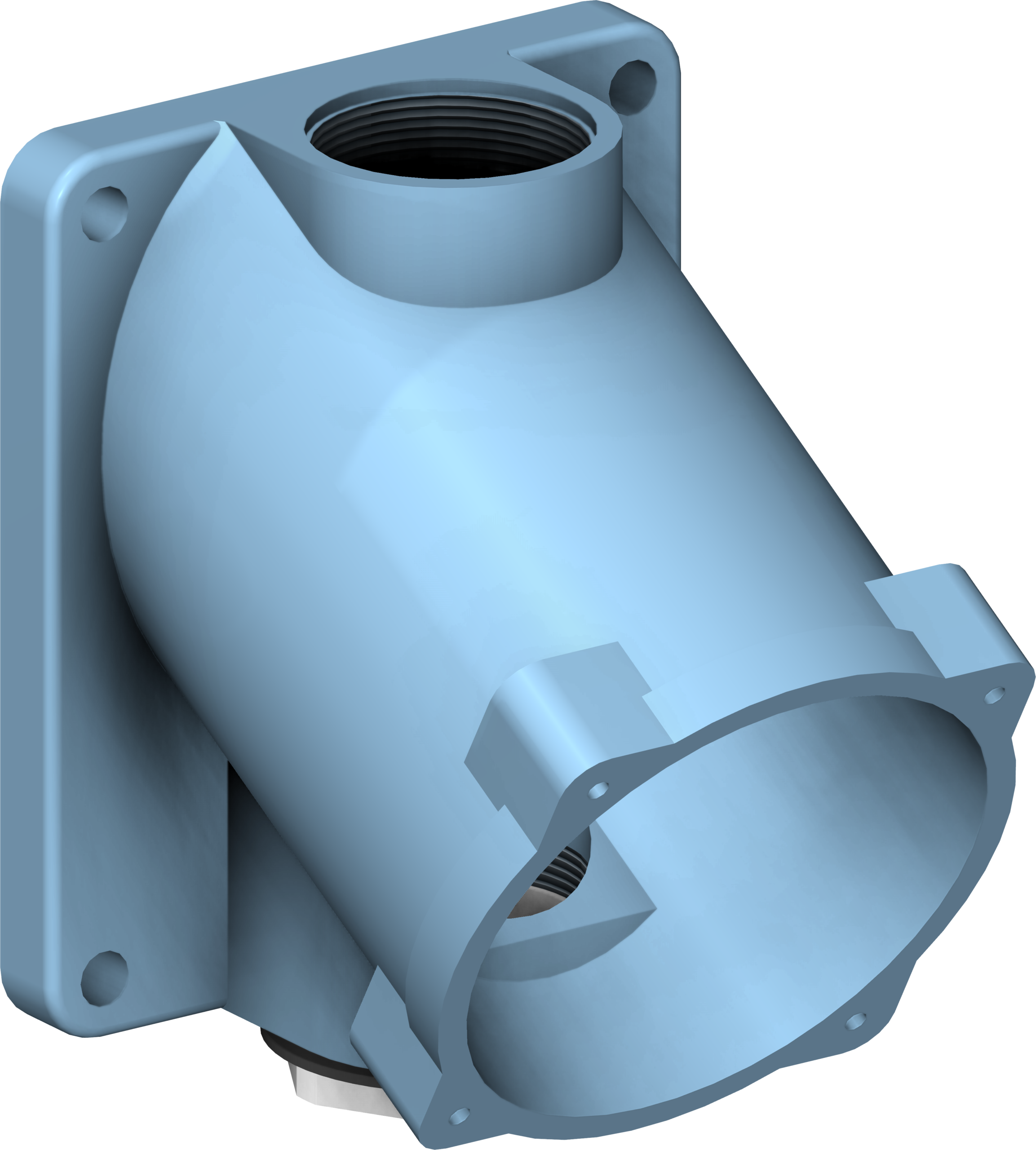

Panel mounting polyamid inclined box for cabinets applications.
WALL BOX 30° Available on Socket Appliance inlet
Wall mounting polyamid inclined box with two-ways cable access via cable gland M20 (cable gland not supplied).

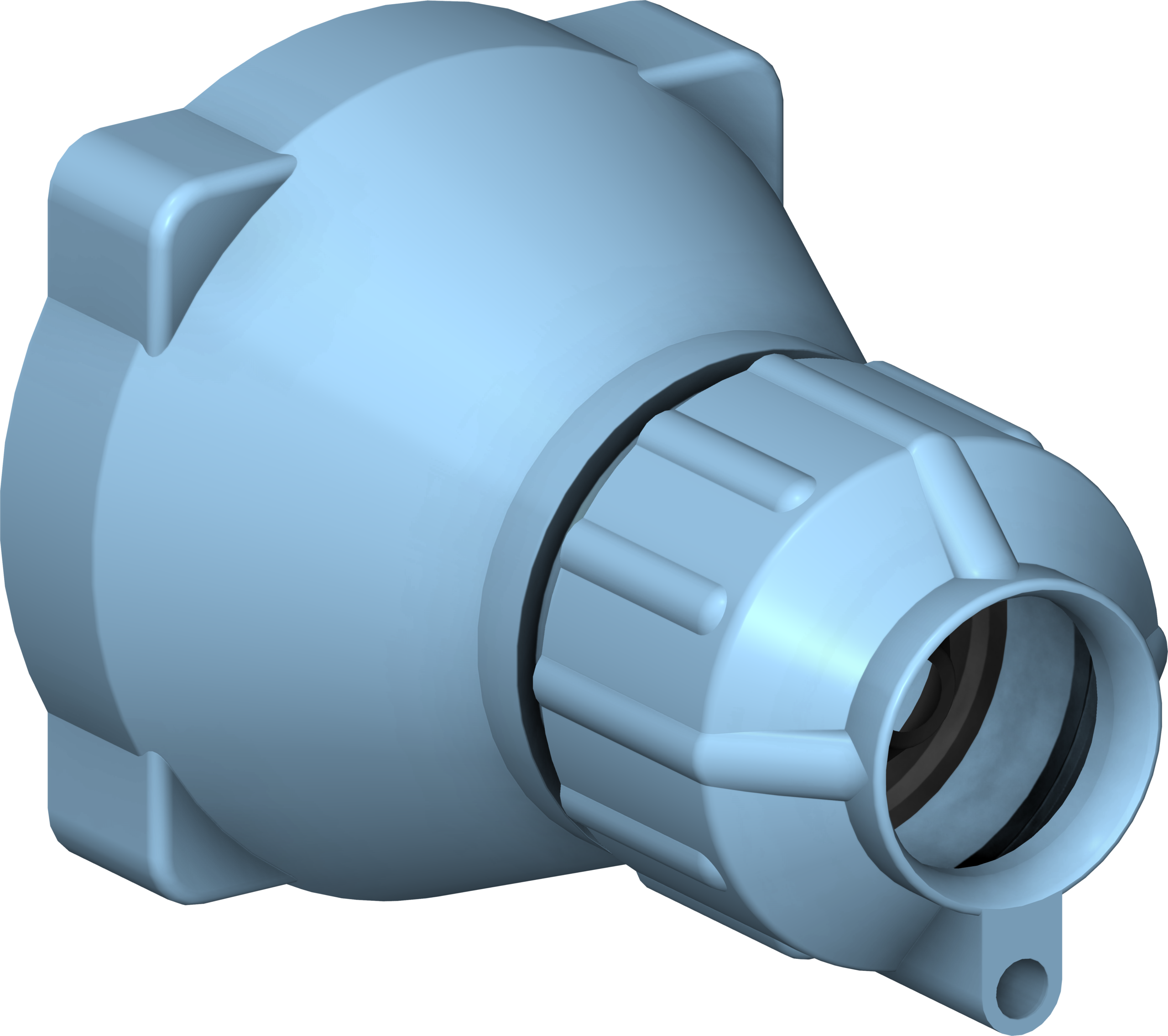

HANDLE WITH CABLE GLAND Available on Plug Cable coupler

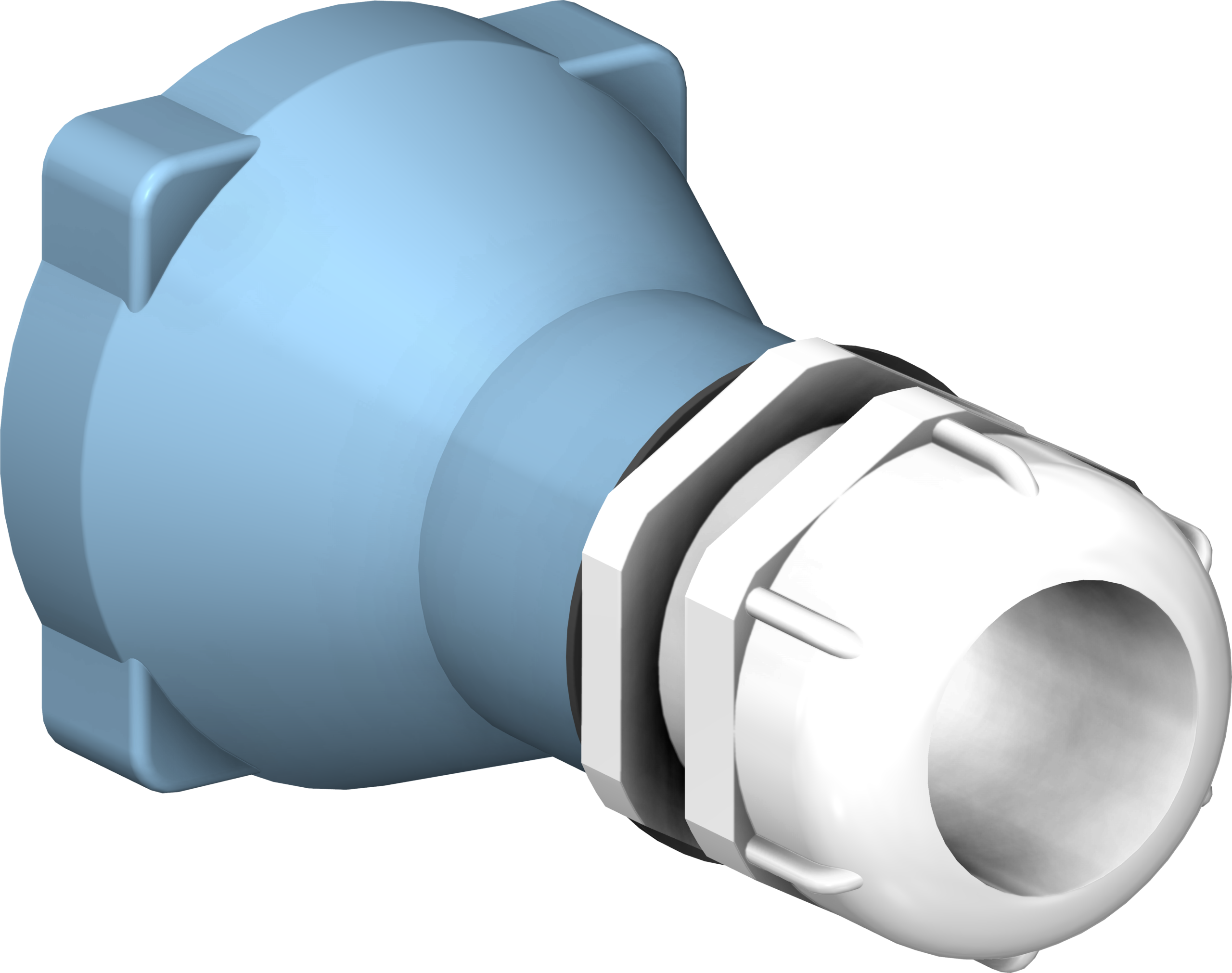

Polyamid handle with ISO M32 cable gland for Ø18-Ø25mm cables.
STANDARD HANDLE Available on Plug Cable coupler
Polyamid handle with integrated cable gland system for Ø9-Ø18mm cables.
NEOPRENE HANDLE Available on Plug Cable coupler
Neoprene handle with multi-layer nipple and cable clamp for Ø12-Ø17mm cables.

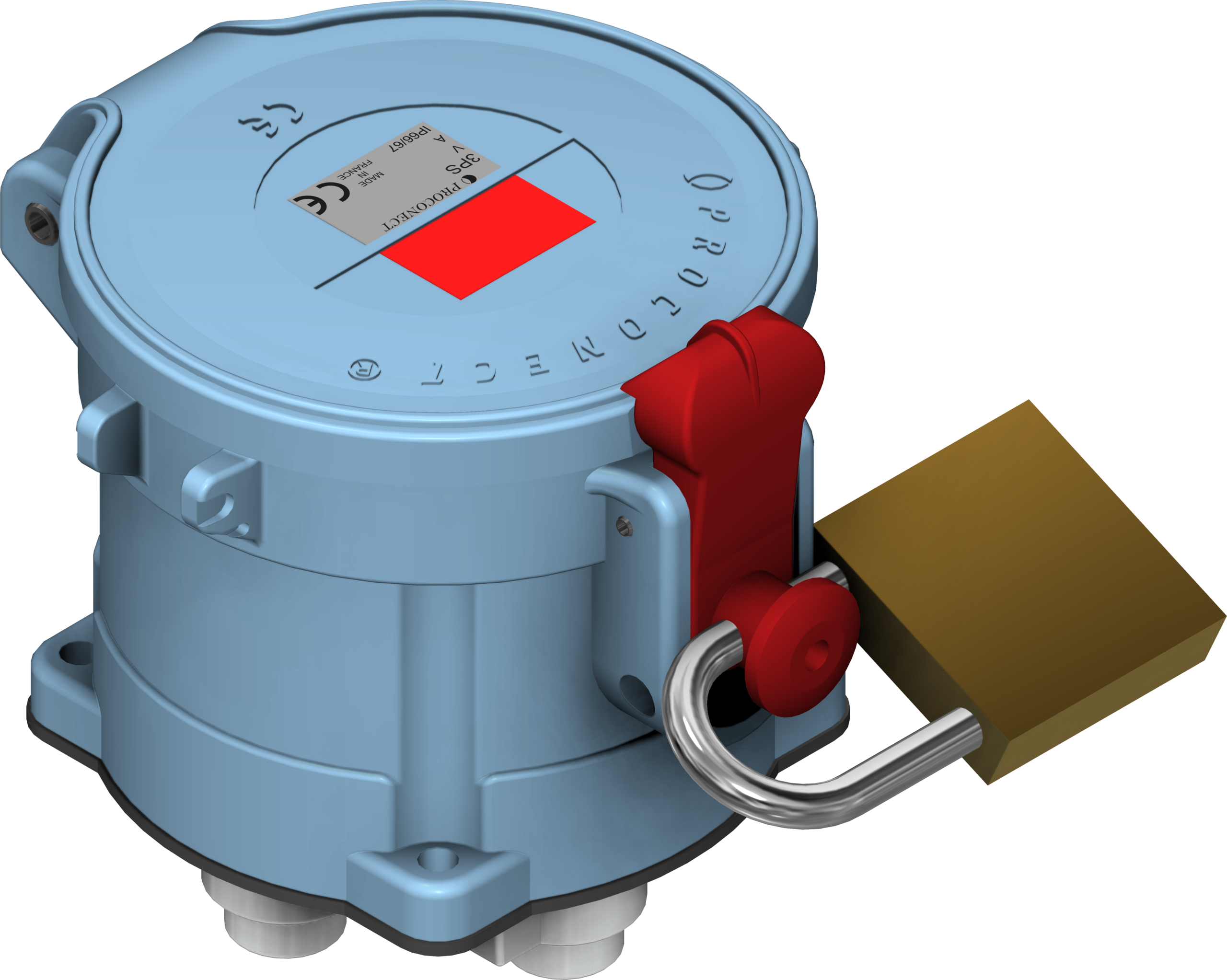

LATCH FOR PADLOCK Available on Socket Cable coupler
Special latch drilled to allow a padlock (6 mm max.) to secure the socket in a closed or connected position.

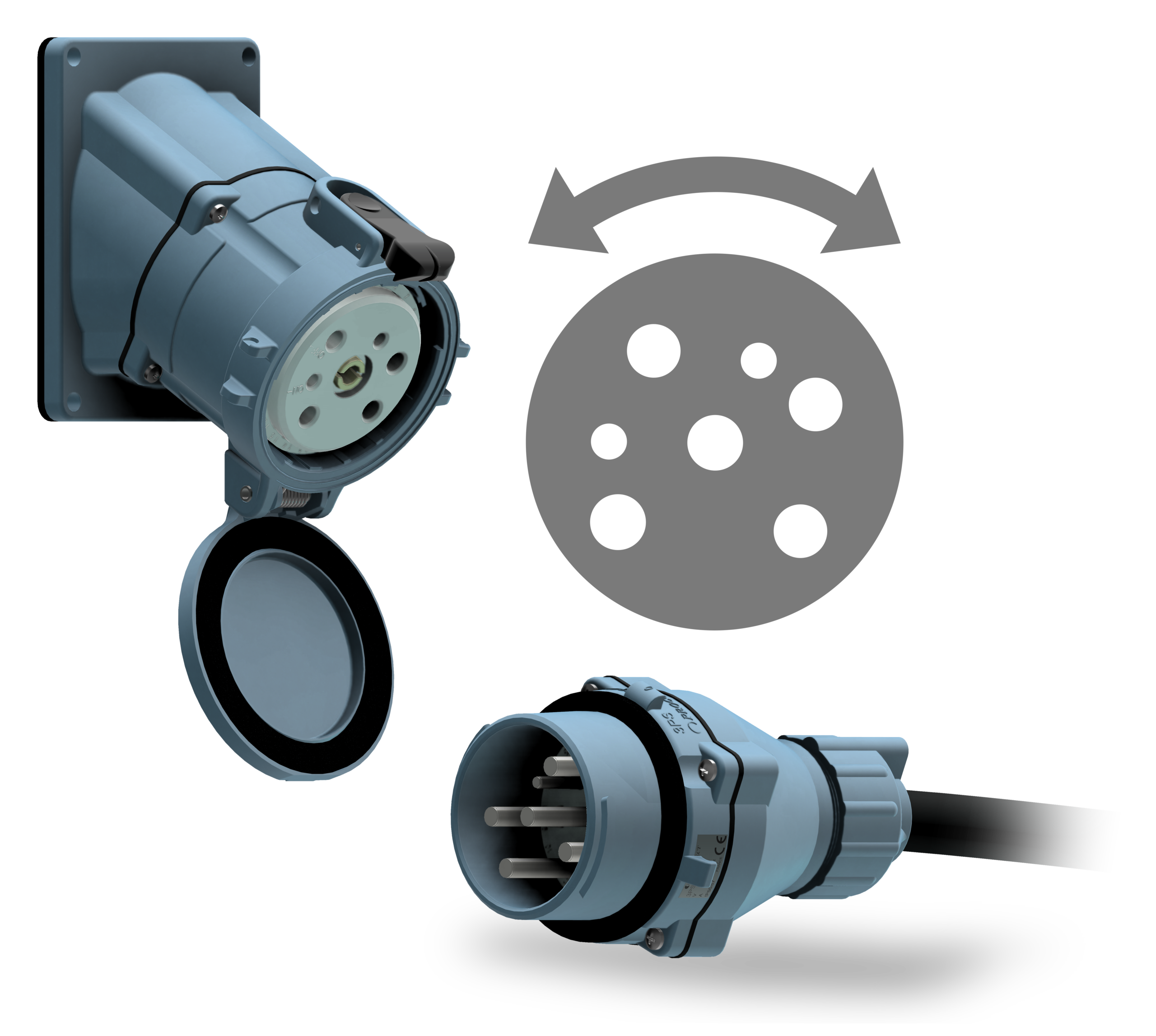

2 PILOTS OPTION Available on each connector
Special contact arrangement for 6-phased connections (e.g. Star/Delta motor).
CEE connector adptor Can be used for Marinas Onshore Power Supply

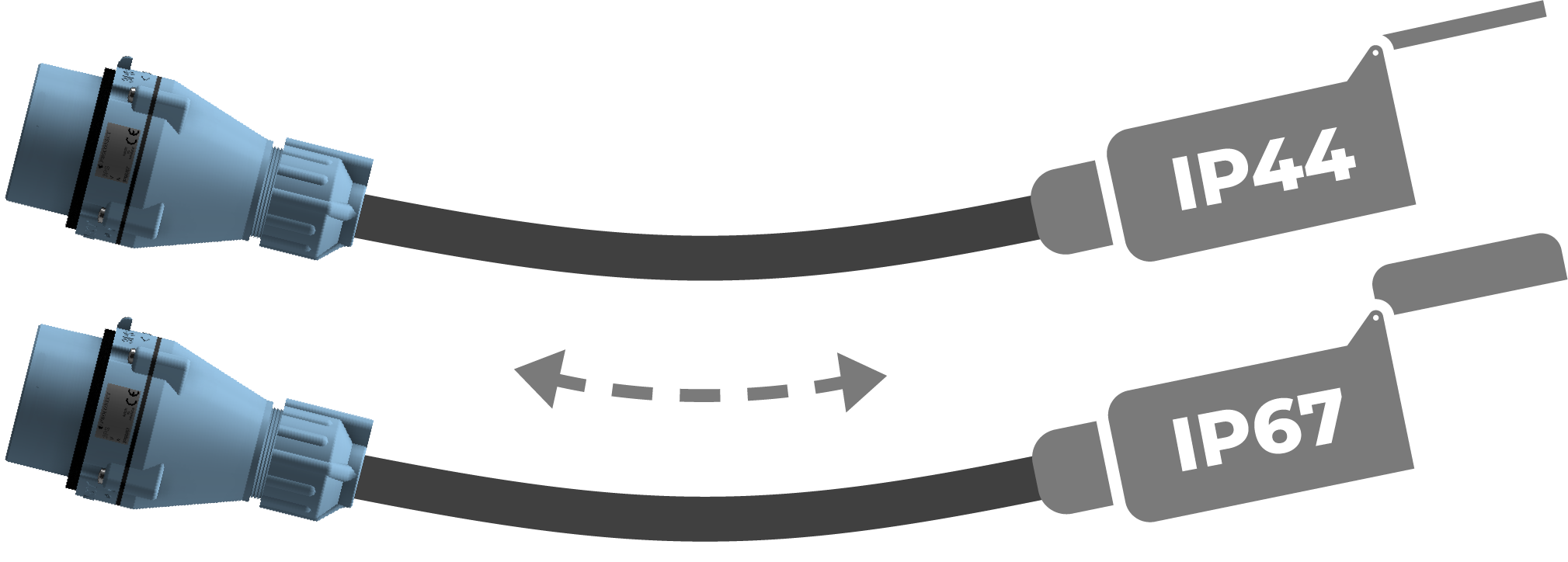

Adaptors on request, adjustable cable length for optimal integration, IP44 or IP67 solutions. Can be used to connect boat already equiped with CEE connections.

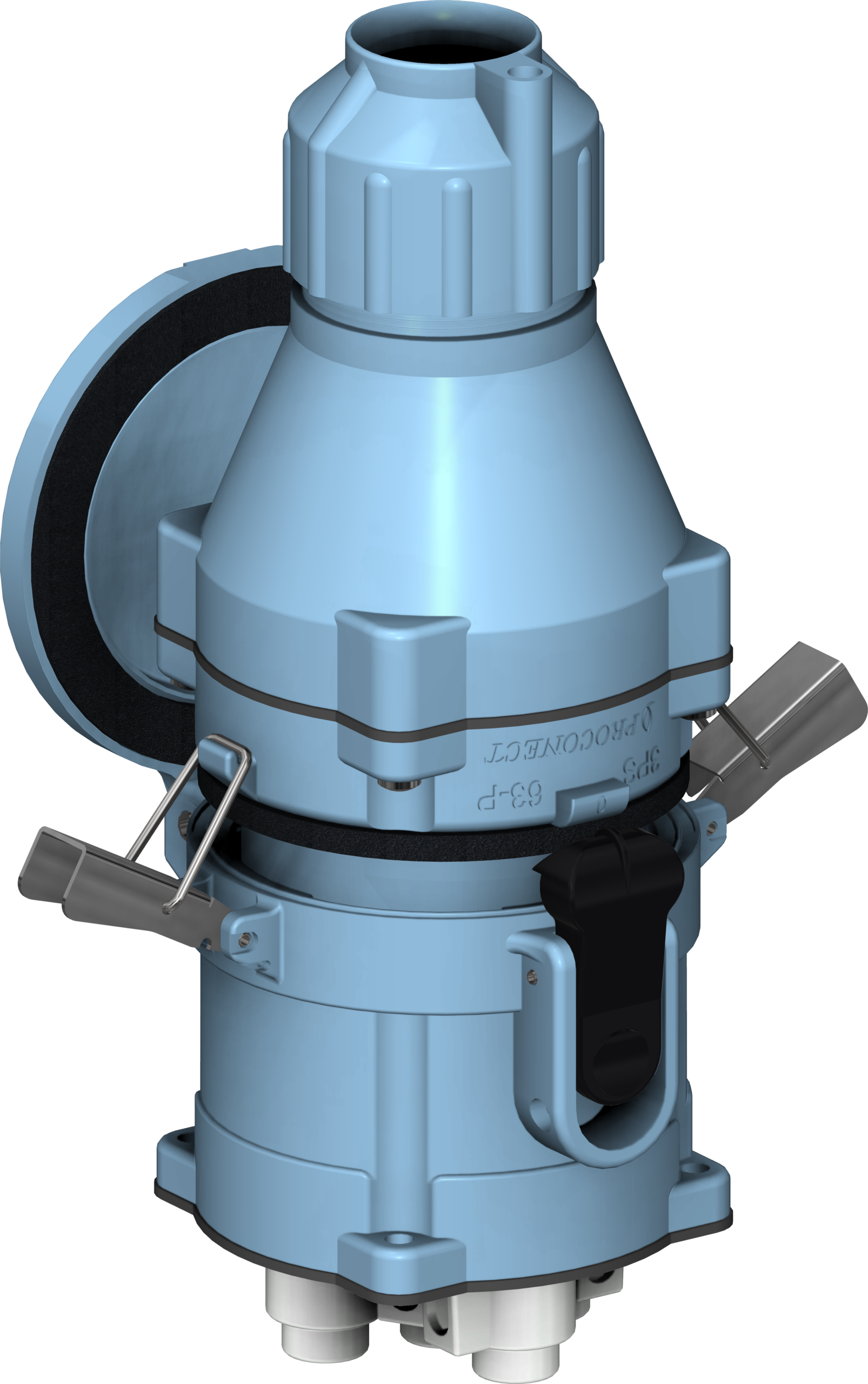

LOCKING ARMS Available on Socket Cable coupler
Locking arms added to the socket or cable coupler casing for an easier plug or appliance inlet connection.
SELECT YOUR OPTION
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.
Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
Connection boxes
Technical datas
3PS63 Datasheet
More technical informations about the 3PS63 solutions.
