Y Connector
ADR 2017
Battery charging connector
- Amp. pilots : 20 A
- Contacts max. : 2P (+/-) (+ 1 pilot option)
- Cable section : 35 mm² (AWG 2) / 50 mm² (AWG 1/0)
- Cable diameter max. : 17 mm
- Pilot/Coding section : 2,5 mm² (AWG 14)
- Termination : to crimp, to solder
- Casing : Polyamid (acid-proof)
- Contacts : Copper alloy
- Fastenings : Stainless steel
- Temperature : -40° +125° C
- Ind. protection : IP54 (with add-ons)
- Standard : ADR 2017
Connectors

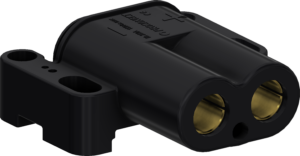

FEMALE CONNECTOR
Fixed connector to be installed on a structure (wall-mounted, electrical cabinet, vehicle, etc).
Available with 35 and 50 mm² (AWG 2 - AWG 1/0) contacts to crimp.

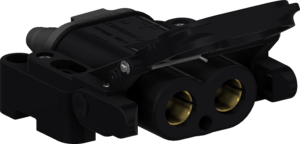

This connector needs the socket lid and seal teats to maintain IP54.
MALE CONNECTOR

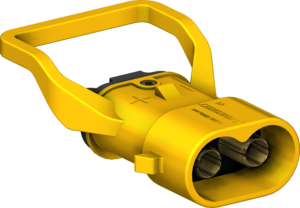

Mobile connector to be cabled.
Available with 35 and 50 mm² (AWG 2 - AWG 1/0) contacts to crimp.
This connector needs seal teats and front seal to maintain IP54.

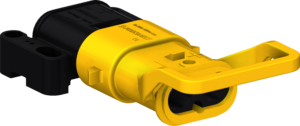

COUPLE CONNECTED

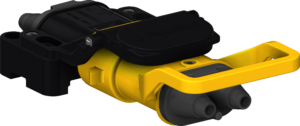

Connected female and male connectors. Once connected and with all accessories, the IP54 rating is maintained.
Go to optionsSELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION
SOCKET LID

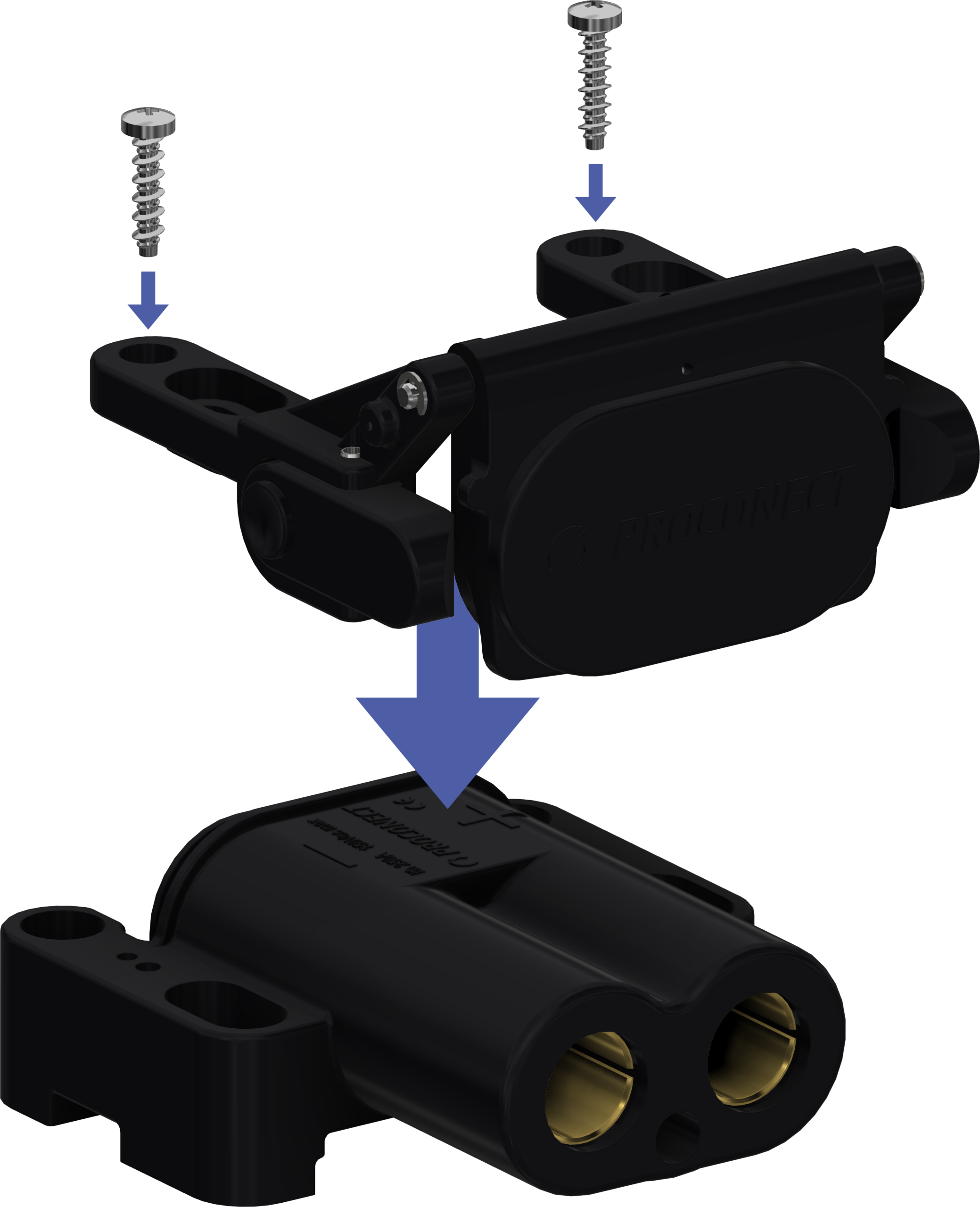

Lift-off polyamid lid to be installed on socket to maintain IP54 rating of the connector.

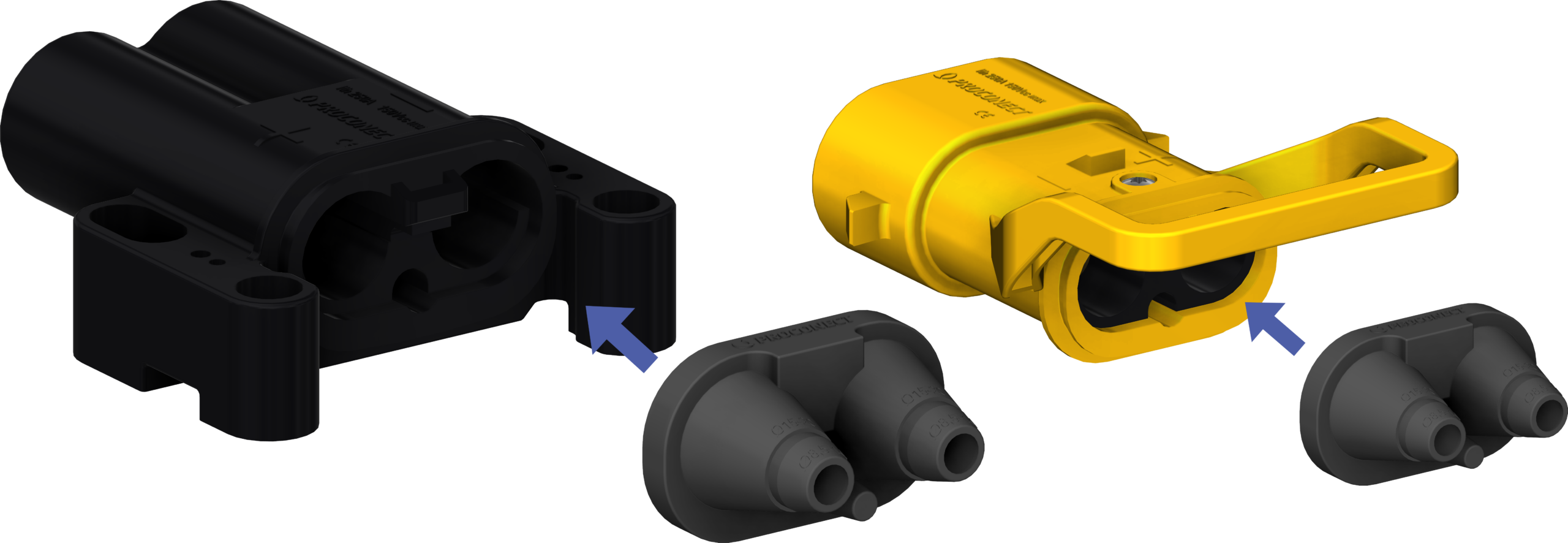

SEALING TEATS
Cable polyurethane teats placed at the back of the female and/or male connector to maintain IP54 rating.
FRONT PLUG SEAL

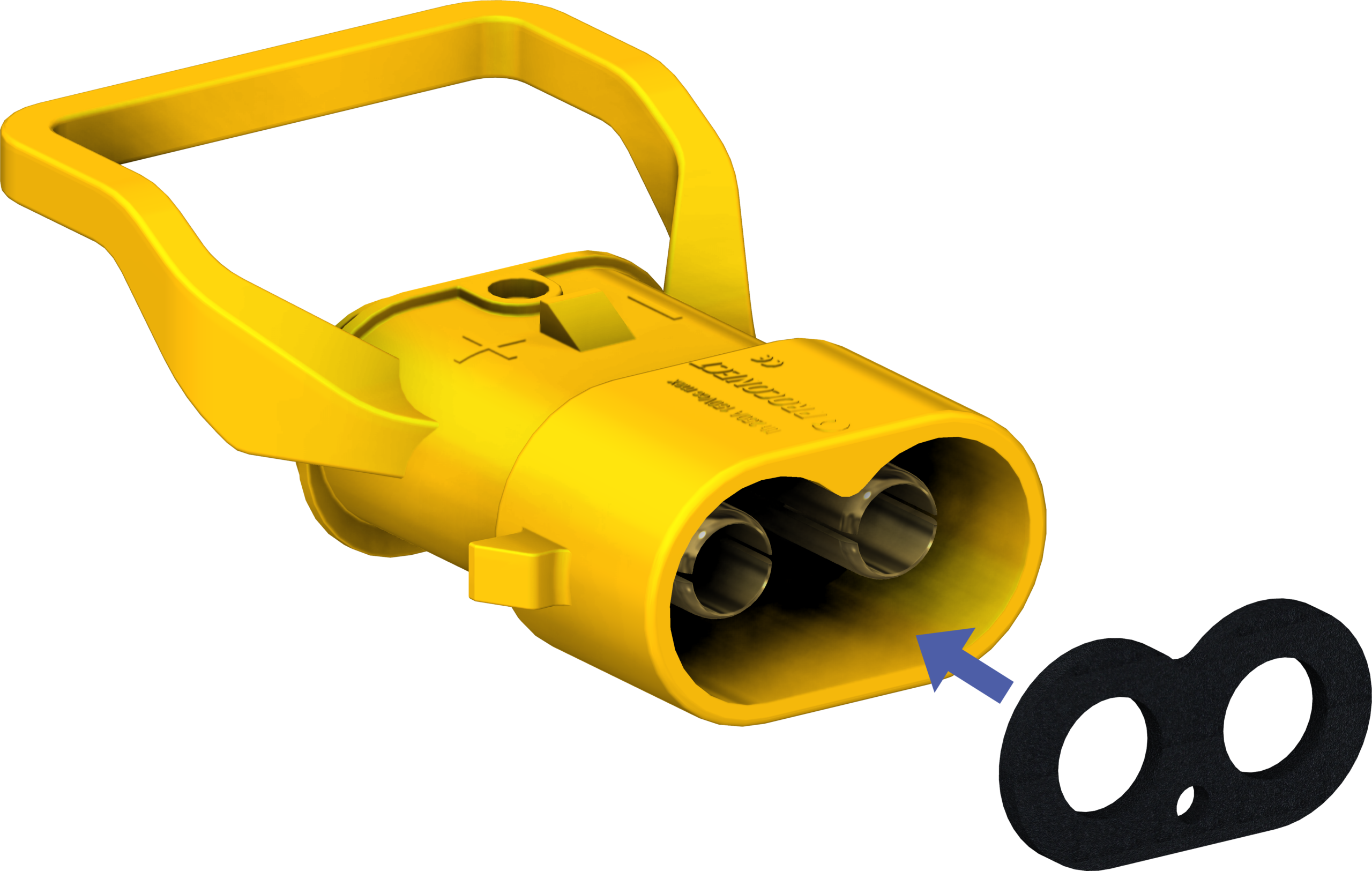

Neoprene foam front male connector seal to maintain IP54 rating when the plug is connected.
AUXILIARY PILOT

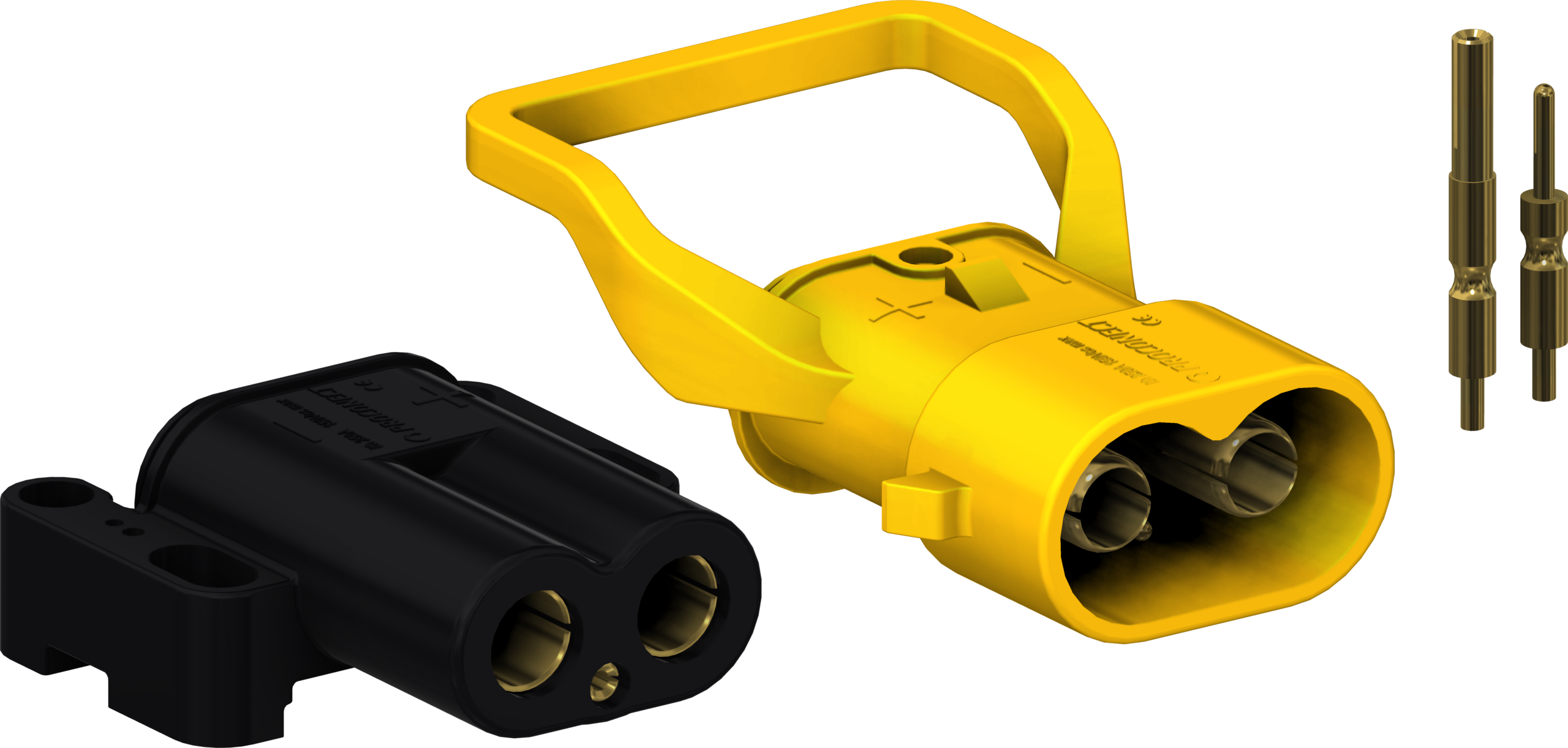

Male and female connectors can be fitted with 1 auxiliary 2,5 mm² (AWG 14) contact.

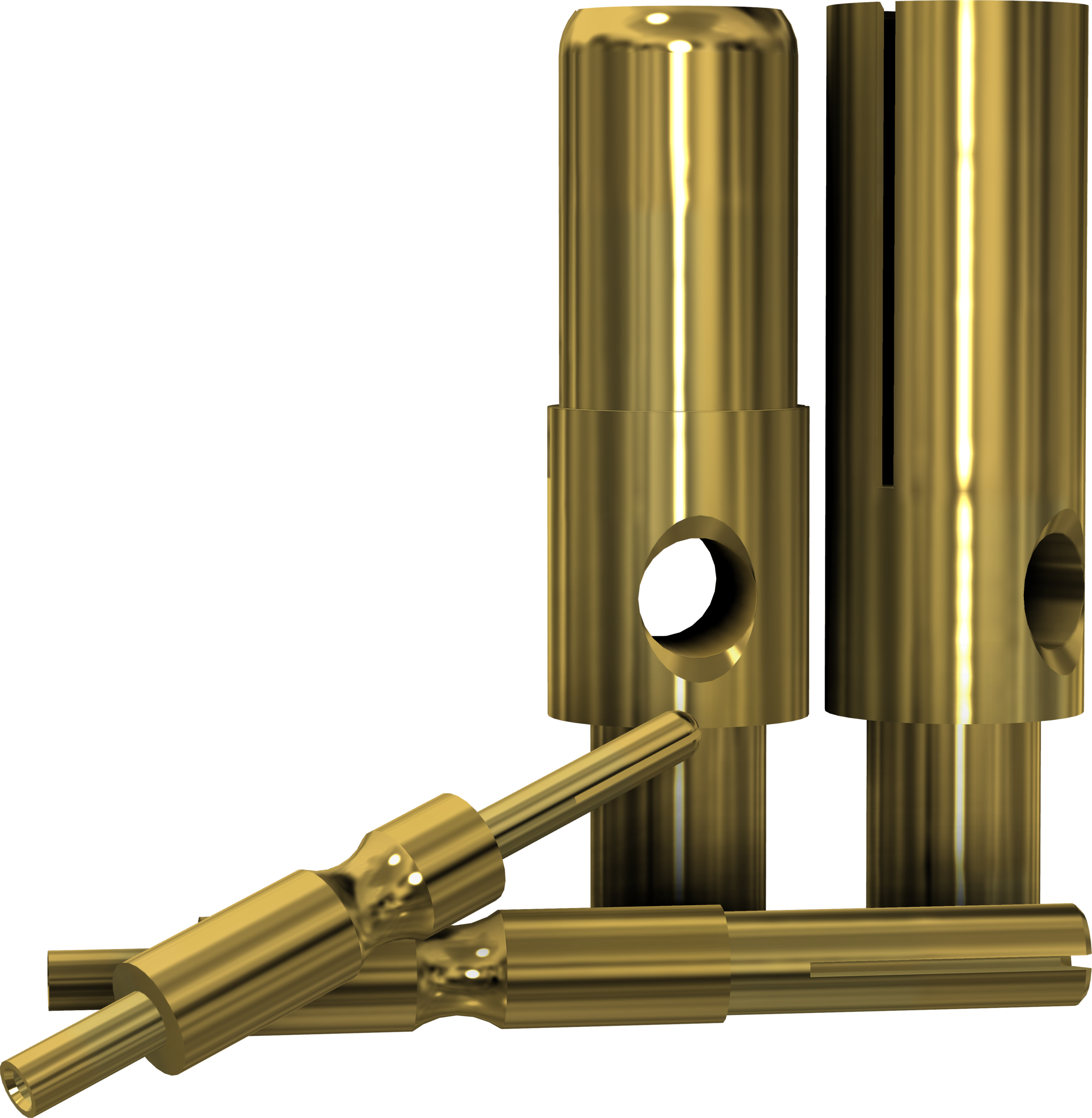

RETAIL CONTACTS
Contacts can be ordered individually to maximize the lifespan of the connectors.

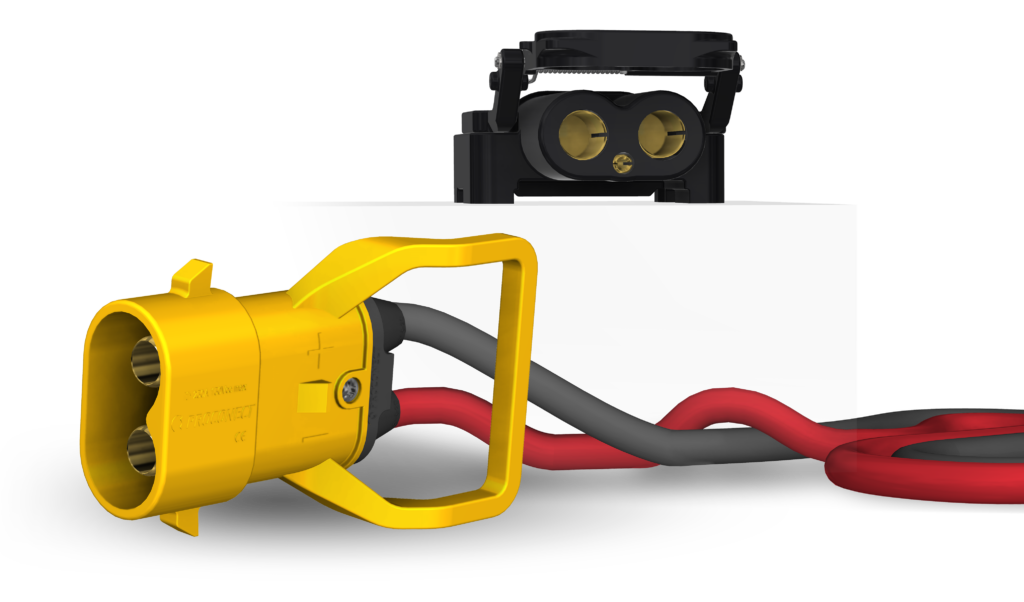

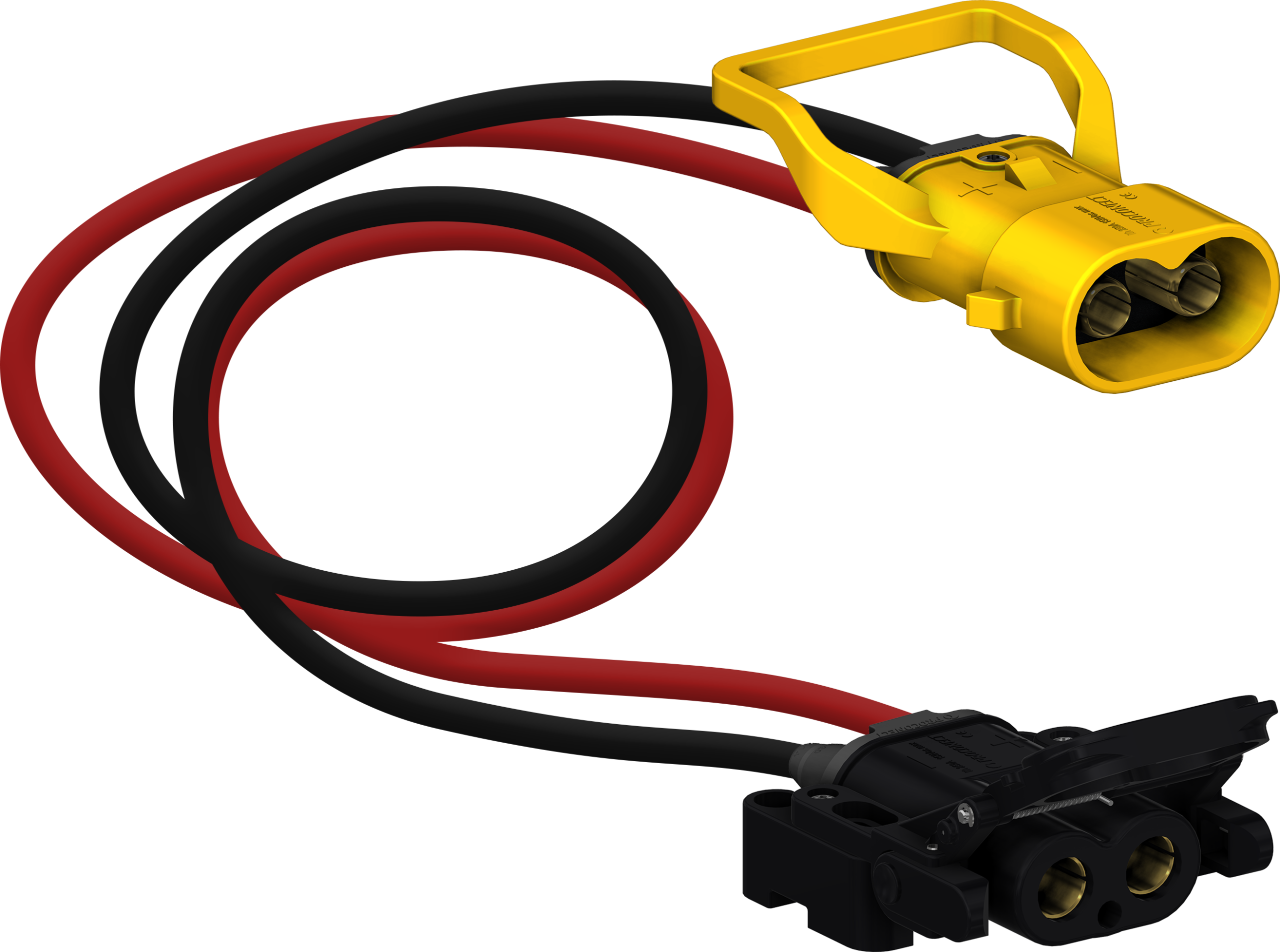

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
