3PX4
IEC 60309-1* IEC 60529 IEC 50102 * (when applicable)
Cam push/pull metallic connector for Industry
- Amp. max. : 250A
- Voltage max. : 1,1kV
- Short circuit : 10 kA r.m.s/1s
- Amp. pilots : 25A
- Contacts standard : 3P+N+2p / 3P+N+E+2p
- Contacts max. : 3P+N+E+9p
- Cable section max. : (3P+N+E) 70 mm² (AWG 2/0) / (3P+E) 95 mm² (AWG 3/0)
- Cable diameter : min. 26 mm / max. 60 mm
- Pilot section : 2,5 mm² (AWG 14)
- Termination : to crimp, to solder or screw (screw terminals 16-35mm² or 50-70mm²)
- Dielectric withstand : 3 kV AC 1 min.
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : PPO
- Fastenings : Stainless steel
- Temperature : -30° +60° C
- Ind. protection : IP67 - IK10
Connectors

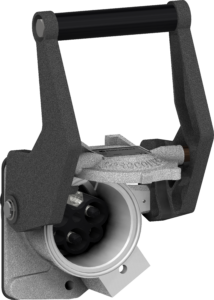

SOCKET
Active part to be placed wall-mounted or on an electrical cabinet. Cam push/pull system to maintain IP67 when closed or help and lock the connection of a plug.
Go to options

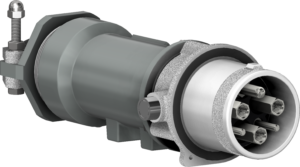

PLUG
Mobile connector to be cabled and connected in a socket or a cable coupler. The plug cap options are needed to ensure IP67 once disconnected.
Go to options

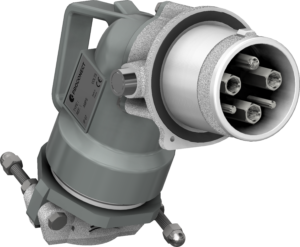

ANGLED PLUG 60°
Mobile connector to be cabled and connected in a socket or a cable coupler. The plug cap options are needed to ensure IP67 once disconnected.
more info in options

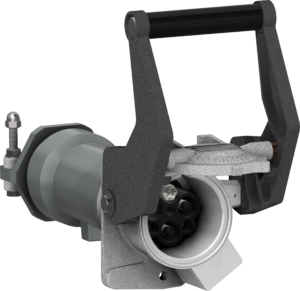

CABLE COUPLER
Mobile socket to be cabled and connected in a plug used to make an extension line.
Go to options

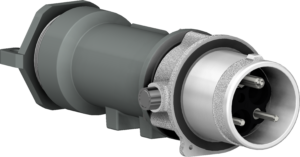

LIVE END CAP
Small plug without phases to secure a socket under voltage without a plug connected in.
Go to options

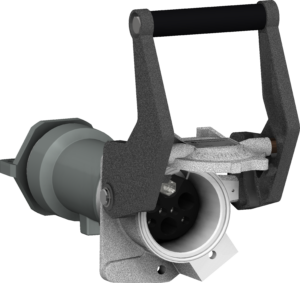

SOCKET LIVE END CAP
Connector without phases to secure a plug under voltage when not connected to a socket.
Go to optionsSELECT YOUR CONNECTOR
3PX4 variations
Options

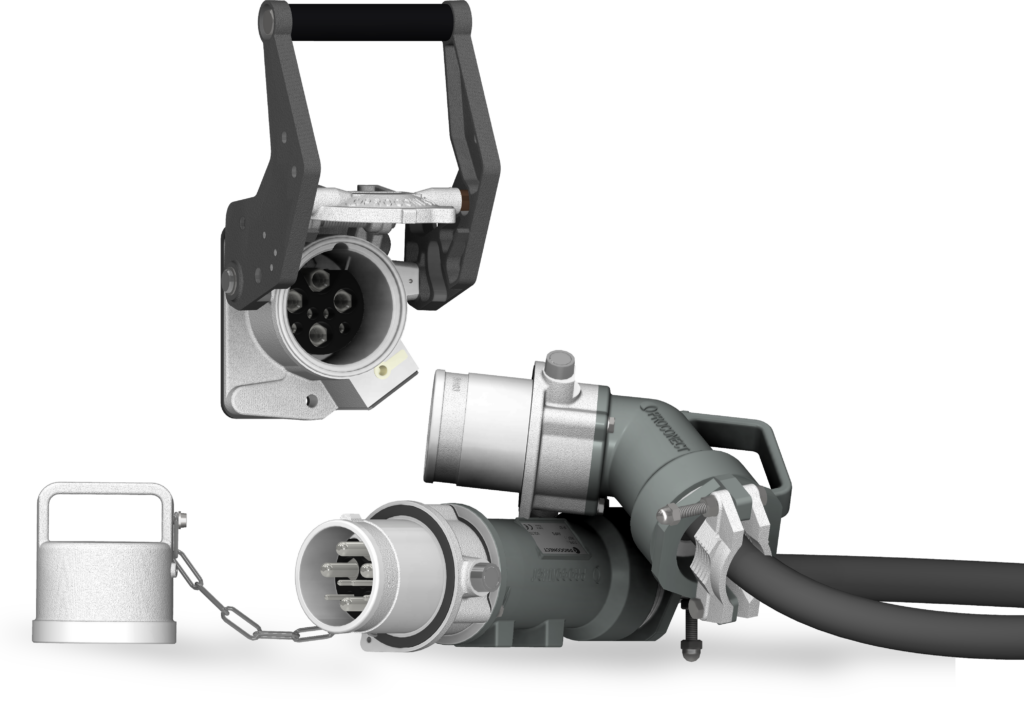

PLUG CAP
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.

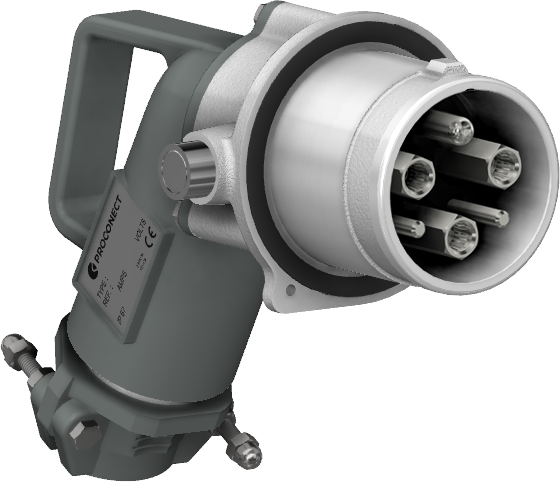

REDUCED ANGLED PLUG 60°
Special reduced 60° angled plug casing for Ø14-Ø38mm cable output.

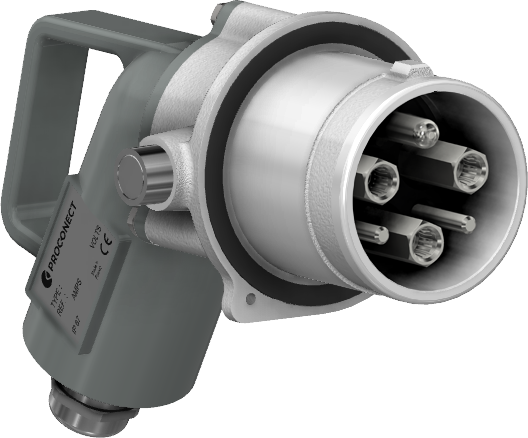

REDUCED PLUG + CABLE GLAND
Special reduced 60° angled plug casing to accept a M25 Ø11,5-Ø18mm cable gland.
MICROSWITCH
Sockets can be provided with a Microswitch, activated by opening or closing the socket lid or via the insertion of the plug.
CAPTIVE KEY LOCKING
Captive key system both on the plug and the socket to authorize electrification of the system once connected and the key engaged.
BOLT LOCKING
Bolt locking system only on the socket to authorize electrification of the system once the plug connected and the key engaged.
MOUNTING TOOL
Assembly and disassembly tool for phase and earth contacts.
CABLE COUPLER CRADLE
Craddle support allowing the connector to be raised from the floor and avoid damage on the cables and the connector.

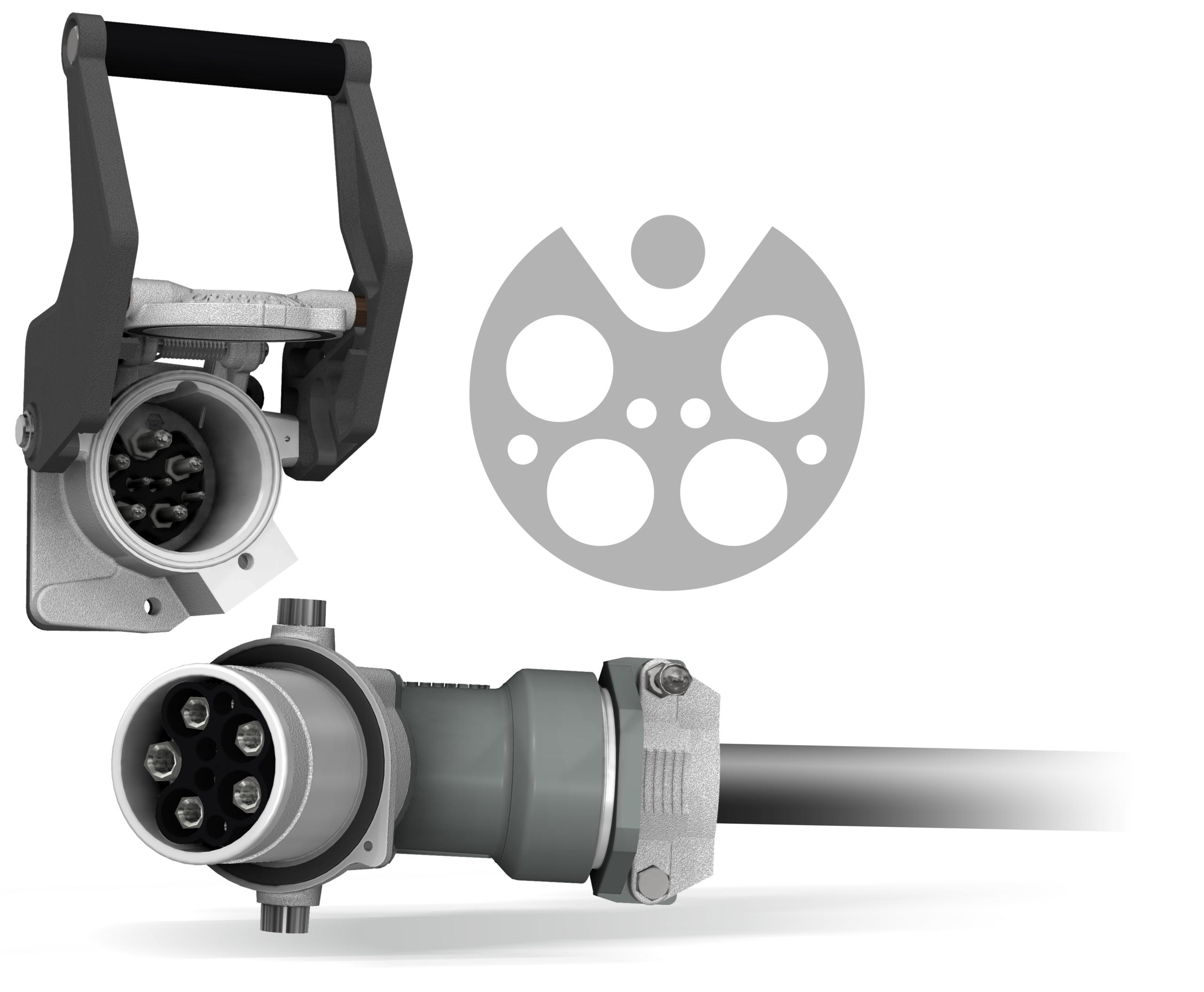

4 PILOTS
OPTION
4-phased connector with 4 pilots
2,5 mm² (AWG 14).
9 PILOTS
OPTION
3-phased connector with 9 pilots
2,5 mm² (AWG 14).
SELECT YOUR OPTION
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.
Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
Connection boxes
Technical datas
3PX4 Datasheet
More technical informations about the 3PX4 solutions.
