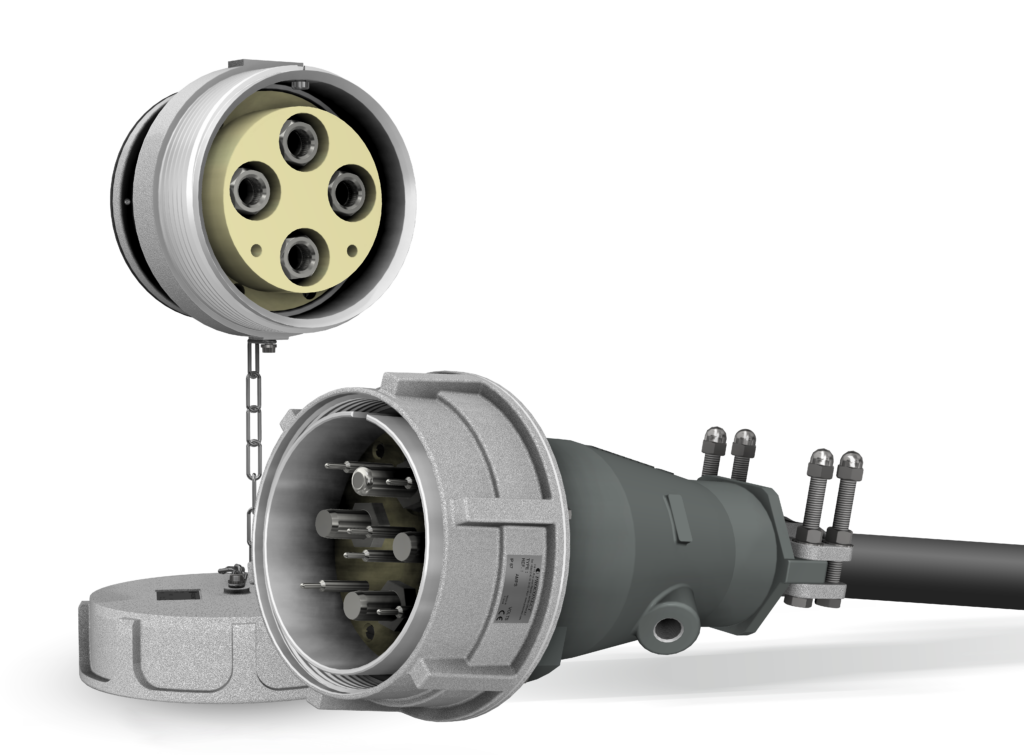

3PV6
IEC 60309-1
(when applicable)
Screw-ring metallic connector for Industry
- Short circuit : 10 kA r.m.s/1s
- Amp. pilots : 25 A (2,5 mm²)
- Contacts standard : 3P+N+2p / 3P+N+E+2p
- Contacts max. : 3P+N+E+6p
- Cable section max. : 300 mm² (600 MCM)
- Cable diameter : min. 25 mm / max. 100 mm
- Pilot section : 2,5 mm² (2p/6p) (AWG 14)
- Termination : to crimp or to solder
- Dielectric withstand : 3 kV AC 1 min.
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : Polyamid
- Fastenings : Stainless steel
- Temperature : -30° +60° C
- Ind. protection : IP67 - IK10
Connectors

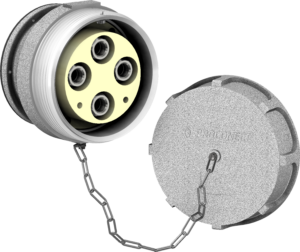

SOCKET
Active part to be placed wall-mounted or on an electrical cabinet. Screw ring system to maintain IP67 when connected. Socket screwing cap to maintain IP67 rating when not connected.
Go to options

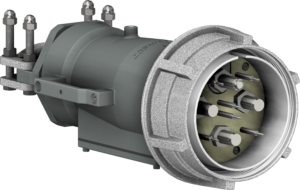

PLUG
Mobile connector to be cabled with screwing barrel for its connection in the socket.
This connector needs the plug cap option to maintain IP67 rating when not connected.

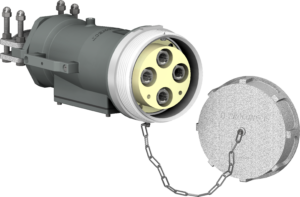

CABLE COUPLER
Mobile socket to be cabled and connected in a plug or an appliance inlet commonly used to make an extension line.

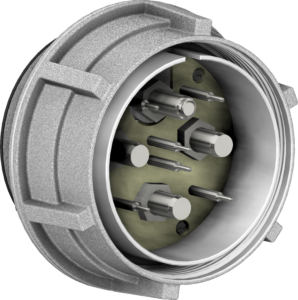

APPLIANCE INLET
Receptive part to be placed wall-mounted or on an electrical cabinet to connect a cable coupler.
This connector needs the plug cap option to maintain IP67 rating when not connected.
SELECT YOUR CONNECTOR
3PV6 variations
3PV6-MV
- Poles : 3P+E+7p
- Section max. : 240 mm²
- Ind. protection : IP67 - IK10
Options
SELECT YOUR OPTION
PLUG CAP

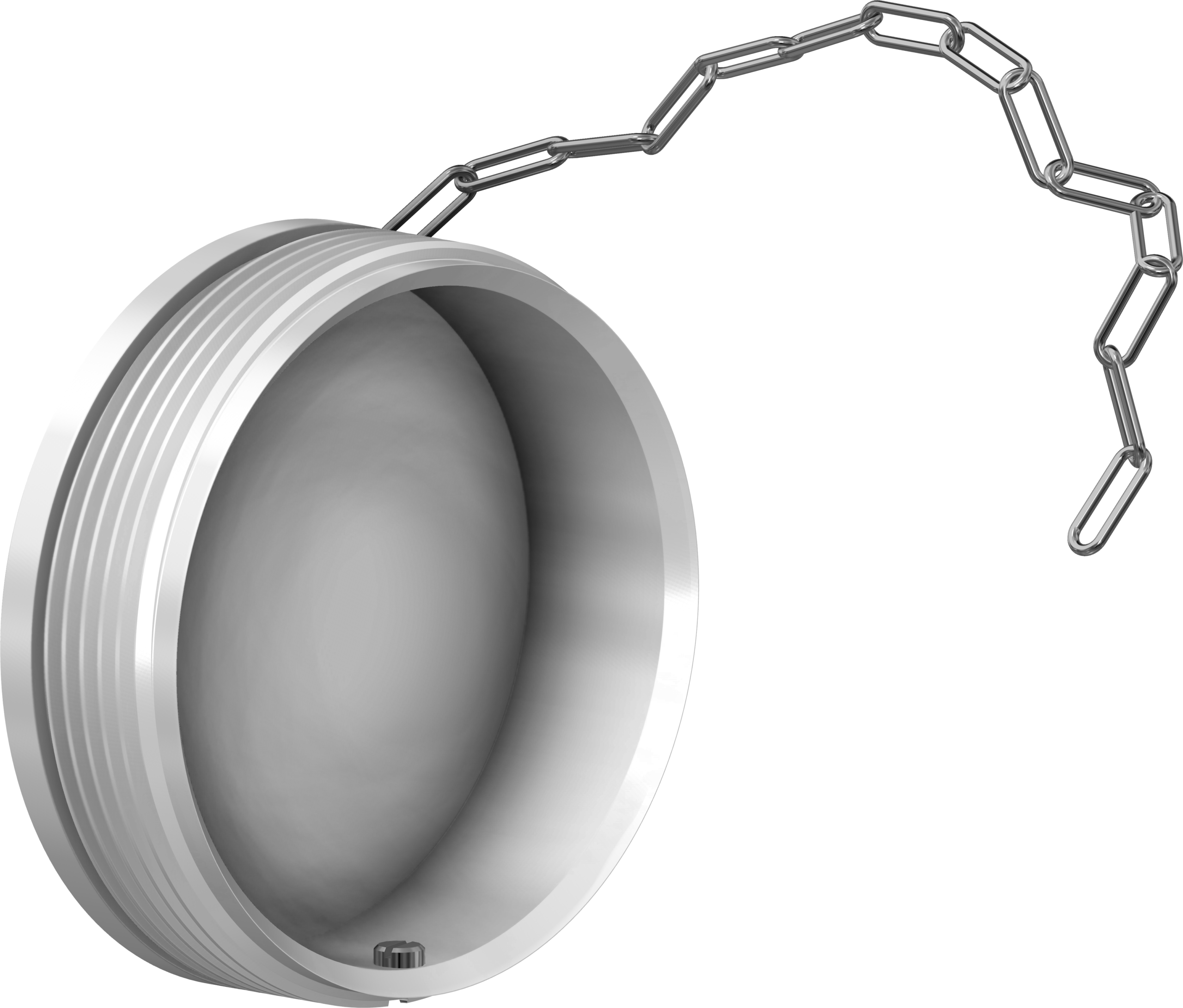

AS7G aluminium Plug or Appliance inlet cap to ensure IP67 of a disconnected connector.
HINGED HOOK
Wrench facilitating screwing when connecting the plug to the socket.

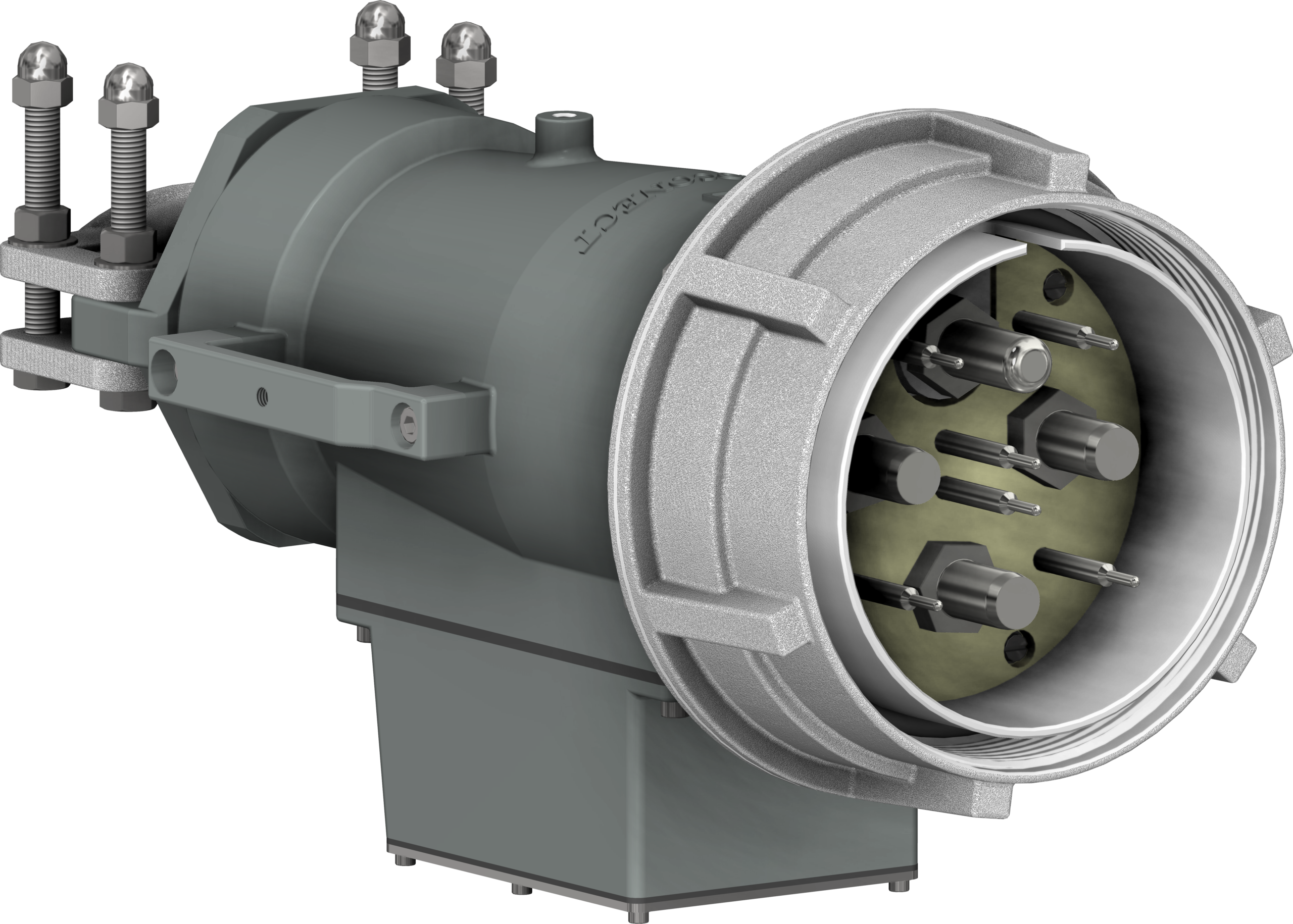

OPTICAL FIBER
DERIVATION BOX
The optical fiber derivation box is an optional casing added to the plug to derivate the optical fiber of the cable into a F.O. socket placed onto it.

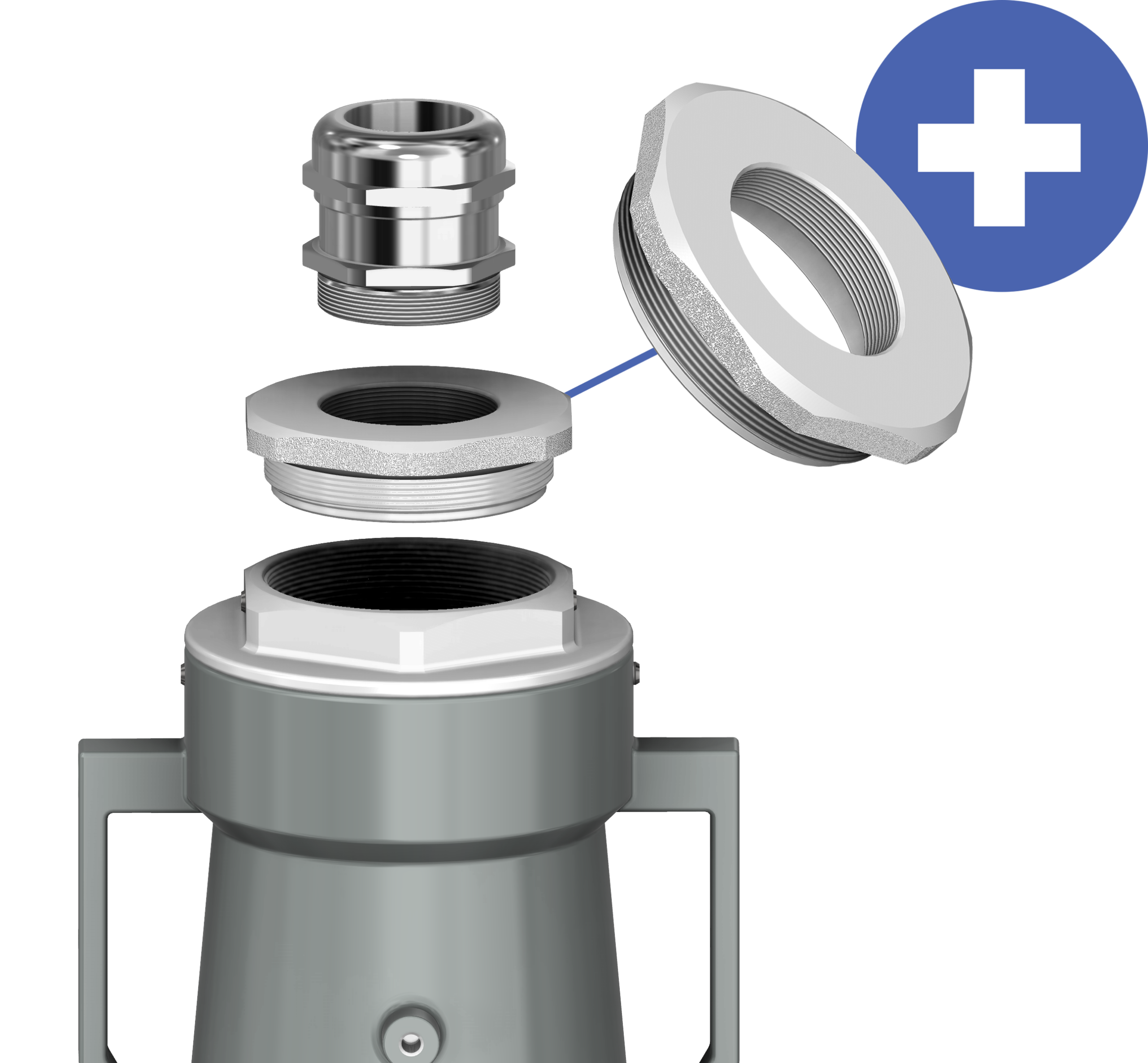

CABLE GLAND OR CONDUIT ADAPTOR
M63 adaptor for connecting a standard cable gland or a conduit adaptor (other sizes on request).

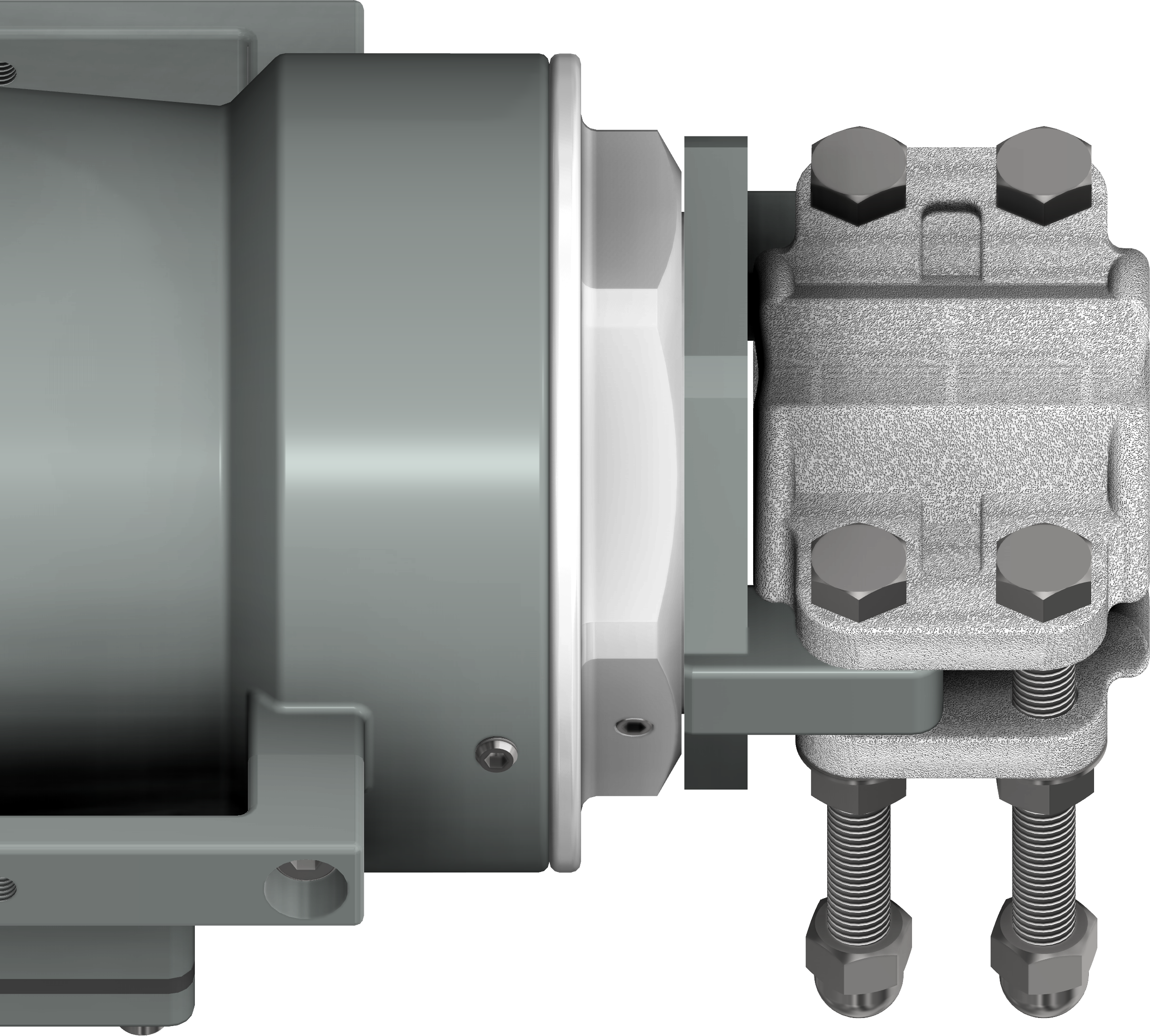

To be installed on reduced version only.
6 PILOTS OPTION
Stainless steel cradle optimizing the use and lifetime of 3PV or 3PX connectors and cables.
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.
Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
Connection boxes
Technical datas
3PV6 Datasheet
More technical informations about the 3PV6 solutions.
