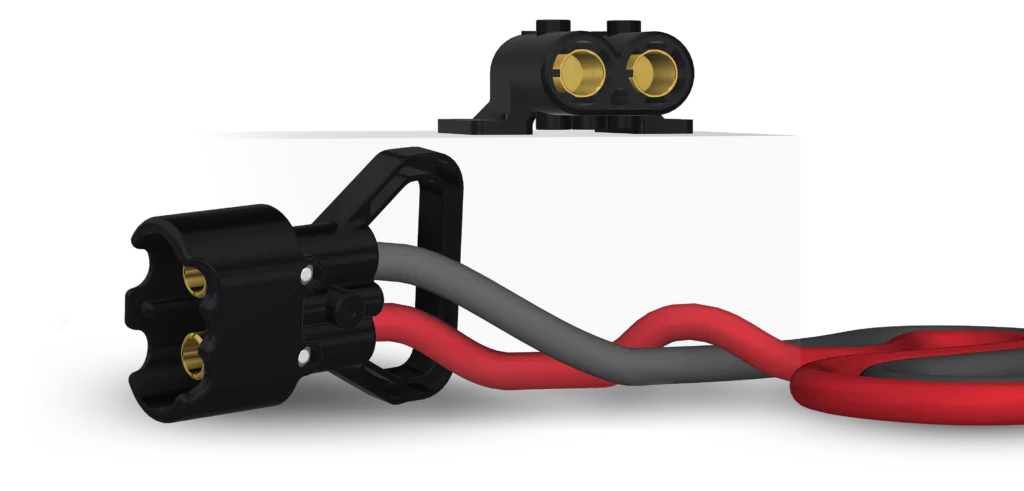

Prise P
Battery charging connector
- Amp. pilots : 20 A
- Contacts max. : 2P (+/-) (+ 1 pilot option)
- Cable section : 35 mm² (AWG 2) / 50 mm² (AWG 1/0)
- Cable diameter max. : 17 mm
- Section de Pilotes/Coding : 2,5 mm² (AWG 14)
- Termination : to crimp, to solder
- Casing : Thermoplastic
- Contacts : Copper alloy
- Visserie : Inox
- Temperature : -40° +125° C
Connecteurs

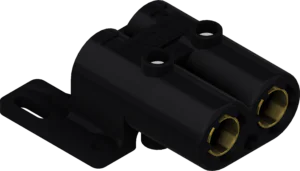

FEMALE CONNECTOR
Fixed connector to be installed on a structure (wall-mounted, electrical cabinet, vehicle, etc).
Available with 35 and 50 mm² (AWG 2 - AWG 1/0) contacts to crimp or 50 mm² (AWG 1/0) contacts to solder.
This connector needs the socket cap option to maintain IP54 rating.

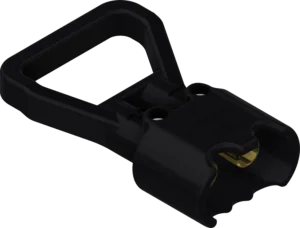

MALE CONNECTOR
Mobile connector to be cabled.
Available with 35 and 50 mm² (AWG 2 - AWG 1/0) contacts to crimp or 50 mm² (AWG 1/0) contacts to solder.

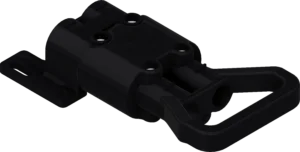

COUPLE CONNECTED
Connected female and male connectors. Once connected, the IP54 rating is maintained.
Vers les optionsSÉLECTIONNER VOTRE CONNECTEUR
Options
SÉLECTIONNER VOTRE OPTION

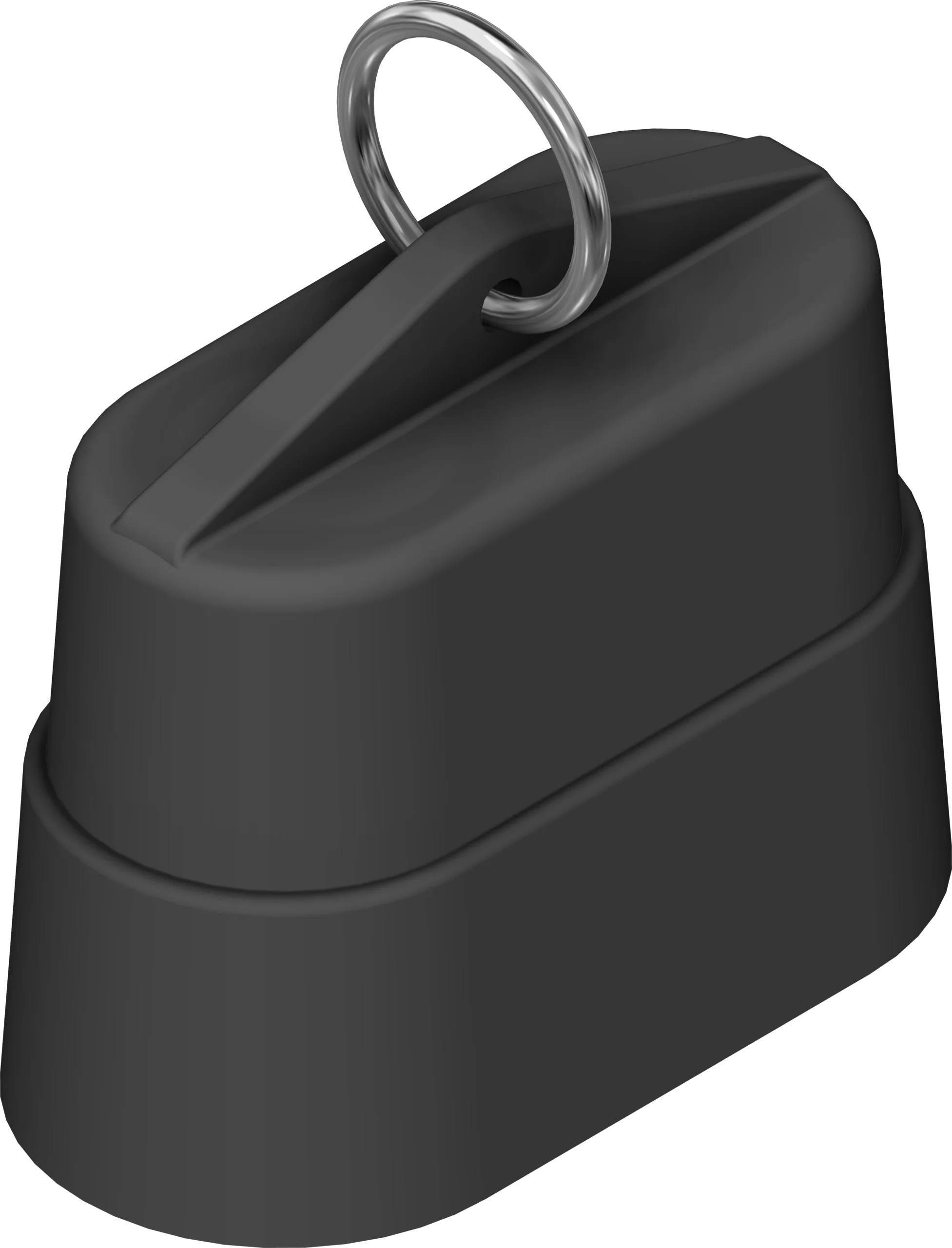

SOCKET CAP
TPS cap for the female connector to maintain connector's IP54 rating.

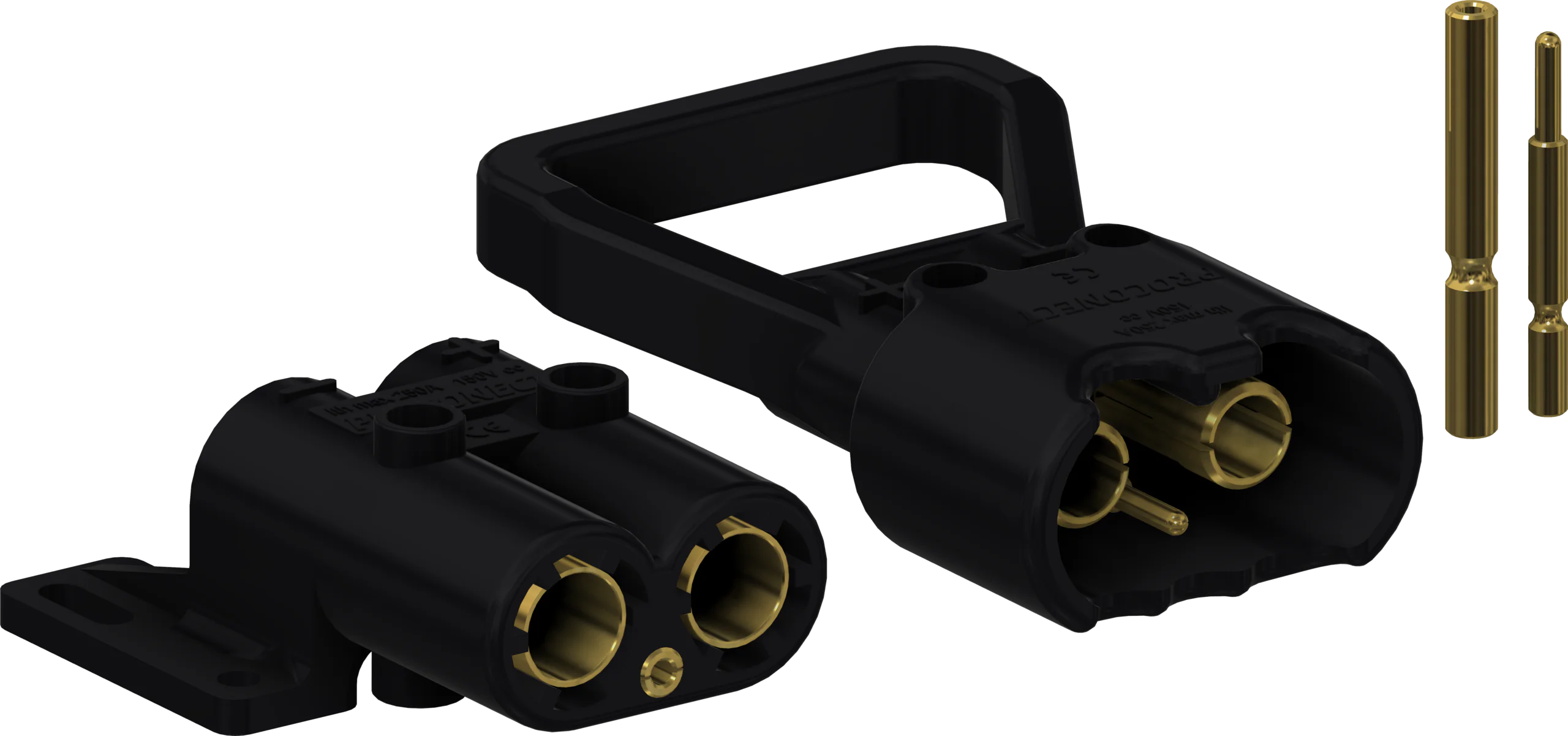

AUXILIARY PILOT
Male and female connectors can be fitted with 1 auxiliary 2,5 mm² (AWG 14) contact.

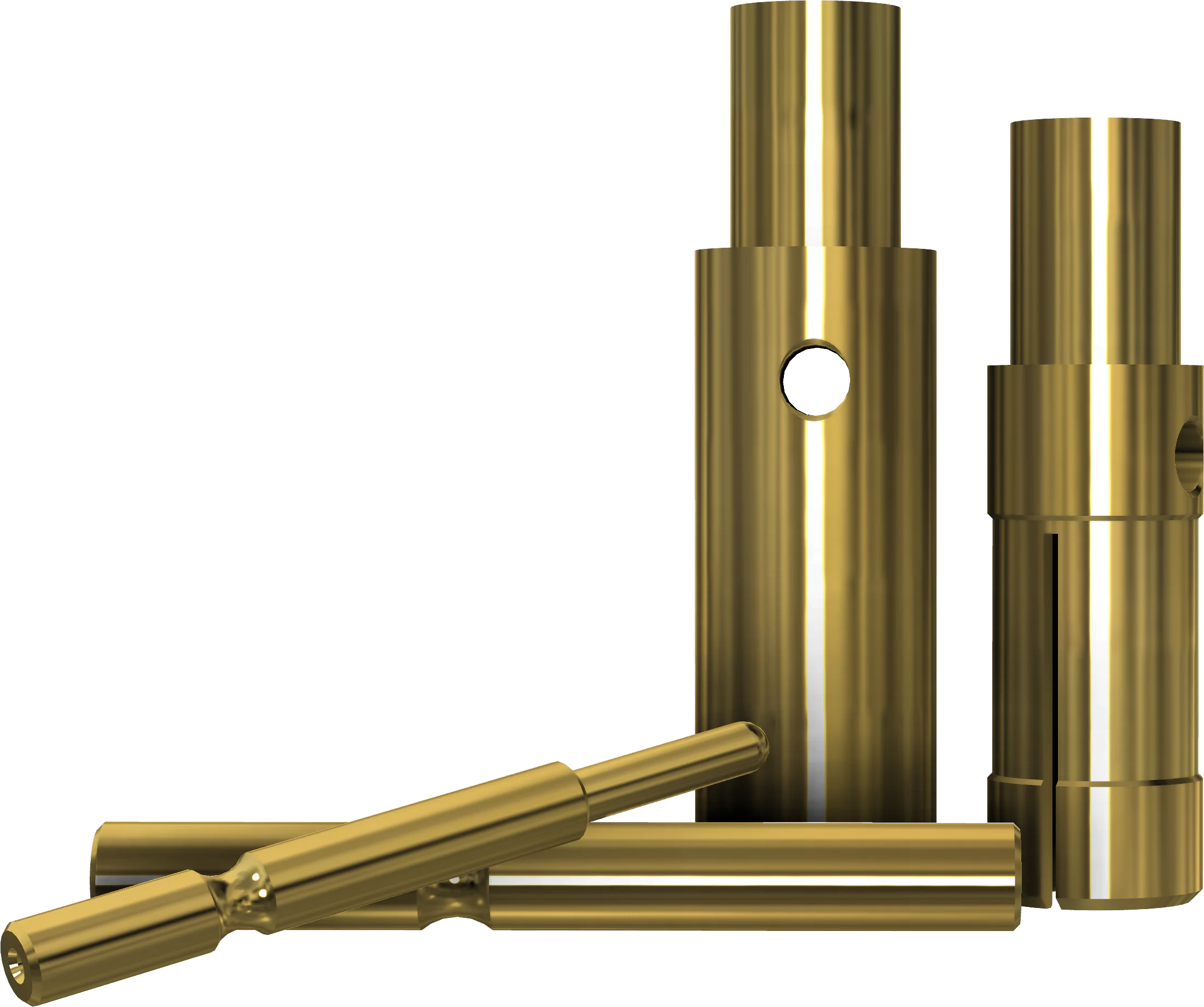

RETAIL CONTACTS
Contacts can be ordered individually to maximize the lifespan of the connectors.

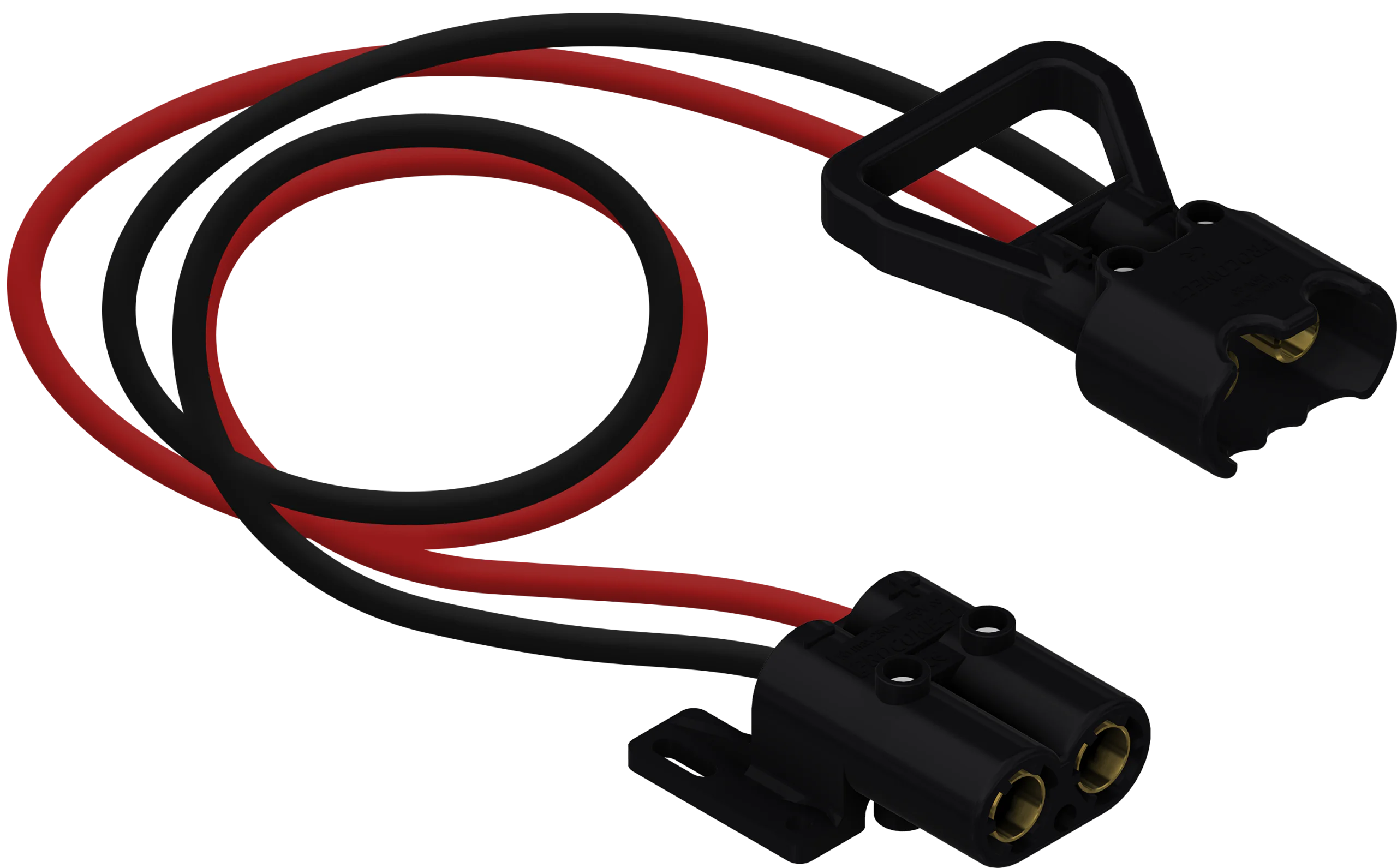

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
