Prise Y
ADR 2017

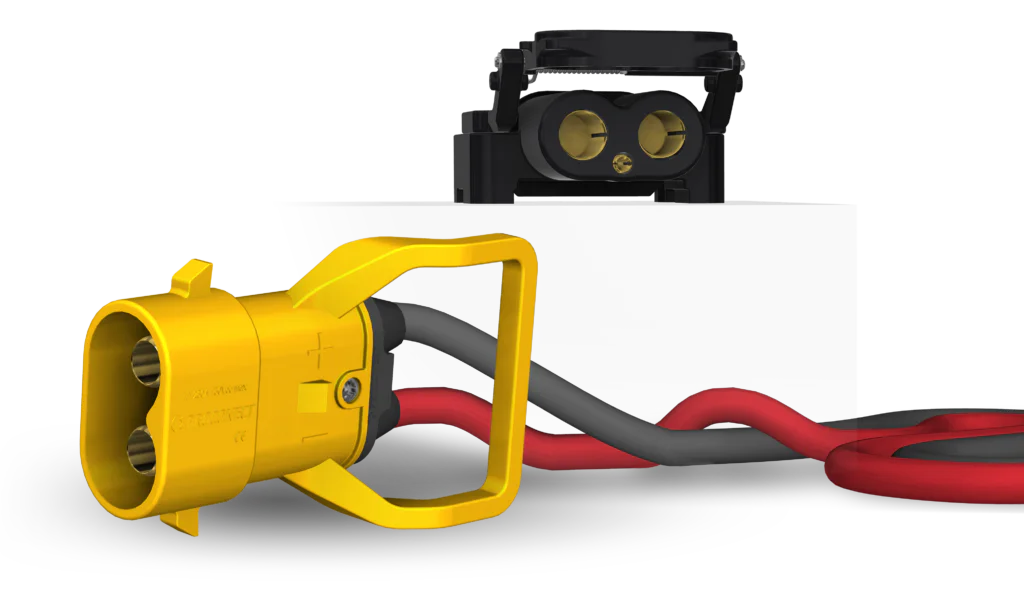

Battery charging connector
- Amp. pilots : 20 A
- Contacts max. : 2P (+/-) (+ 1 pilot option)
- Cable section : 35 mm² (AWG 2) / 50 mm² (AWG 1/0)
- Cable diameter max. : 17 mm
- Section de Pilotes/Coding : 2,5 mm² (AWG 14)
- Termination : to crimp, to solder
- Casing : Polyamid (acid-proof)
- Contacts : Copper alloy
- Visserie : Inox
- Temperature : -40° +125° C
- Ind. protection : IP54 (with add-ons)
- Standard : ADR 2017
Connecteurs

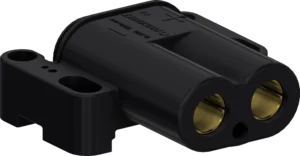

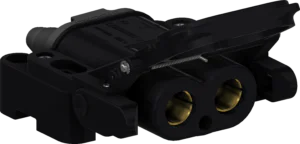

FEMALE CONNECTOR
Fixed connector to be installed on a structure (wall-mounted, electrical cabinet, vehicle, etc).
Available with 35 and 50 mm² (AWG 2 - AWG 1/0) contacts to crimp.
This connector needs the socket lid and seal teats to maintain IP54.

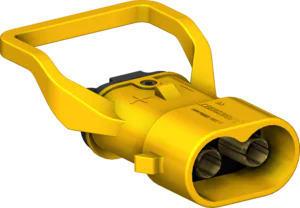

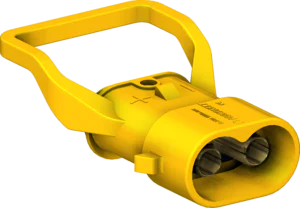

MALE CONNECTOR
Mobile connector to be cabled.
Available with 35 and 50 mm² (AWG 2 - AWG 1/0) contacts to crimp.
This connector needs seal teats and front seal to maintain IP54.

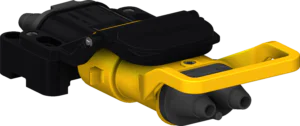

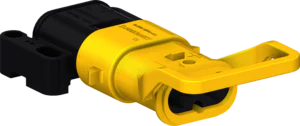

COUPLE CONNECTED
Connected female and male connectors. Once connected and with all accessories, the IP54 rating is maintained.
Vers les optionsSÉLECTIONNER VOTRE CONNECTEUR
Options
SÉLECTIONNER VOTRE OPTION

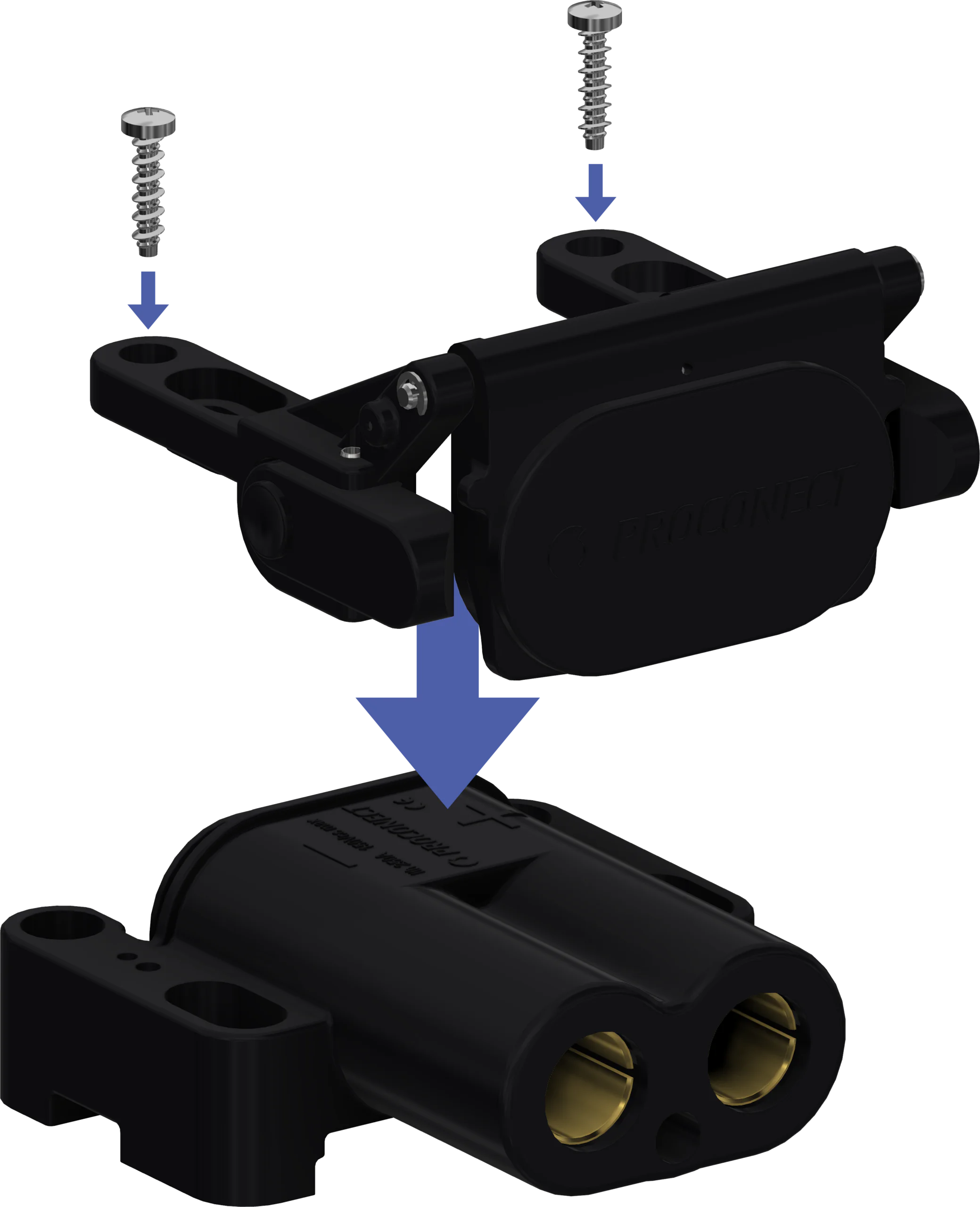

SOCKET LID
Lift-off polyamid lid to be installed on socket to maintain IP54 rating of the connector.

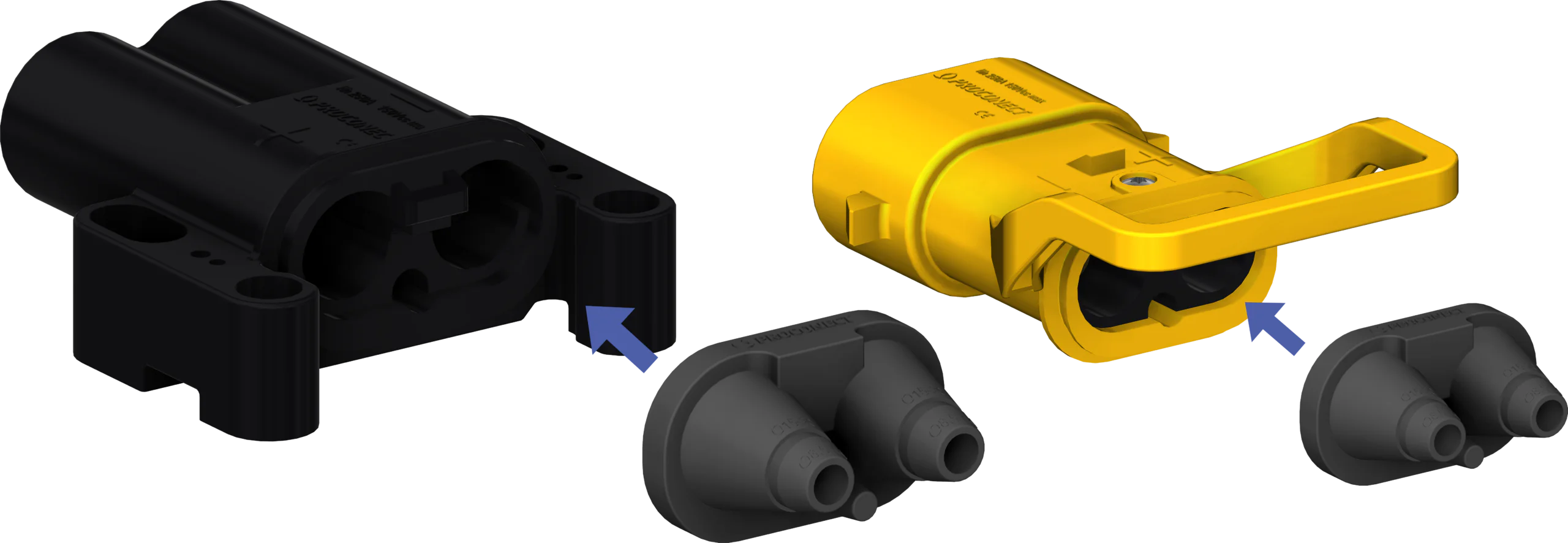

SEALING TEATS
Cable polyurethane teats placed at the back of the female and/or male connector to maintain IP54 rating.

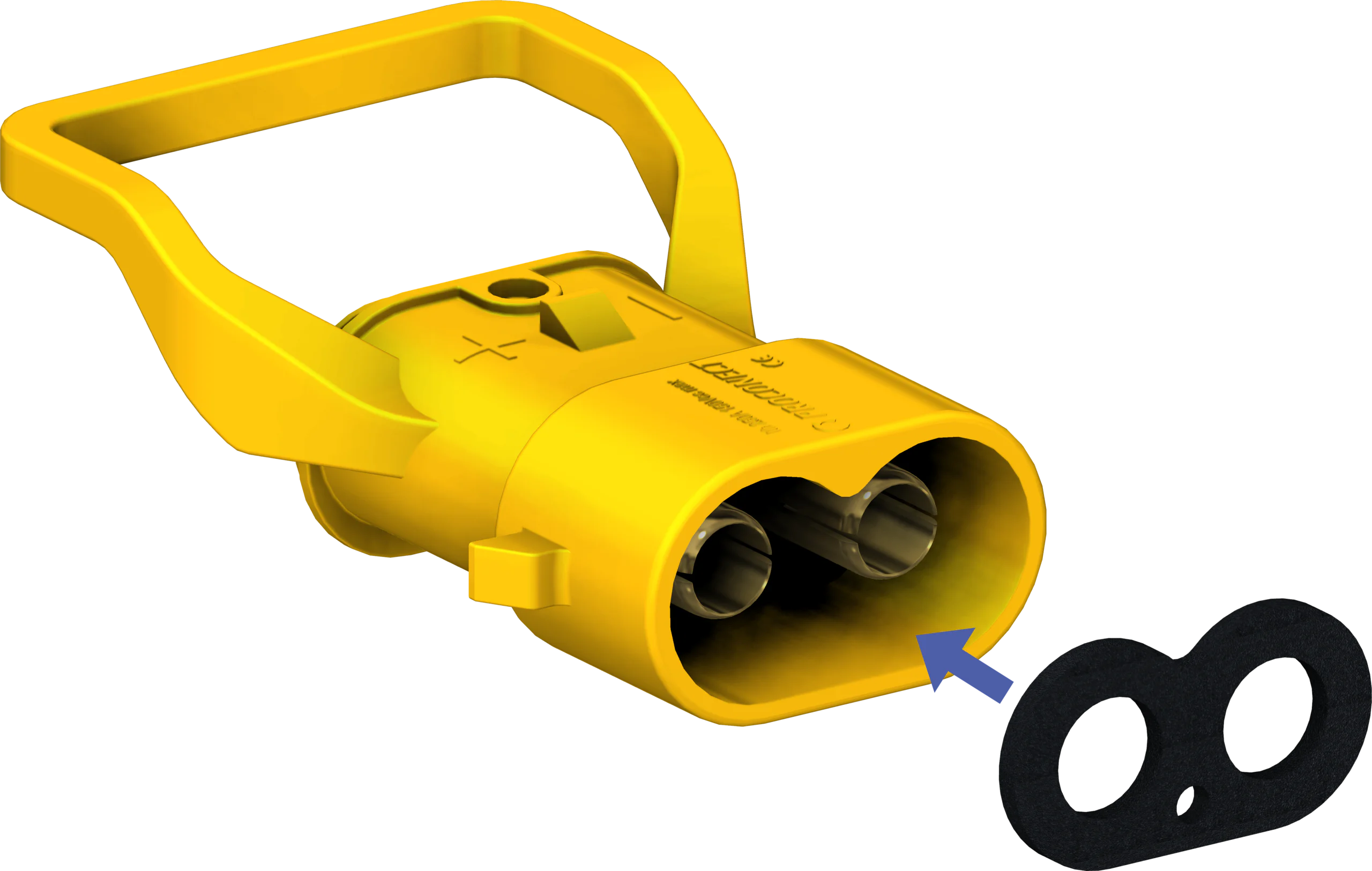

FRONT PLUG SEAL
Neoprene foam front male connector seal to maintain IP54 rating when the plug is connected.

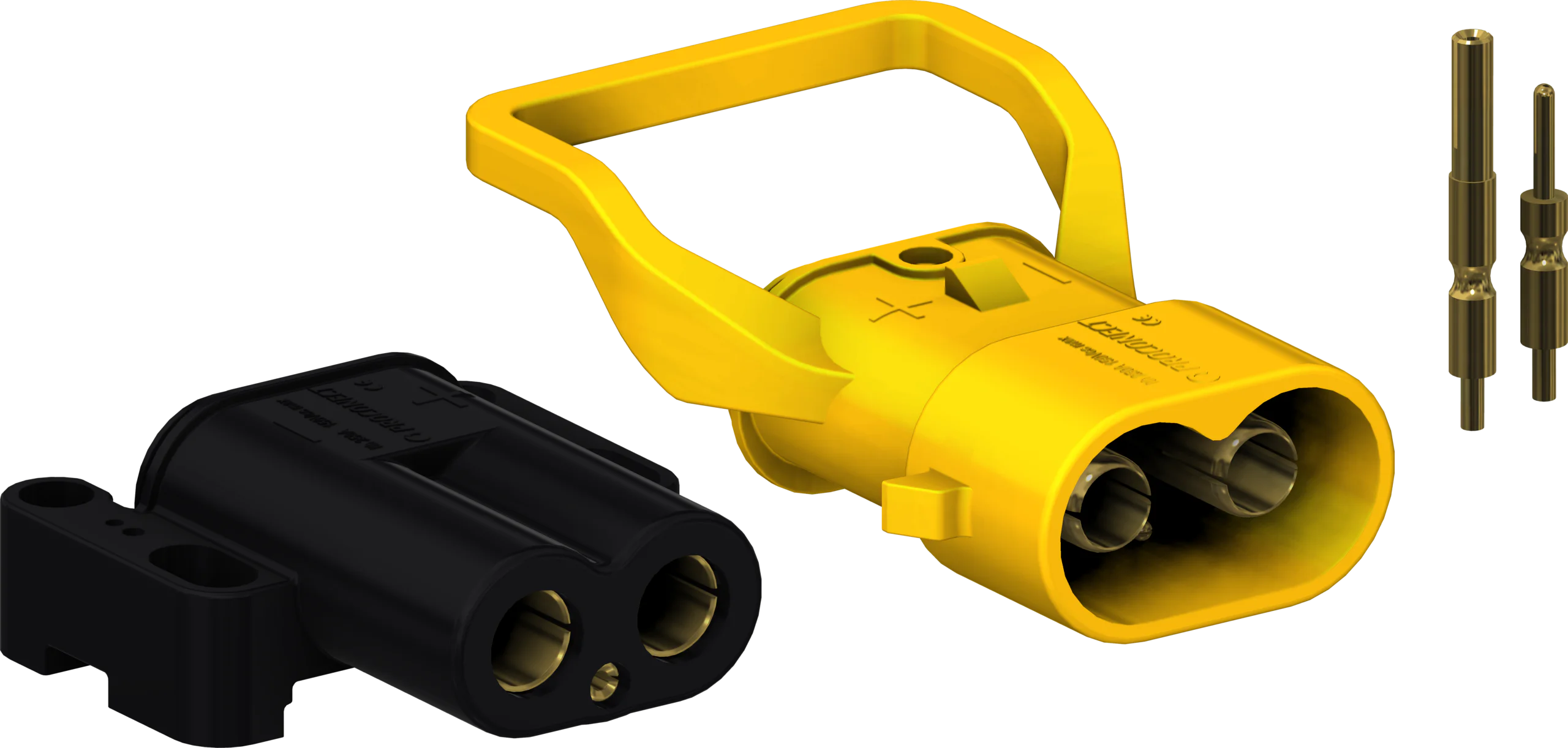

AUXILIARY PILOT
Male and female connectors can be fitted with 1 auxiliary 2,5 mm² (AWG 14) contact.

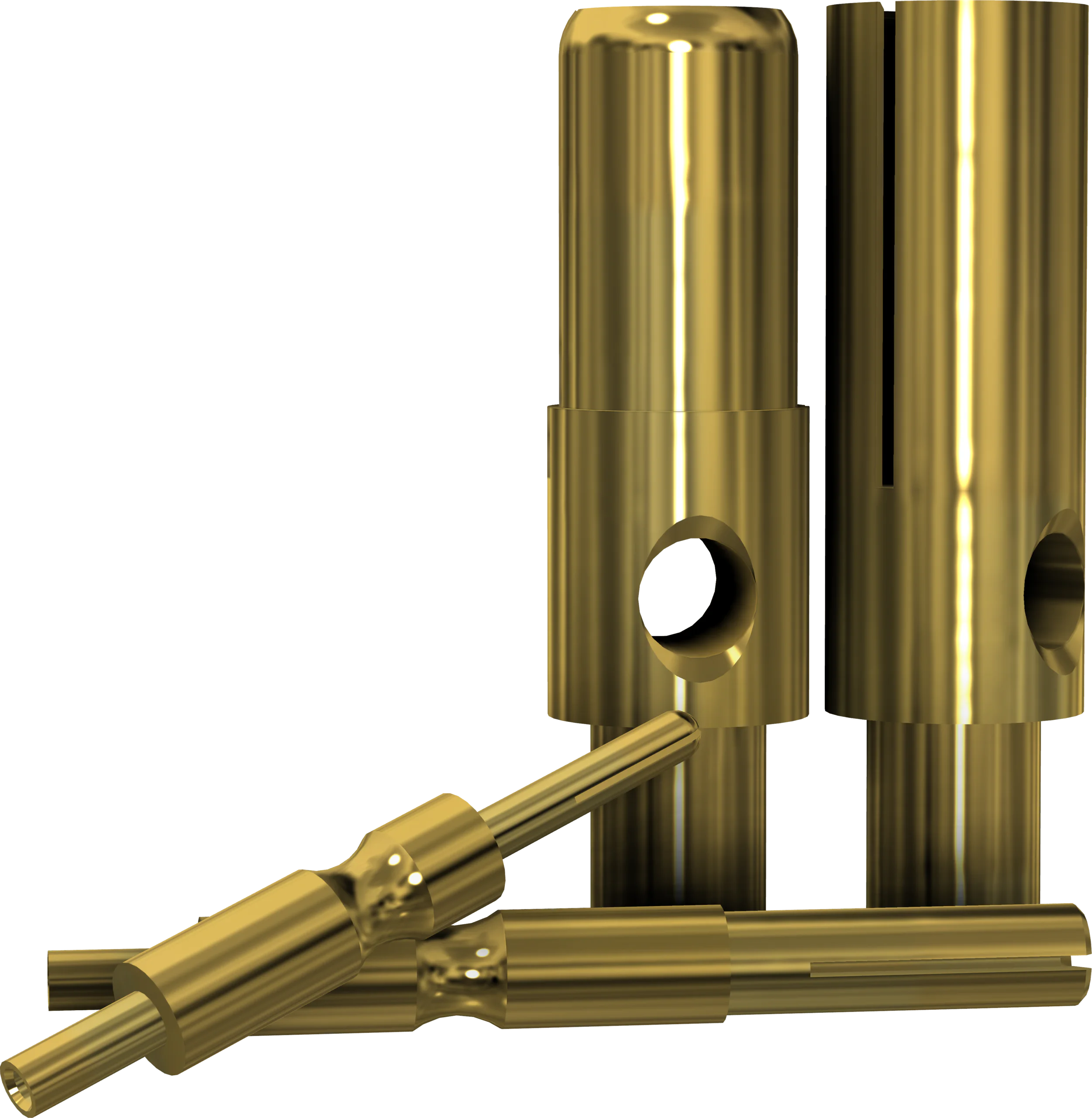

RETAIL CONTACTS
Contacts can be ordered individually to maximize the lifespan of the connectors.

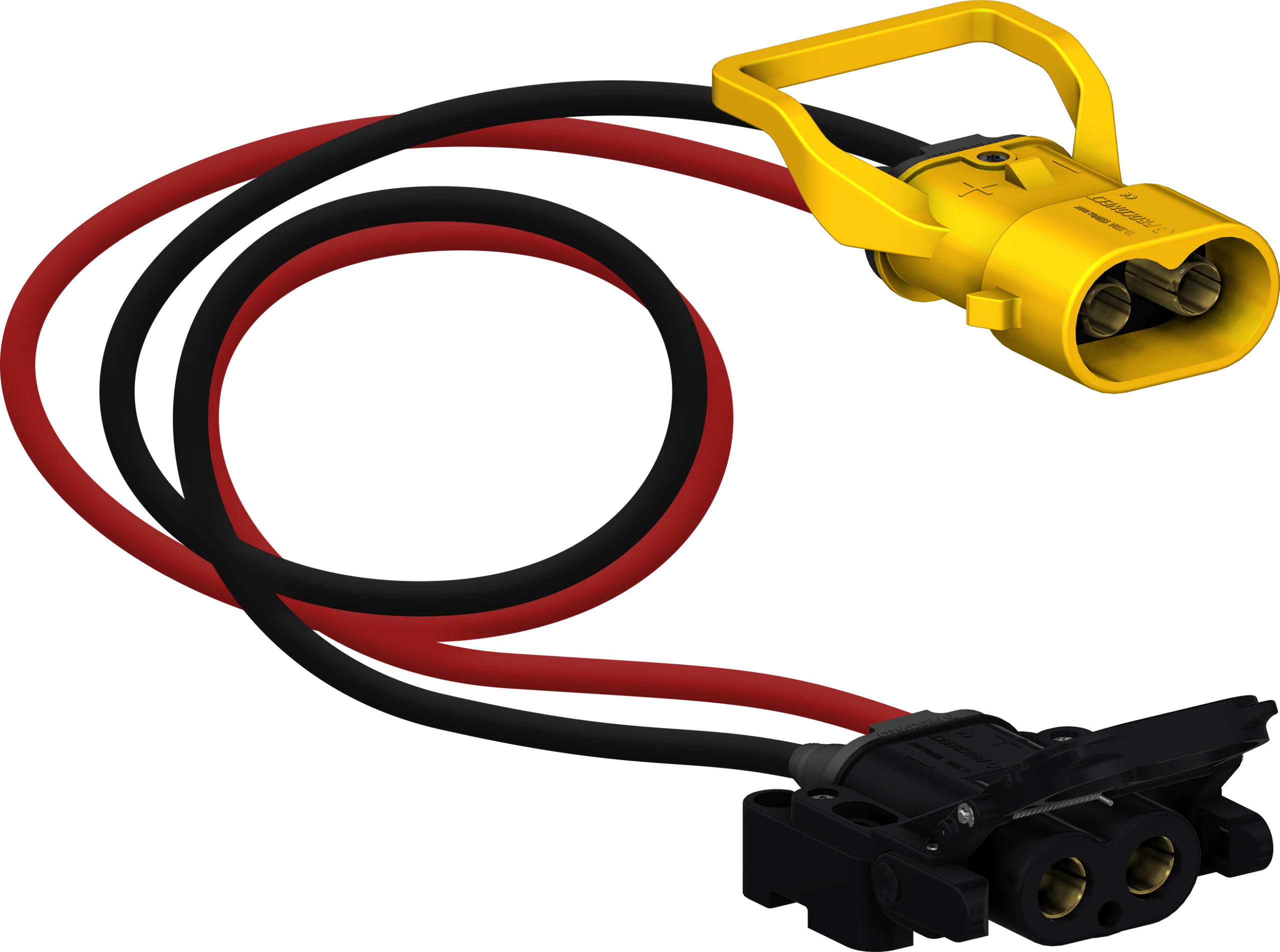

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
