3PX3
63A/125A
400V AC
EN 50546

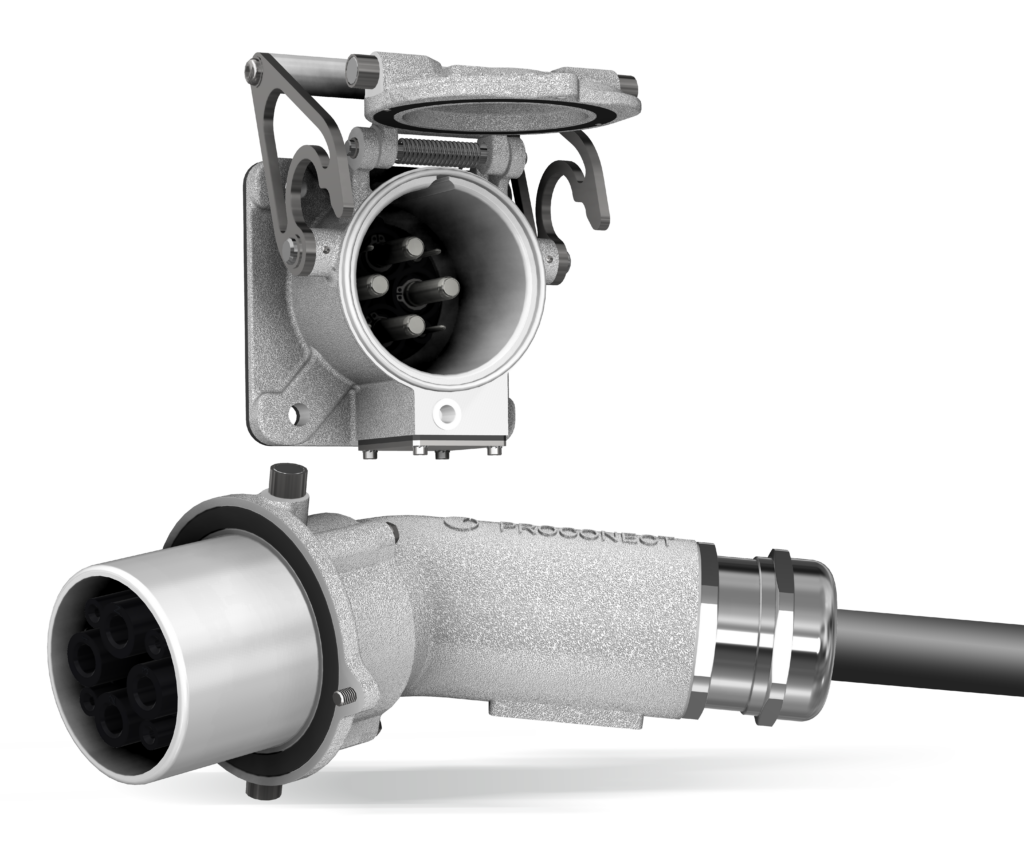

Connector for stinger application
Lever arm metalic connectors designed especially to meet all the requirement of railway vehicles power supply at technicenter or platform and meeting the two ratings of the EN 50546, 63A and 125A.
- Short circuit : 6 kA r.m.s/1s
- Amp. pilots : 5 A
- Contacts max. : 3P+N+4p
- Cable section max. : 35 mm² (AWG 2)
- Cable diameter : max. 42 mm
- Pilot/Coding section : 2,5 mm² (AWG 14)
- Termination : to crimp
- Dielectric withstand : 4 kV AC 1 min.
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : PBT (complying EN 45545-2)
- Fastenings : Stainless steel
- Temperature : -40° +120° C
- Salt spray : 96H
- Ind. protection : IP66 - IK10
Connectors
Socket

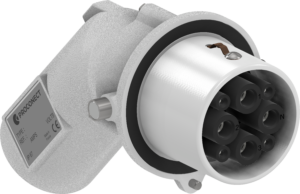

30° angled plug

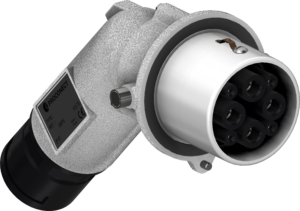

Plug with conduit adaptor

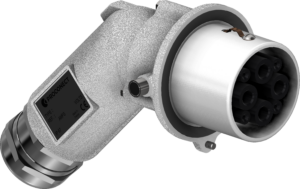

Plug with cable gland
3PX3 variation
You can find other variations of 3PX3, suiting various applications and with some structural or standard-fitting modifications.
Options
Pre-wired connectors

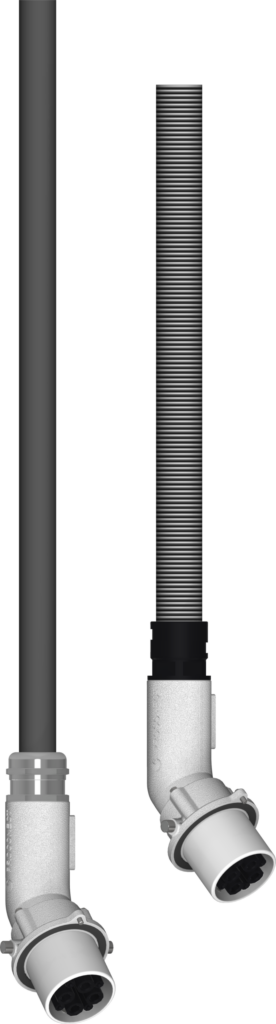

Connectors can be supplied pre-wired depending on cable availability or whether the cable is supplied in advance.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
Connection boxes

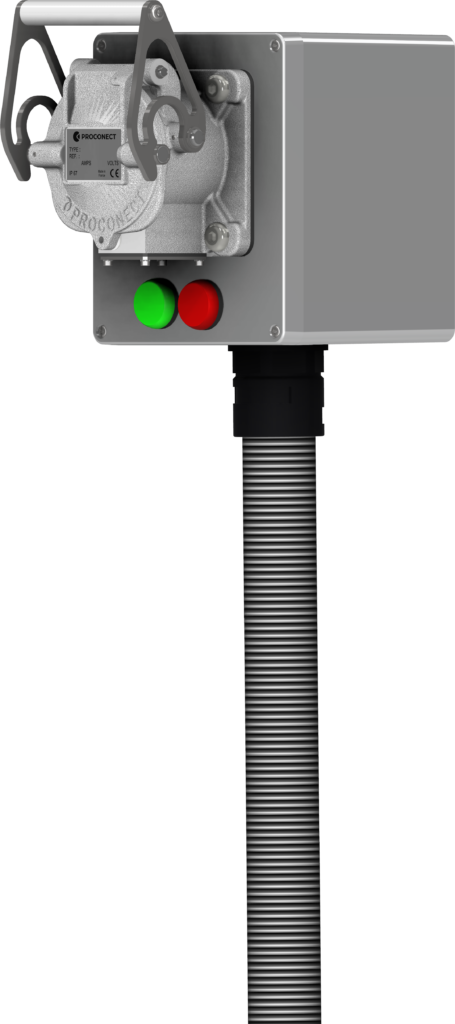

Our design office can conduct a comprehensive feasability study for your request, ensuring compliance with electrical standards and seamless integration into your structure. With full customization capabilities, our cabinets or wall-mounted boxes adapt to any of your specifications and your environmental constraints.
Every project undergoes rigorous validation before production, guaranteeing performance, durability and aherence to standards.
Every project undergoes rigorous validation before production, guaranteeing performance, durability and aherence to standards.
Plug cap
AS7G aluminium plug cap to ensure IP66 of a disconnected connector.
Microswitch
Sockets can be provided with a microswitch, activated by the socket lid or by the insertion of the plug.

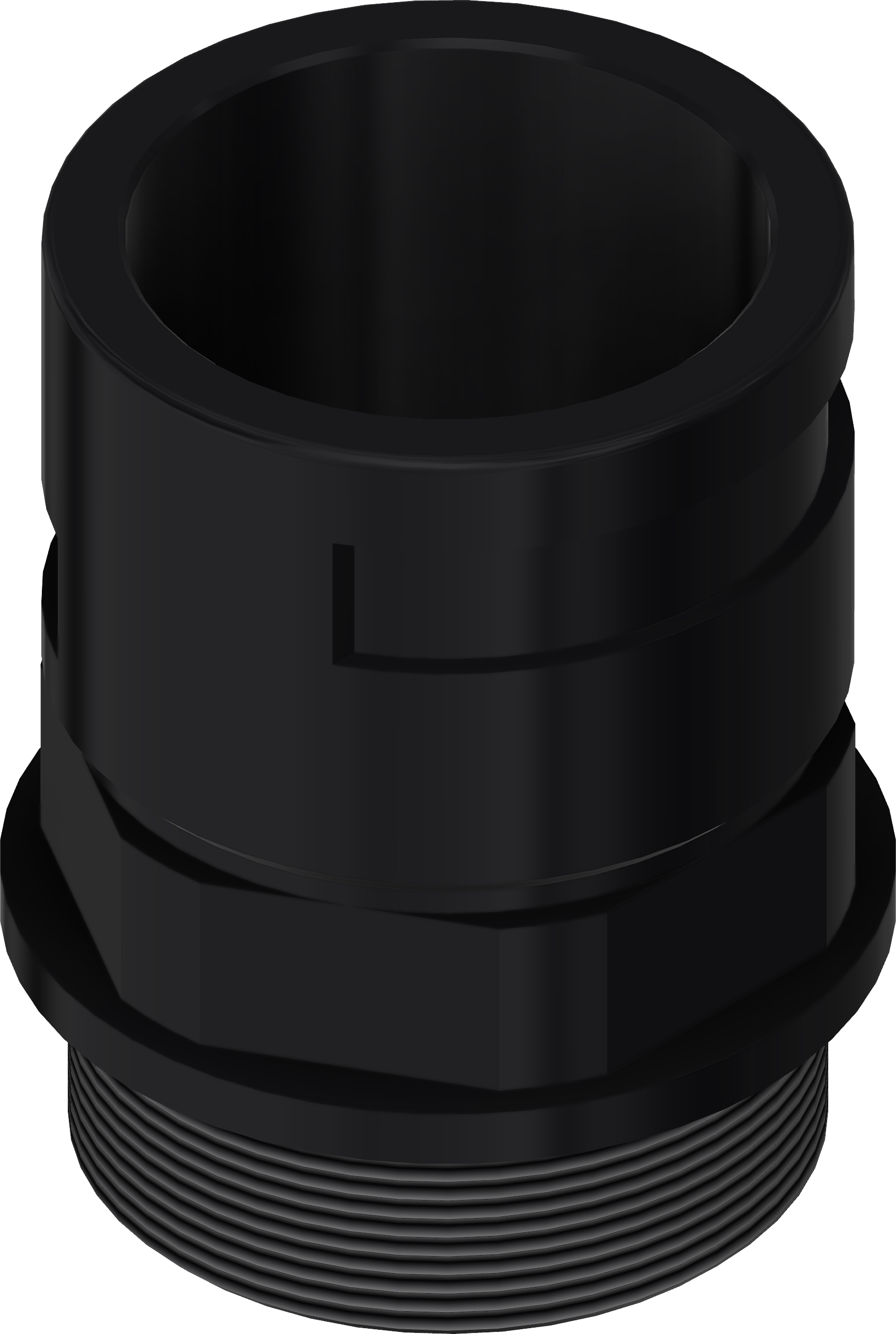

Conduit adaptor
Conduit adaptor added to the plug or available individually.

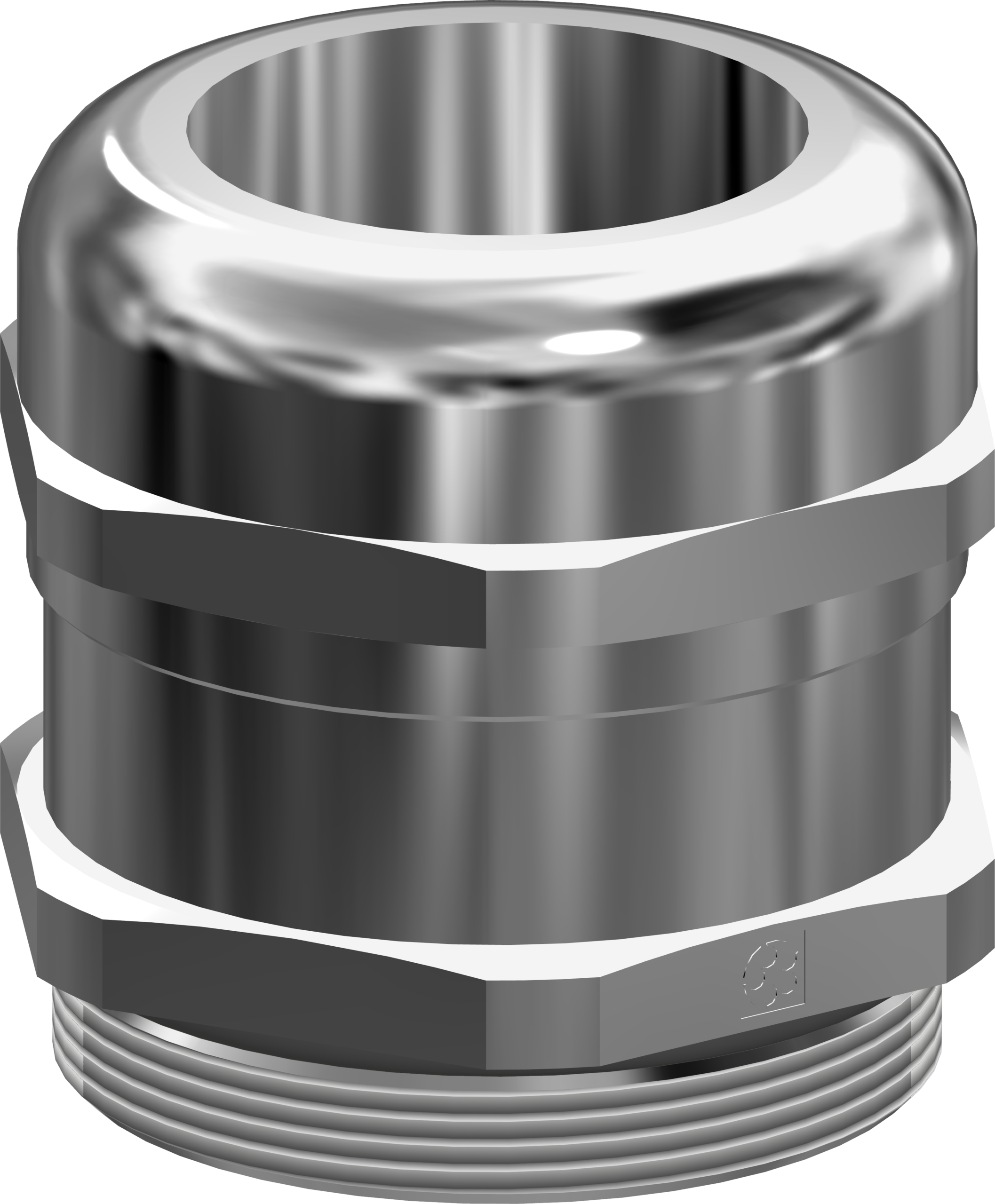

Cable gland
Cable gland added to the plug or available individually.
Dummy socket

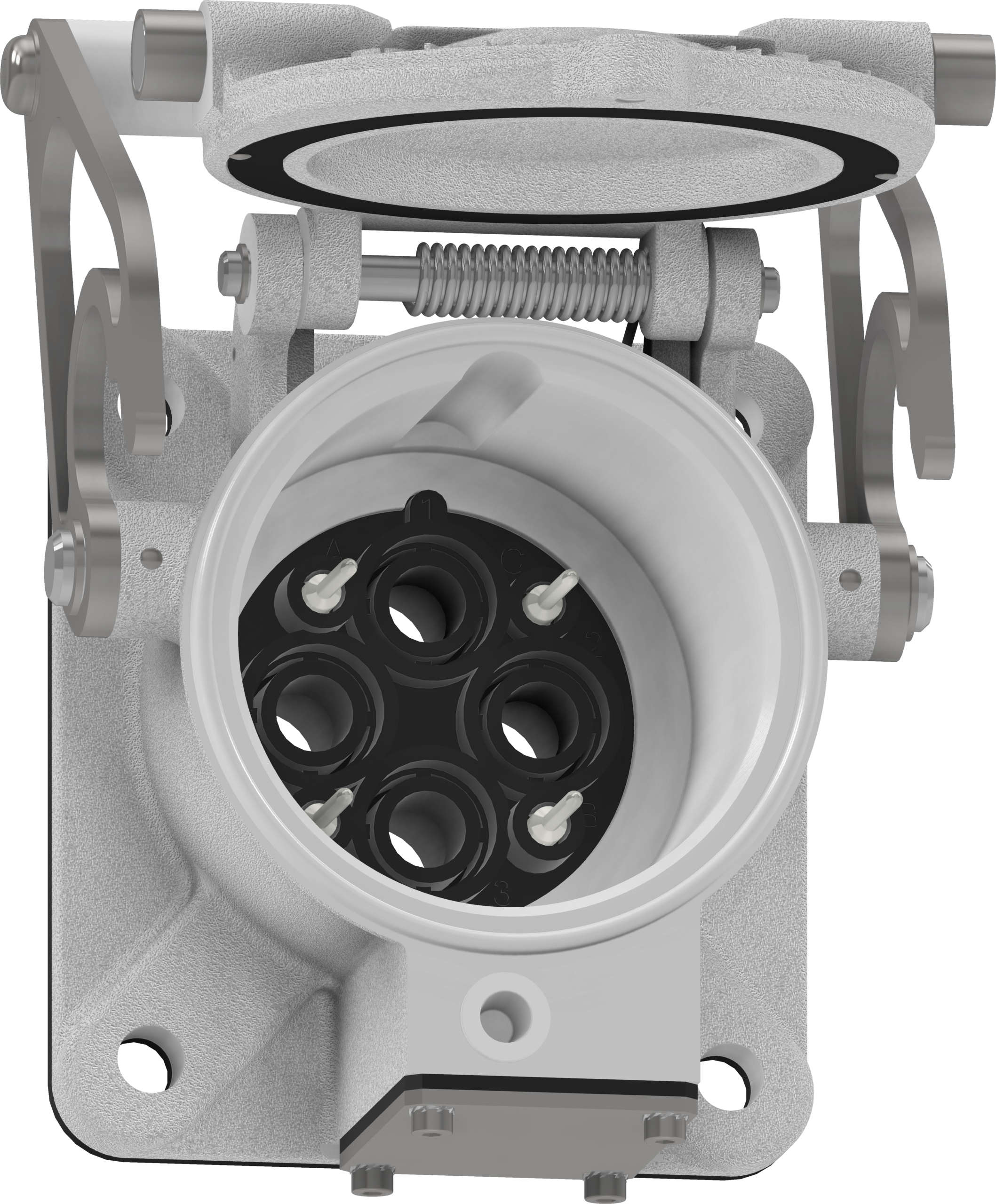

Socket with empty insulator fitted only with earth for storing the plug away from the connections.
Technical datas
3PX3 Datasheet
More technical informations about the 3PV4 solutions.
3PX3 User manual
More informations about utilisation, maintenance & security.
