A400
300A
115/220V
ISO 461-1
ISO 461-2
400Hz connector for aircraft Ground Power Supply

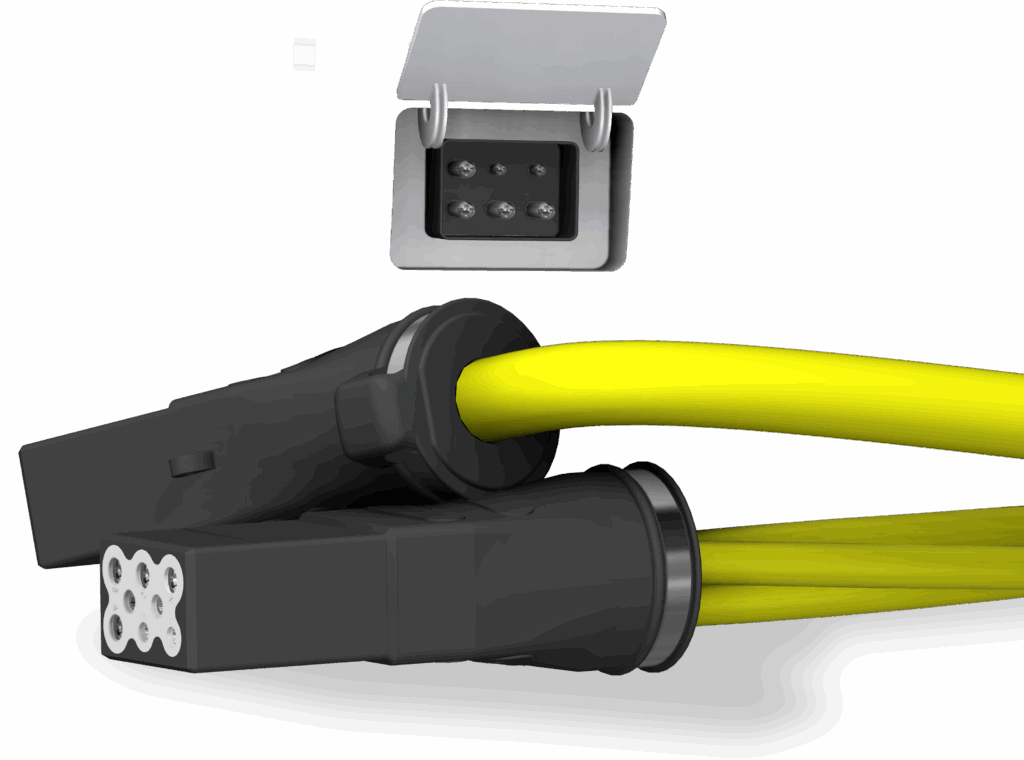

Connector dedicated to Ground Support Equipment (GSE) for aircraft power supply on ground (GPU, self-propelled GPU, power coils, in-ground pits, etc).
- Short circuit : 700 A r.m.s/1s
- Amp. pilots : 35 A

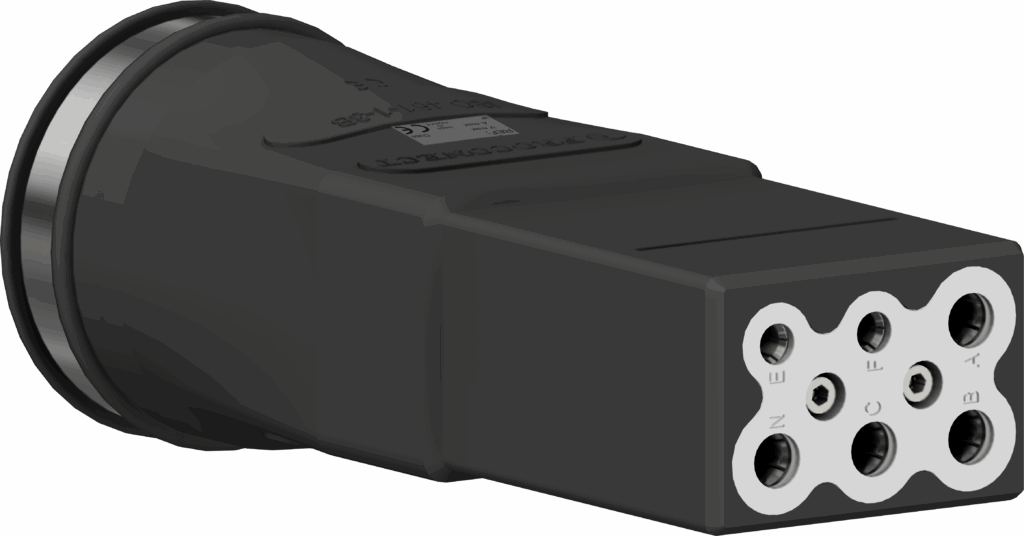

- Contacts max. : 3P+N+2p
- Cable section max. : 70 mm² (AWG 2/0)
- Cable diameter : min. 18,5 mm (Un.) / max. 44,5 mm (Comp.)
- Pilot section : 4 mm² (AWG 12)
- Termination : to crimp
- Dielectric withstand : 2 kV AC 1 min.
- Insulation resistance : >100MΩ/500V
- Casing : TPU
- Contacts : Silver plated copper
- Insert : Thermoplastic
- Fastenings : Stainless steel
- Temperature : -40° +80° C
- Shock test : ISO 461-1 (5.3.8)
- Salt spray : ISO 7137
Connector
A complete A400 connector includes both the plug (A400XX-XX) and a cable seal (A400GX-X).
Plug
configurator
(select all options)

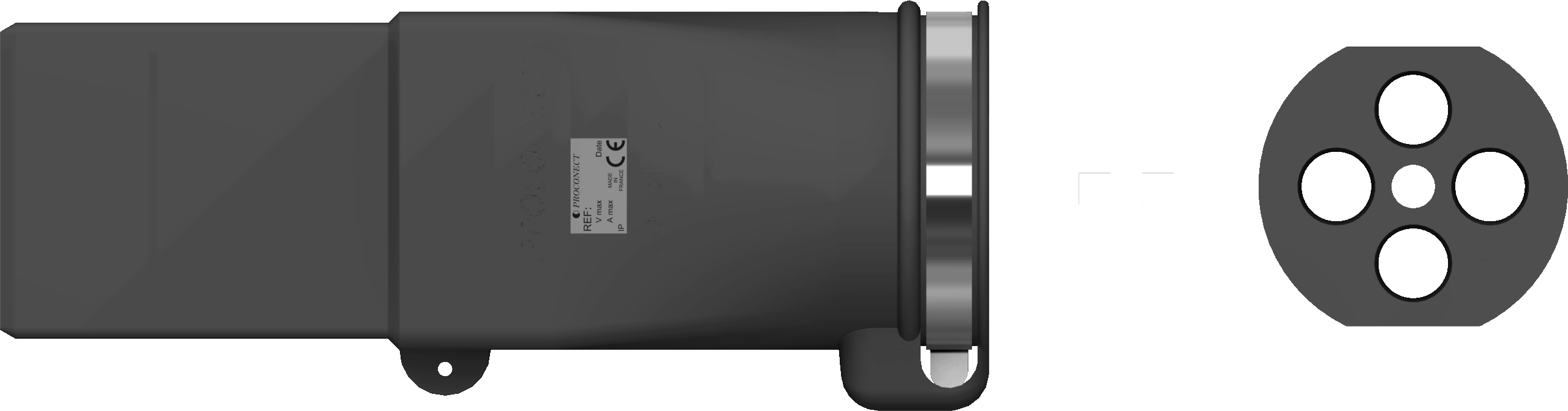

Seal
configurator
(select all options)
Options

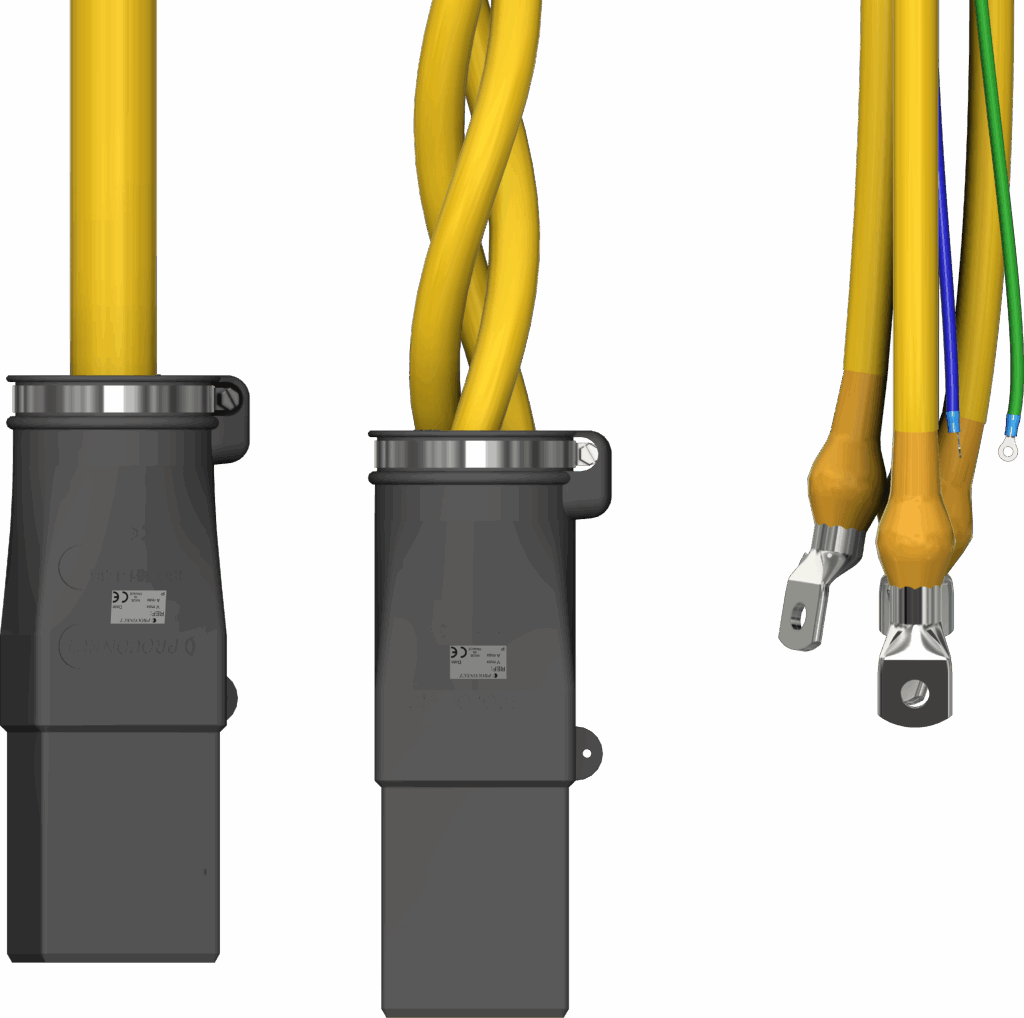

Pre-wired connectors
Connectors can be supplied pre-wired depending on cable availability or whether the cable is supplied in advance.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.
This makes installation and implementation of the connector easier.
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.

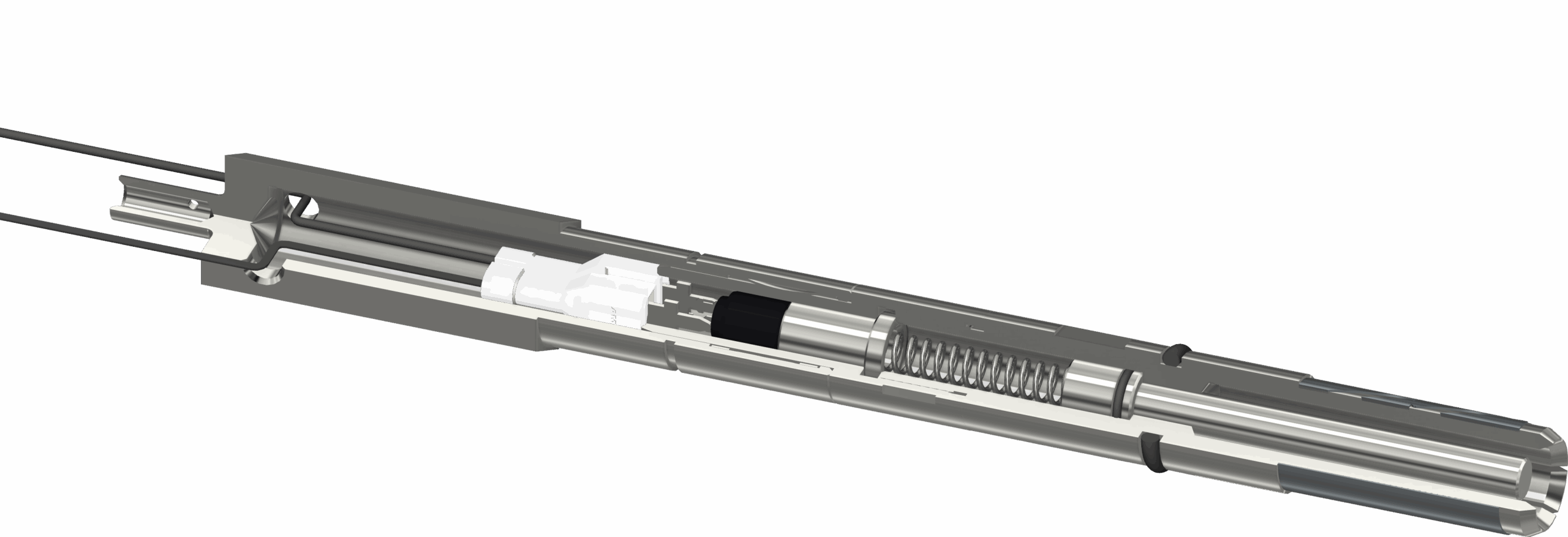

Microswitch
Pilot contact replacing one of the pilot in order to give the information of the plug connection in addition to the pilot ability.

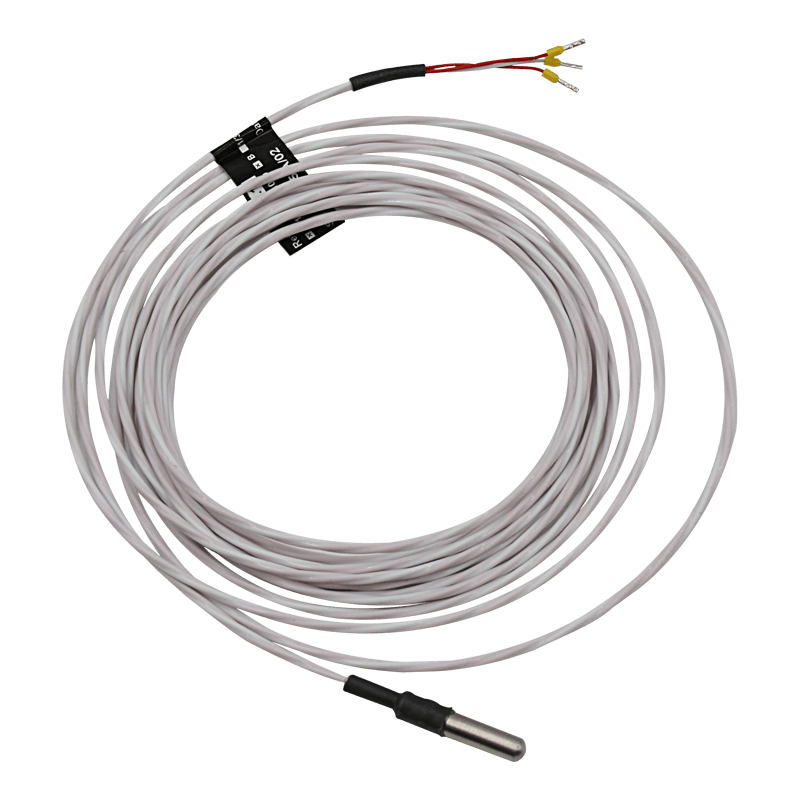

Temperature sensor
PT100 used fixed on phase contact to warn from connector's heating.

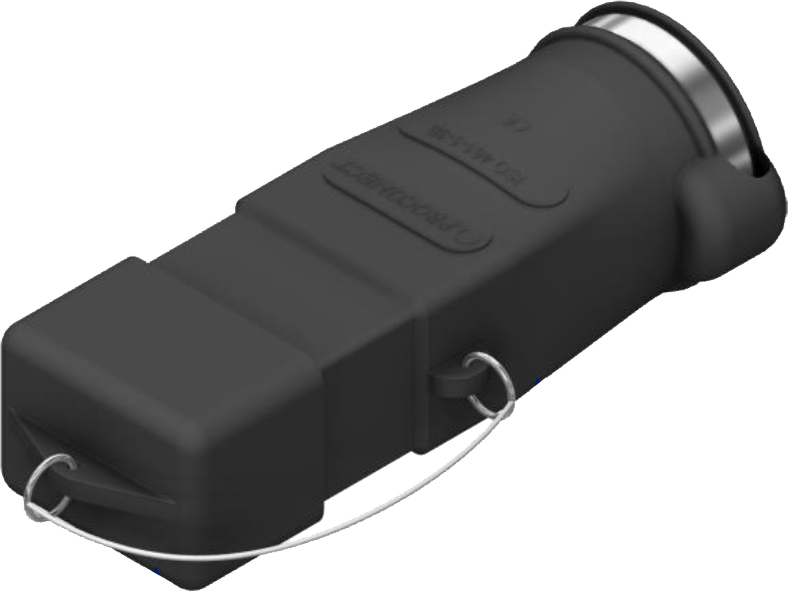

Plug cap
Plug cap can be available on request to enhance the protection of the plug.
Technical datas
