3PX5
IEC 60309-1* IEC 60529 IEC 50102 * (when applicable)
Cam push/pull metallic connector for Industry
- Amp. max. : 500A
- Voltage max. : 1,1kV
- Short circuit : 10 kA r.m.s/1s
- Amp. pilots : 30 A (6 mm²)
- Contacts max. : 3P+N+E+10p
- Cable section max. : (3P+N+E) 185 mm² (300 MCM) / (3P+E) 240 mm² (500 MCM)
- Cable diameter : min. 25 mm / max. 80 mm
- Pilot section : 2,5 mm² (2p) (AWG 14) / 1,5-2,5-6 mm² (10p) (AWG 16/14/10)
- Termination : to crimp, to solder or screw (screw terminals 16-35mm² or 50-70mm²)
- Dielectric withstand : 3 kV AC 1 min.
- Casing : AS7G (Corrosion resistant aluminium alloy)
- Contacts : Silver plated copper
- Insert : PPO
- Fastenings : Stainless steel
- Temperature : -30° +60° C
- Ind. protection : IP67 - IK10

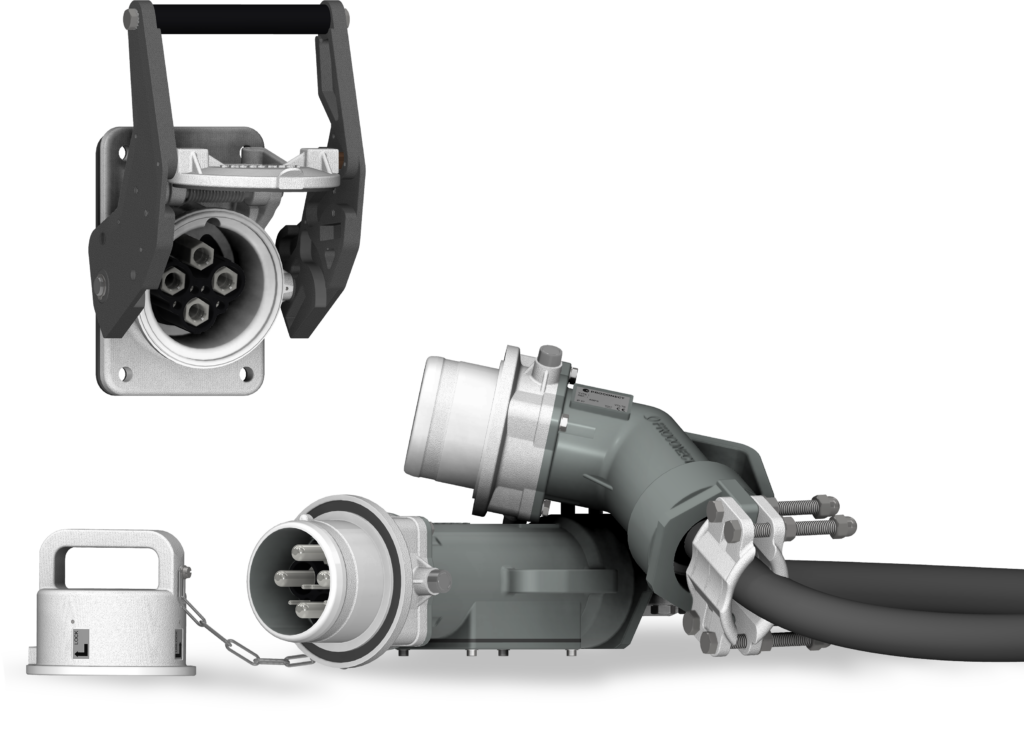

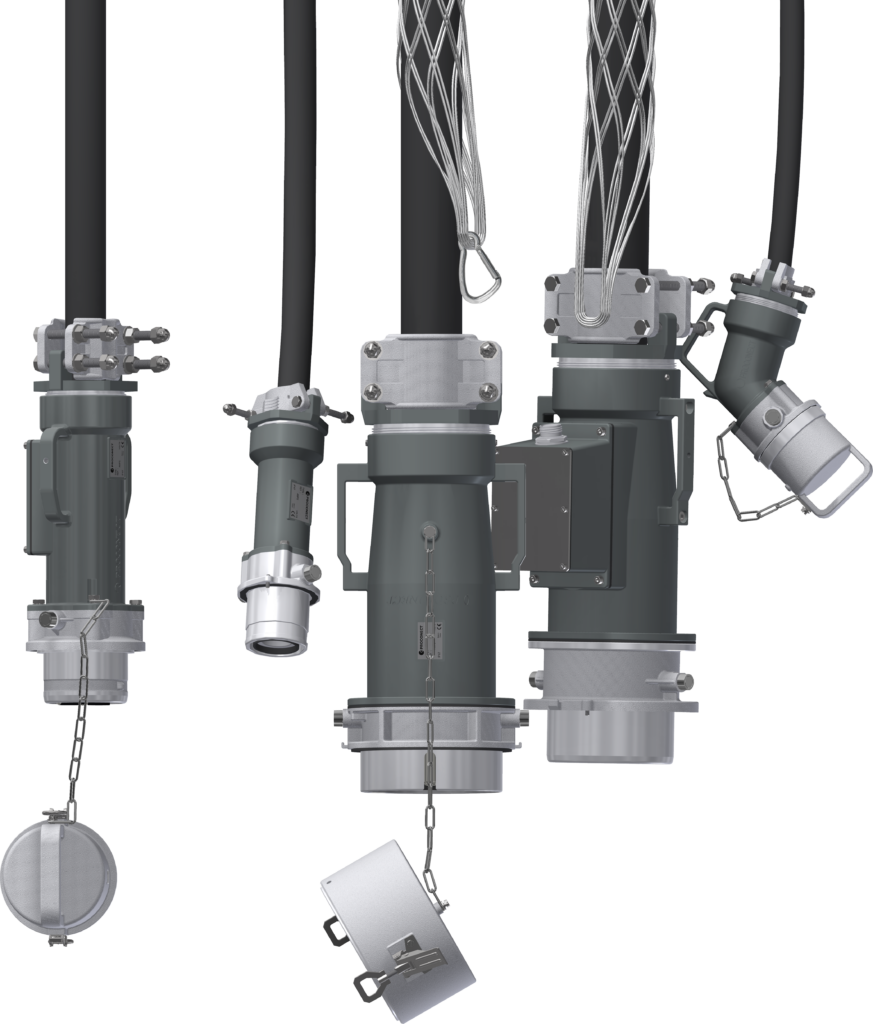

Connectors

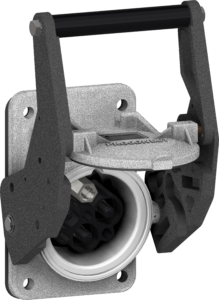

SOCKET
Active part to be placed wall-mounted or on an electrical cabinet. Cam push/pull system to maintain IP67 when closed or help and lock the connection of a plug.
-
Red version
(6H mechanical coding) -
Blue version
(12H mechanical coding)

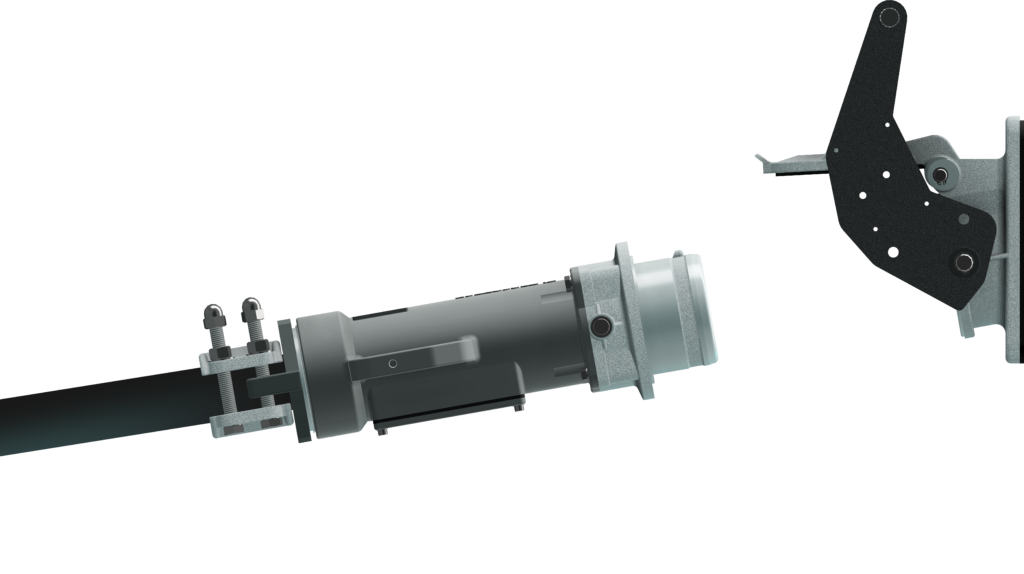

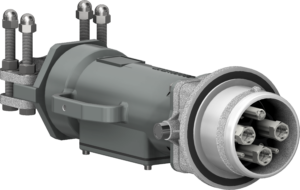

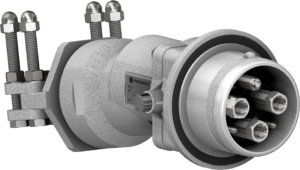

PLUG
Mobile connector to be cabled and connected in a socket or a cable coupler. The plug cap options are needed to ensure IP67 once disconnected.
-
Red version
(6H mechanical coding) -
Blue version
(12H mechanical coding)
ANGLED PLUG 10°
Mobile connector to be cabled and connected in a socket or a cable coupler with a special casing optimized for the cable environment, mainly used in short jumper cables. The plug cap options are needed to ensure IP67 once disconnected.

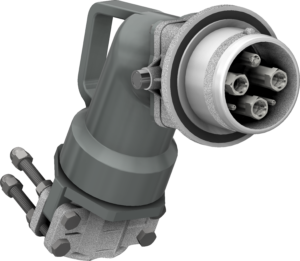

ANGLED PLUG 60°
Mobile connector to be cabled and connected in a socket or a cable coupler. The plug cap options are needed to ensure IP67 once disconnected.
-
Red version
(6H mechanical coding) -
Blue version
(12H mechanical coding)
SELECT YOUR CONNECTOR

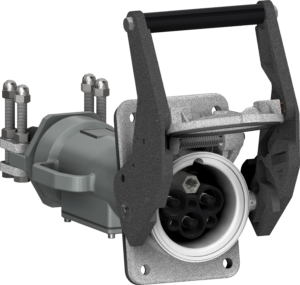

CABLE COUPLER
Mobile socket to be cabled and connected in a plug used to make an extension line.
-
Red version
(6H mechanical coding) -
Blue version
(12H mechanical coding)

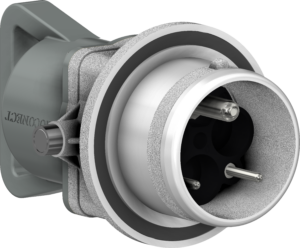

LIVE END CAP
Small plug without phases to secure a socket under voltage without a plug connected in.
-
Red version
(6H mechanical coding) -
Blue version
(12H mechanical coding)
3PX5 variations
Options
SELECT YOUR OPTION

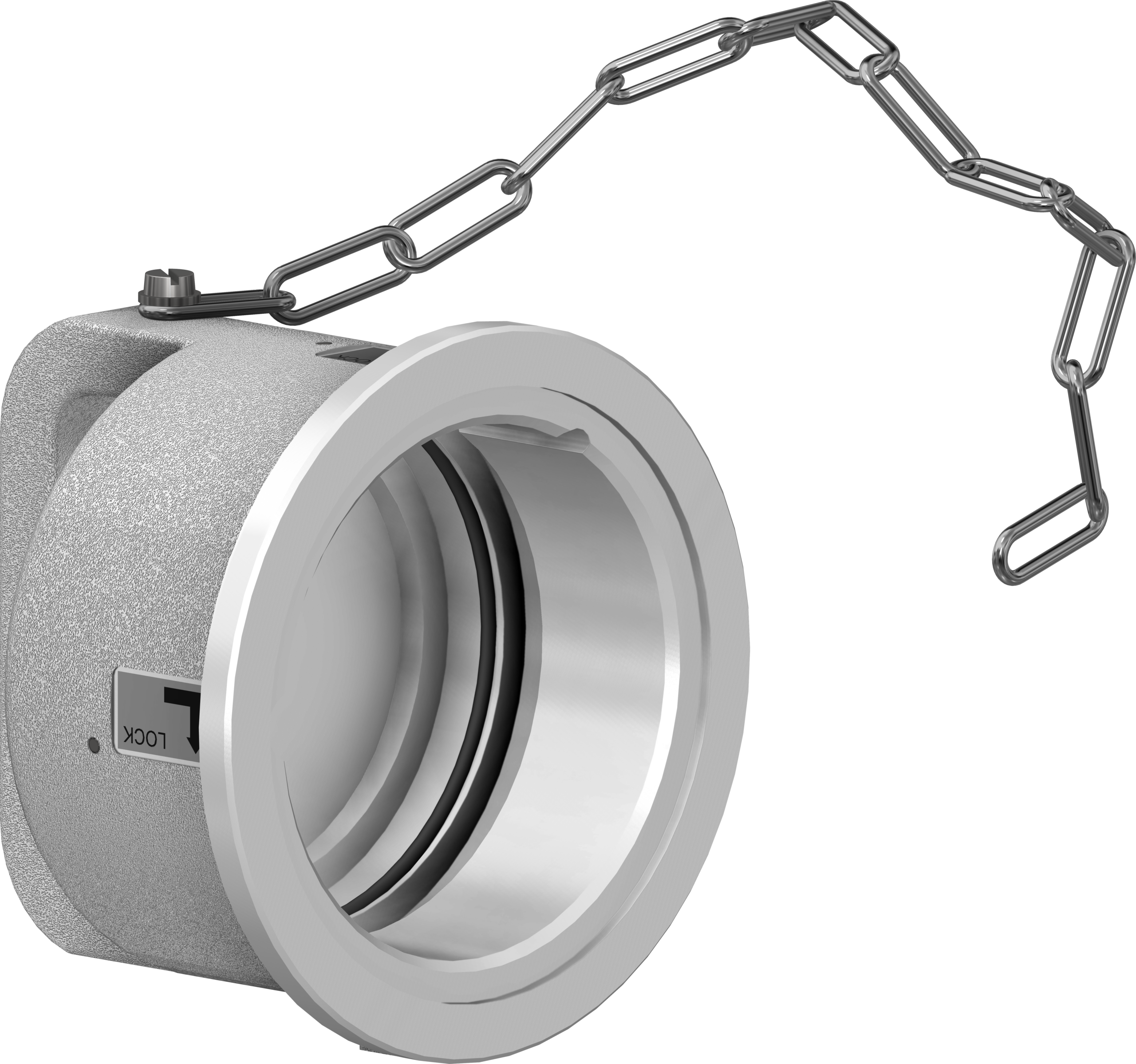

PLUG CAP
ASG7 aluminium plug cap linked to the front of the plug by a chain to ensure IP67 rating of the plug once disconnected.

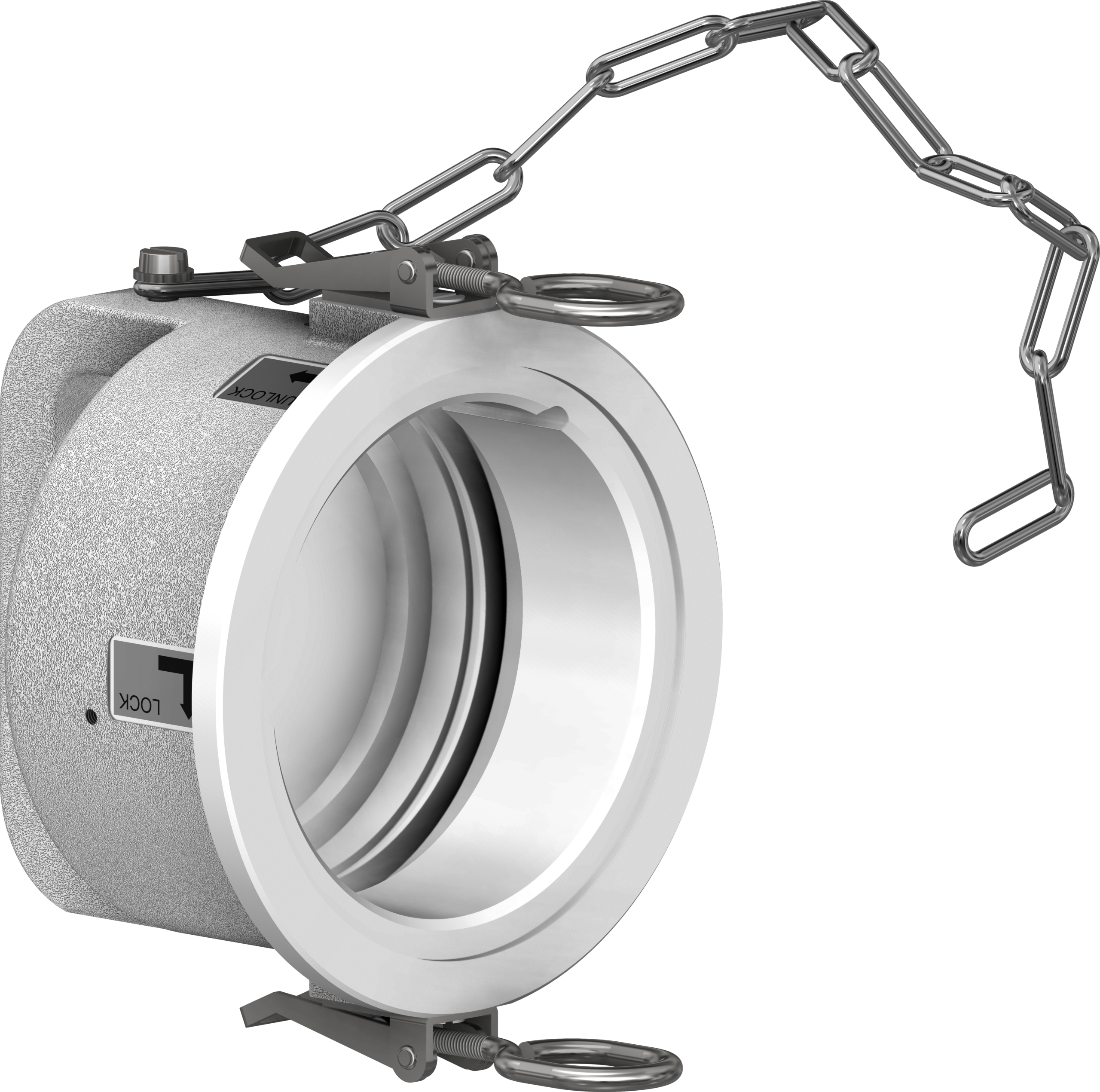

TOGGLE LATCH
PLUG CAP
Toggle latches added on the cap to facilitate handling and ensure IP67 rating.

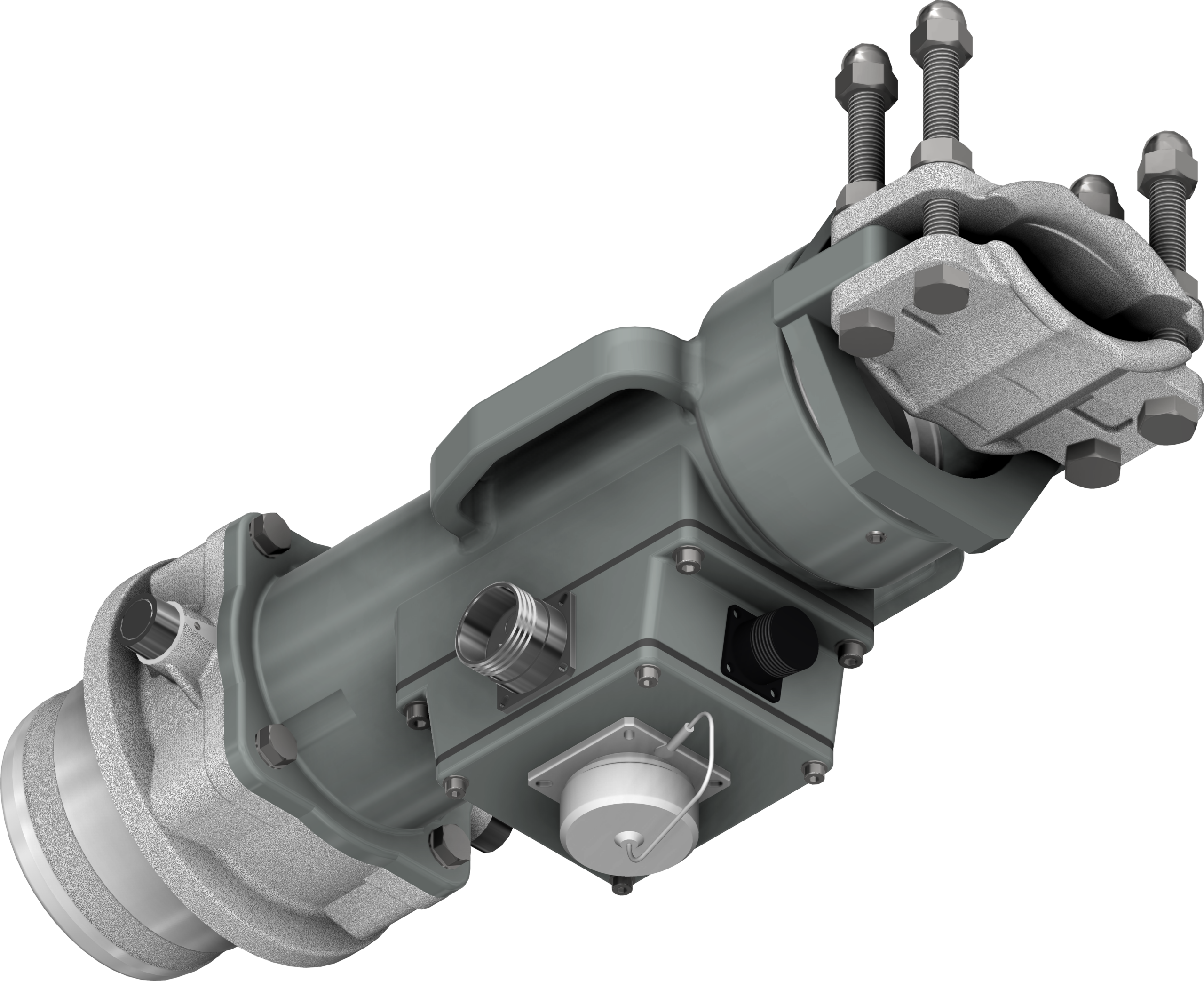

OPTICAL FIBER DERIVATION BOX (LOW)
The optical fiber derivation box is an optional casing added to the plug to derivate the optical fiber of the cable into a F.O. socket placed onto it.

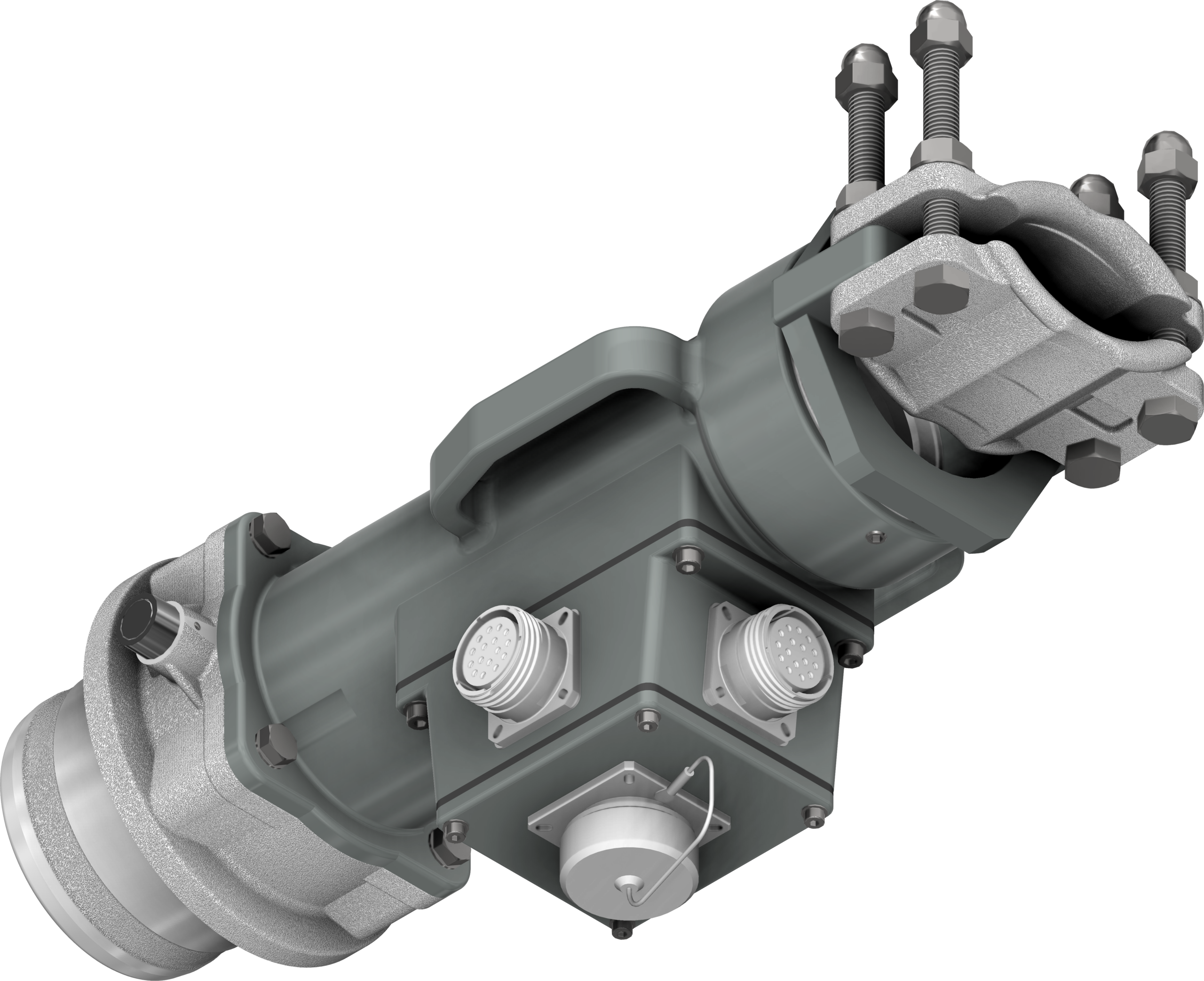

OPTICAL FIBER DERIVATION BOX (HIGH)
The optical fiber derivation box is an optional casing added to the plug to derivate the optical fiber of the cable into a F.O. socket placed onto it.

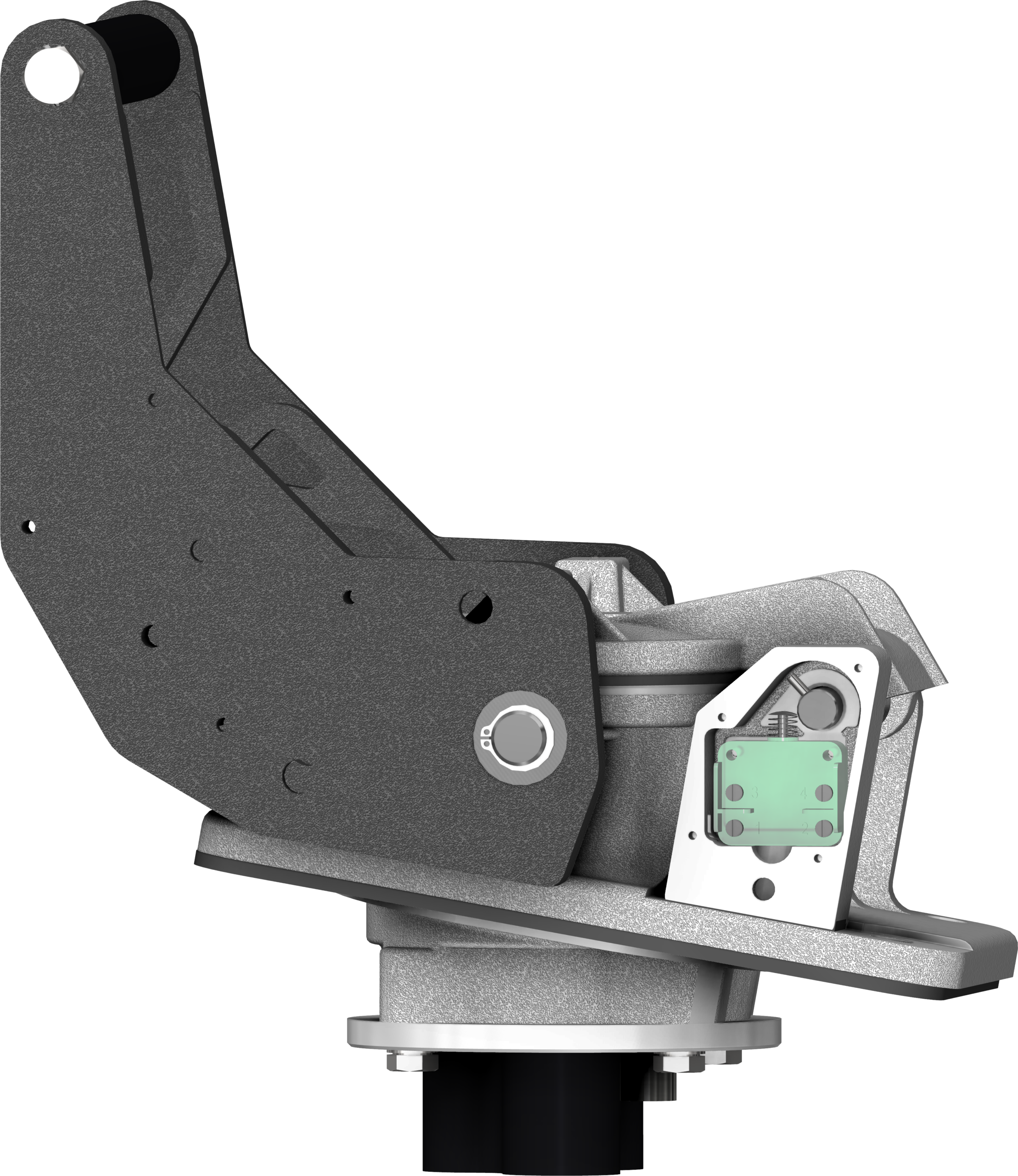

MICROSWITCH
Sockets can be provided with a Microswitch, activated by opening or closing the socket lid.

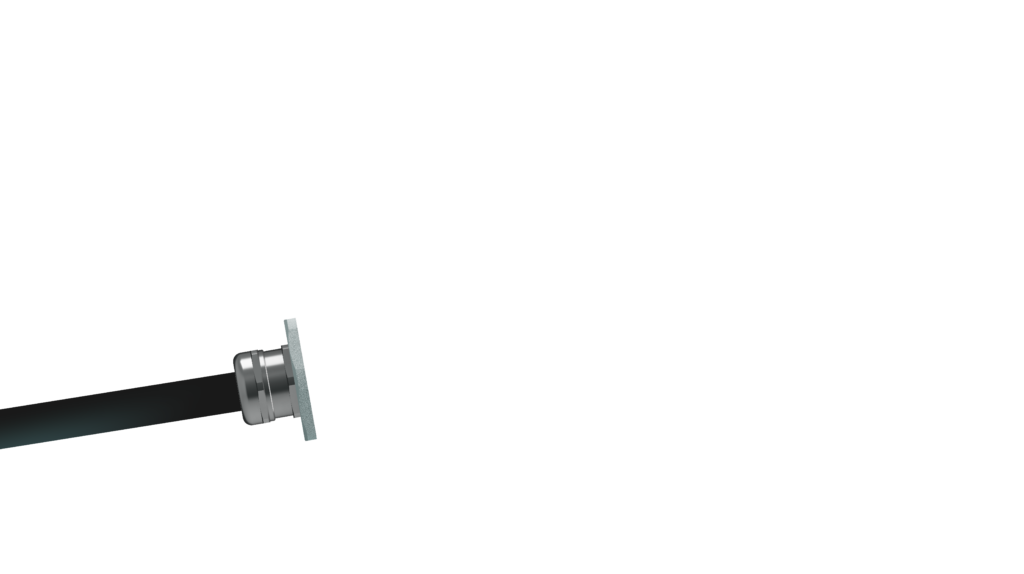

CABLE GLAND OR CONDUIT ADAPTOR
M63 adaptor for connecting a standard cable gland or a conduit adaptor (other sizes on request).

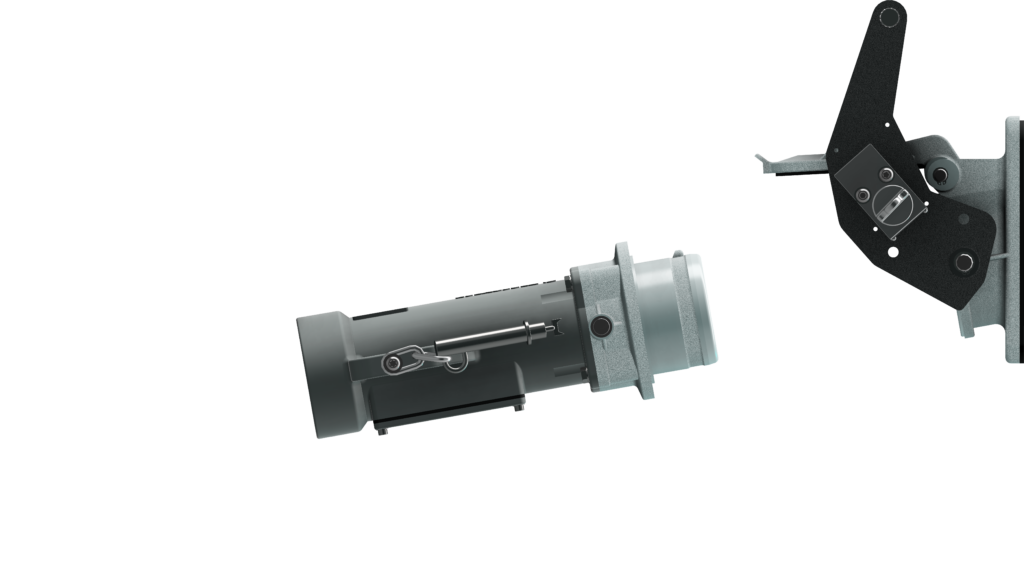

CAPTIVE KEY LOCKING
Captive key system both on the plug and the socket to authorize electrification of the system once connected and the key engaged.

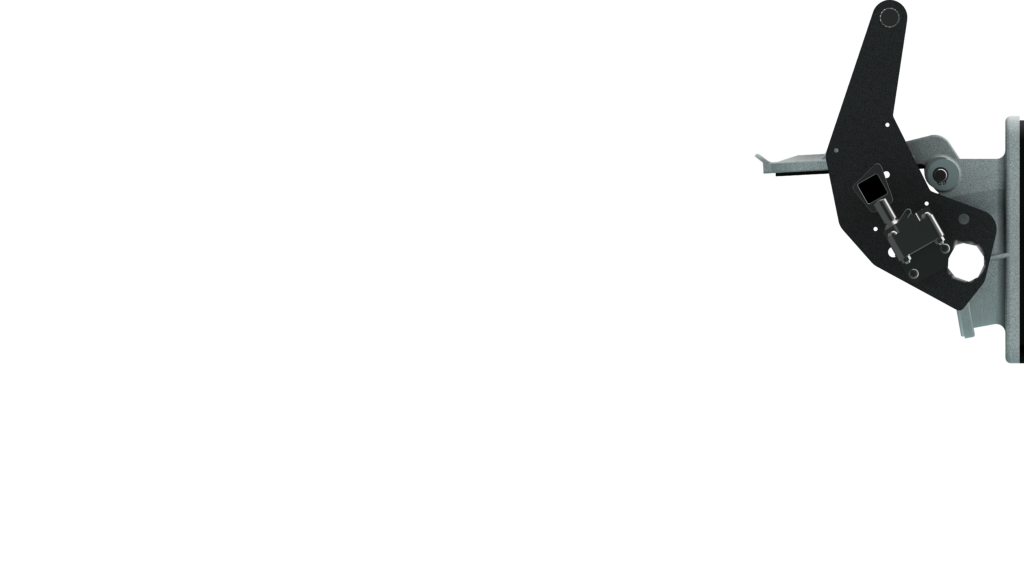

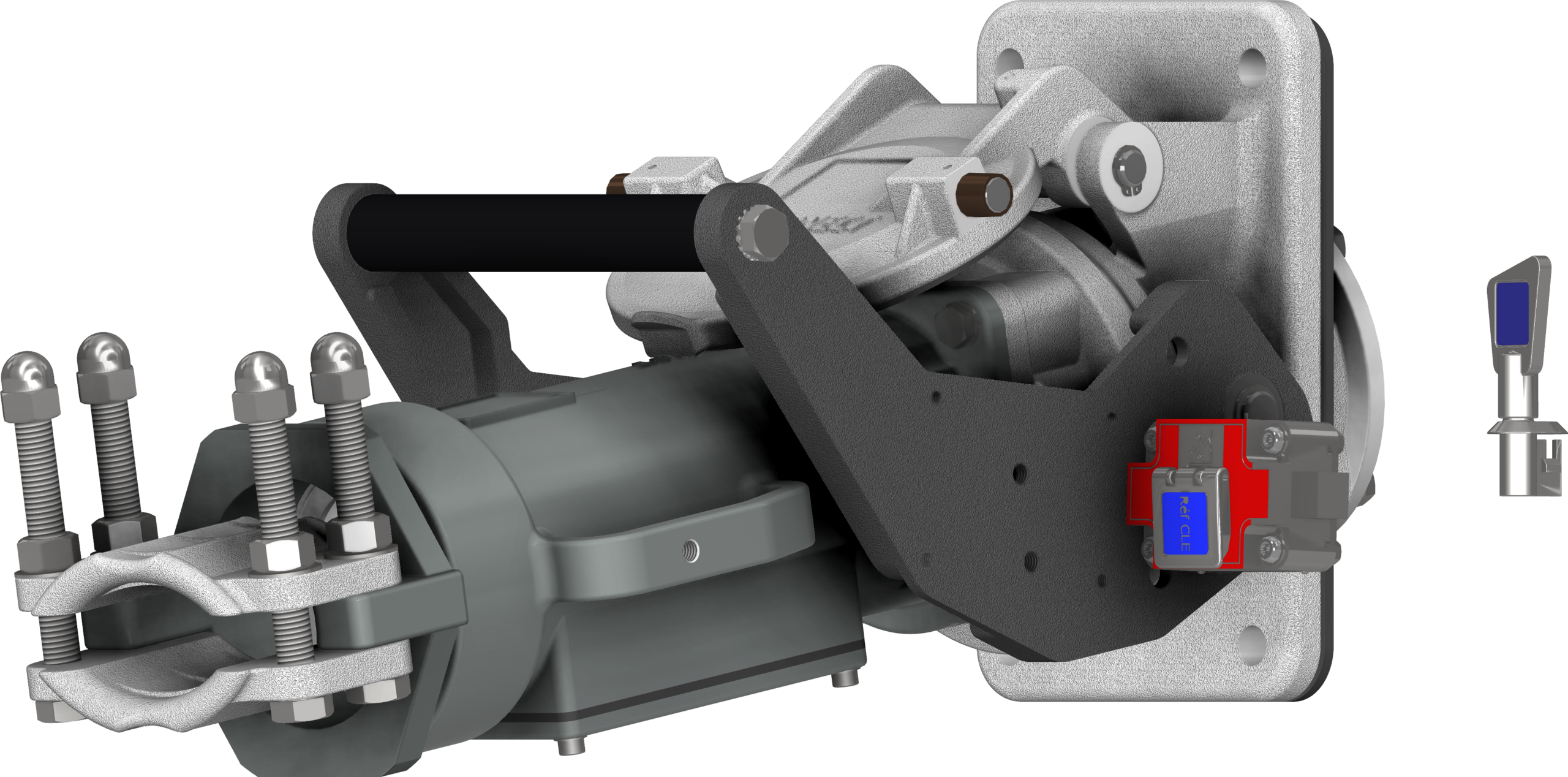

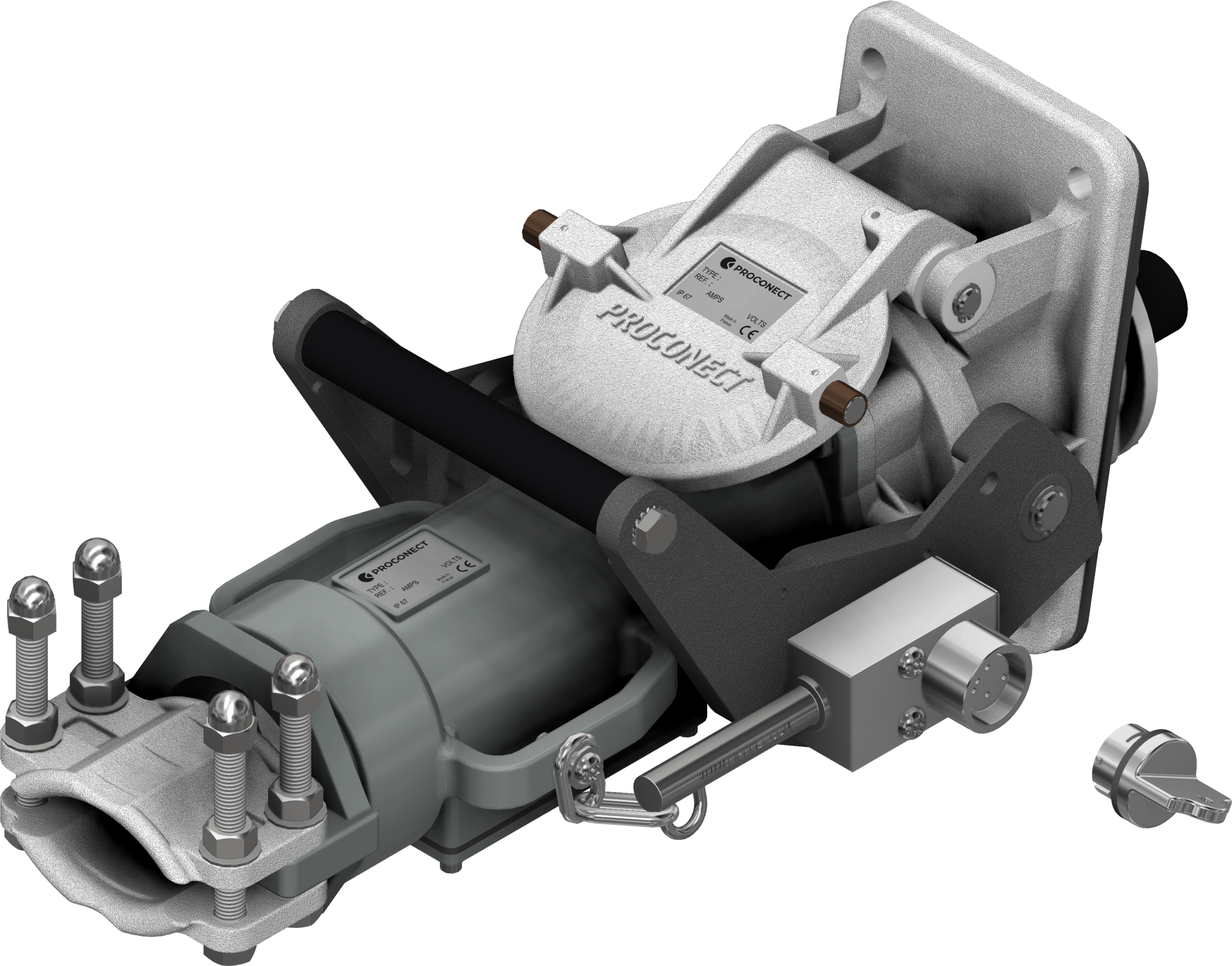

BOLT LOCKING
Bolt locking system only on the socket to authorize electrification of the system once the plug connected and the key engaged.

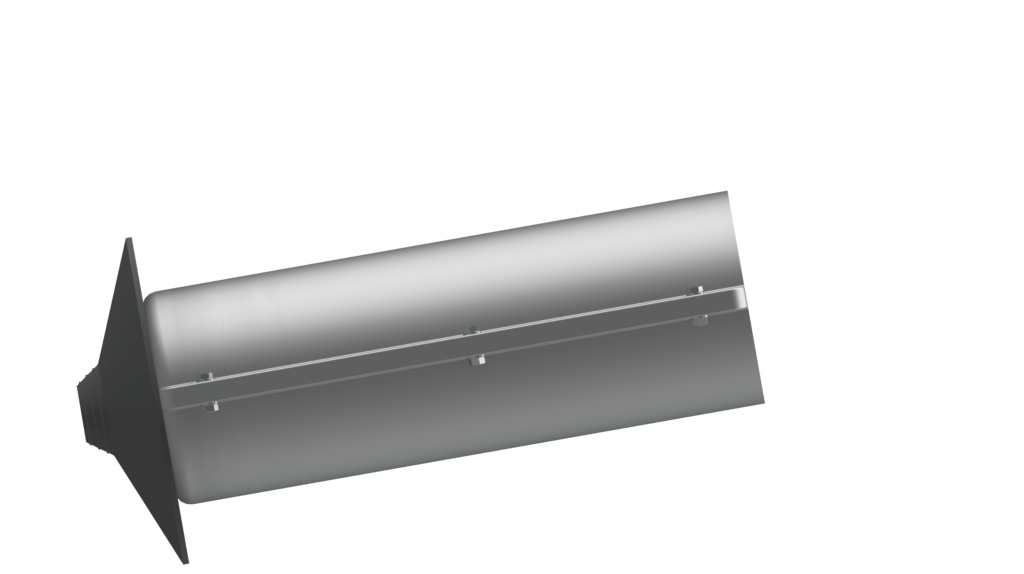

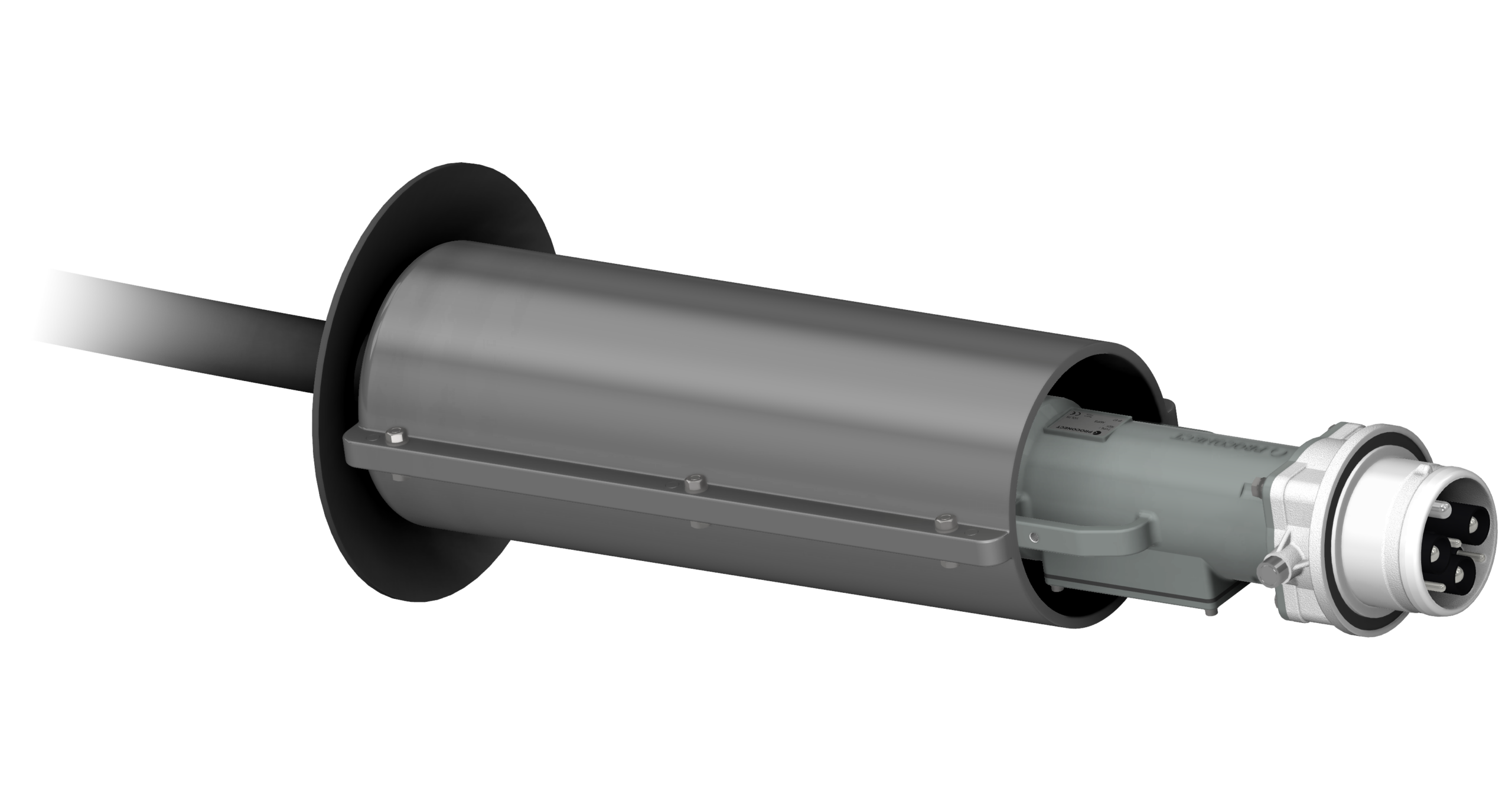

RAIN HAT + PROTECTION SLEEVE
Sleeve and cable adaptive (Ø25-80mm) rain hat to give a better protection to disconnected plugs
from the harshest environments.

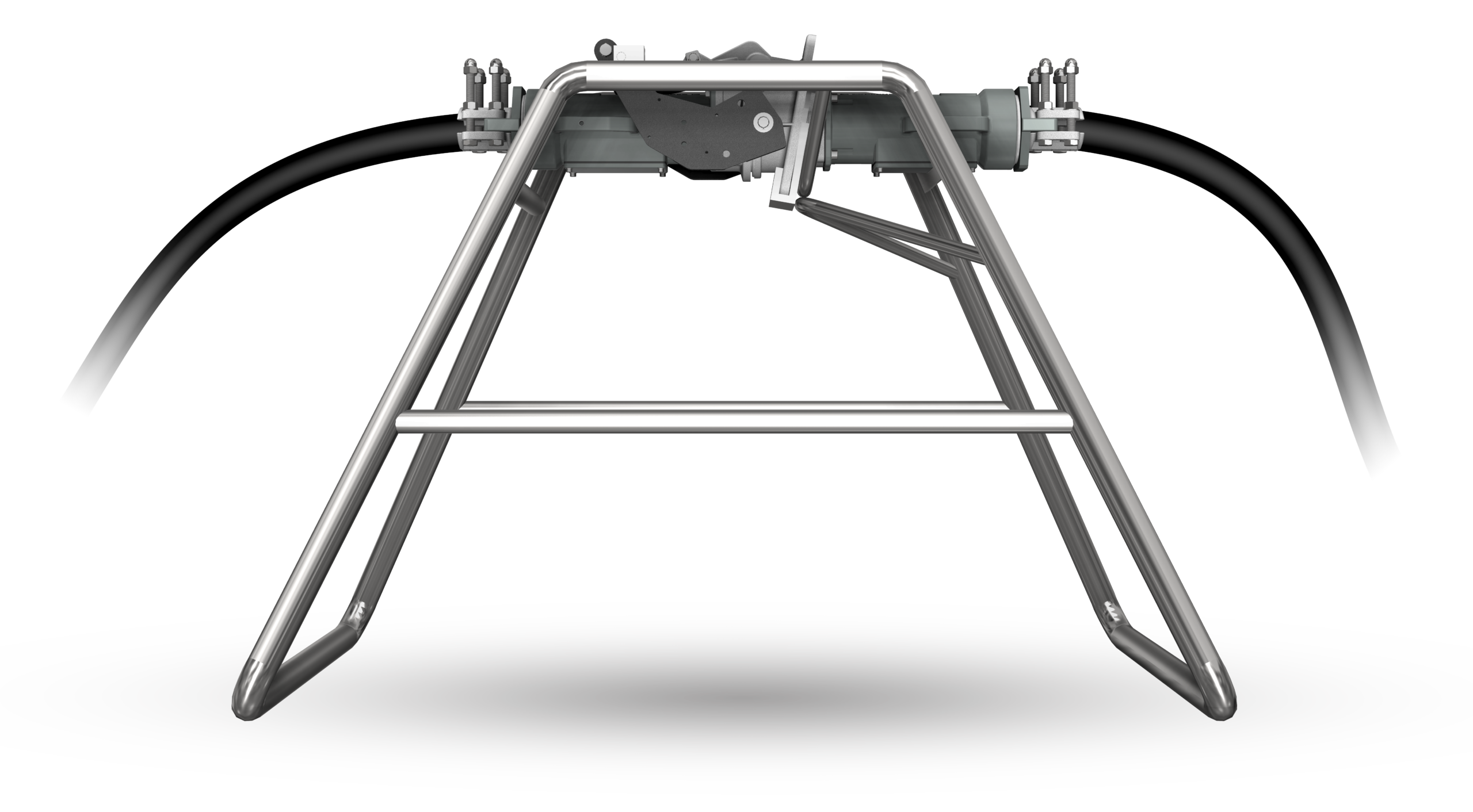

CABLE COUPLER CRADDLE
Craddle support allowing the connector to be raised from the floor and avoid damage on the cables and the connector.

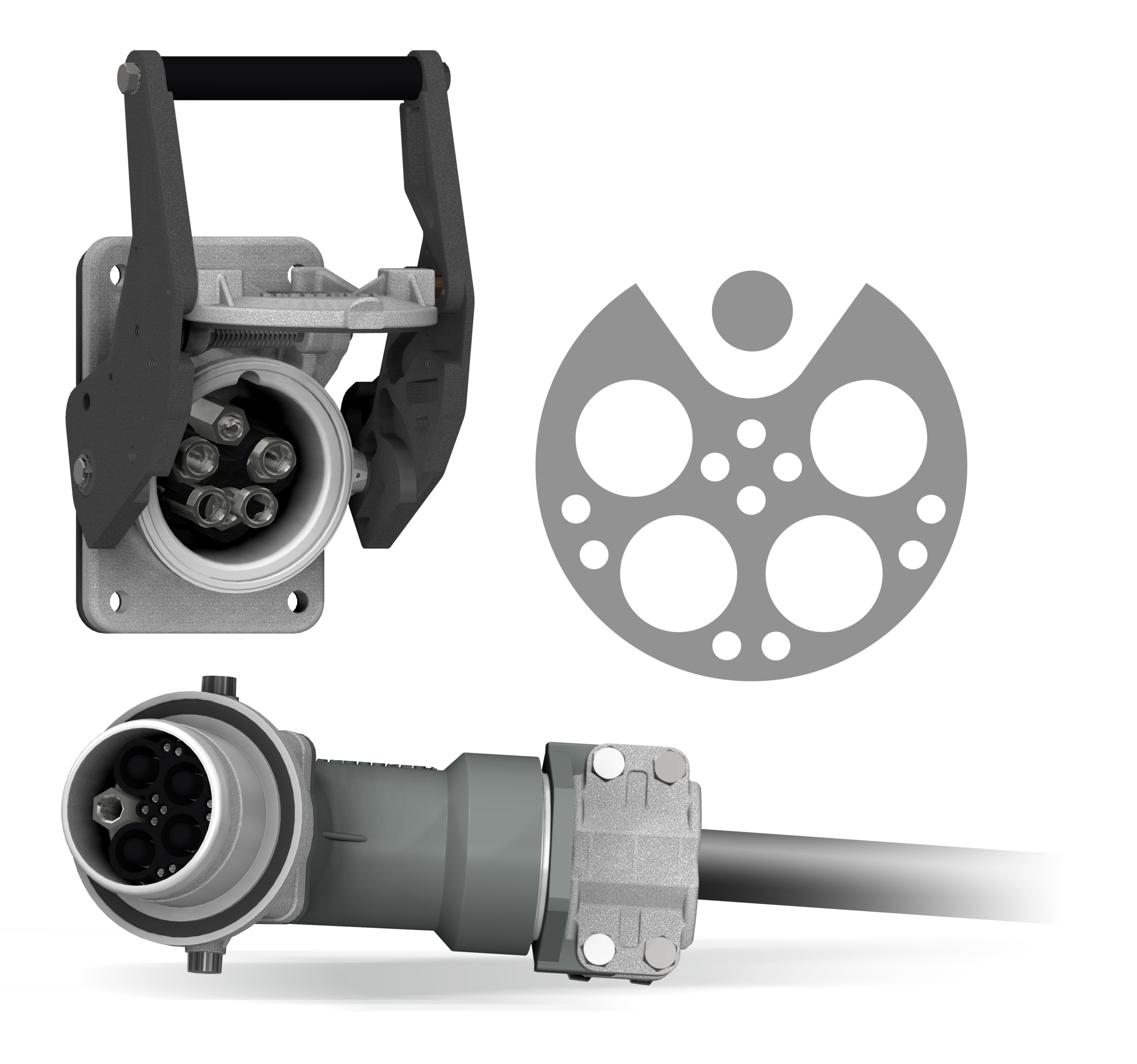

10 PILOTS
OPTION
4-phased connector with 10 pilots
1,5 mm² (AWG 16), 2,5 mm² (AWG 14) or 6 mm² (AWG 10).
SELECT YOUR OPTION
ALL-IN-ONE solutions
Optimize your infrastructure with custom electrical environments tailored to your unique technical and environmental challenges. Our engineering team ensures full compliance and seamless integration through expert feasibility studies and rigorous validation. Experience high-performance turnkey solutions built for maximum operational reliability.
Pre-wired connectors
For example, connectors can be supplied with a certain length of cable or directly on a reel, one end being the plug and the other beign cable lugs for junction.

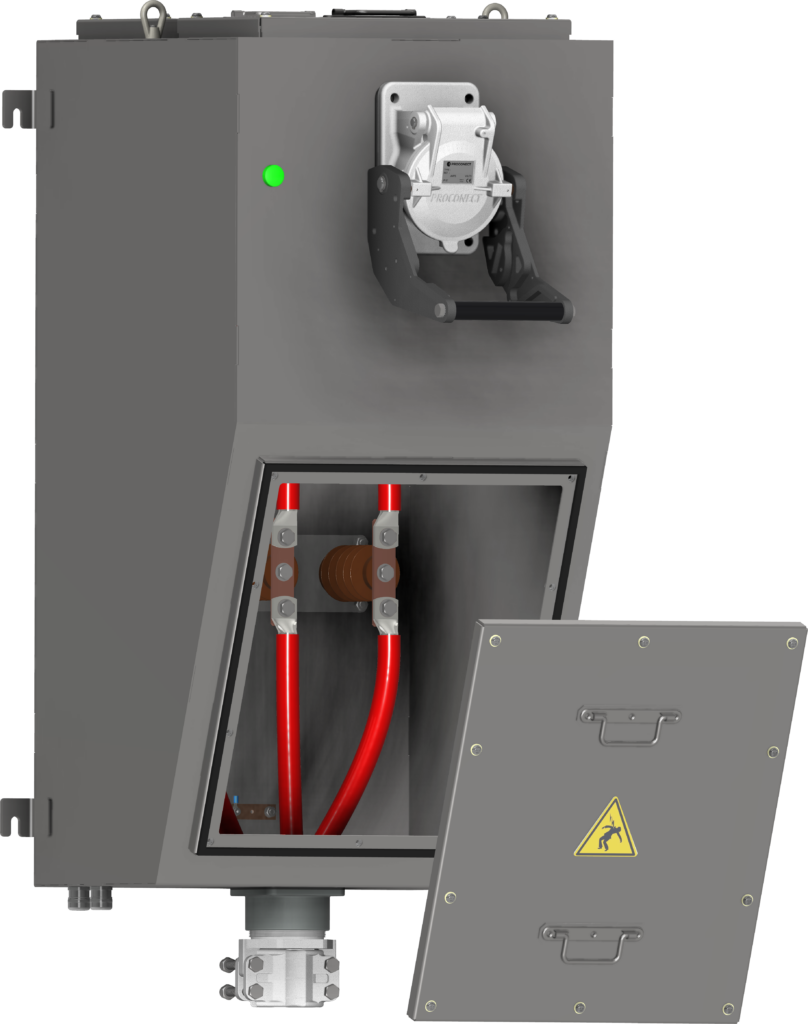

Connection boxes
Technical datas
3PX5 Datasheet
More technical informations about the 3PX5 solutions.
