NF 80
80A
150V max.
NF EN 1175-1
DIN VDE 0623-589
DIN VDE 0623-589

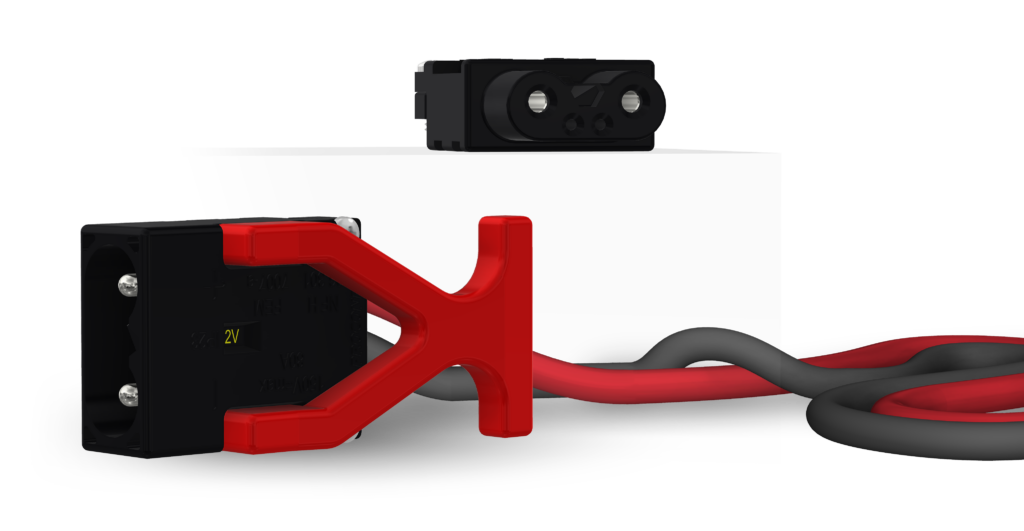

Battery charging connector
PROCONECT offers charging connectors for traction batteries, lead-acid batteries, and lithium-ion batteries. The NF 80 connector, rated at 80A, is suitable for industrial and agricultural environments thanks to its resistance to acids, bases, hydrocarbons, and extreme temperatures.
- Amp. pilots : 20 A
- Contacts max. : 2P (+/-) (+2 pilots option)
- Cable section : 16 mm² (AWG 6) / 25 mm² (AWG 4)
- Cable diameter max. : 14 mm
- Pilot : 2,5 mm² (AWG 14)
- Termination : to crimp, to solder
- Polarity control : coding pin
- Casing : Thermoplastic
- Contacts : Copper alloy
- Fastenings : Stainless steel
- Temperature : -20° +90°C
- Ind. protection : IP23

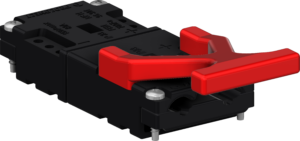

Connectors

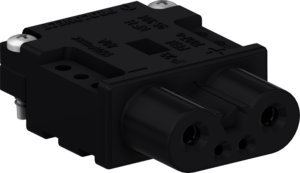

FEMALE CONNECTOR
Bipolar +/-
Fixed connector to be installed on a structure (wall-mounted, electrical cabinet, vehicle, etc).
Available with 16 and 25 mm² (AWG 6 - AWG 4) contacts to crimp or to solder.

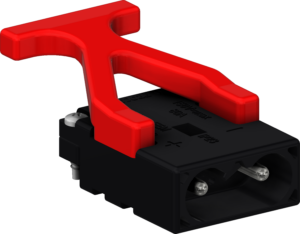

MALE CONNECTOR
Bipolar +/-
Mobile connector to be cabled.
Available with 16 and 25 mm² (AWG 6 - AWG 4) contacts to crimp or to solder.
This connector can be equipped with a handle to help the connection.
SELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION

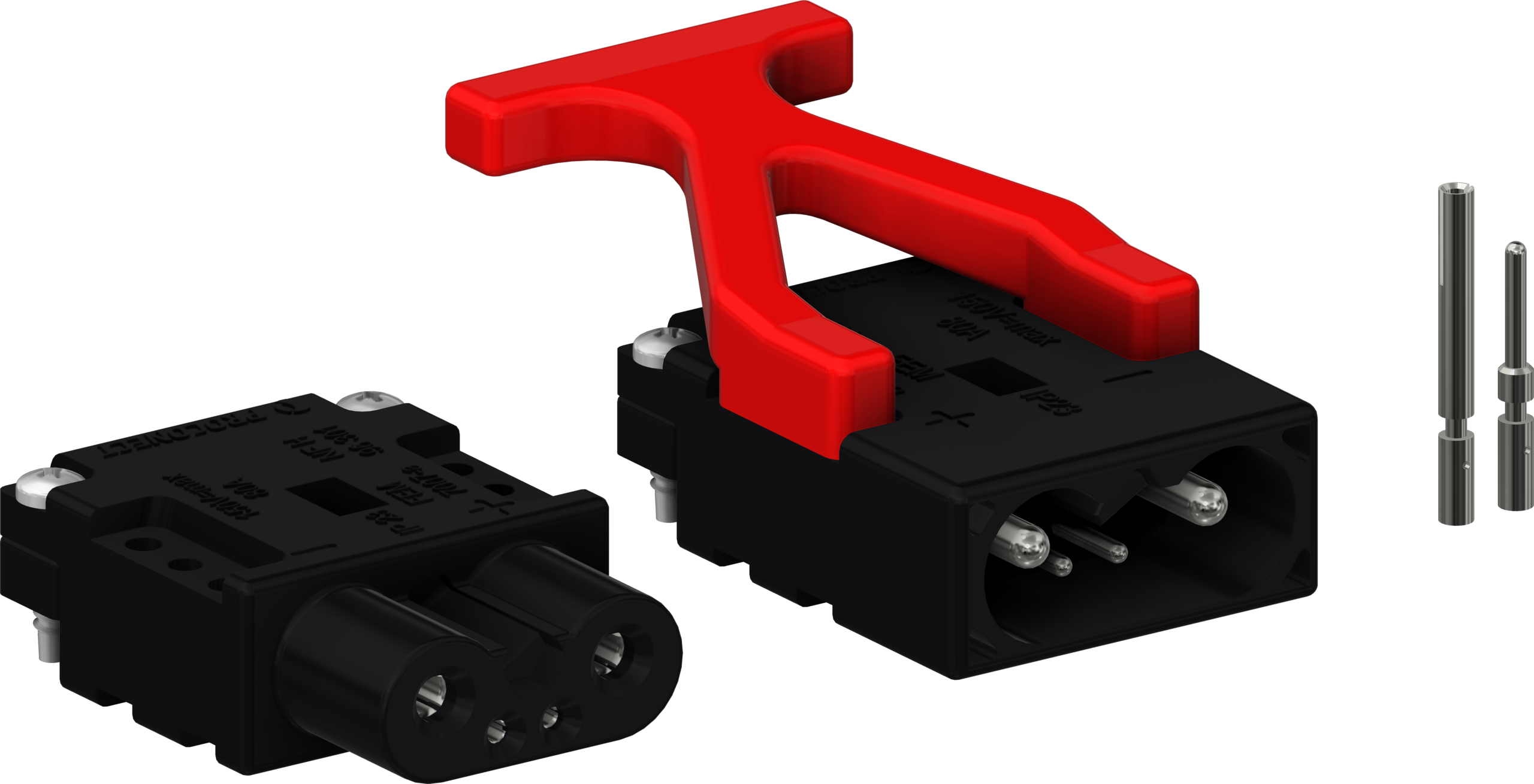

AUXILIARY PILOT
Male and female connectors can be fitted with 2 auxiliary 2,5 mm² (AWG 14) contact.

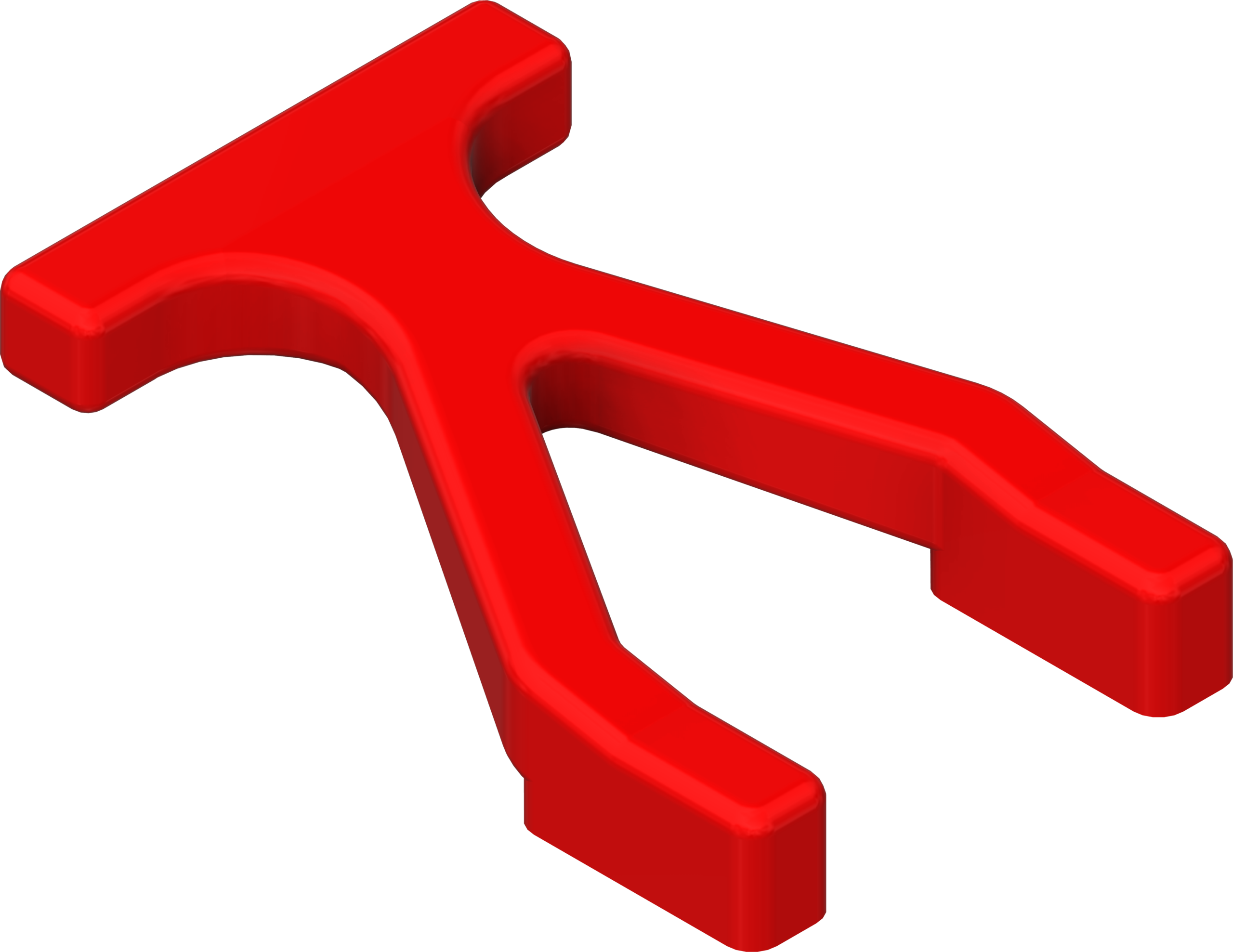

HANDLE
Male connectors can be equipped with an handle to help the connection.

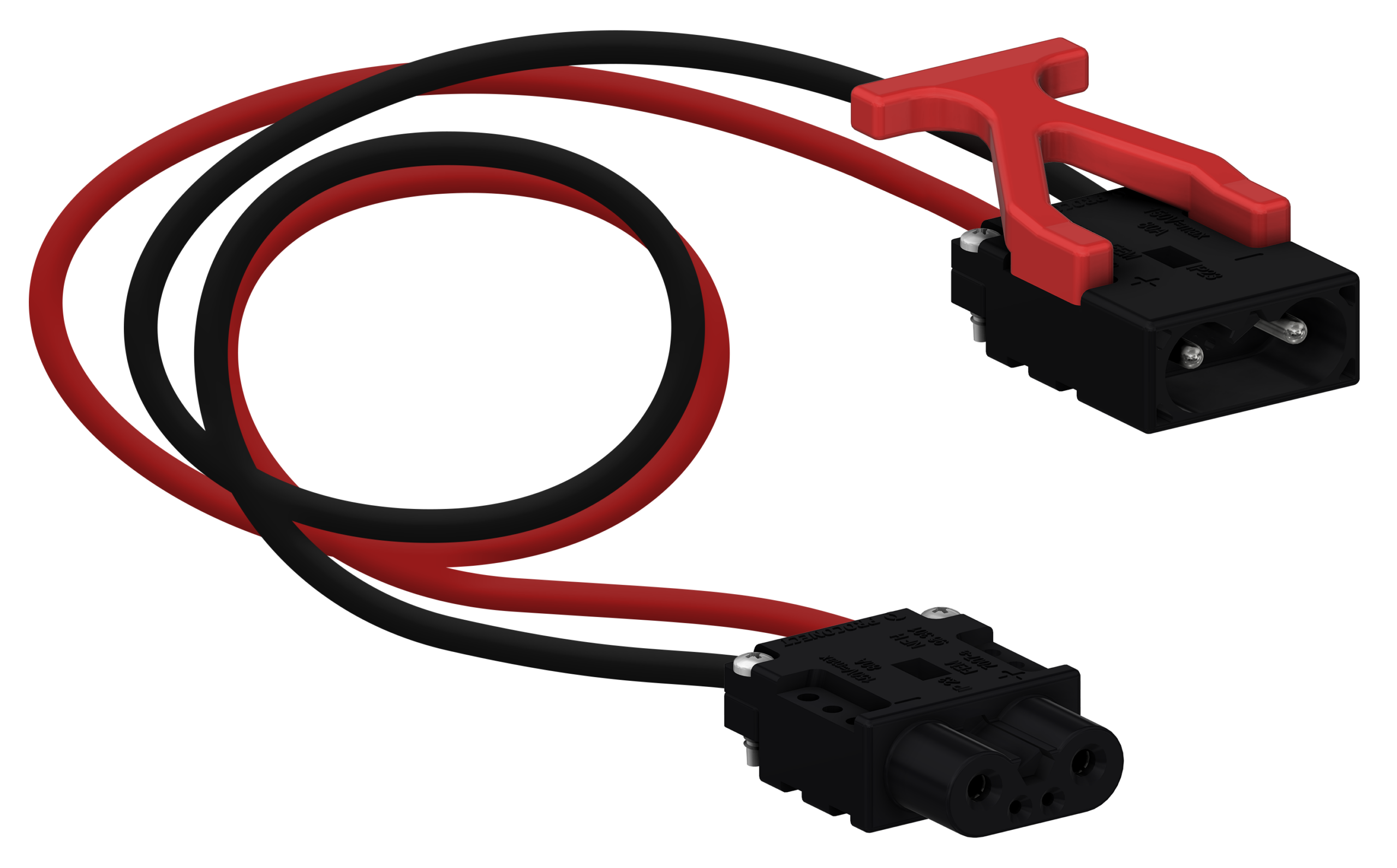

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
Technical datas
NF 80 Connectors Datasheet
More technical informations about the NF 80 solutions.
