CBX 175
Battery charging connector
- Amp. pilots : 20A
- Contacts max. : 2P (+/-) + 2p
- Cable section : 35 mm² (AWG 2) / 50 mm² (AWG 1/0)
- Pilot section : 2,5 mm² (AWG 14) to crimp
- Termination : to crimp, to solder
- Casing : Polycarbonate
- Contacts : Silver plated copper
- Fastenings : Stainless steel
- Temperature : -40° +125°C
- User protection : IP2X
* IP2X connectors.
Connectors

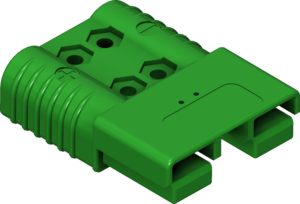

SINGLE CONNECTOR
Hermaphroditic IP2X connector to be mounted or mobile. Available with 35 and 50 mm² contacts (AWG 2 - 1/0) to crimp or to solder.
Different casing color and material available.
SELECT YOUR CONNECTOR
CONFIGURATOR
VOLTAGE GRAPHICAL CHARTER
Options
SELECT YOUR OPTION

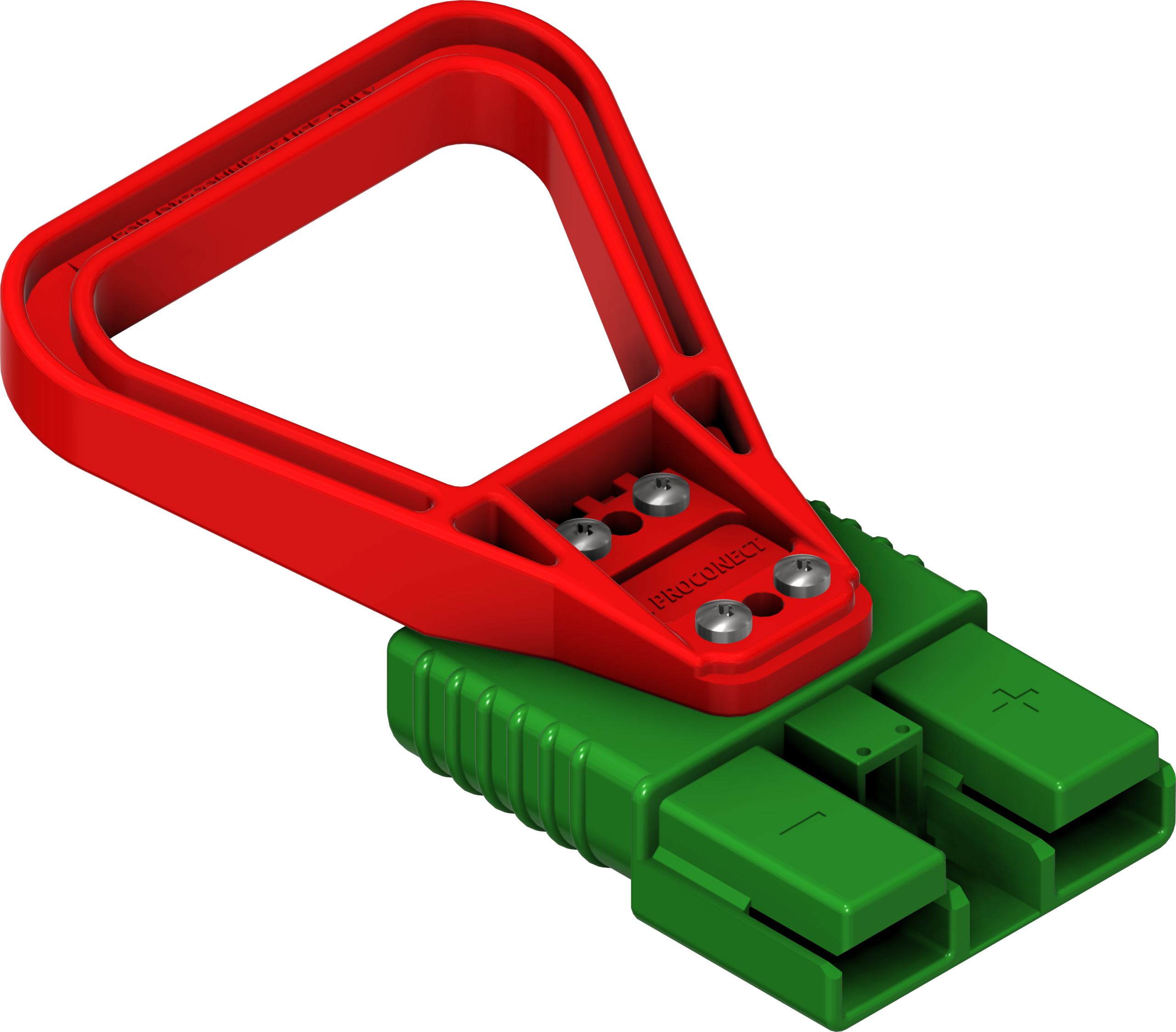

RED HANDLE
CB connectors can be equipped with a red handle to help the connection.
GREY HANDLE
CB connectors can be equipped with a grey handle to help the connection.

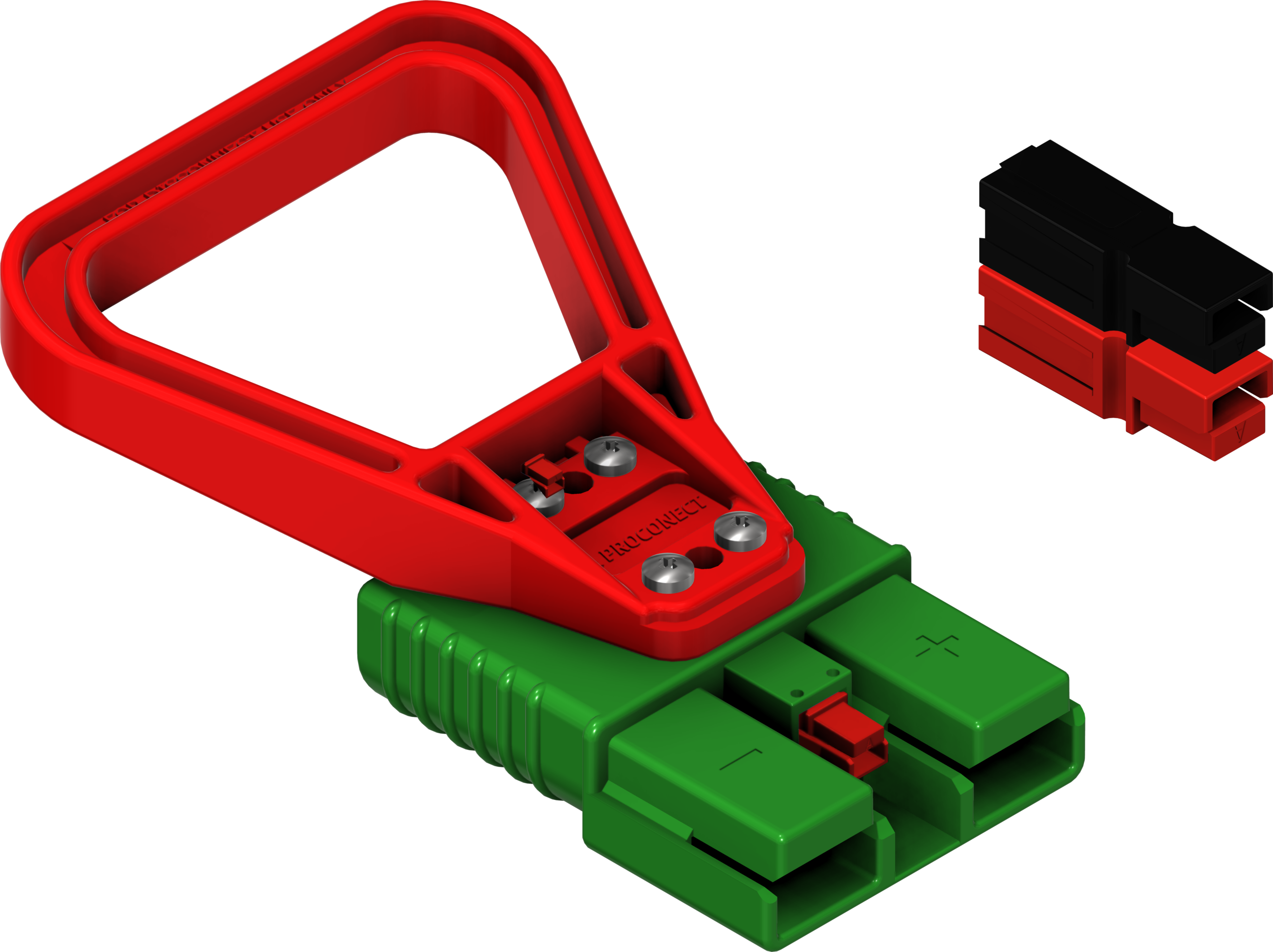

AUXILIARY CONTACTS
2 x 2,5 mm² (AWG 14) auxiliary contacts to be fitted inside the connector.
Can be retrofited into connectors without this option.

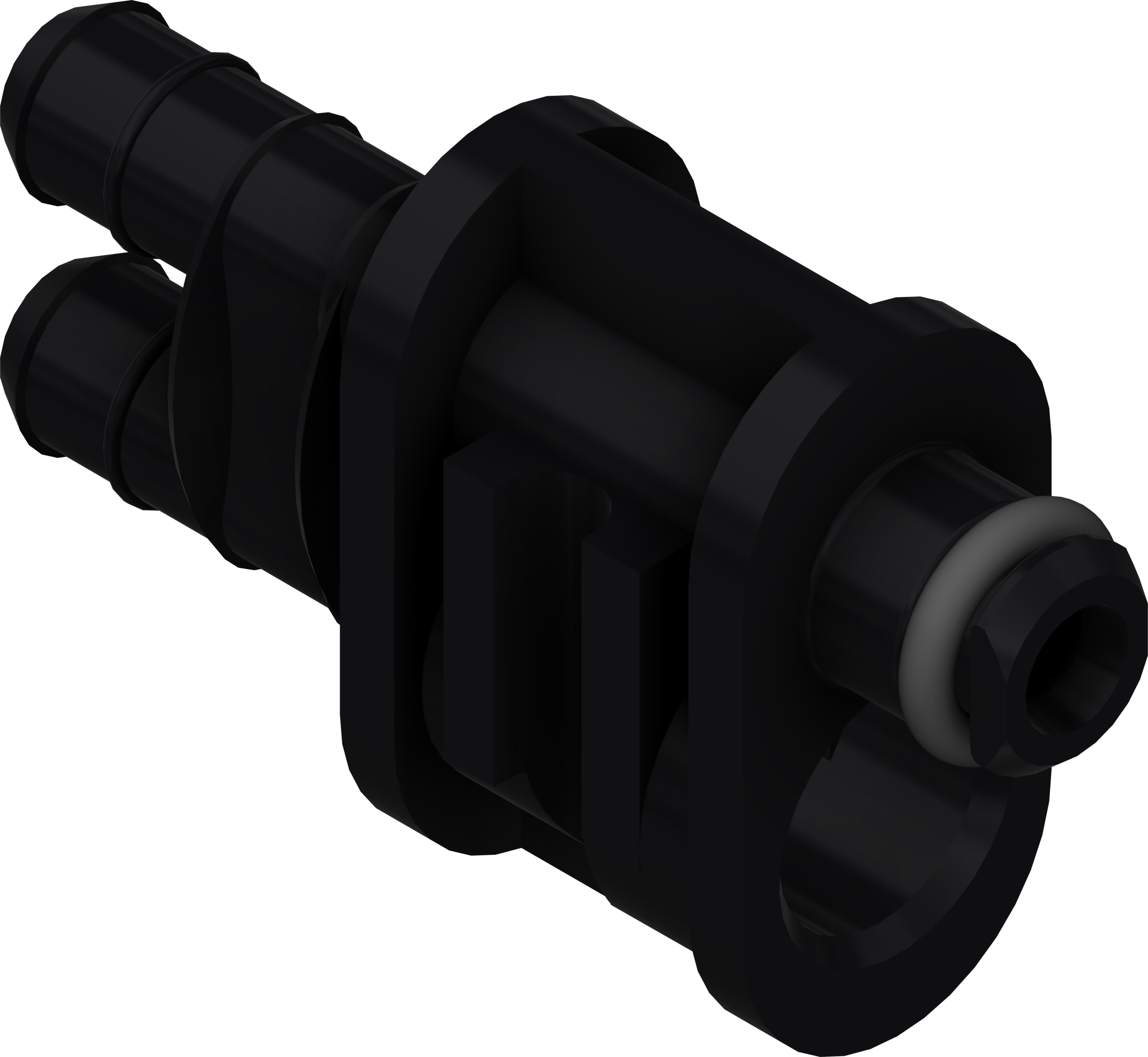

PNEUMATIC CONTACT
Pneumatic contact taking place into the 2 x auxiliary contacts slot.
Can be retrofited into connectors without this option.
TERMINAL REDUCER
50 to 25 mm²
Reducer to adapt 25 mm² (AWG 4) cables into 50 mm² (AWG 1/0) cable terminals.
SPARE PARTS
Casing and contacts are available for long-lasting connector.

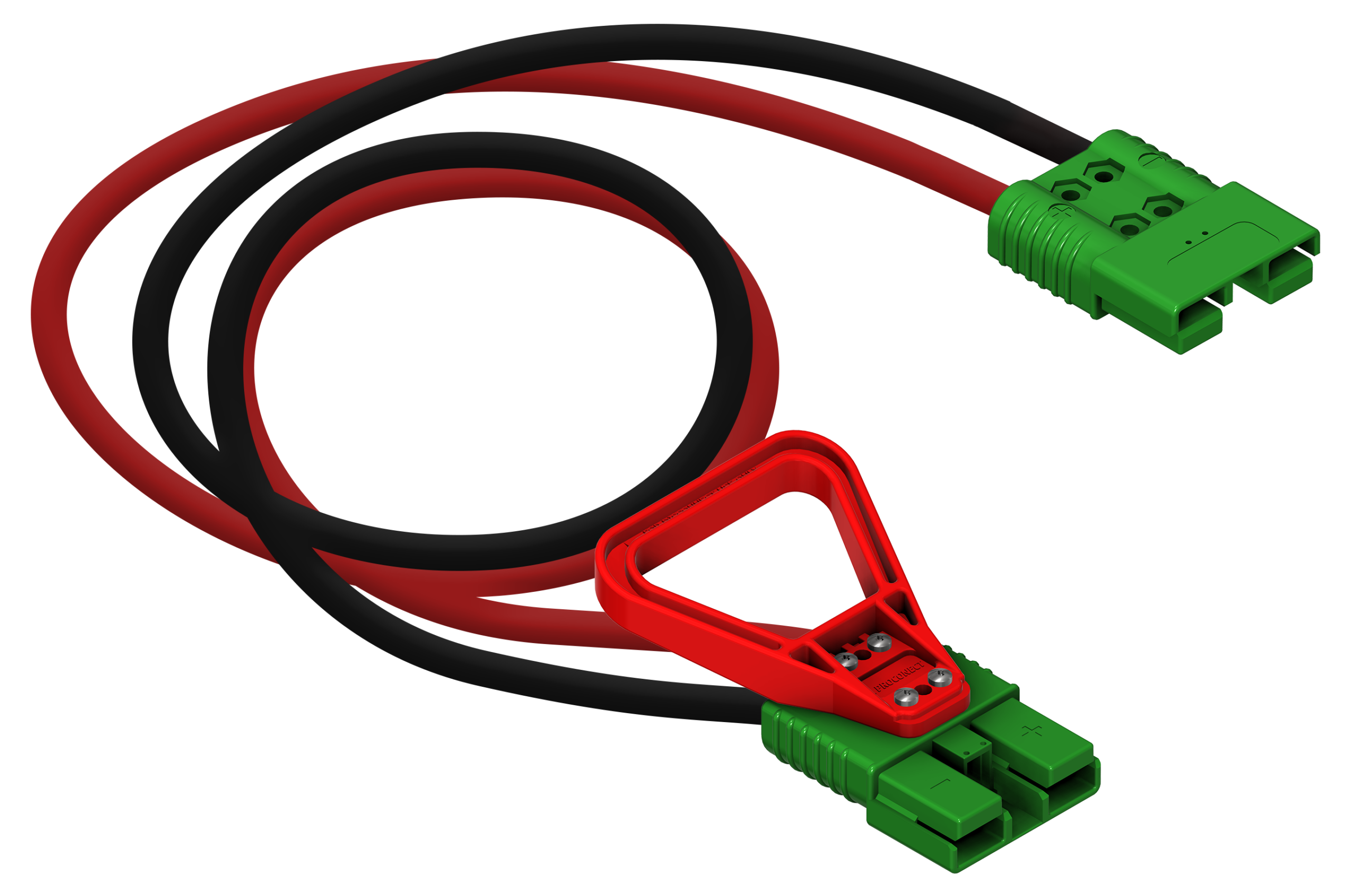

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
Technical datas
CBX 175 Connectors Datasheet
More technical informations about the CBX 175 solutions.
