CB 175
175A
600V max.
Battery charging connector
PROCONECT offers hermaphroditic power connectors for simplified and secure connections. The CB 175 connector, rated at 175A, is suitable for demanding environments thanks to its resistance to acids, bases, hydrocarbons, and extreme temperatures.
Connectors

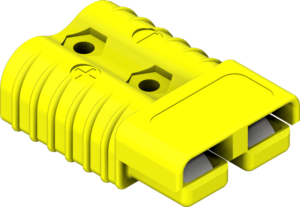

SINGLE CONNECTOR
Bipolar +/-

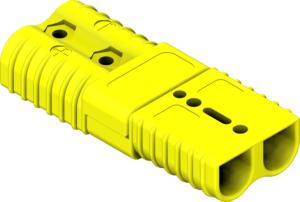

Hermaphroditic connector to be mounted or mobile. Available with 25 to 50 mm² contacts (AWG 4 - 1/0) to crimp or to solder.
Different casing color and material available.
SELECT YOUR CONNECTOR
CONFIGURATOR
(select all options)
VOLTAGE GRAPHICAL CHARTER
12V
YELLOW
18V
ORANGE
24V
RED
36V
GREY
48V
BLUE
72V
GREEN
80V
BLACK
Options
SELECT YOUR OPTION

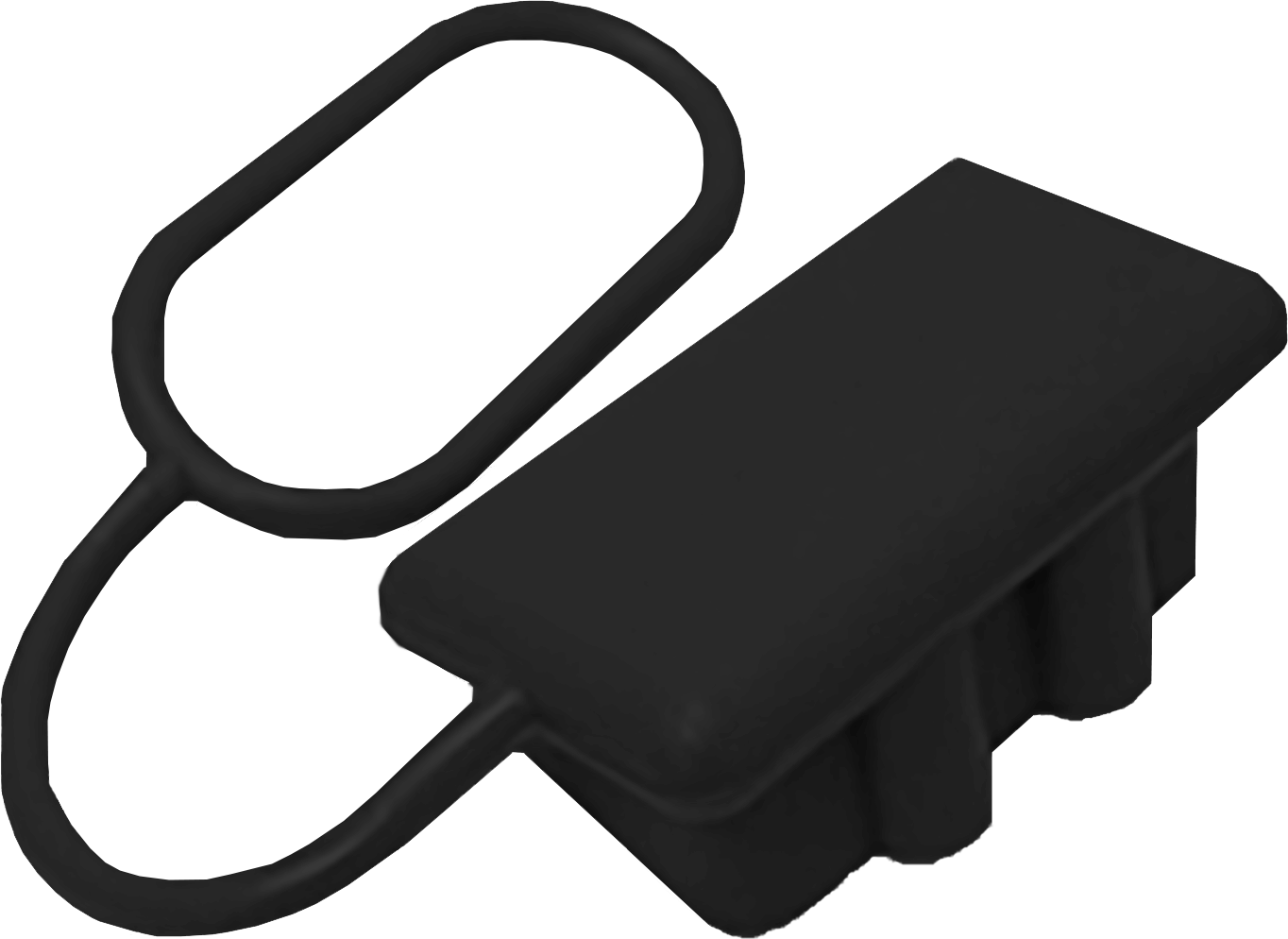

DUST CAP
Cap to be fitted on the connector and avoid dust inside the plug.

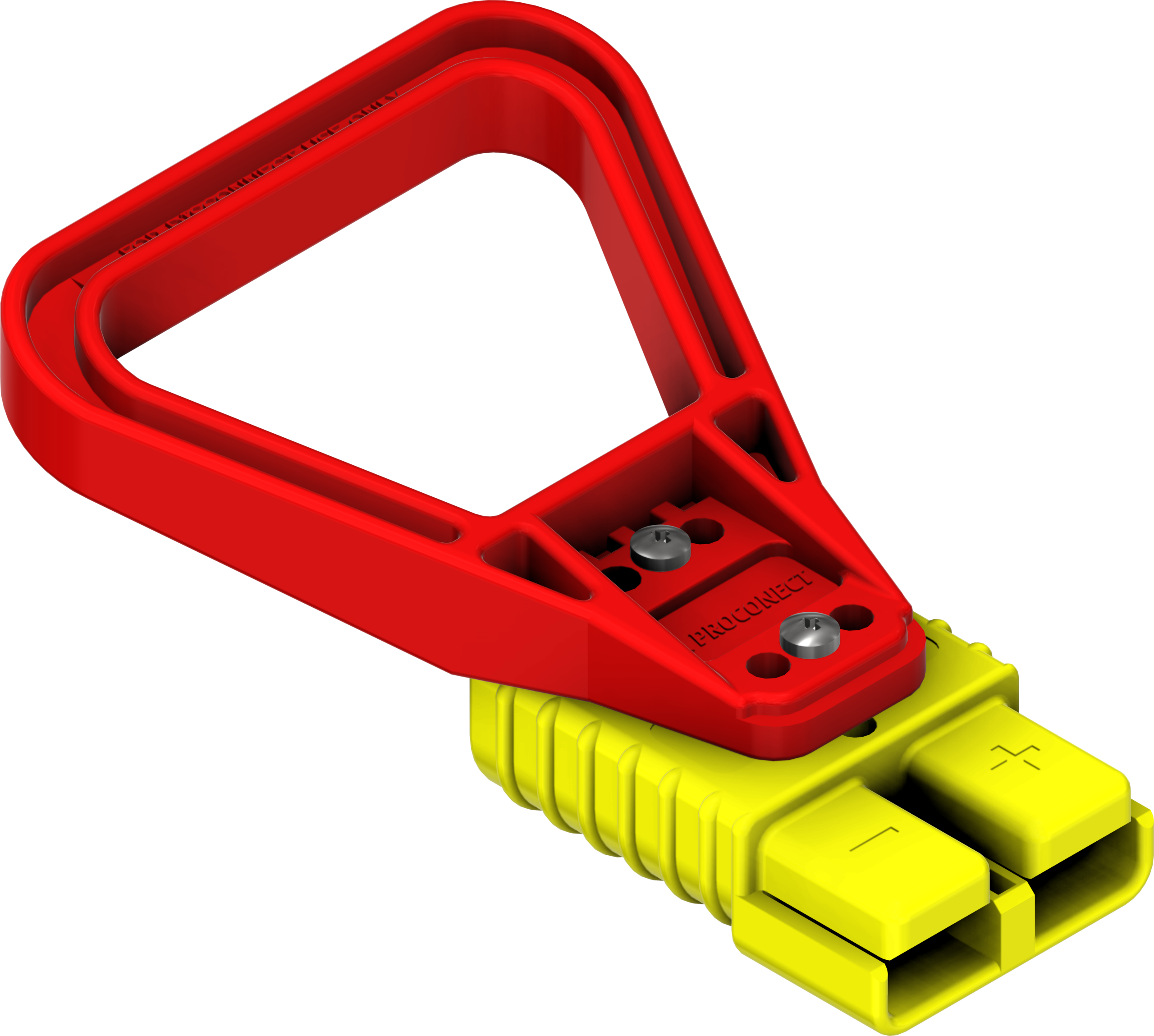

RED HANDLE
CB connectors can be equipped with a red handle to help the connection.
GREY HANDLE
CB connectors can be equipped with a grey handle to help the connection.
SPARE PARTS
Casing and contacts are available for long-lasting connector.

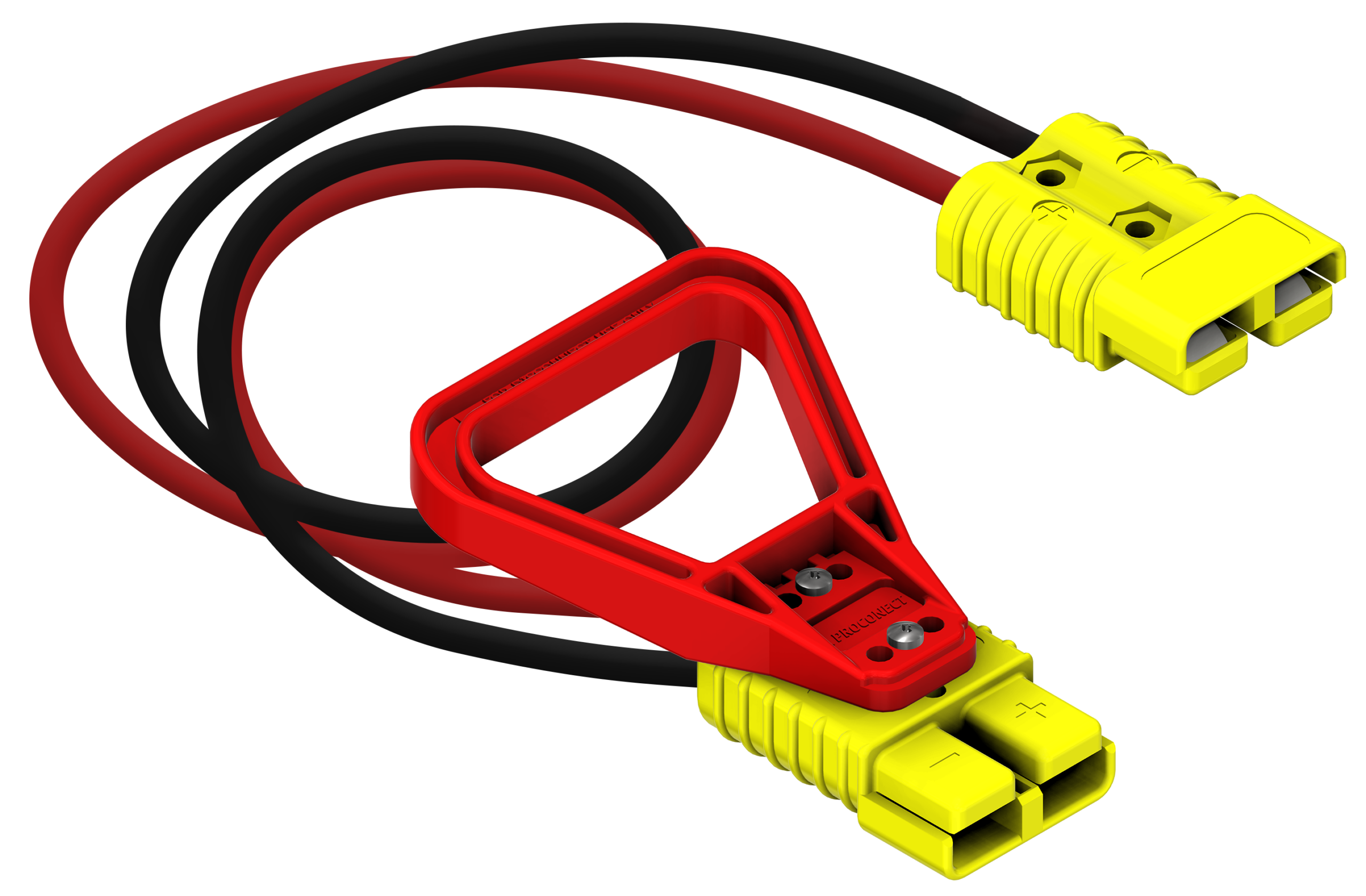

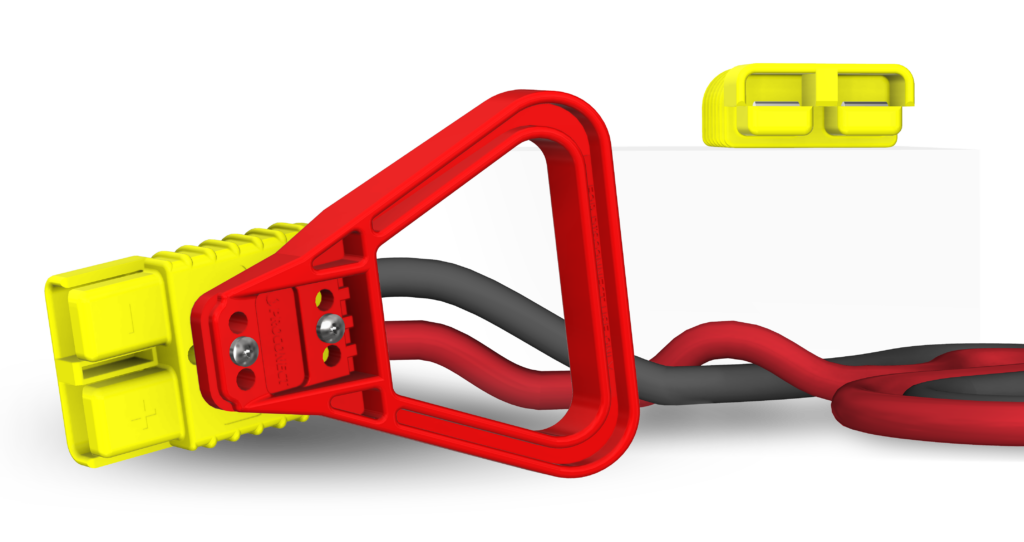

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
Technical datas
CB 175 Connectors Datasheet
More technical informations about the CB 175 solutions.
