NF 160
NF EN 1175-1
DIN VDE 0623-589
DIN VDE 0623-589

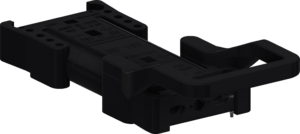

Battery charging connector
- Amp. pilots : 32 A (4 mm²)
- Contacts max. : 2P (+/-) (+4 pilots option)
- Cable section : 16 mm² (AWG 6) - 50 mm² (AWG 1/0)
- Cable diameter max. : 20 mm
- Pilot : 2,5 mm² (AWG 14) / 4 mm² (AWG 12)
- Termination : to crimp, to solder
- Polarity control : coding pin
- Casing : Thermoplastic
- Contacts : Copper alloy
- Fastenings : Stainless steel
- Temperature : -20° +90°C
- Ind. protection : IP23
Connectors

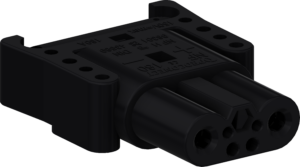

FEMALE CONNECTOR

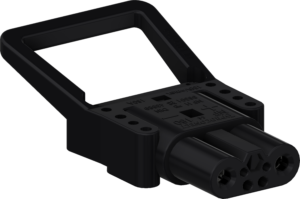

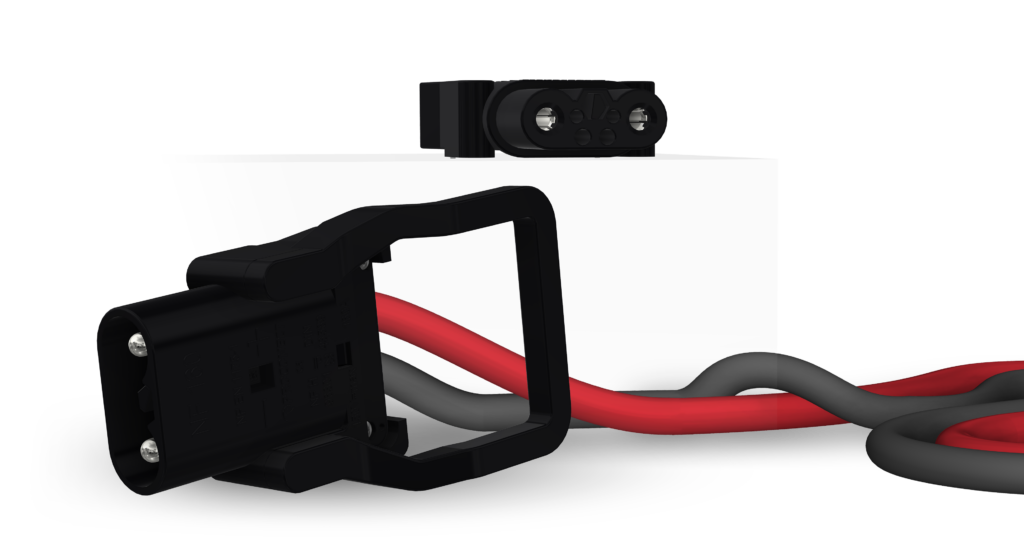

Fixed connector to be installed on a structure (wall-mounted, electrical cabinet, vehicle, etc).
Available with 35 and 50 mm² contacts (AWG 2 - AWG 1/0) or with reduced options for 16 and 25 mm² (AWG 6 - AWG 4) to crimp or to solder.
This connector can be equipped with a handle to help the connection.
MALE CONNECTOR

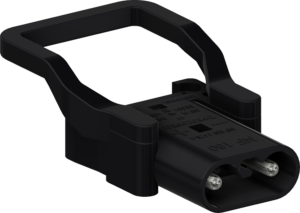

Mobile connector to be cabled.
Available with 35 and 50 mm² contacts (AWG 2 - AWG 1/0) or with reduced options for 16 and 25 mm² (AWG 6 - AWG 4) to crimp or to solder.
This connector can be equipped with a handle to help the connection.
SELECT YOUR CONNECTOR
Options
SELECT YOUR OPTION
DUST CAP

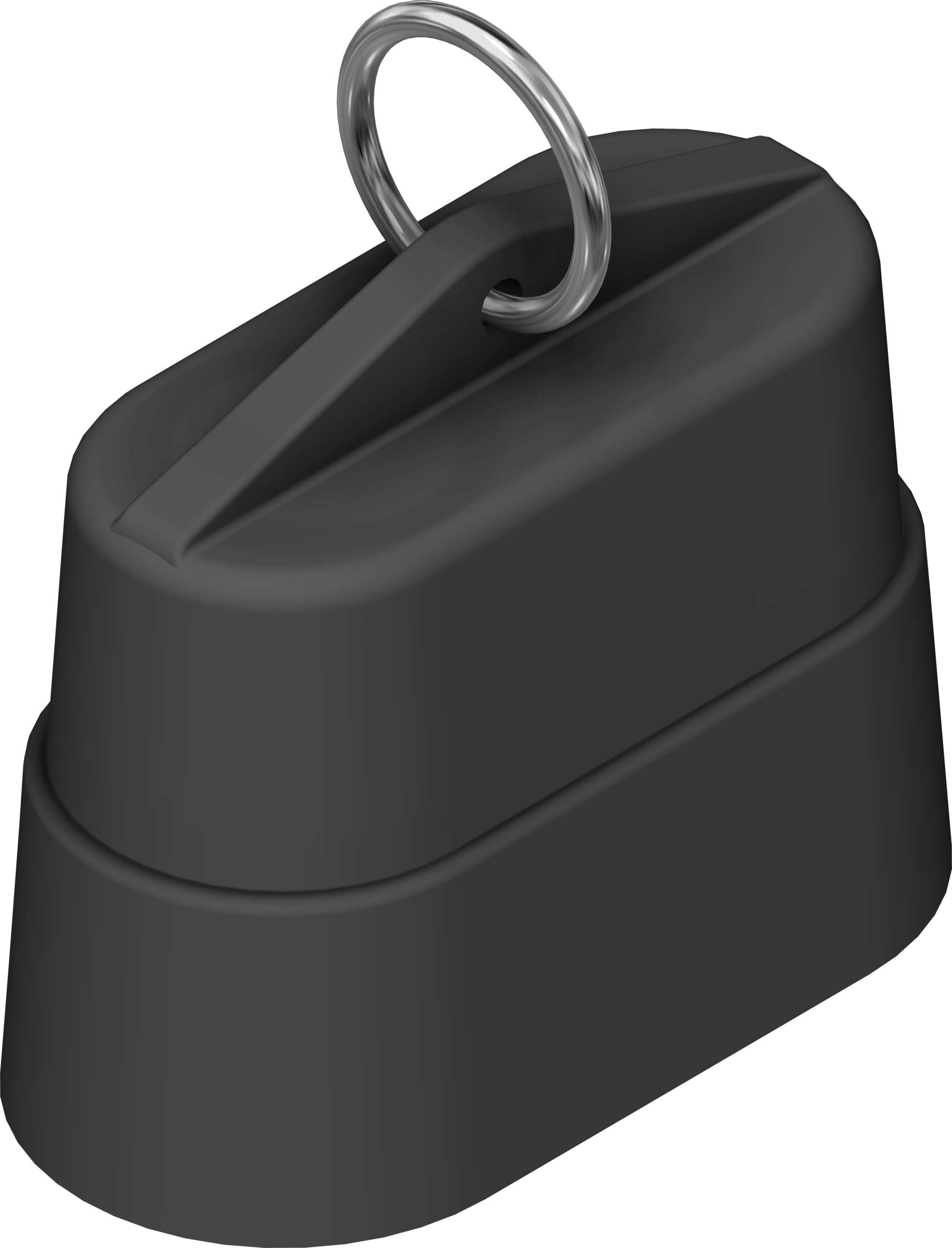

EPDM cap for both male and female connectors.
AUXILIARY PILOT

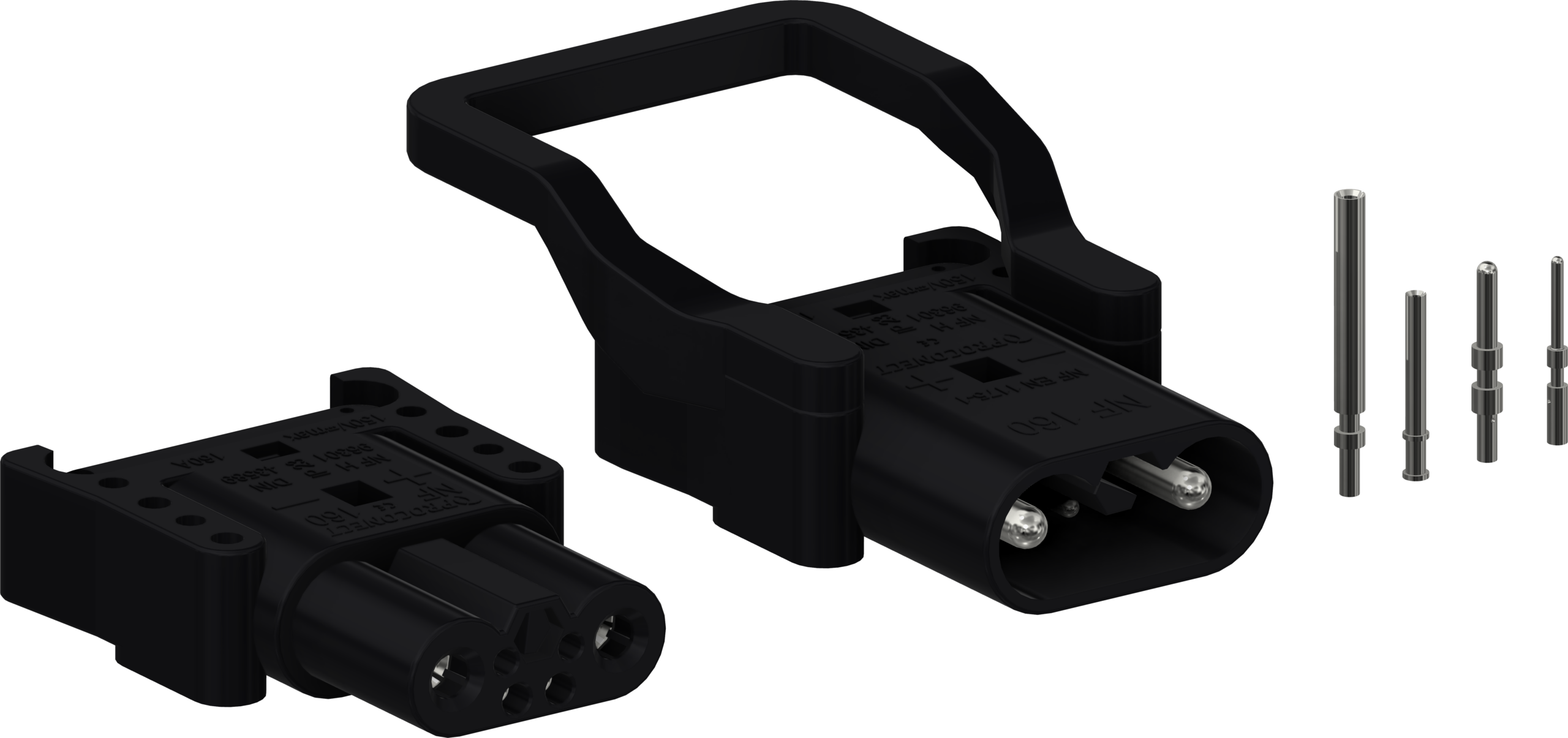

Male and female connectors can be fitted with 4 auxiliary 2,5 mm² (AWG 14) or 2 x 2,5 mm² + 2 x 4 mm² (AWG 14 + 12) contact.
HANDLE

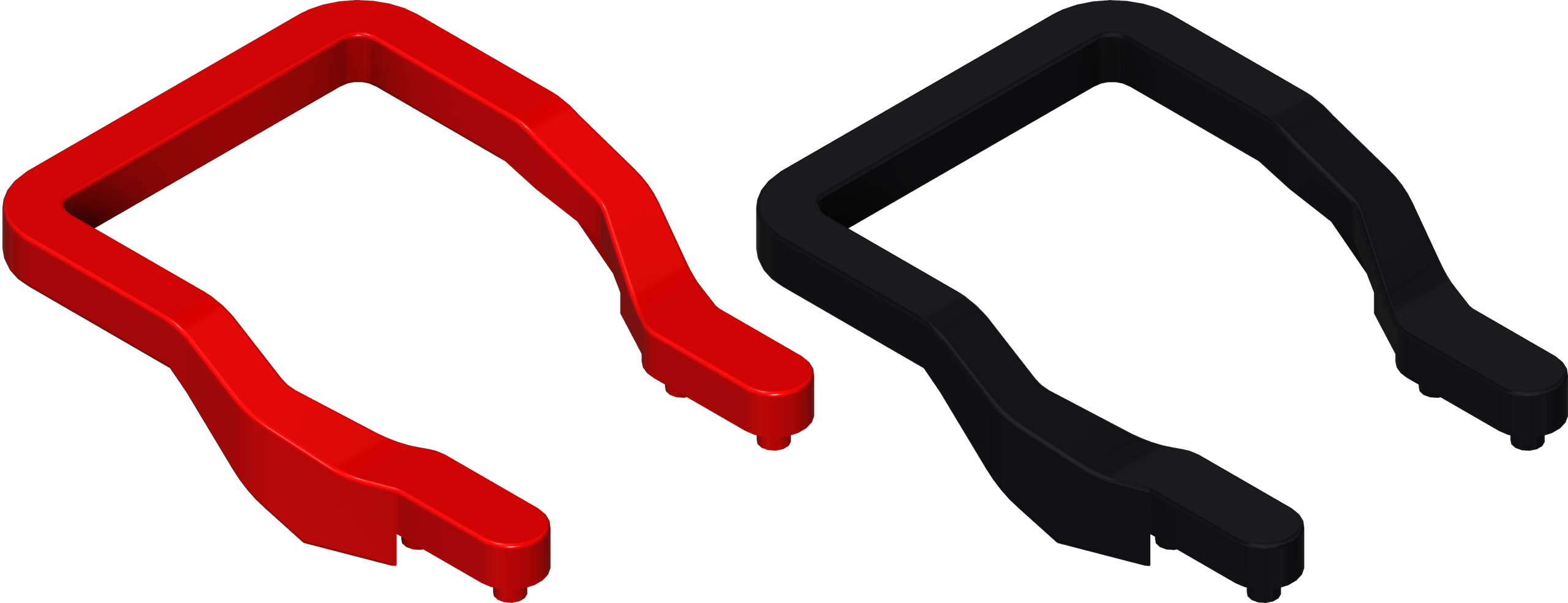

Handles for male or female connectors to help the connection. Available in black or red.

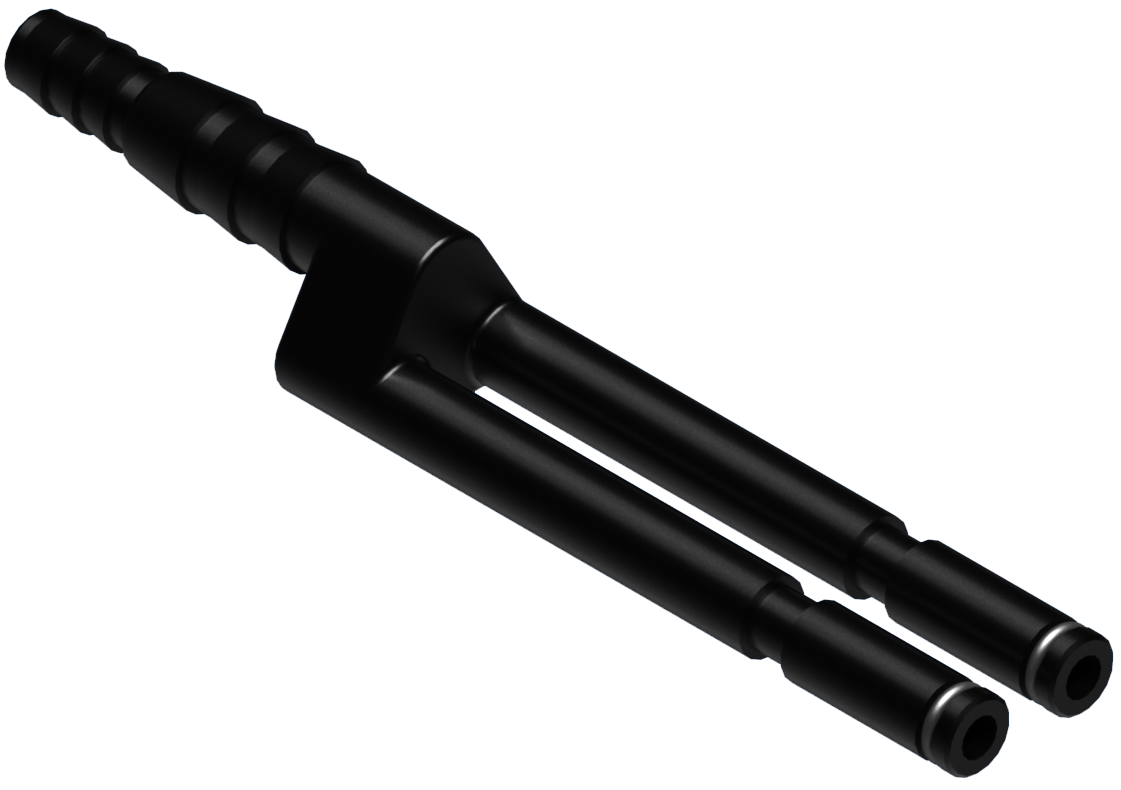

PNEUMATIC CONTACTS
Pneumatic contacts used instead of pilot pins.
REINFORCED HANDLE

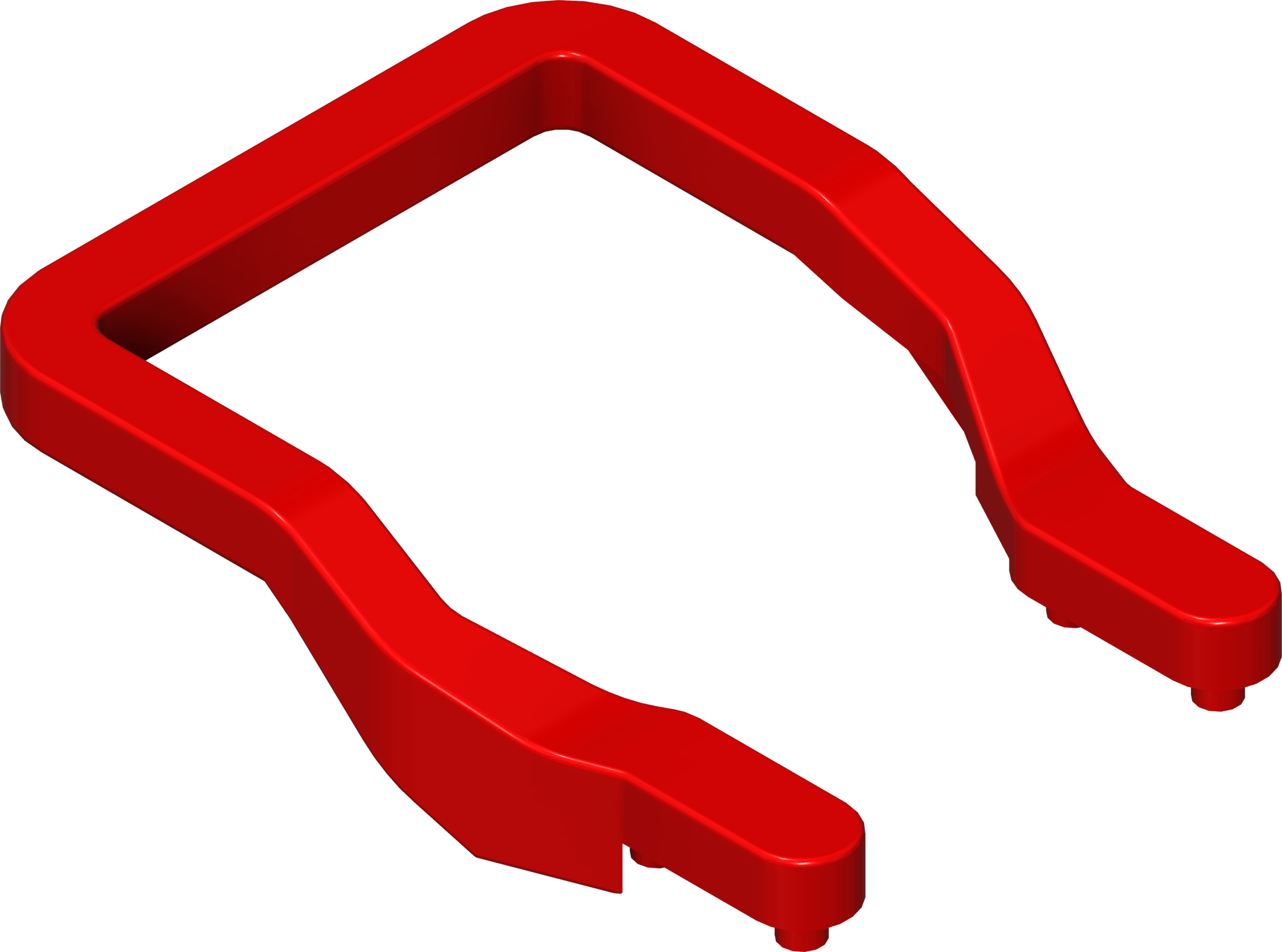

Reinforced handle for female or male connectors.

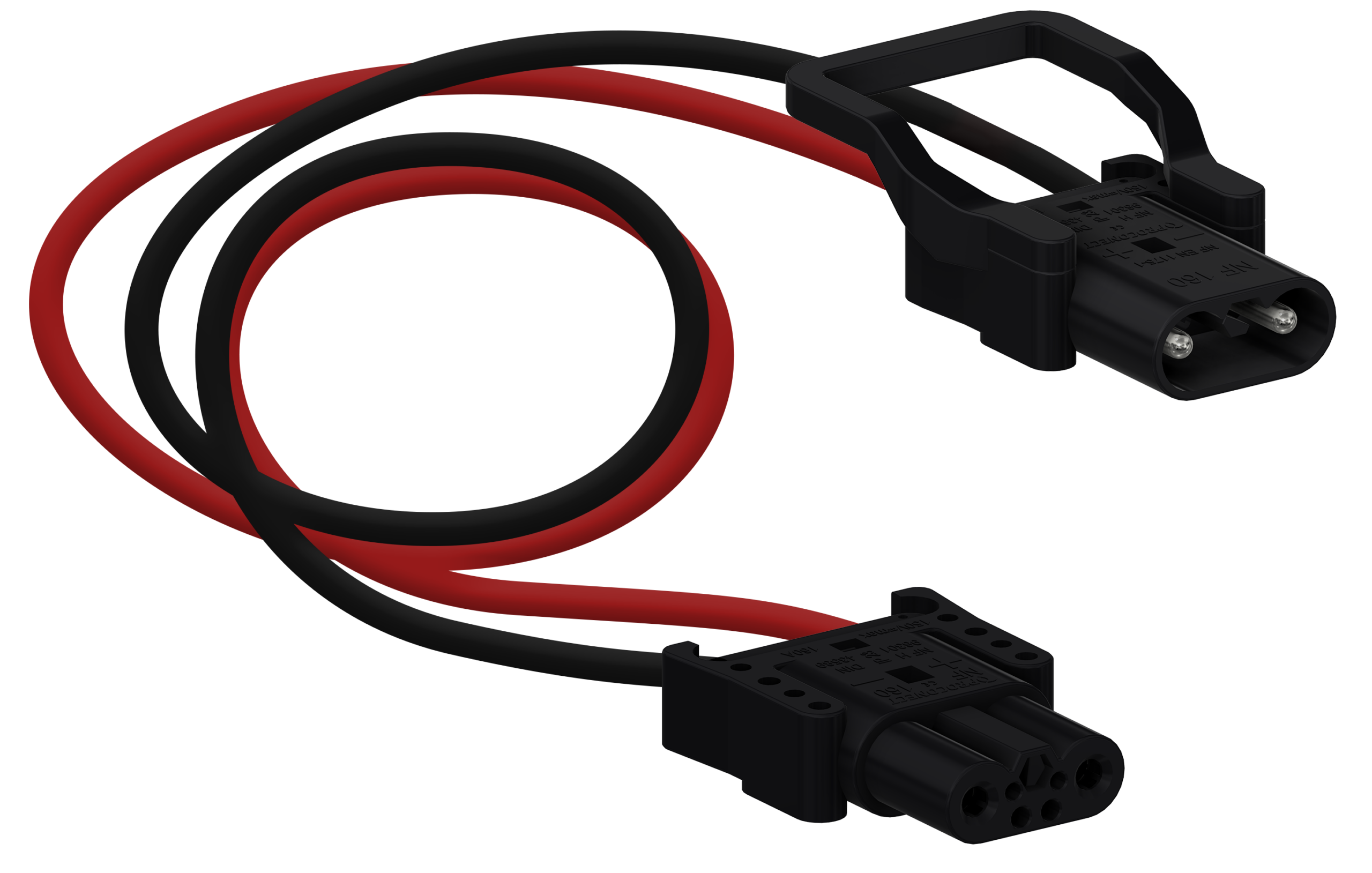

CABLED CONNECTORS OR JUMPERS
Connectors can be ordered pre-cabled or as jumpers.
Technical datas
NF 160 Connectors Datasheet
More technical informations about the NF 160 solutions.
